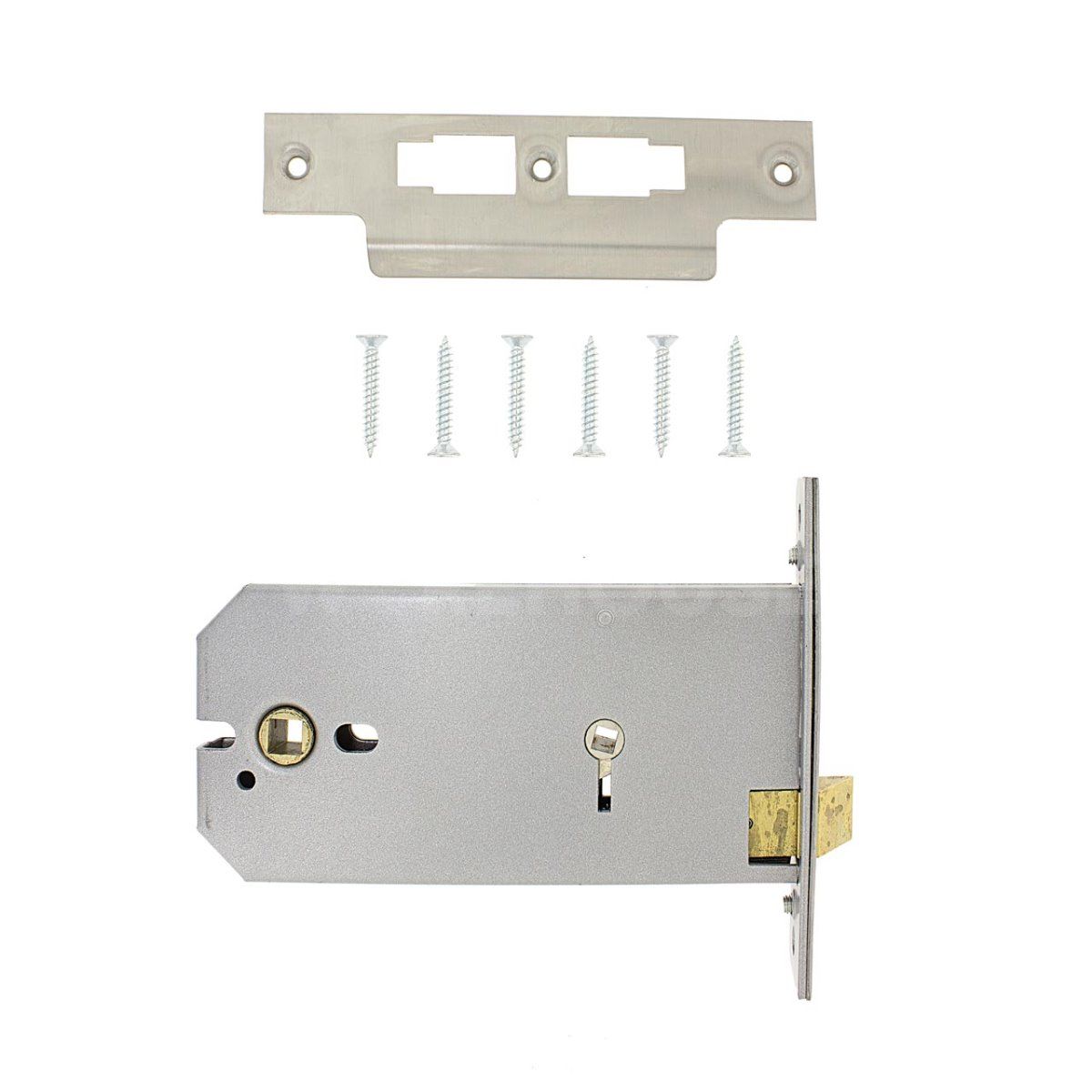

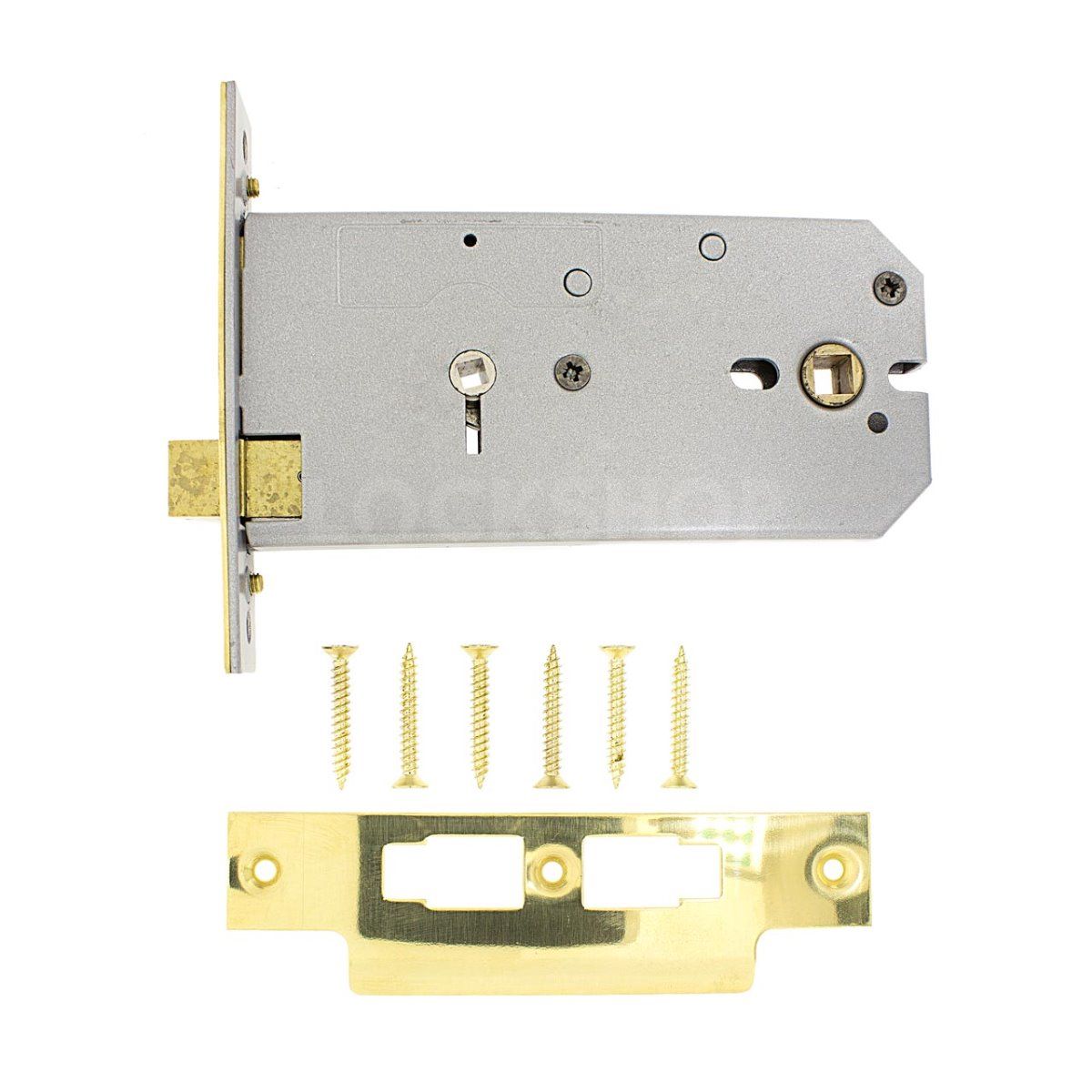

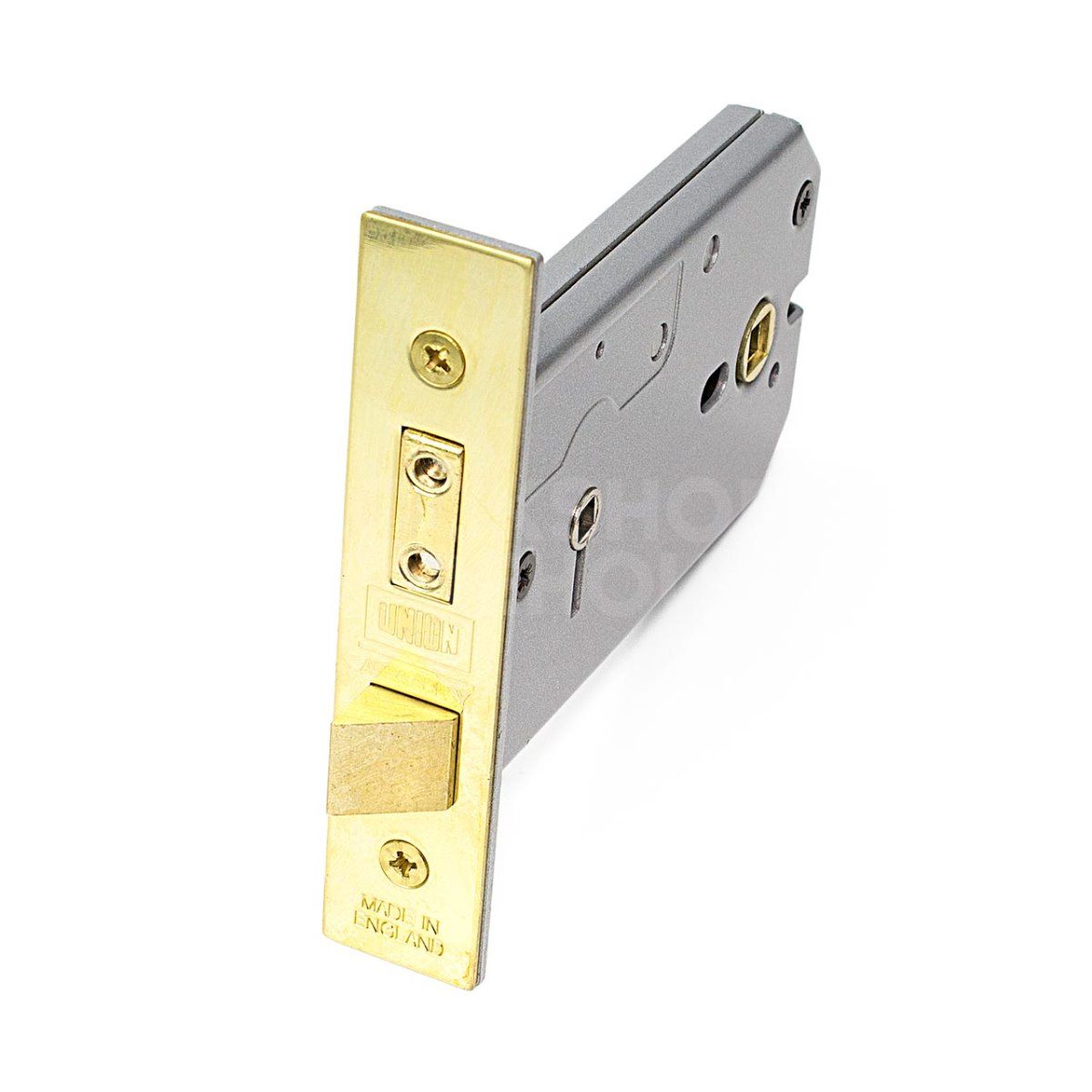

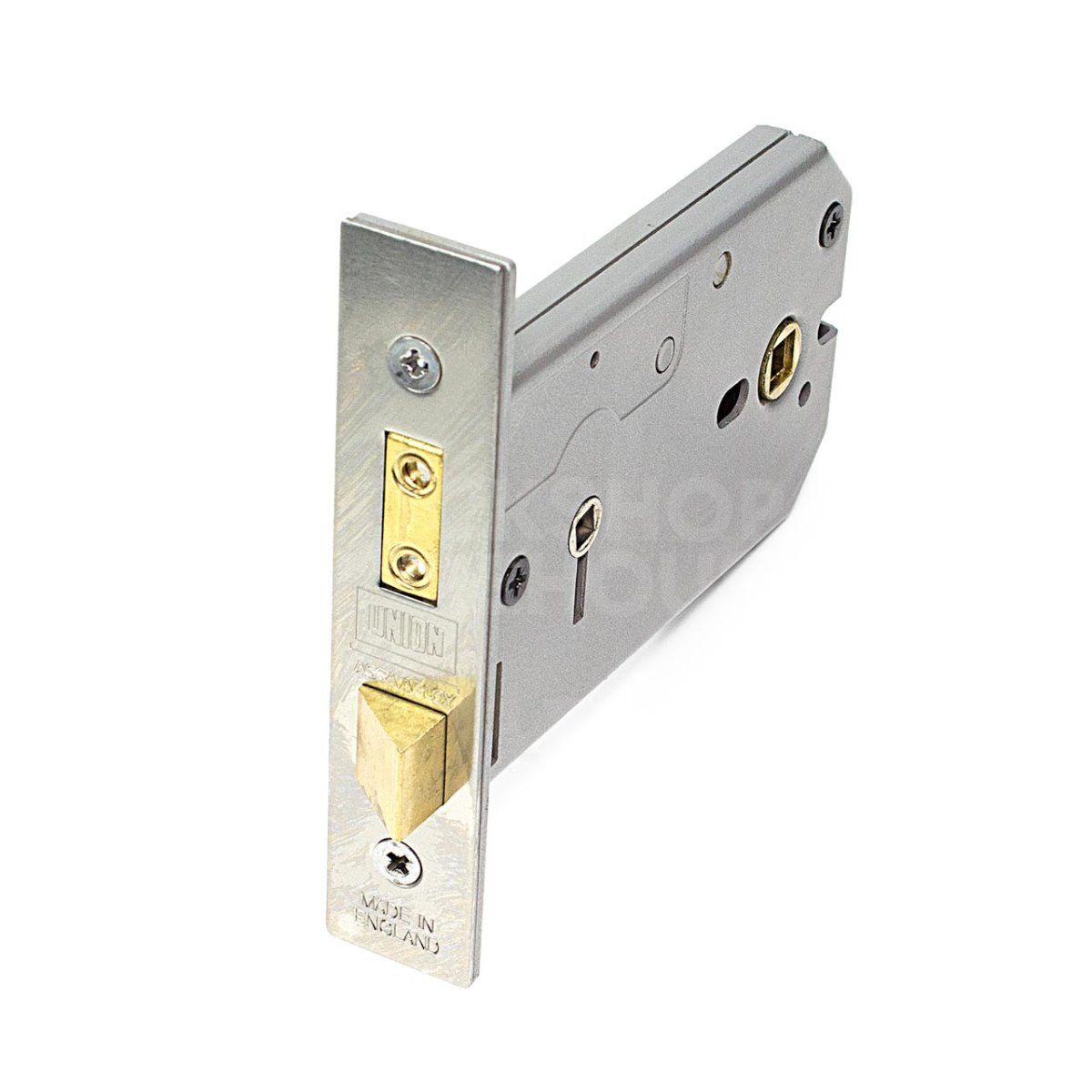

Union 2026 Horizontal Bathroom Lock

£58.79

(£48.99 ex VAT)

sku: UN-2026

These locks are for use with a bathroom turn only! NO KEYS ARE SUPPLIED WITH THIS LOCK!

Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by knob from either side.

No keys are used to operate bathroom locks. Bolt is thrown and withdrawn by use of 5mm spindle which requires an additonal turn knob.

Pierced to accept bolt through furniture.

Case Sizes : 127mm & 152mm
Follower : 8mm (Latch) 5mm (Dead)
Case Finish : Enamelled Silver
Forend Finish : Brass or Satin Chrome

Please measure existing lockcase carefully to assess if you have the 127mm or 152mm size. Important to measure before ordering to ensure the positions of the key hole and spindle follower.

Document Icon product info

Case Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating

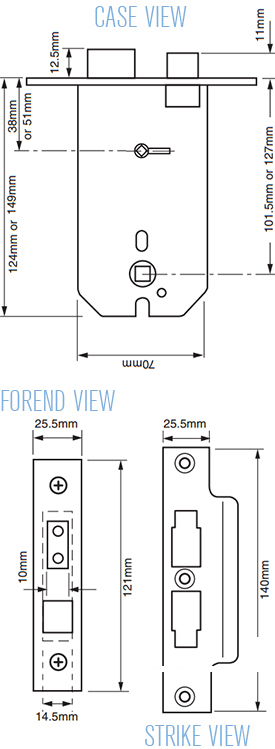

Dimensions Image: Union 2026 Horizontal Bathroom Lock
Part Min (mm) Max (mm)
Follower 101 127
Backset 38 51
Bolt Length 12 -
Case Width 124 149
Case Height 70 -
Forend Width 25 -
Forend Length 121 -
Strike Plate Width 25 -
Strike Plate Length 140 -

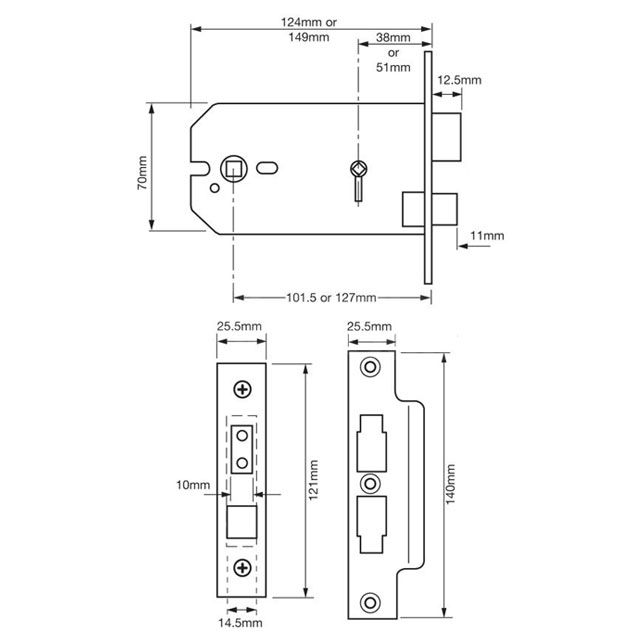

Dimensions Image: Union 2026 Horizontal Bathroom Lock

Brand

SKU

UN-2026

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

No, the Union 2026 is a dedicated bathroom lock and does not use keys. The deadbolt is operated by a 5mm spindle connected to a bathroom thumb-turn from the inside, while the latch is operated by door knobs from either side.

You should carefully measure the total depth of your existing lock case from the front edge of the forend to the very back of the case. This model is available in two specific sizes to ensure the spindle and turn-knob positions align correctly:

  • 127mm depth
  • 152mm depth

Yes. The latchbolt on this horizontal lock is fully reversible, making it suitable for both left-handed and right-handed opening doors. You can easily adjust the orientation of the latch during installation.

This lock is designed for use with door knobs and a separate bathroom thumb-turn set. It features an 8mm follower for the latch (handles) and a 5mm follower for the deadbolt (turn-snib). The case is also pierced to accept bolt-through furniture fixings for a more secure handle attachment.
