Union 2037 Masterkeyed Horizontal Sashlock

£101.99

(£84.99 ex VAT)

sku: 555
  • 3-lever horizontal sashlock mechanism for internal timber doors
  • Deadbolt operated by key from either side for standard security
  • Reversible latchbolt suitable for both left and right-handed doors
  • Two-way 8mm follower operated by knob or lever handle
  • Lock case pierced to accept bolt-through furniture fixings
  • Ideal for applications requiring a horizontal profile and wider spacing
Document Icon product info

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

The Union 2037 Horizontal Sashlock is a 3-lever mortice lock specifically designed for internal timber doors where a horizontal configuration is required. This style of lock provides a wider spacing between the spindle and the keyhole, making it suitable for specific door designs or period-style ironmongery where traditional aesthetics are preferred.

This sashlock features a reversible latchbolt, allowing it to be installed on doors opening in either direction without disassembly. The latch is operated by a knob or lever handle from either side, while the deadbolt is locked or unlocked using a key. The lock case is also pierced to allow for bolt-through furniture, ensuring a stable and secure attachment for door handles.

Ideal for both new installations and the replacement of existing horizontal locks, the Union 2037 offers reliable performance within a standard internal door setup. When replacing an old unit, it is recommended to check the case depth and the vertical distance between the follower and the keyhole to ensure precise alignment with existing apertures.

  • Mechanism: 3-lever
  • Follower: 8mm two-way action
  • Type: Horizontal sashlock
  • Suitability: Internal timber doors

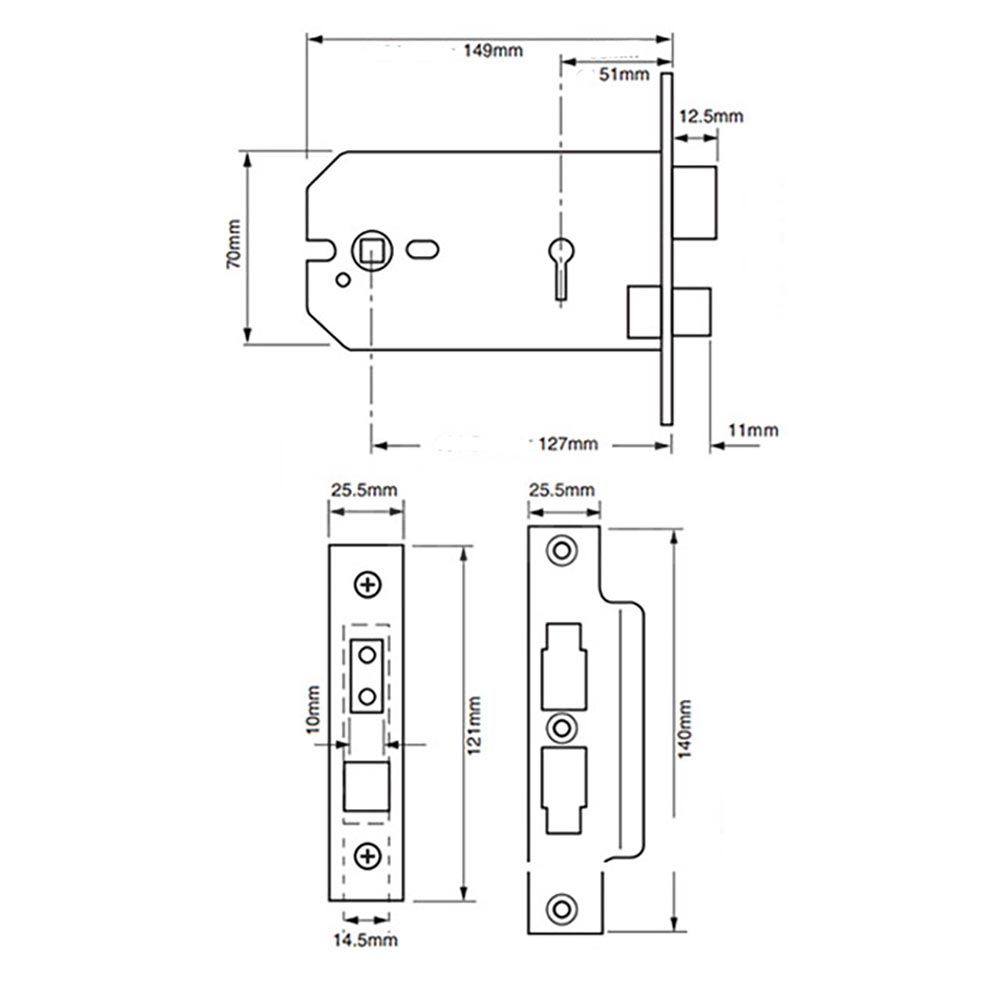

Dimensions Image: Union 2037 Masterkeyed Horizontal Sashlock
Part Min (mm) Max (mm)
Follower 101 127
Backset 38 51
Case Width 127 152
Case Height 70 -
Forend Width 25 -
Forend Length 121 -
Strike Plate Width 25 -
Strike Plate Length 140 -
Dimensions Image: Union 2037 Masterkeyed Horizontal Sashlock

Brand

SKU

555

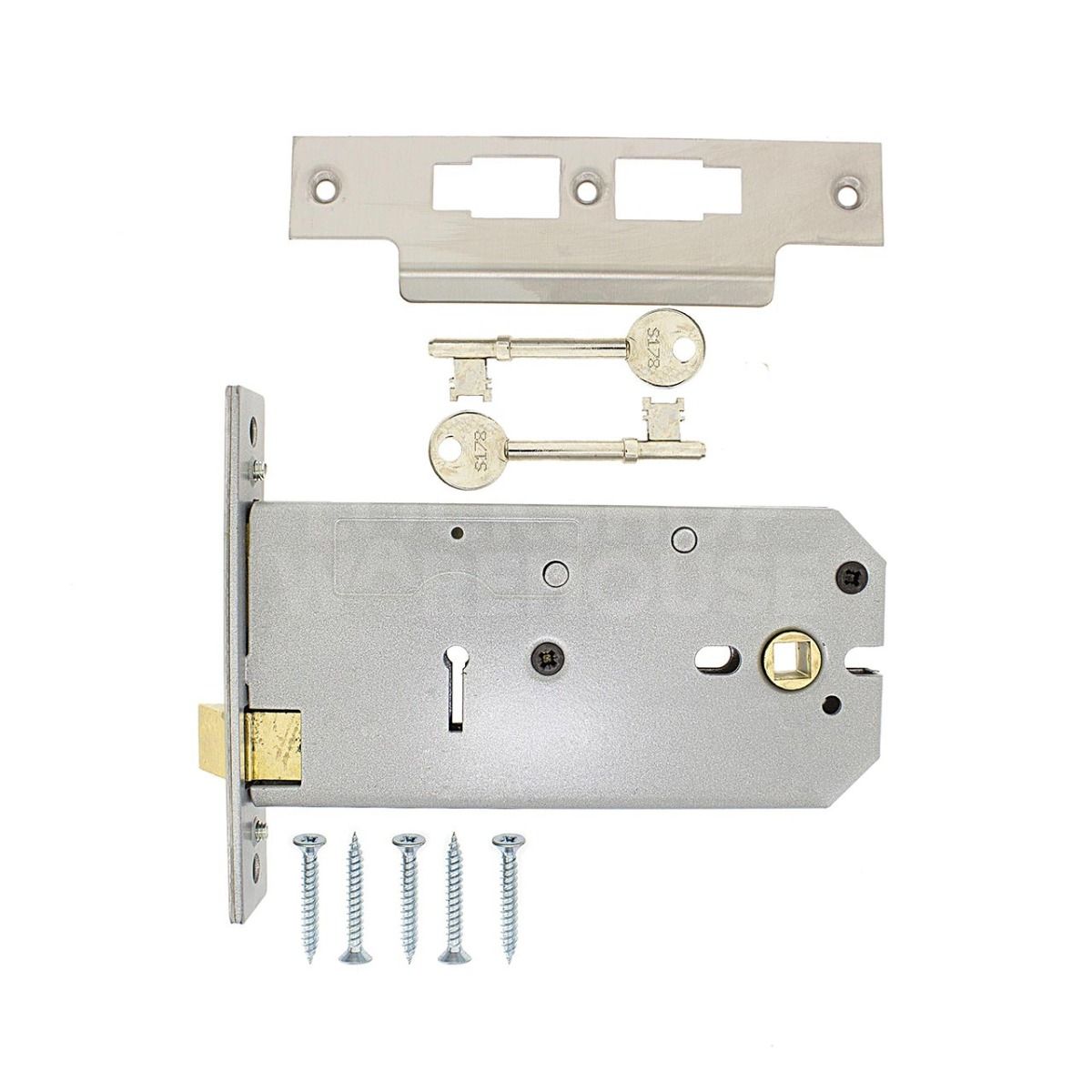

Box Contents

2 keys

strike plate

fixing screws

mortice lock

FAQs

Most of the mortice sashlocks are reversible so you dont have to specify a hand but if you want to state the hand you need we offer a free of charge service to reverse the latches for you to make your lives easier.

The old style horizontal locks have mostly been discontinued as there were so many variations made in the past. We have the Union 2077 available in either the 5 or 6 inch lock cases adn also the Imperial 5 lever Horizontal locks. Sometimes the backset and the spindle follower distances do not match perfectly so some carpentry will be required to replace these locks.

It is essential to measure your existing lock before ordering. The case size (127mm/5" or 152mm/6") determines the backset, which is the distance from the edge of the door to the center of the keyhole and the spindle. Measuring accurately ensures the lock will align with the existing holes in your door.

Yes, this lock features a reversible latchbolt. This allows it to be easily adjusted to suit doors that open either to the left or to the right, making it a versatile choice for various interior door installations.

Yes, the lock case is pierced to accept bolt-through furniture. This feature allows the fixing bolts of your door knobs or handles to pass directly through the lock body, providing a much more secure and stable attachment to the door.

This Union 2037 model uses a 3-lever mechanism and is supplied with 2 keys. The deadbolt is operated by a key from either side, while the latch is retracted by a knob using an 8mm follower with two-way action, allowing the handle to be turned in either direction.

skip to Masterkey for Union 2037 Master keyed Locks

Masterkey for Union 2037 Master keyed Locks

£23.99

(£19.99 ex VAT)

sku: UNION-MK2037
  • Compatible with Union 2037 series master keyed lever locks
  • Enables authorised access to multiple lock units within a designated suite
  • Simplifies key management for facilities managers and maintenance teams
  • Provides a functional override for emergency or administrative entry
  • Precision manufactured to ensure reliable operation with Union lever mechanisms
  • Suitable for commercial, industrial and multi-occupancy residential settings
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2037 Master Key is a technical component designed for use with the 2037 series of master keyed lever locks. It functions by overriding the individual locking mechanisms within a specific suite, allowing a single key holder to access multiple doors while individual users remain restricted to their specific locks.

Typically used in commercial and industrial environments, this key is essential for maintenance staff, security personnel, and facilities managers who require efficient movement through a building without carrying numerous individual keys. It is also frequently utilised in multi-occupancy residential buildings for emergency access and administrative control.

  • Compatible with Union 2037 lever locksets configured for master keying.
  • Ideal for replacing lost master keys or expanding existing master suites.
  • Ensures streamlined key control and building management.

Please ensure that the lock suite reference matches the 2037 series requirements to guarantee full functional compatibility across all units.
