skip to Union 2144E Euro Cylinder Deadcase

Union 2144E Euro Cylinder Deadcase

£47.99

(£39.99 ex VAT)

sku: U2144E
  • Designed for use on timber doors hinged on either the left or right
  • Features a 20mm extended deadbolt for secure deadlocking and jemmy resistance
  • Compatible with standard Euro profile cylinders for flexible keying options
  • Deadbolt reinforced with hardened steel rollers to resist sawing attacks
  • Suitable for applications requiring key-only operation without a latch mechanism
  • Recommended for installation on doors with a minimum thickness of 44mm
  • Compatible with specific rebate sets for use on double door configurations

Finish

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

heavy-duty Heavy Duty
8/10 Security Rating

The Union 2144E Euro Cylinder Deadcase is a high-security mortice lock specifically engineered for use on timber doors. This deadcase provides a robust locking solution, operating in conjunction with a standard Euro profile cylinder to allow for secure deadlocking. Its versatility makes it suitable for both residential and commercial applications where a handle-operated latch is not required.

A primary security feature of this unit is the 20mm extended deadbolt, which offers enhanced resistance against jemmy attacks and forced entry. The deadbolt is further strengthened with hardened steel rollers to protect against sawing. This lock is ideal for new installations or as a direct replacement for existing deadcases of a similar profile.

  • Can be integrated into master key systems when used with compatible cylinders.
  • Engineered to provide positive deadlocking for maximum security.
  • Suitable for use on doors at least 44mm thick to maintain structural integrity.
  • Designed for durability and long-term performance in high-use environments.

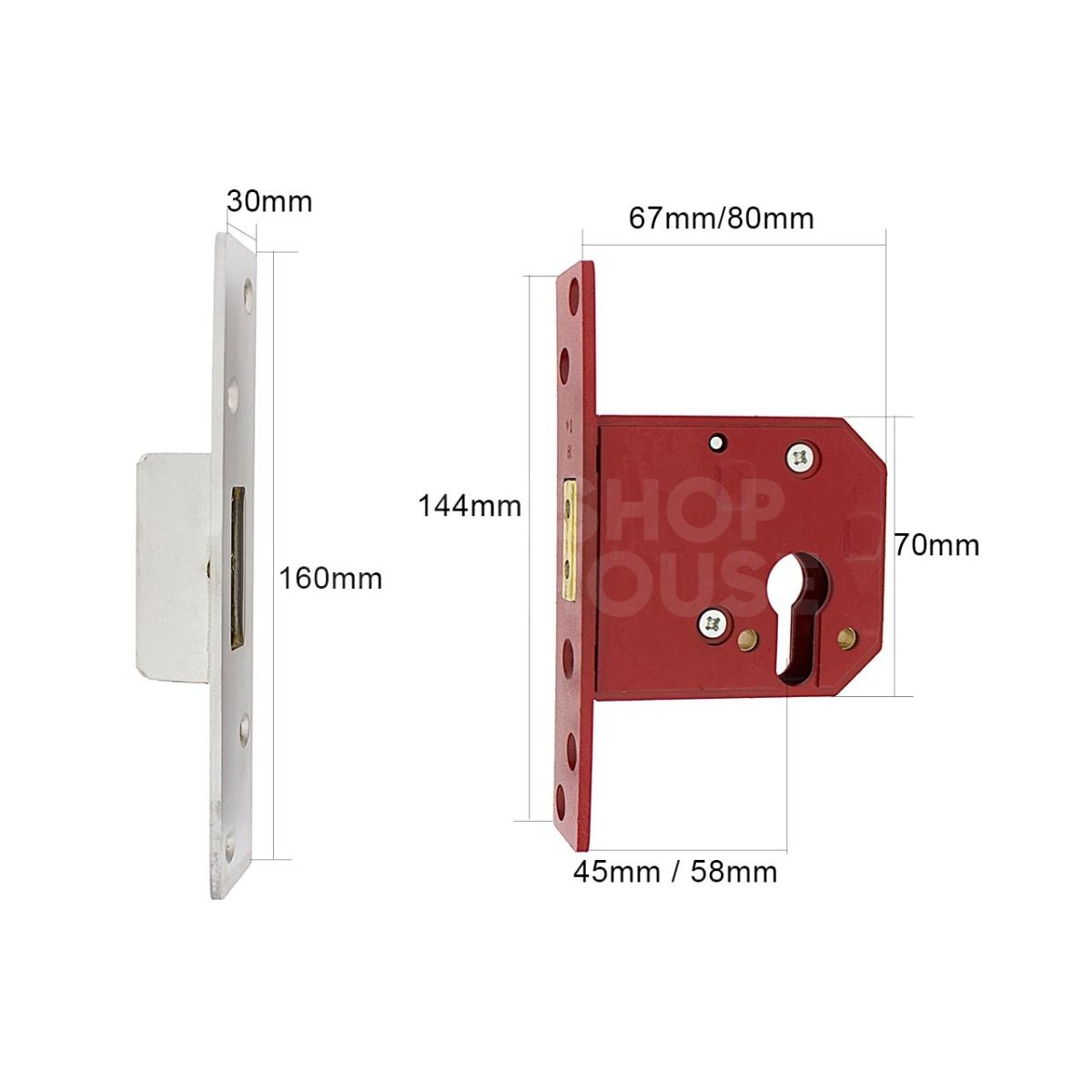

Dimensions Image: Union 2144E Euro Cylinder Deadcase
Part Min (mm) Max (mm)
Backset 45 58
Bolt Length 20 -
Case Width 67 80
Case Height 70 -
Forend Width 25 -
Forend Length 144 -
Strike Plate Width 30 -
Strike Plate Length 160 -
Dimensions Image: Union 2144E Euro Cylinder Deadcase

Brand

SKU

U2144E

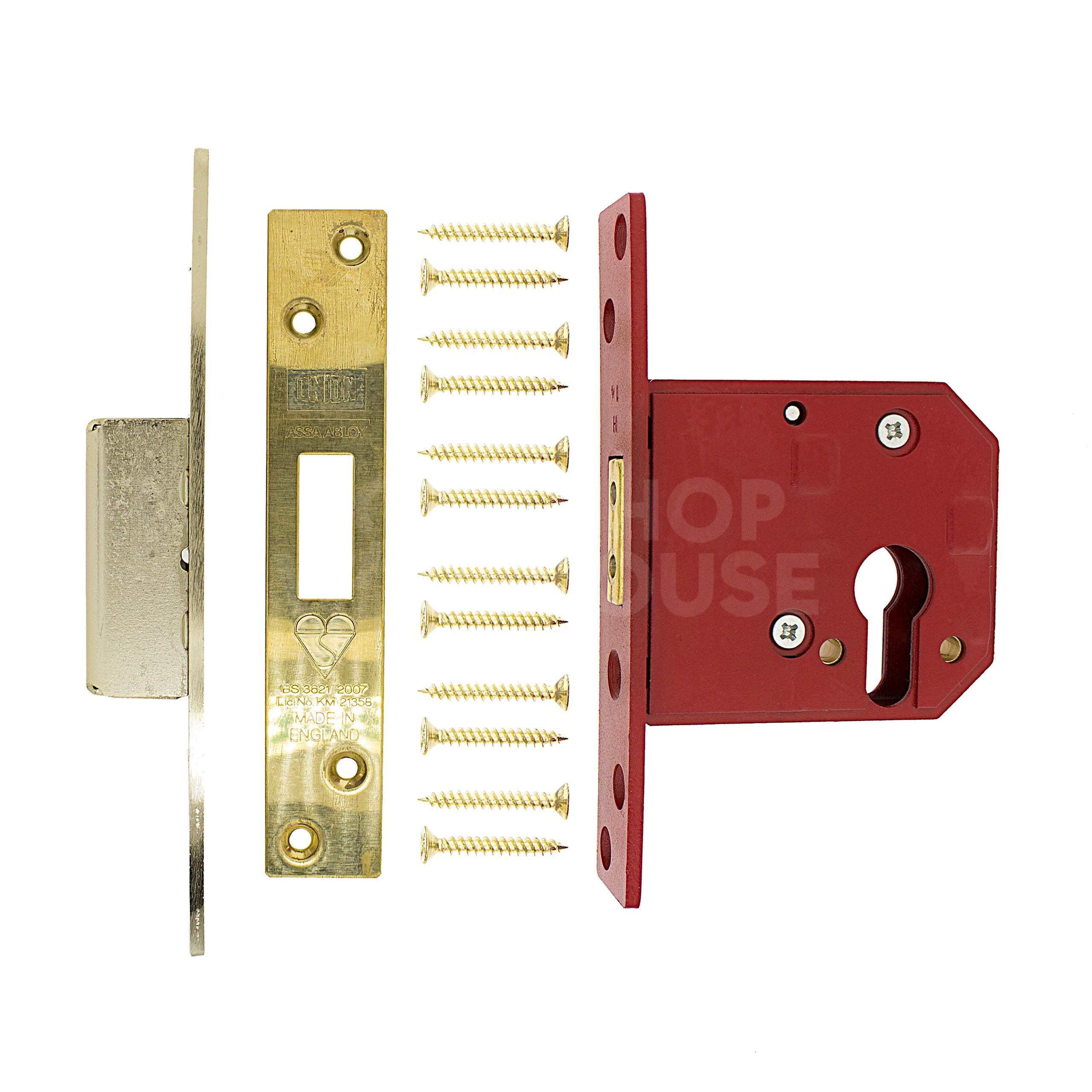

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Union 2144E is a deadcase designed specifically for use with Euro profile cylinders. This allows you to select a cylinder that meets your preferred security level and keying requirements.

To ensure a secure installation and maintain the structural integrity of the door, it is recommended that this lock case is fitted to wooden doors with a thickness of at least 44mm.

Yes, this mortice deadcase is universal and suitable for use on wooden doors hinged on either the left or right side.

The lock features an extended 20mm deadbolt to provide positive deadlocking. The brass bolt includes hardened steel rollers for increased resistance against sawing and jemmy attacks.

skip to Union 2954 Deadlock Rebate

Union 2954 Deadlock Rebate

£40.79

(£33.99 ex VAT)

sku: U2954
  • Enables the installation of deadlocks on rebated double doors
  • Fully reversible design suits both left and right-hand applications
  • Specifically compatible with the Union 2954 series mortice deadlocks
  • Provides a secure housing for the lock bolt within the meeting stiles
  • Includes strike plate, rebate component and all necessary fixings
  • Suitable for use on timber door frames and leaves

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2954 Deadlock Rebate Set is an essential accessory designed to facilitate the installation of mortice deadlocks into rebated double doors. When two doors meet with an overlapping rebate, a standard flat strike plate is unsuitable; this kit provides the necessary offset components to ensure the lock functions correctly and remains secure.

This set is specifically engineered for use with the Union 2954 series, ensuring precise alignment and compatibility. The components are fully reversible, making them suitable for both left and right-hand door configurations without the need for complex modifications during installation.

Typically used in residential and commercial timber door applications, the rebate set is required for new installations on double doors or as a replacement for worn rebate components. Each kit is supplied with the rebate strike, the rebate box section, and matching wood screws for a complete installation. Its robust construction ensures reliable performance in high-traffic areas where double door security is paramount.
