Union 2226 Bathroom Lock

£35.99

(£29.99 ex VAT)

sku: U226

Deadbolt is locked or unlocked by turn from the inside.Reversible latchbolt withdrawn by lever handle from either side.

Pierced to accept bolt through furniture. Suitable for use with unsprung lever handles.

Case Sizes : 64mm, 76mm & 102mm
Follower : 8mm (Latch) 5mm (Dead)
Case Finish : Enamelled Silver
Forend Finish : Brass or Satin Chrome

Document Icon product info

Finish

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
3/10 Security Rating

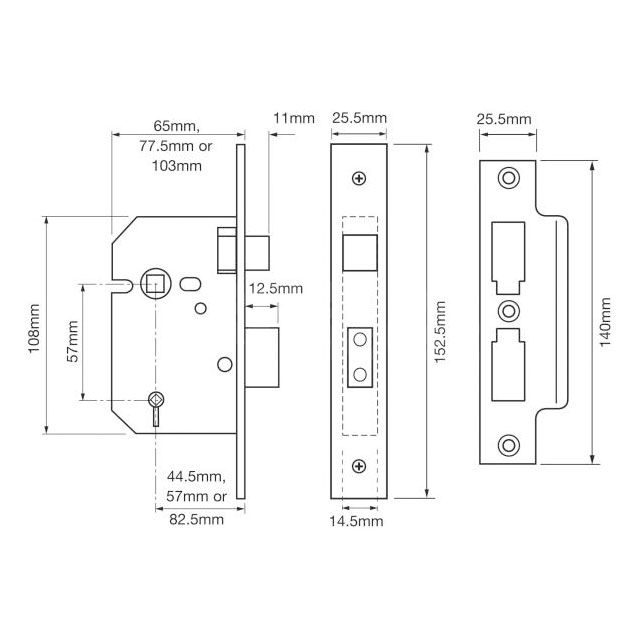

Dimensions Image: Union 2226 Bathroom Lock
Part Min (mm) Max (mm)
centres 57 -
Backset 44 82
Bolt Length 12 -
Case Width 65 103
Case Height 108 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 25 -
Strike Plate Length 140 -
Dimensions Image: Union 2226 Bathroom Lock

Brand

SKU

U226

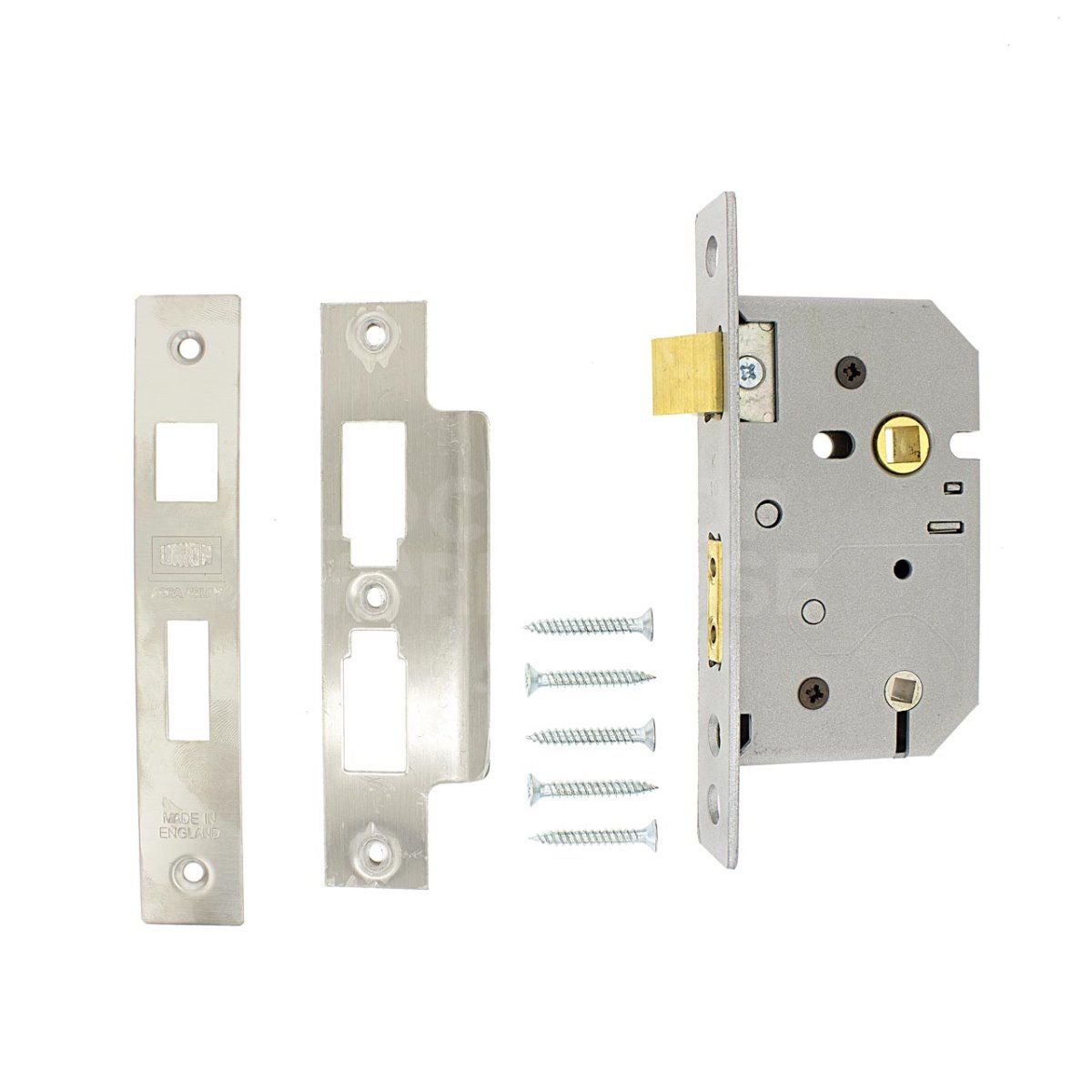

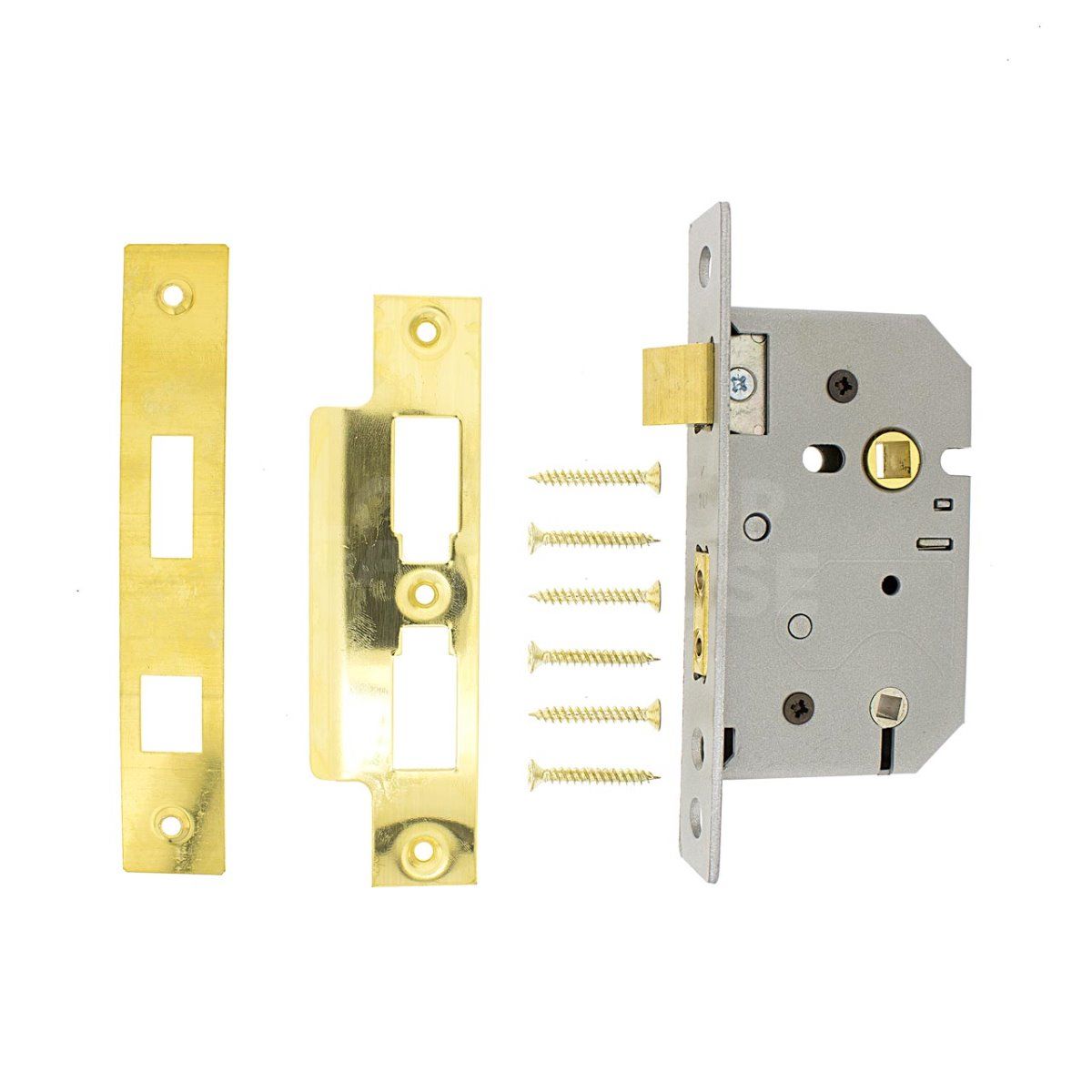

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Union 2226 features a 5mm follower for the deadbolt, which is the standard size for bathroom thumbturn spindles. The latch uses a standard 8mm follower for use with lever handles.

Yes, the latchbolt is fully reversible, allowing the lock to be installed on doors that open either to the left or the right.

Yes, the lock case is pierced to accept bolt-through furniture, which allows handle fixing screws to pass directly through the lock for a more secure and durable installation.

The Union 2226 bathroom lock is available in three different case sizes to suit various door types and backset requirements:

  • 64mm
  • 76mm
  • 102mm
