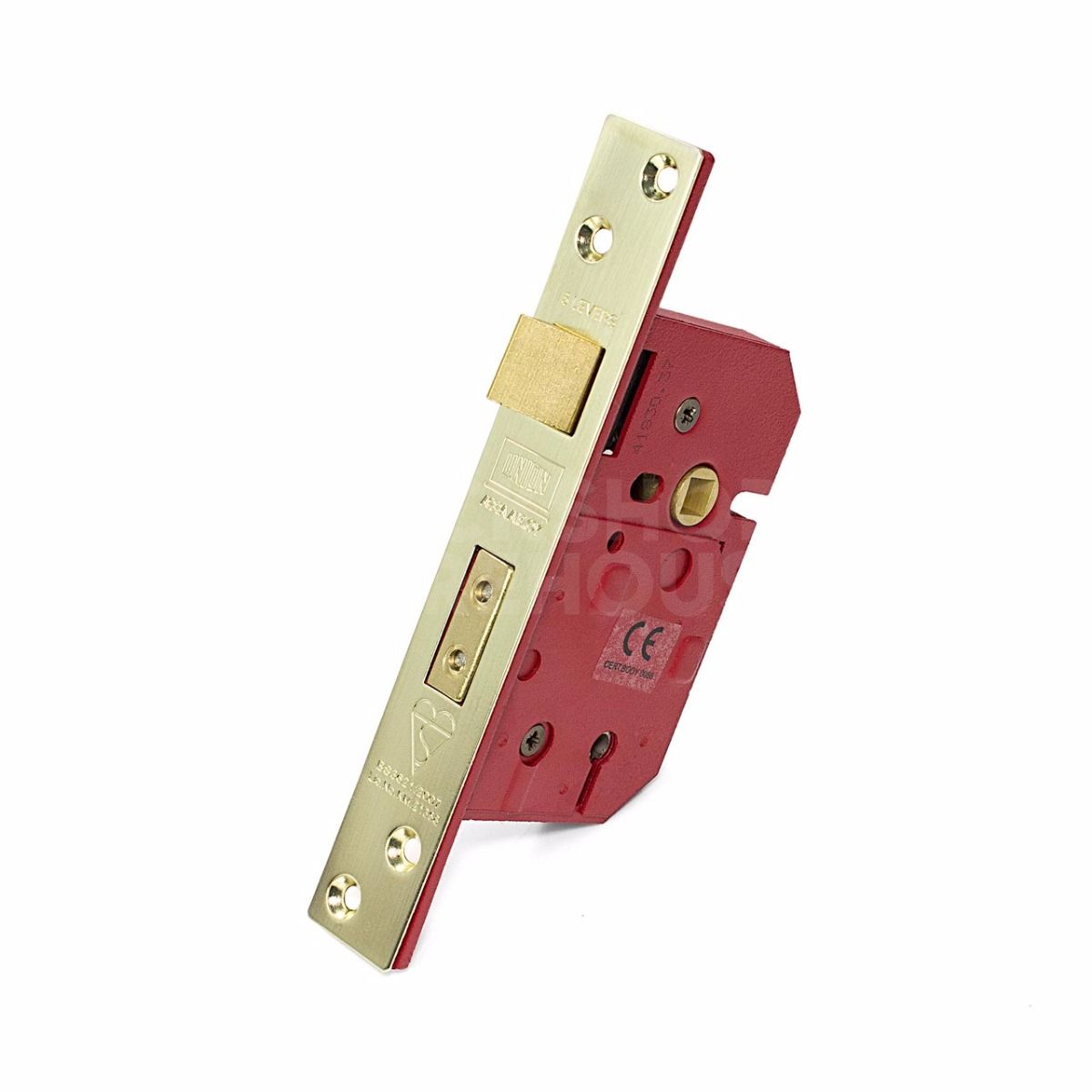

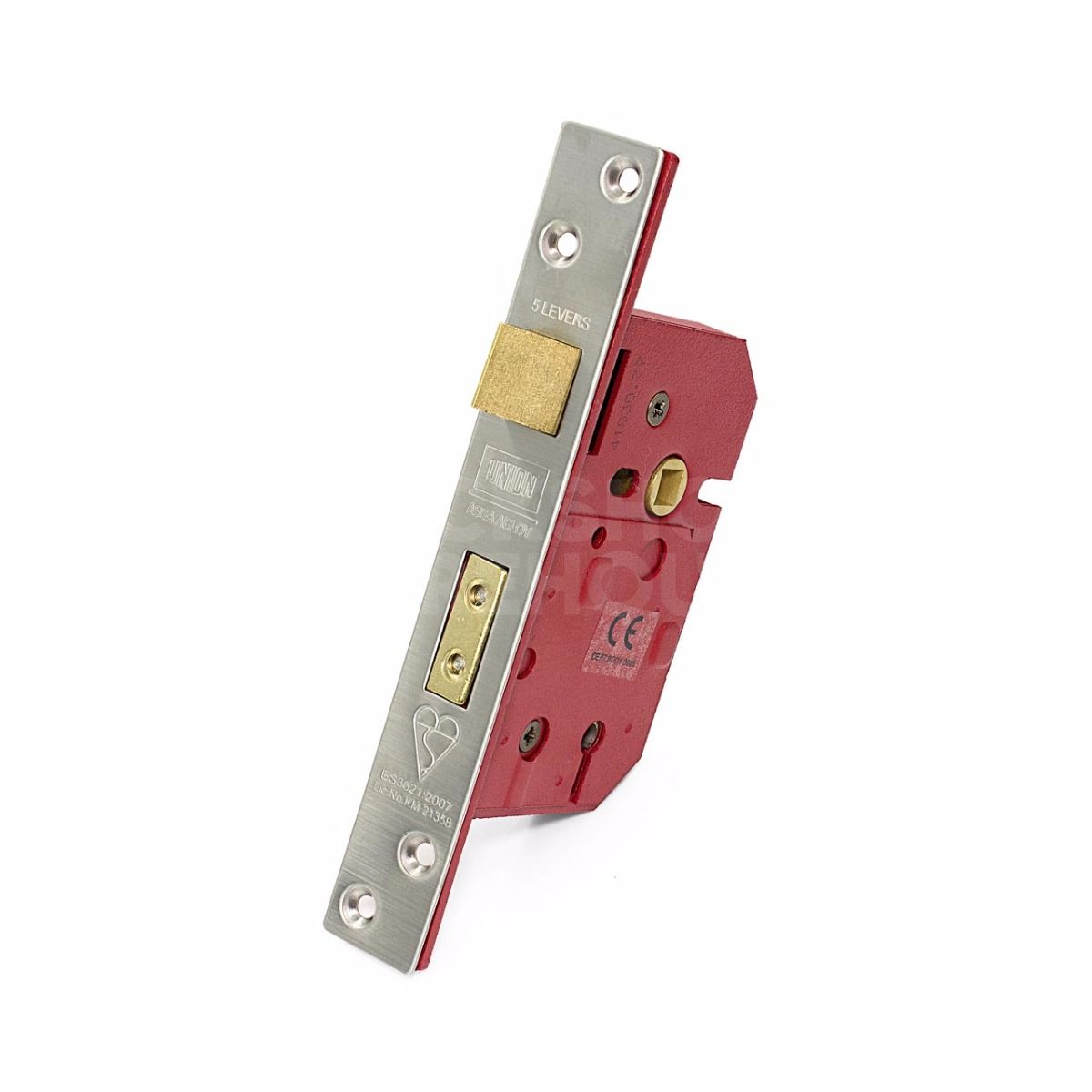

Union 2234E Sashlock (BS3621:2007)

£39.59

(£32.99 ex VAT)

Designed and manufactured to the highest security specifications this is Unions top of the line sashlock. Meeting and exceeding British Standards (BS3621:2007) this lock is fully insurance and police compliant. Our team of Master Locksmiths would strongly recommend this as a durable and reliable 5 lever mortice lock.

Mechanism: 5 Lever
Security Level: British Standard - BS3621:2007
Case Size: 64mm or 76mm
Case Finish: Red
Forend Finish: Polished Brass or Satin Chrome
Keys Supplied: 3
Differs: 1000 +
Handling: Reversible

Union BS3621 Range of mortice locks which can be keyed alike together

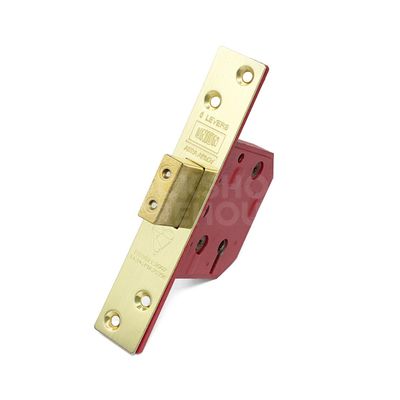

Union 2134E Mortice Deadlock (BS3621:2007) £ 37.19
Union 2234E Sashlock (BS3621:2007) £ 39.59

Key Configuration

Case Size

Finish

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
star Recommended
heavy-duty Heavy Duty
9/10 Security Rating
10 Year Guarantee
british-standard British Standard - BS3621
british-standard British Standard - EN 1634-1
ce CE Marked
key-pinned Key Profile: Standard

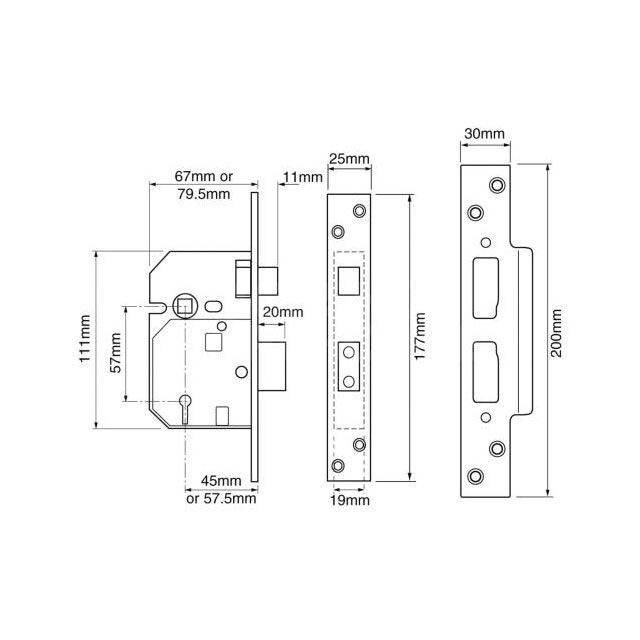

Dimensions Image: Union 2234E Sashlock (BS3621:2007)
Part Min (mm) Max (mm)
centres 57 -
Backset 45 57.5
Bolt Length 20 -
Case Width 67 79.5
Case Height 111 -
Forend Width 25 -
Forend Length 177 -
Strike Plate Width 30 -
Strike Plate Length 200 -
Dimensions Image: Union 2234E Sashlock (BS3621:2007)

Brand

SKU

U2234E

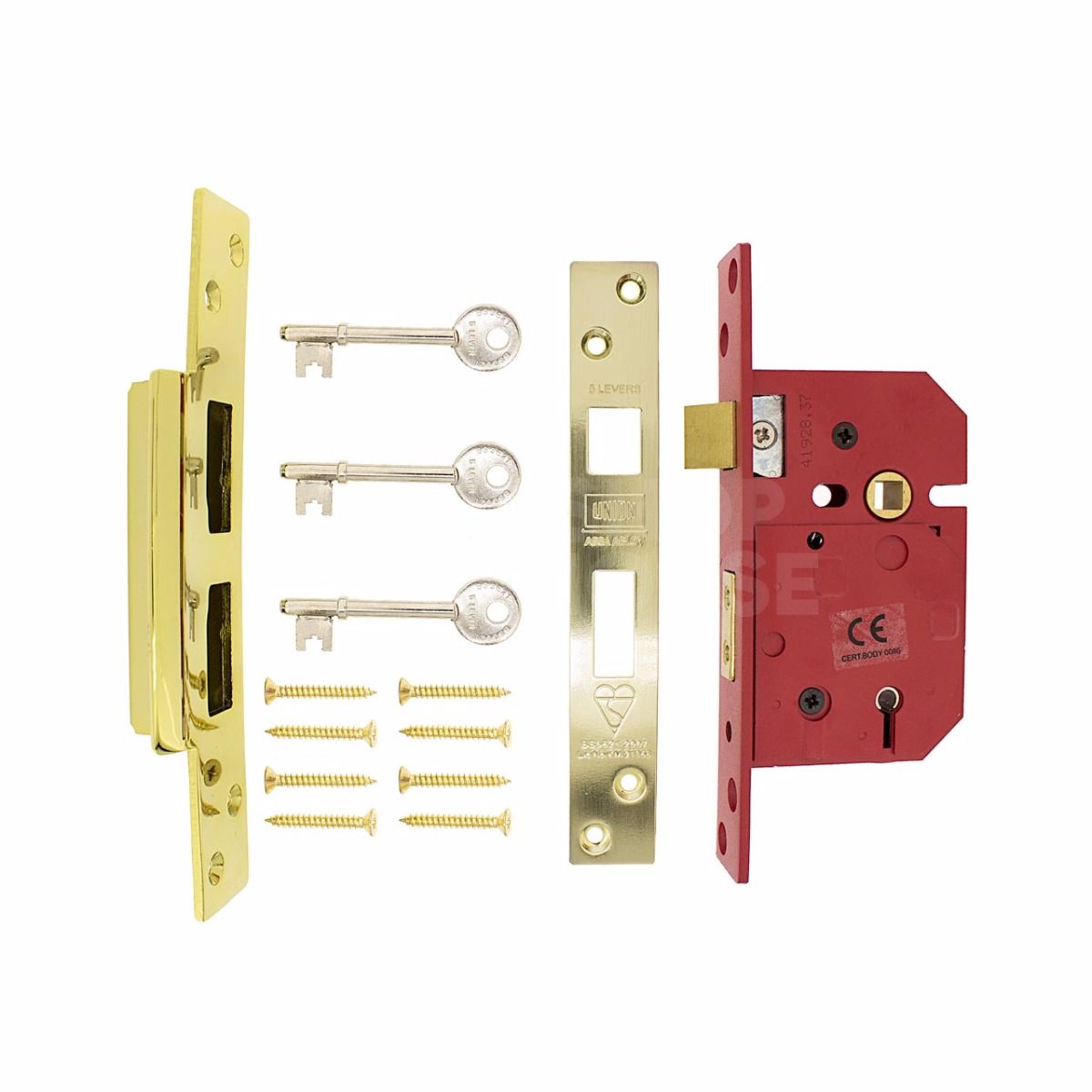

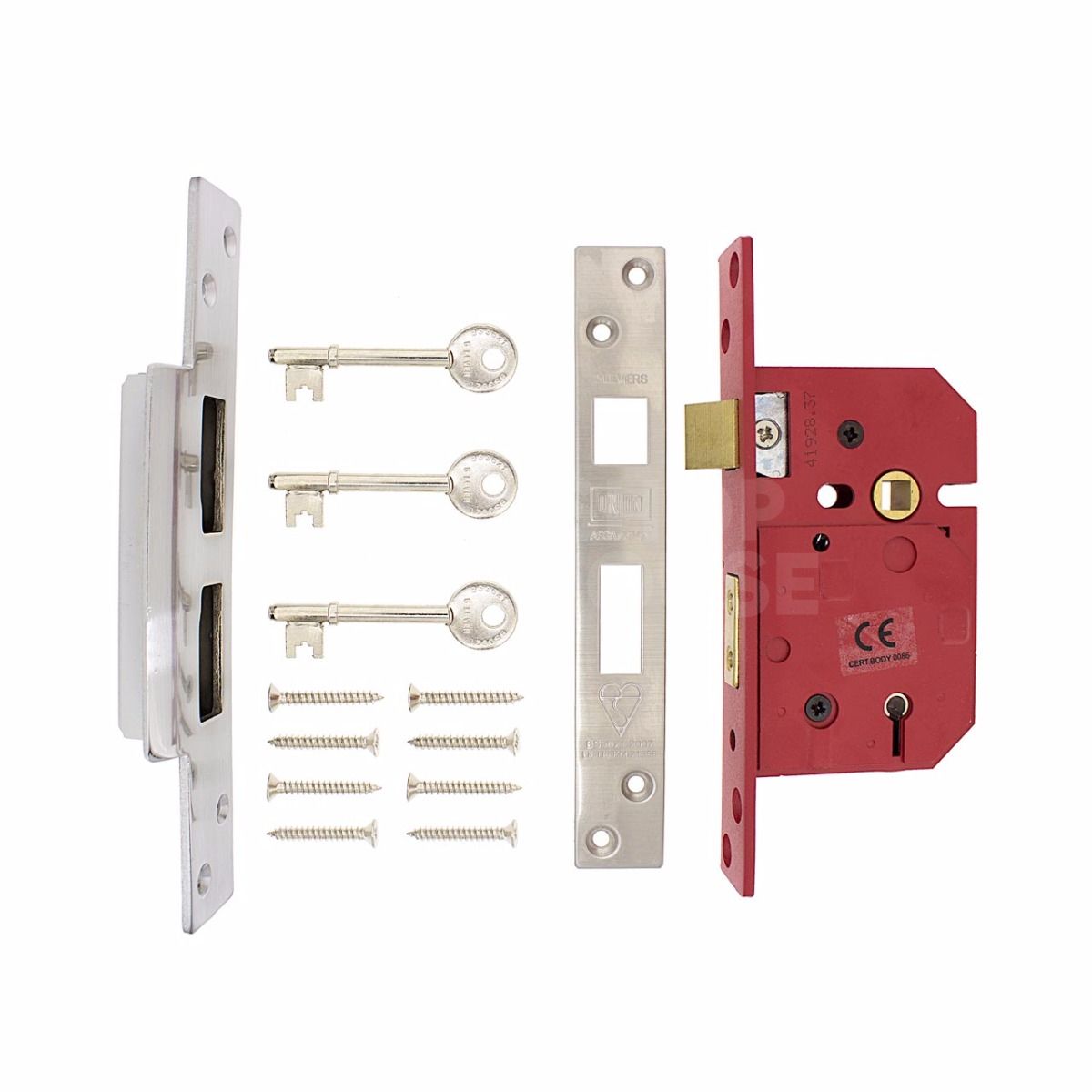

Box Contents

mortice lock

3 keys

strike plate

fixing screws

Certifications

british-standard British Standard - BS3621
british-standard British Standard - EN 1634-1
ce CE Marked

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Sashlocks are typically suitable for both left- and right-handed doors, as well as inward- and outward-opening applications. They are designed to be reversible on site, making installation flexible and straightforward.

Depending on the brand and model, latch reversal can be done in one of two ways:

  • Pull and twist the latch bolt to the desired position

  • Remove a retaining screw on the back of the lock case, rotate the latch, then refit the screw

This allows for easy adjustment during installation without the need for specialized tools.

Related Products

skip to UNION 5 Lever Mortice Locks Extra key

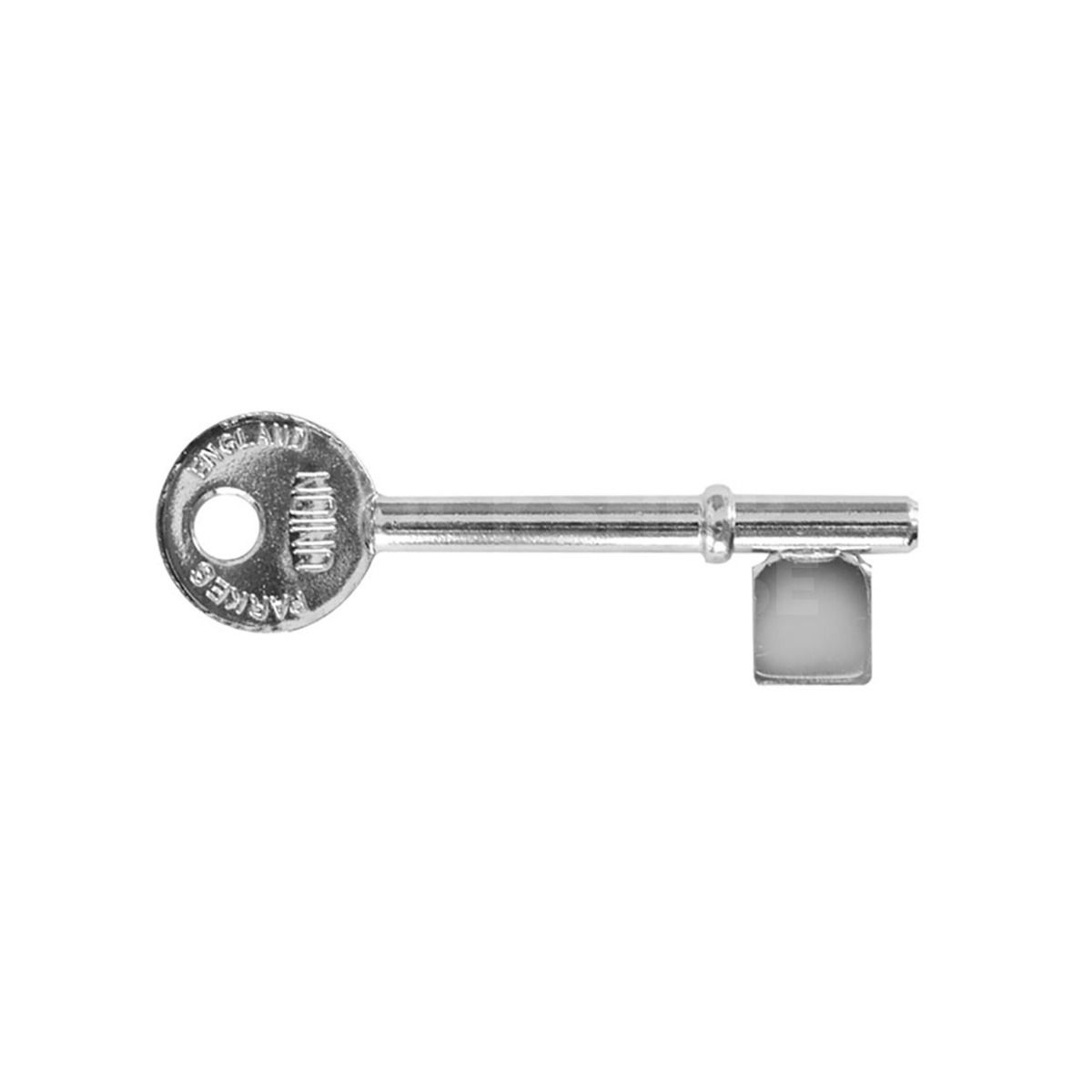

UNION 5 Lever Mortice Locks Extra key

£3.60

(£3.00 ex VAT)

Extra key cut for Union 5 lever locks. Please note this is a copy key blank NOT GENUINE UNION KEY.... they work perfectly when we cut them and we always try and test them before dispatch. We use copy key blanks not genuine key blanks to reduce the cost of the key cutting. All key blanks that we use are the top quality keys from the biggest key blank manufacturers. !!<

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

>

!!

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
skip to Extra Long Key for Union 5 lever locks (extra 30MM)

Extra Long Key for Union 5 lever locks (extra 30MM)

£5.40

(£4.50 ex VAT)

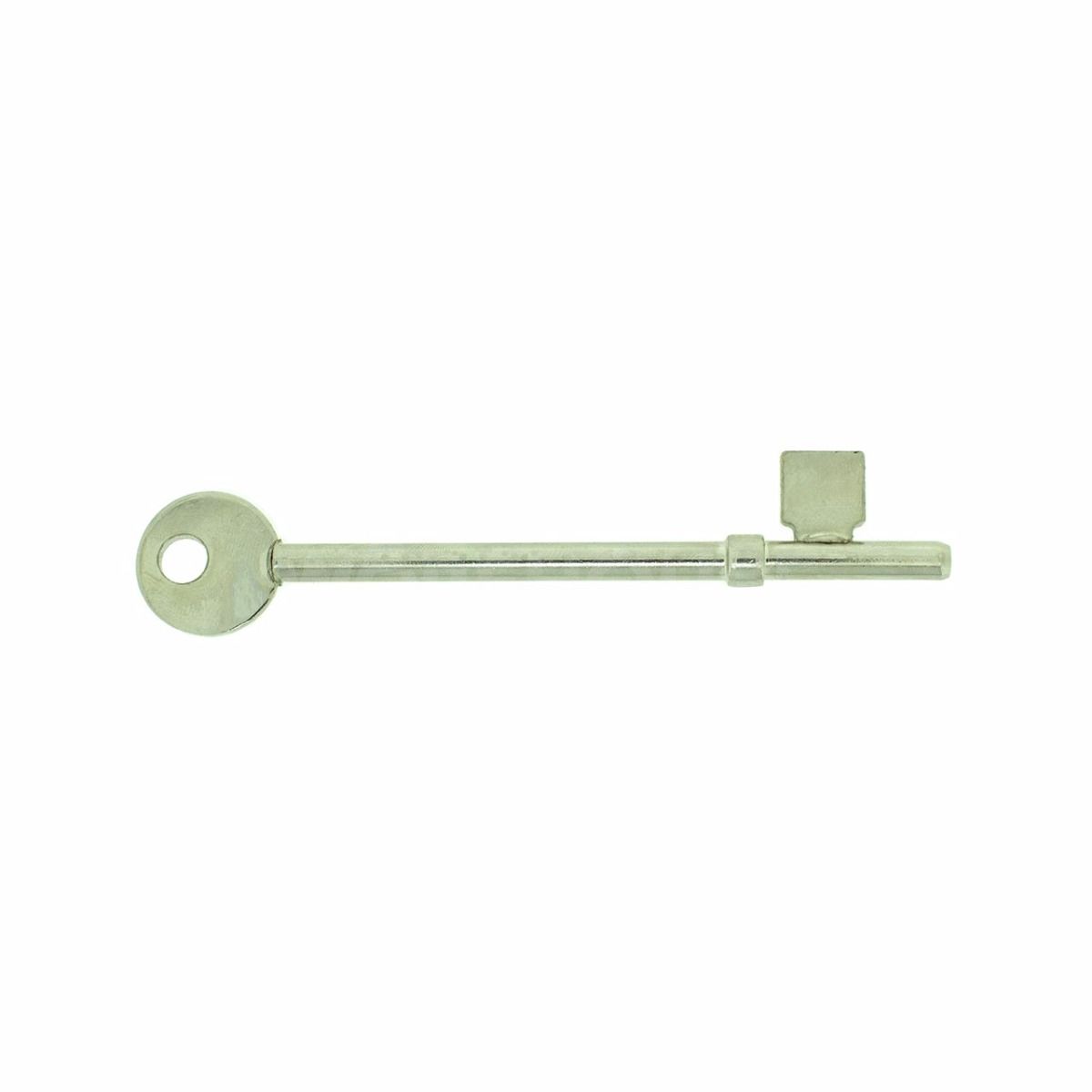

Extra long key for Union 5 lever locks with 30mm added length when compared with the standard length keys.

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Brand

SKU

UNION-5L-EXLK

Box Contents

1 key

skip to Union 2964 Sashlock Rebate - 13mm

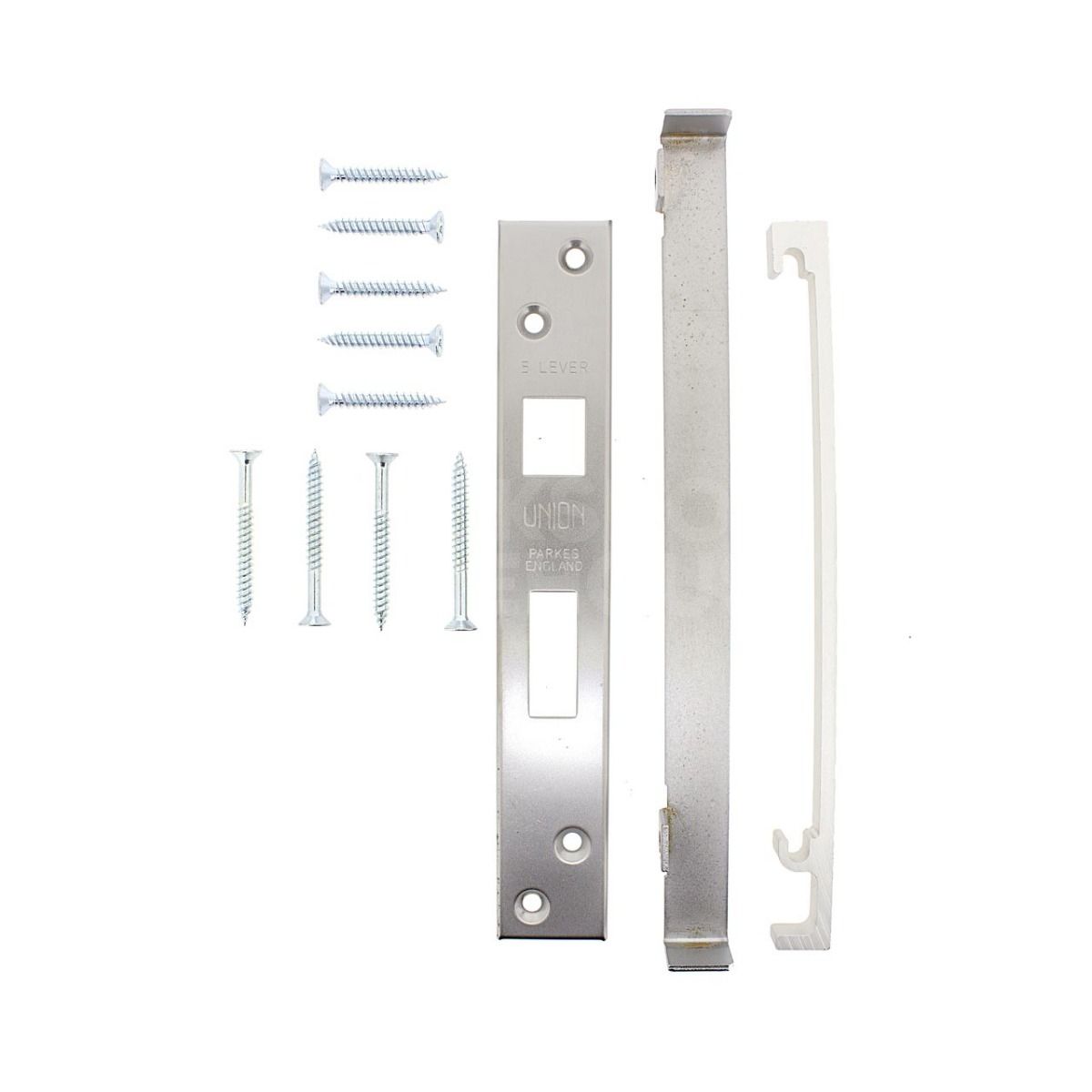

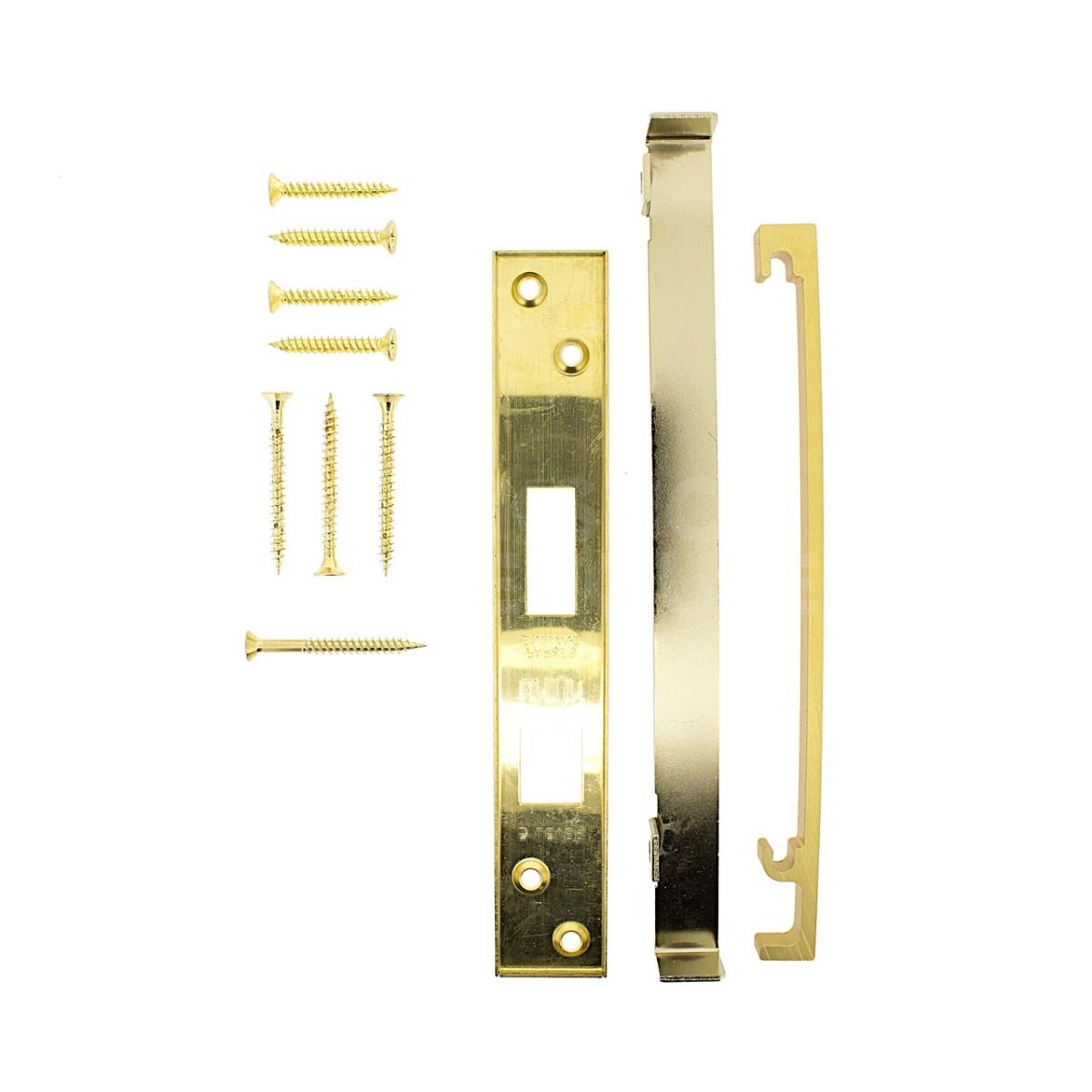

Union 2964 Sashlock Rebate - 13mm

£47.99

(£39.99 ex VAT)

13mm reversible rebate. Available in brass or satin chrome.

Rebate sets are only needed for double rebated doors, these are not the plates you require if you have a single door these are included with every mortice lock.

Finish

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
skip to Suitable Size Drill Bits to fit Mortice Locks

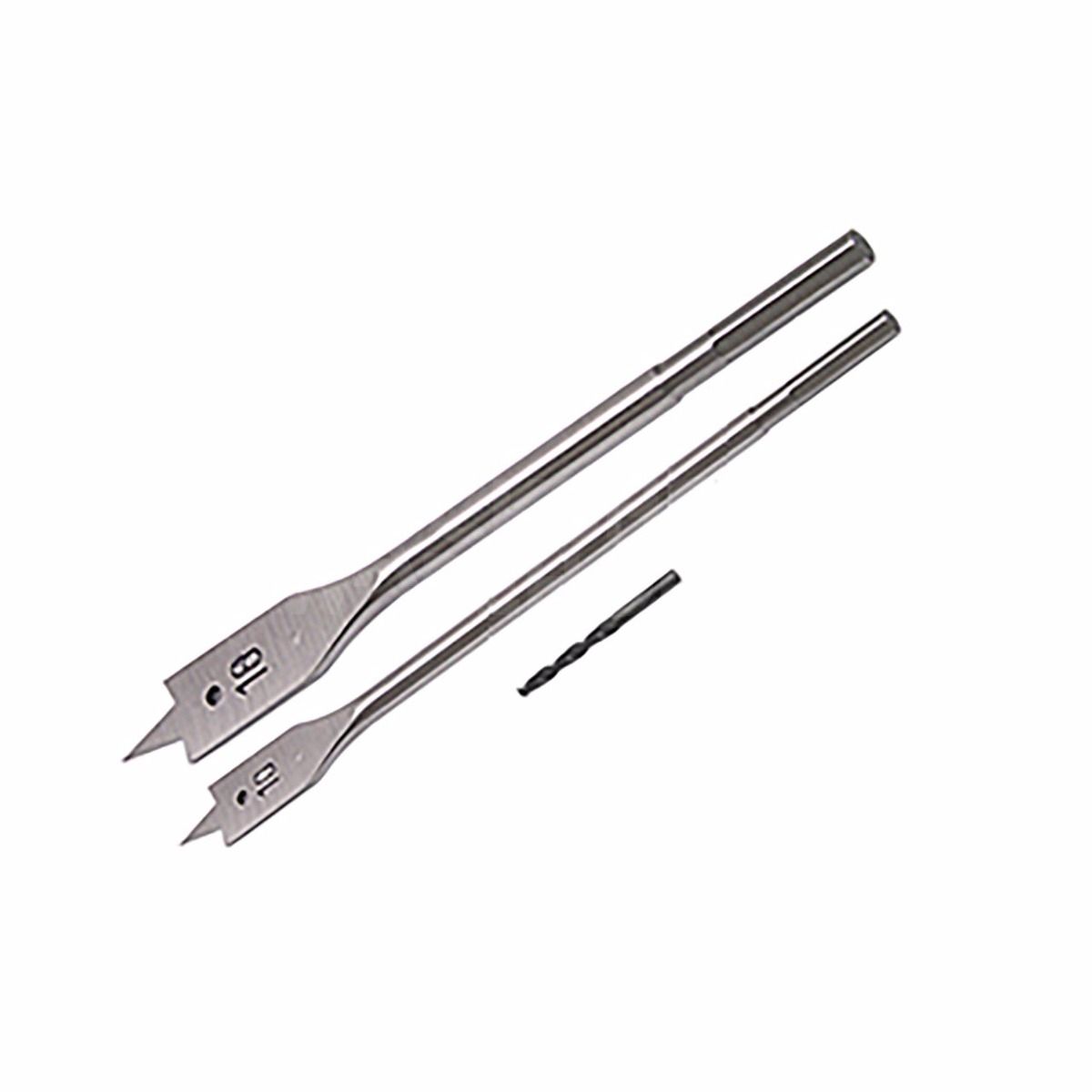

Suitable Size Drill Bits to fit Mortice Locks

£11.99

(£9.99 ex VAT)

This Mortice Drill Bit Kit will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Brand

SKU

MortTool

Box Contents

1 x Black and Decker 18mm Flat wood bit (for main mortice hole)

1 x Black and Decker 10mm Flat wood bit (for Key Holes)

2 x Black and Decker 2.5mm drill (for pilot holes)

skip to Suitable Size Chisels to fit Mortice Locks

Suitable Size Chisels to fit Mortice Locks

£17.99

(£14.99 ex VAT)

This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Kit includes:

1 x Faithful 19mm Chisel

1 x Faithful 25mm Chisel

The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow.

Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners.

All the chisels in this range are supplied with blade guards.

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Brand

SKU

MortChis

Box Contents

19mm Chisel

25mm Chisel

Blade Guards

skip to Complete Set of 4 Chisels by Blue Spot

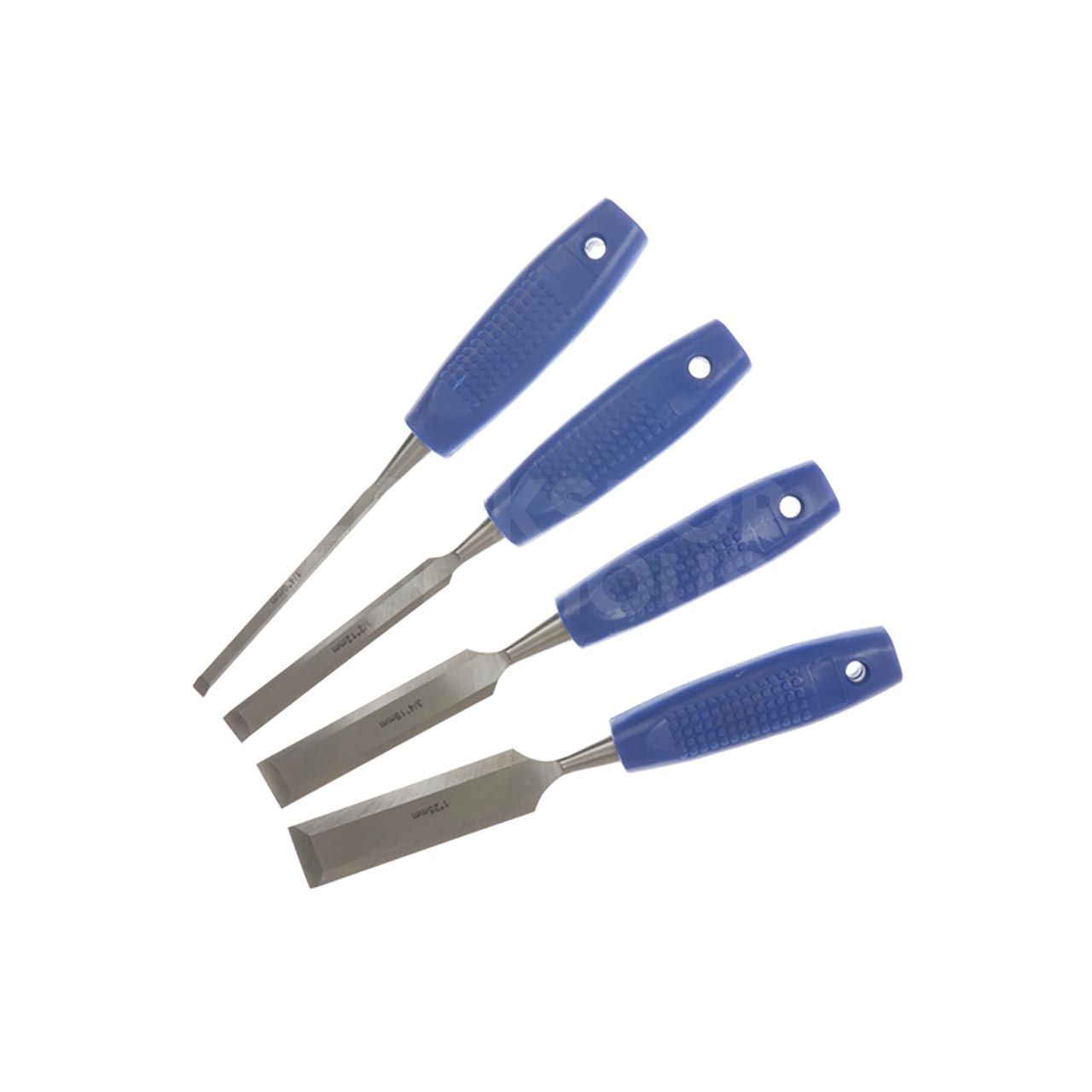

Complete Set of 4 Chisels by Blue Spot
