skip to Union 2241 Oval Sashcase

Union 2241 Oval Sashcase

£47.99

(£39.99 ex VAT)

sku: 2241OVC
  • Suitable for timber doors requiring both latch and deadbolt operation
  • Designed for use with oval profile cylinders and lever handles
  • Deadbolt features hardened steel rollers for enhanced resistance to sawing
  • Pierced to accept bolt-through door furniture for secure fixing
  • Reversible latchbolt allows for installation on both left and right-hand opening doors
  • Compatible with 2979 rebate sets for use on rebated double doors
  • Features an 8mm brass follower for standard spindle compatibility
  • Manufactured in England for consistent build quality and reliability
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

The Union 2241 Oval Sashcase is a high-performance mortice lock designed for timber doors that require combined latch and deadbolt functionality. This sashcase is specifically engineered to accept oval profile cylinders, allowing for flexible security configurations, including key and turn or double key operations.

Constructed with a silver enamelled steel case, the lock is suitable for both residential and commercial applications. The deadbolt is manufactured from brass and reinforced with hardened steel rollers to provide additional protection against attack. The latchbolt is also brass and can be reversed to suit the handing of the door, making it a versatile choice for various installations.

For secure handle mounting, the case is pierced to allow for bolt-through furniture, preventing handles from pulling away from the door over time. This unit functions as an essential component in a complete locking system, whether used for new builds or as a replacement part for existing mortice installations. It is also compatible with 2979 rebate sets for application on rebated double door sets.

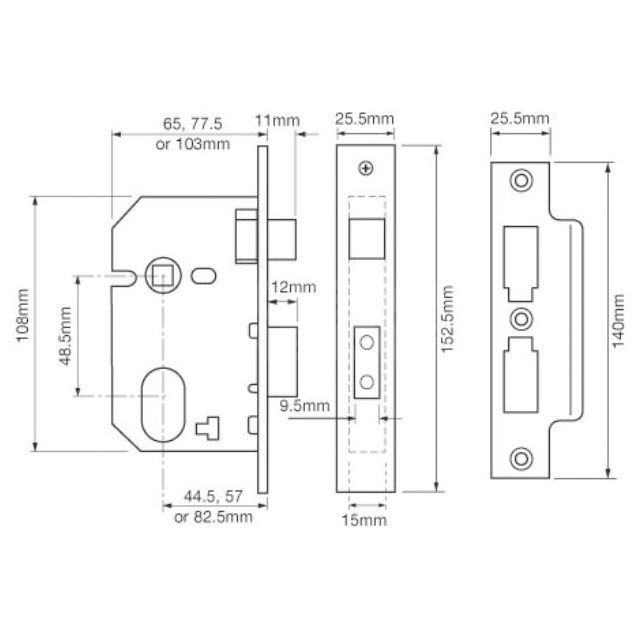

Dimensions Image: Union 2241 Oval Sashcase
Part Min (mm) Max (mm)
centres 48 -
Backset 44 82
Bolt Length 12 -
Case Width 65 103
Case Height 108 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 25 -
Strike Plate Length 140 -
Dimensions Image: Union 2241 Oval Sashcase

Brand

SKU

2241OVC

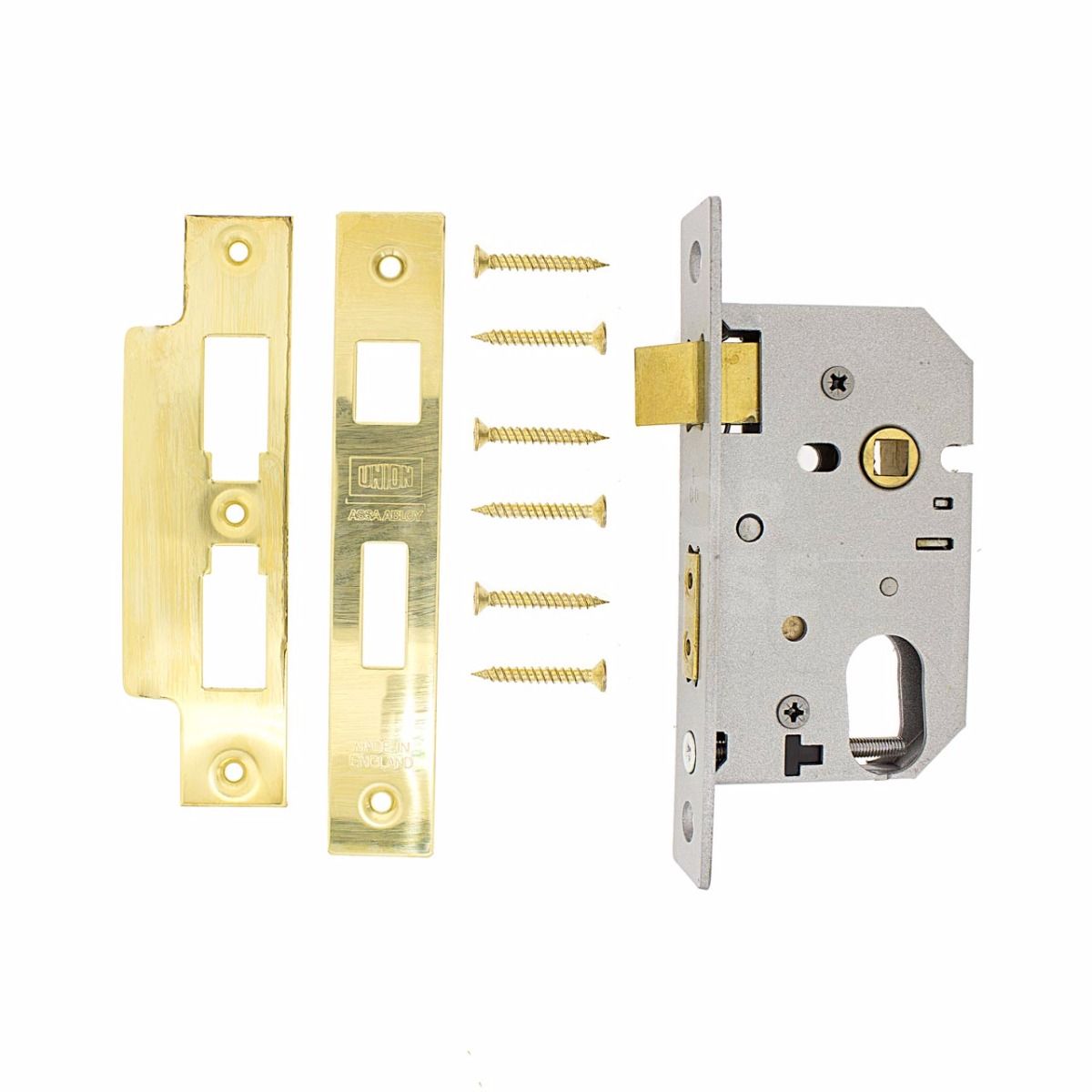

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Union 2241 is designed for use with an Oval Profile cylinder. It is compatible with various configurations, including key-and-turn or double-key cylinders, but please note that the cylinder is not included and should be selected separately to match your door's thickness and security requirements.

Yes, this lock is suitable for wooden doors hinged on either the left or right. The design allows it to be used for either orientation, providing flexibility for different internal or external door setups.

Yes, the lock case is pierced to accept bolt-through furniture. This allows lever handles to be securely fixed through the door and the lock case, ensuring a more stable and durable installation than using surface screws alone.

For installations on rebated double doors, this sashcase can be used in conjunction with 2979 rebate sets. These sets are available in 13mm, 19mm, or 25mm sizes to ensure a proper fit for your specific door configuration.
