skip to Union 2242 2 Lever Rebated Sashlock

Union 2242 2 Lever Rebated Sashlock

£35.99

(£29.99 ex VAT)

sku: UN2242
  • Specifically designed for secure fitment on rebated wooden double doors
  • Features an integrated 13mm rebate for a professional flush finish on meeting stiles
  • Two-way action mechanism compatible with sprung handles and lightweight knobs
  • Reversible latchbolt allows for installation on both left and right-hand doors
  • Two-lever security mechanism suitable for internal residential applications
  • Deadbolt is operated by key from either side for controlled access
  • Latchbolt is easily withdrawn by lever handles from either side
  • Durable steel lock case ensures long-term operational reliability
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating
tick Key Profile: Standard

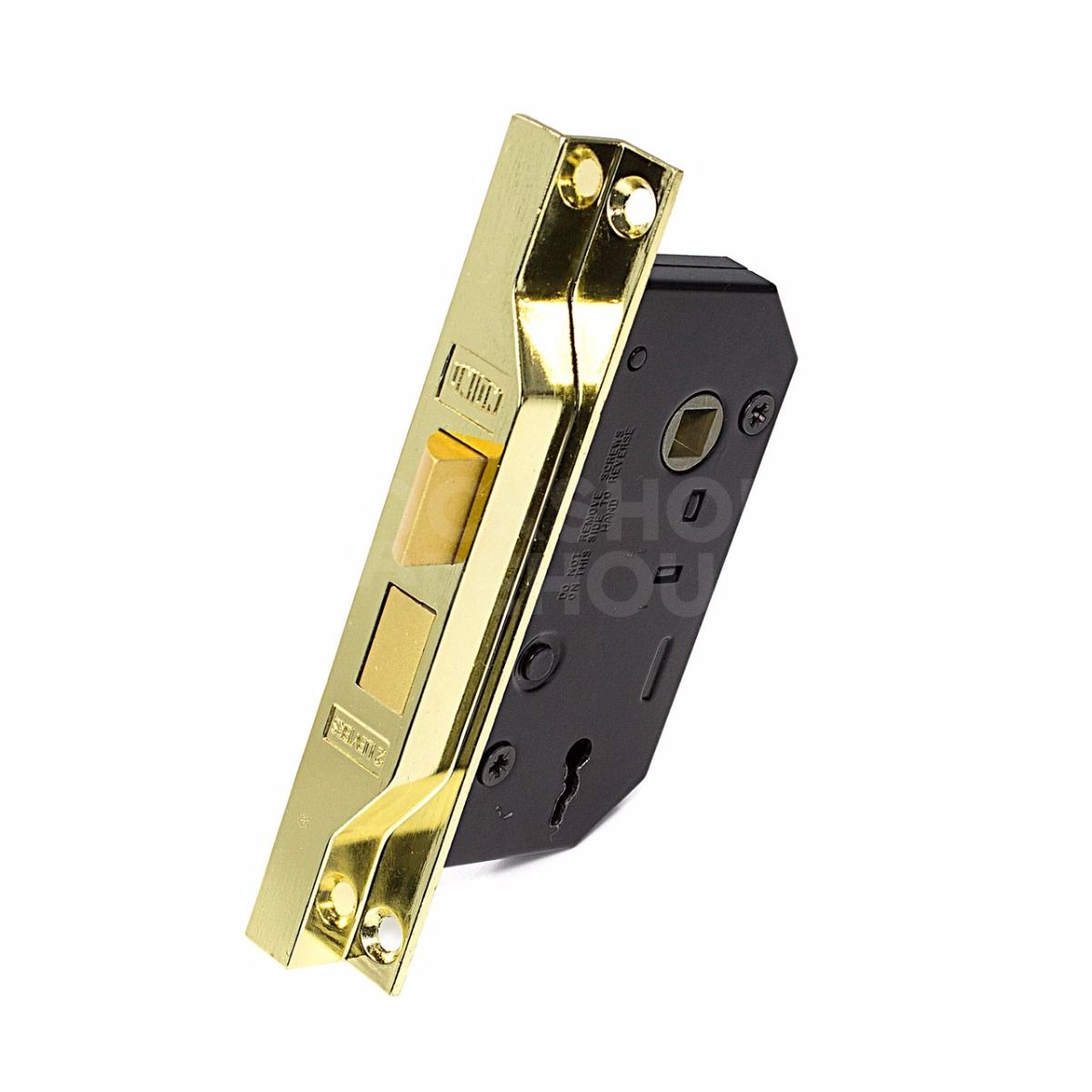

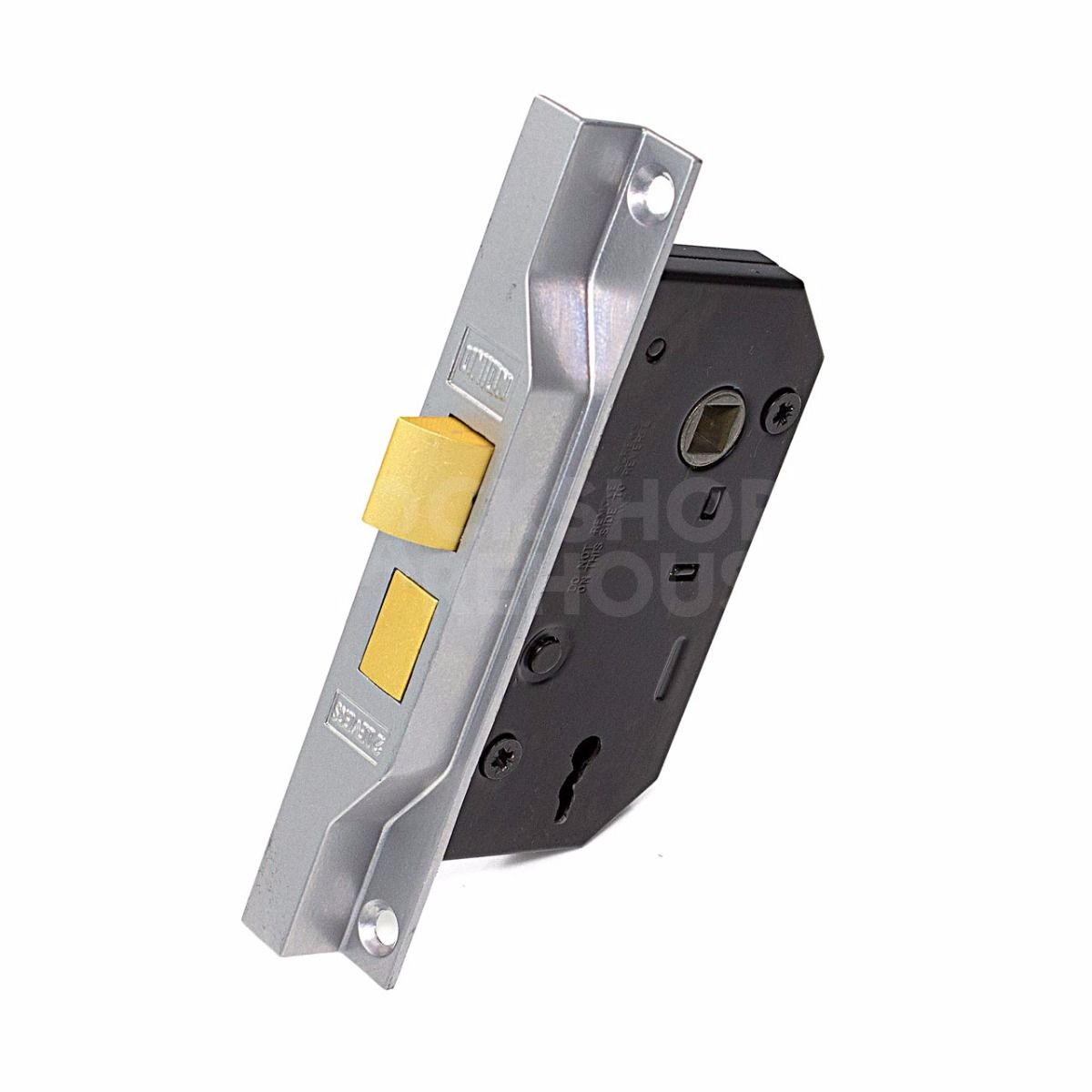

The Union 2242 2 Lever Rebated Sashlock is a purpose-built mortice lock engineered specifically for wooden double doors. Unlike standard flat-forend locks, this model features an integrated 13mm rebate, allowing it to fit seamlessly into the stepped meeting stiles of rebated door sets without the need for additional conversion kits.

This sashlock combines a latchbolt for daily convenience with a deadbolt for security. The latchbolt is operated by a lever handle or door knob from either side, while the deadbolt is thrown or retracted using a key. This dual-functionality makes it an ideal choice for internal residential doors or light commercial partitions where basic privacy and security are required.

Technical features include a two-way action mechanism, ensuring compatibility with most sprung lever handles and lightweight door knobs. The reversible latchbolt provides versatility, making the unit suitable for both left and right-hand opening doors. Constructed with a robust steel case, the internal components are protected to ensure consistent performance over time.

  • Typical Applications: Internal wooden double doors and rebated room dividers.
  • Compatibility: Suitable for use with standard sprung furniture and compatible with common door thicknesses.
  • System Role: Functions as a primary locking and latching point for meeting stiles on double door sets.

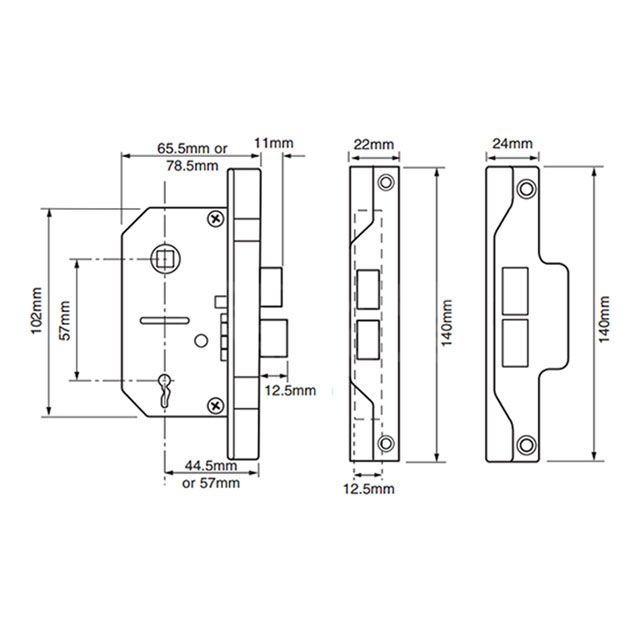

Dimensions Image: Union 2242 2 Lever Rebated Sashlock
Part Min (mm) Max (mm)
centres 57 -
Backset 44 57
Bolt Length 12 -
Case Width 65 78
Case Height 102 -
Forend Width 22 -
Forend Length 140 -
Strike Plate Width 24 -
Strike Plate Length 140 -
Dimensions Image: Union 2242 2 Lever Rebated Sashlock

Brand

SKU

UN2242

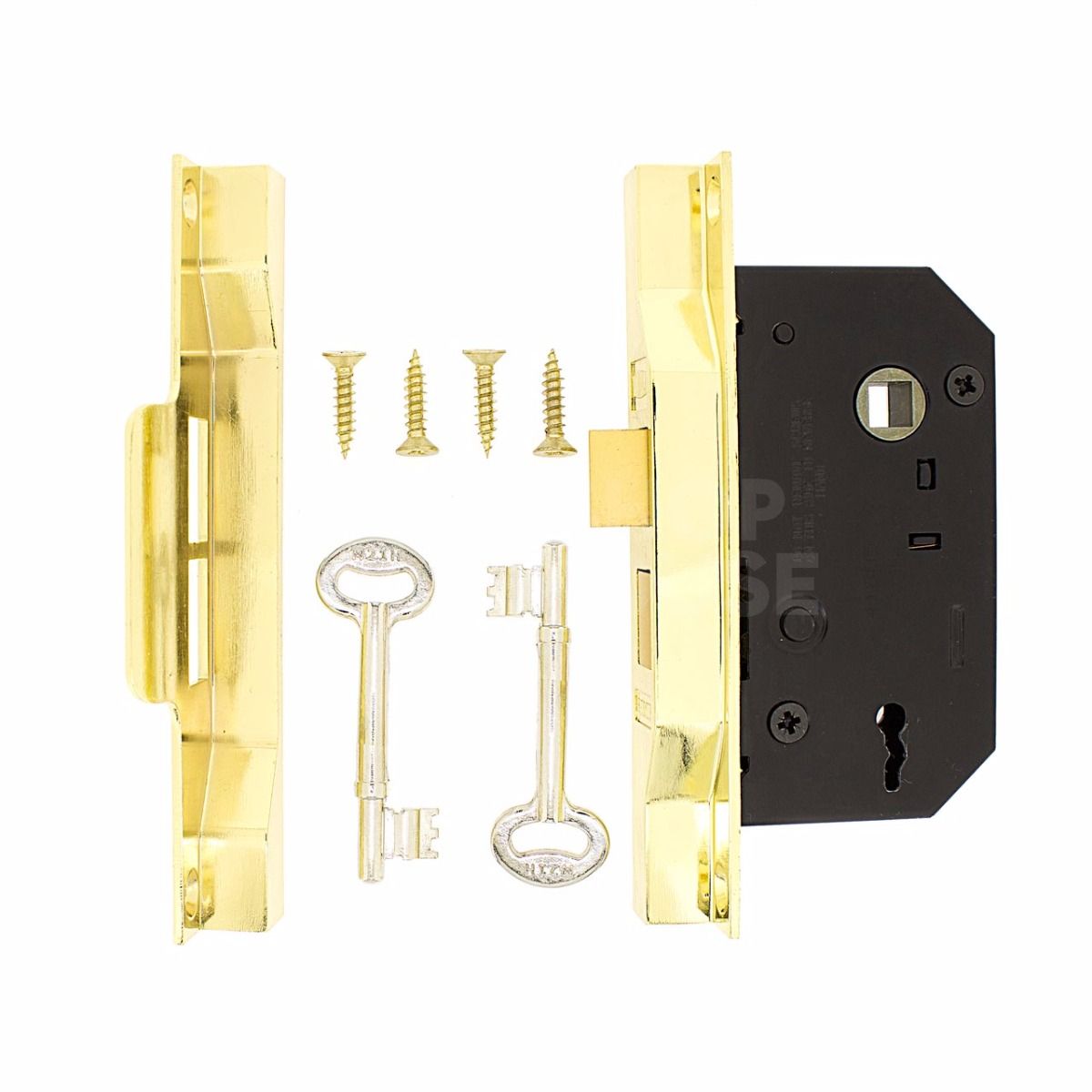

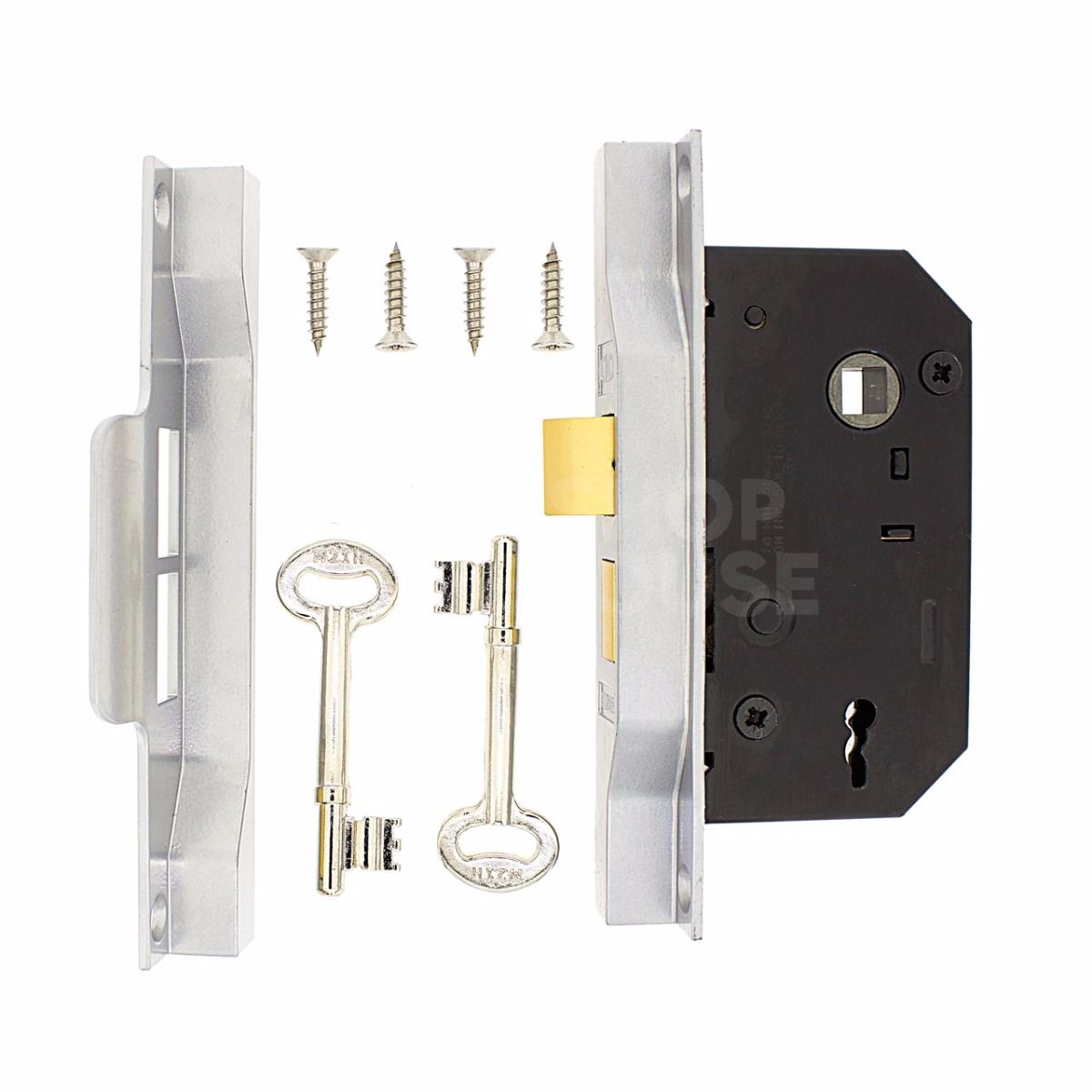

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

key escutcheons

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

This lock is specifically designed for double doors that have a rebated meeting edge. The 13mm rebate helps bridge the gap between the doors for a neat, secure installation.

Yes, the Union 2242 is suitable for wooden doors hinged on either the left or the right side, providing flexibility for various installations.

The lock features a two-way action, meaning it is compatible with both standard sprung lever handles and lightweight door knobs.

This lock is suitable for doors up to 55mm thick when using standard 8mm furniture plates. It is available in two case depths: 65mm and 78mm.

Related Products

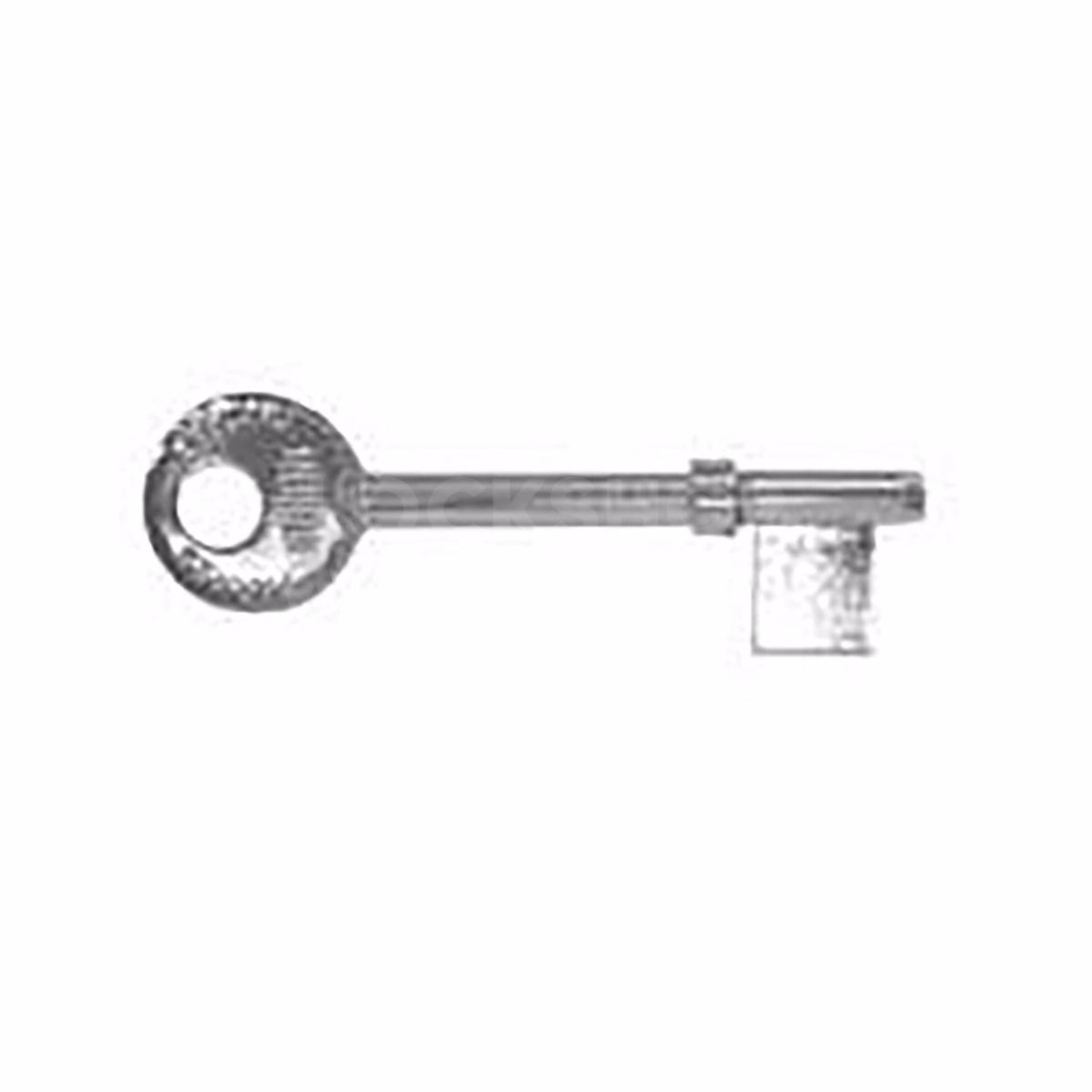

skip to Spare key for Union 2242 locks
