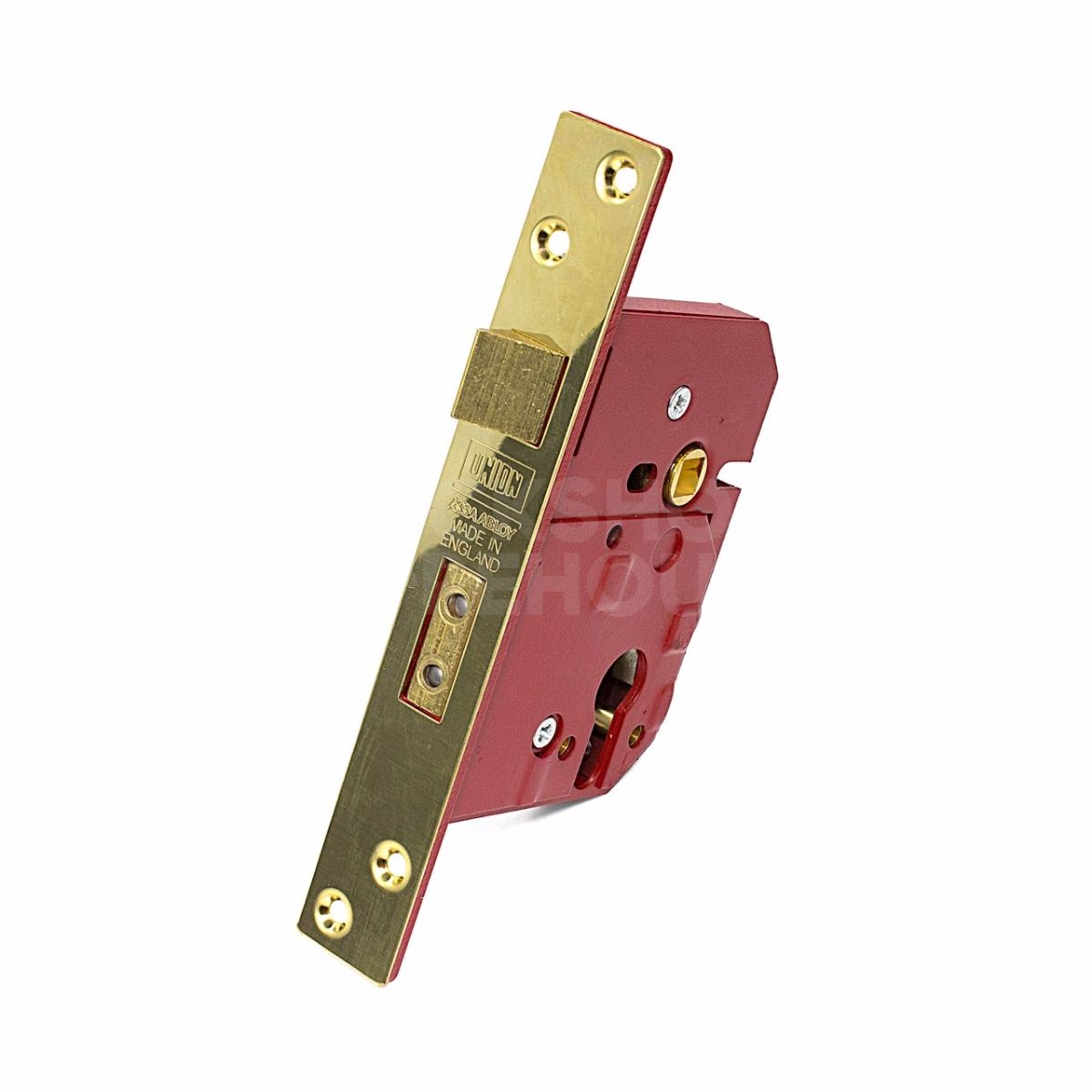

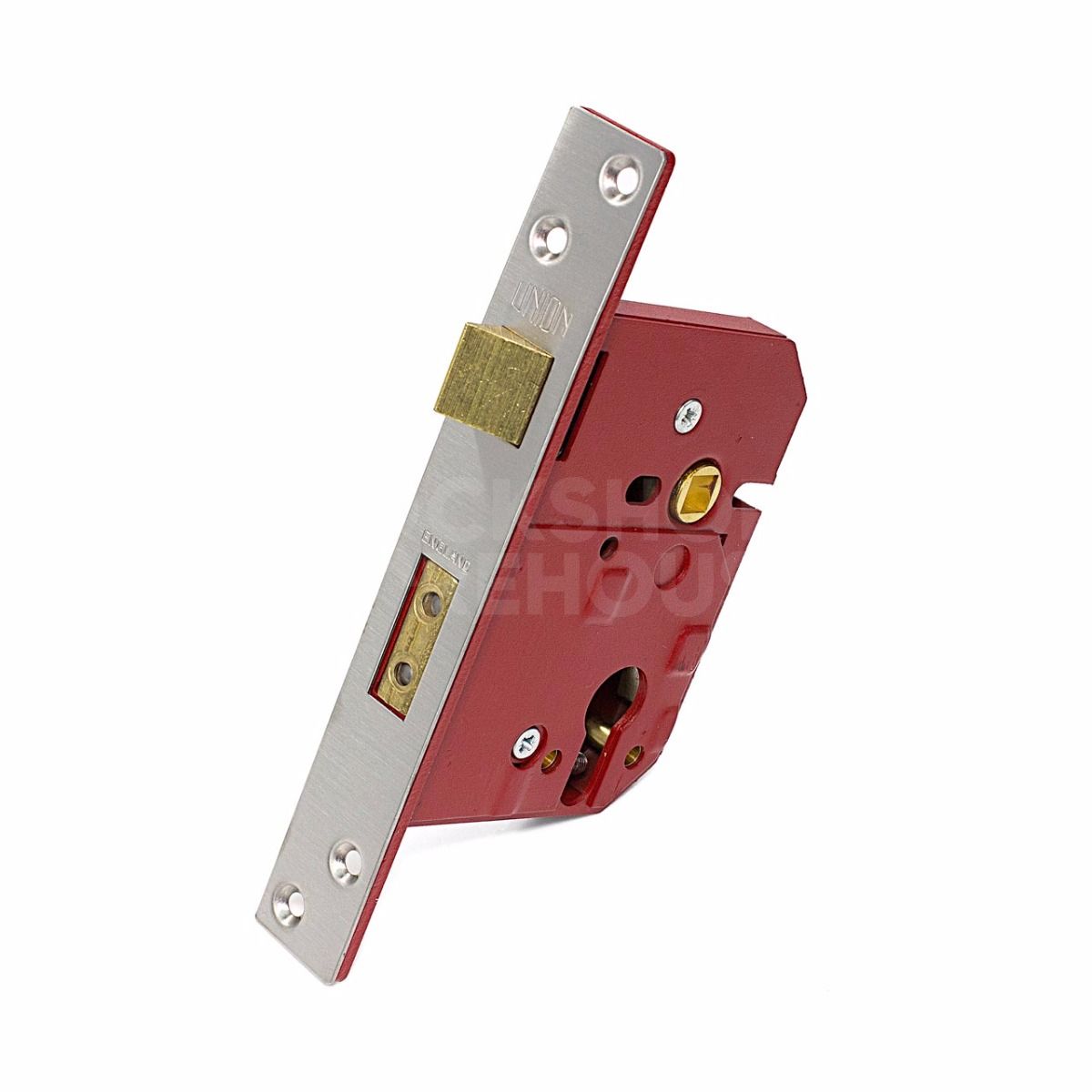

Union 2244E Euro Cylinder Sashcase

£56.39

(£46.99 ex VAT)

sku: U2244E
  • Easily reversible latchbolt via a single screw for use on left or right-handed doors.
  • Features an extended 20mm deadbolt for enhanced security and resistance against jemmy attack.
  • Hardened steel rollers within the deadbolt provide additional protection against sawing.
  • Compatible with standard Euro profile cylinders for flexible keying and master keying options.
  • Designed for use with lever handles on timber doors hinged on either side.
  • Meets BS3621:1998 standards when installed as part of a complete kitemarked lockset.
  • Compatible with specific rebate sets for installation on double door sets.

Finish

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

heavy-duty Heavy Duty
8/10 Security Rating

The Union 2244E Euro Cylinder Sashcase is a versatile mortice lock designed for use on timber doors. It is engineered for applications requiring both lever handle operation and key-controlled security via a Euro profile cylinder. The latchbolt is operated by handles from either side, while the deadbolt provides secure deadlocking when locked by the cylinder.

Technical features include an extended 20mm deadbolt containing hardened steel rollers, specifically designed to resist physical attacks such as sawing and jemmying. The latchbolt is easily reversible using a simple one-screw operation, making it suitable for both left and right-handed door configurations without dismantling the lock case.

This sashcase is intended for use on wooden doors with a minimum thickness of 44mm. It can be integrated into master key systems when used with compatible non-kitemarked cylinder lock cases or installed as a high-security solution meeting BS3621:1998 when supplied as a complete kitemarked set. For rebated double doors, it is compatible with the 2968 rebate set range.

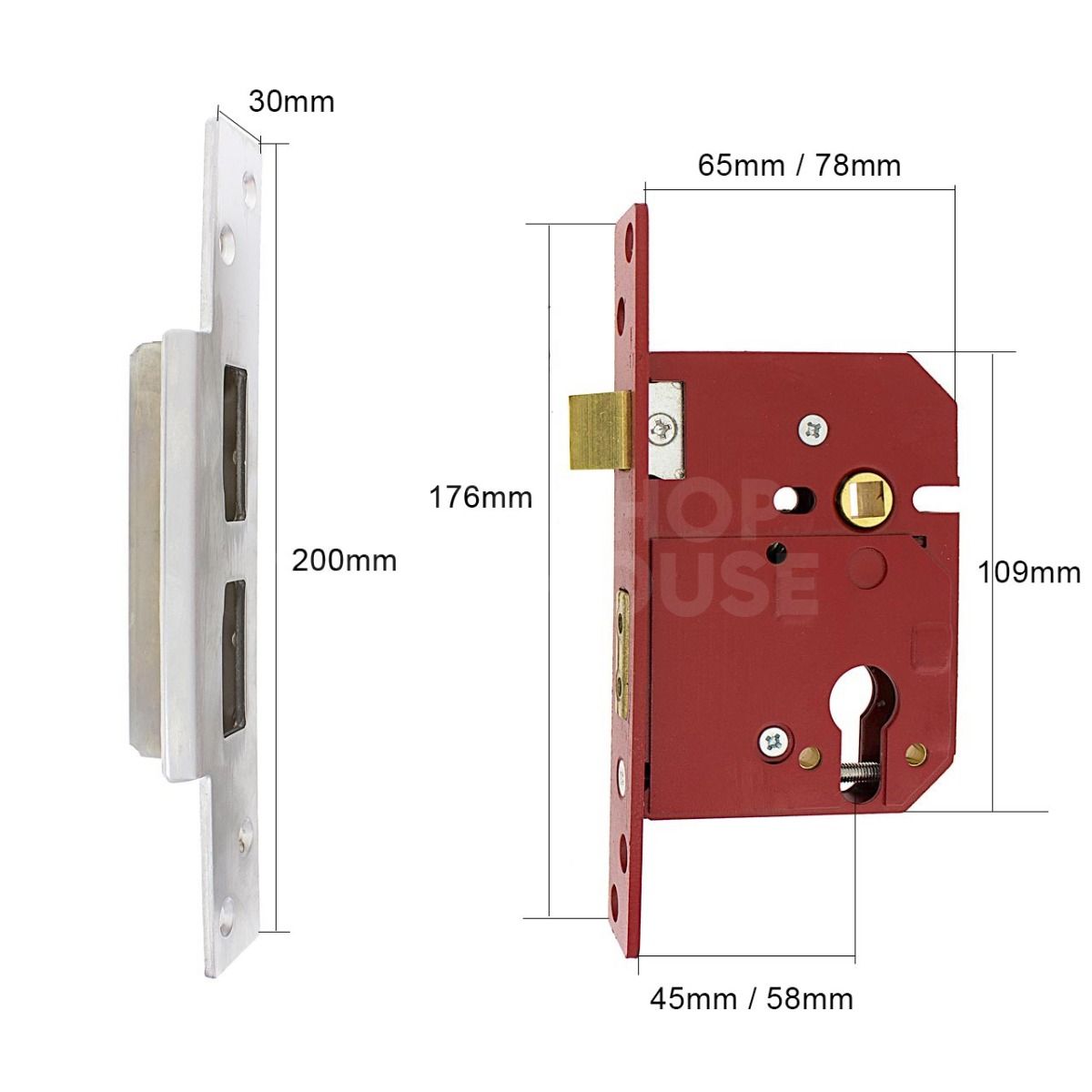

Dimensions Image: Union 2244E Euro Cylinder Sashcase
Part Min (mm) Max (mm)
centres 48 -
Backset 45 58
Bolt Length 20 -
Case Width 65 78
Case Height 109 -
Forend Width 25 -
Forend Length 176 -
Strike Plate Width 30 -
Strike Plate Length 200 -
Dimensions Image: Union 2244E Euro Cylinder Sashcase

Brand

SKU

U2244E

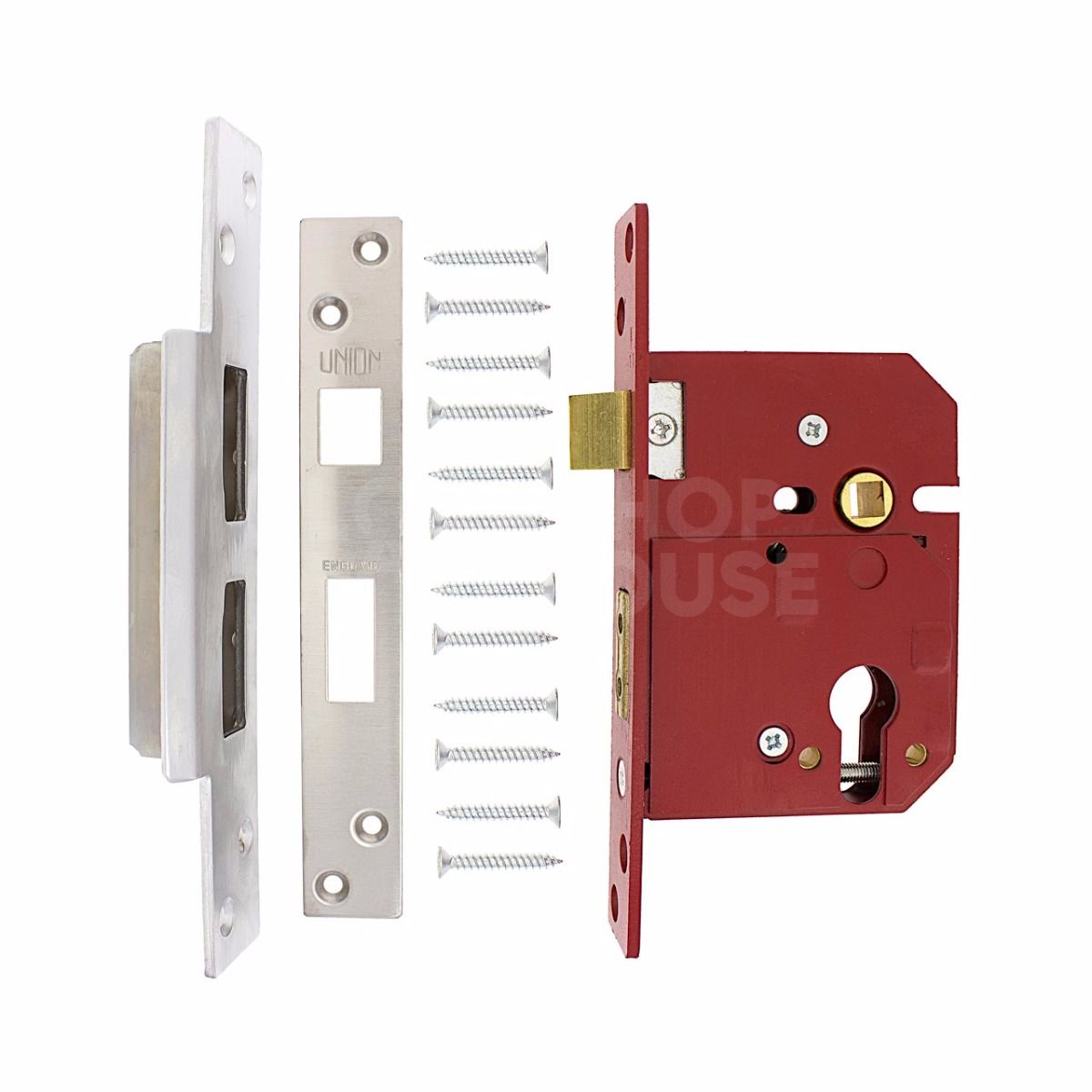

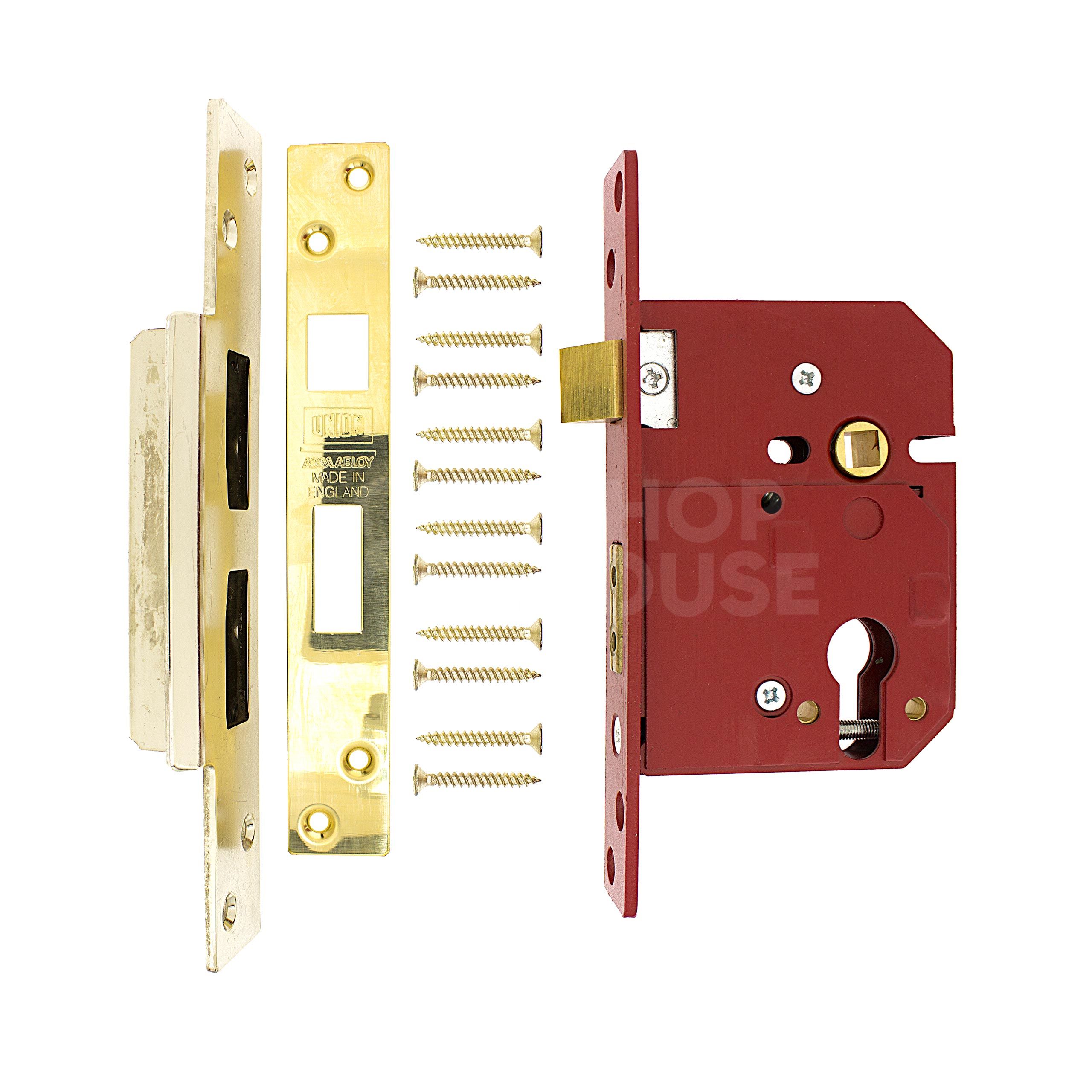

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

Yes. The Union 2244E features an easily reversible latchbolt that can be adjusted for either left or right-handed doors with a simple one-screw operation. Although it is supplied left-handed as standard, it can be quickly adapted to suit your specific door orientation.

It is recommended that this lock is not fitted to doors less than 44mm thick to ensure a secure fit and proper structural integrity of the installation.

Yes, the lock includes an extended 20mm deadbolt for secure positive deadlocking. For added security, the brass deadbolt is equipped with hardened steel rollers to provide additional resistance against jemmy attacks and sawing.

This product is the sashcase only. To complete your installation, you will need to purchase a separate Euro Profile cylinder and compatible lever handles with an 8mm square spindle. When supplied as a complete lockset, it is Kitemarked to BS3621:1998 standards.
