skip to Union 2277 Sashlock 103mm

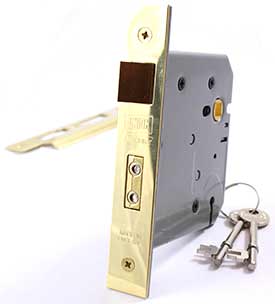

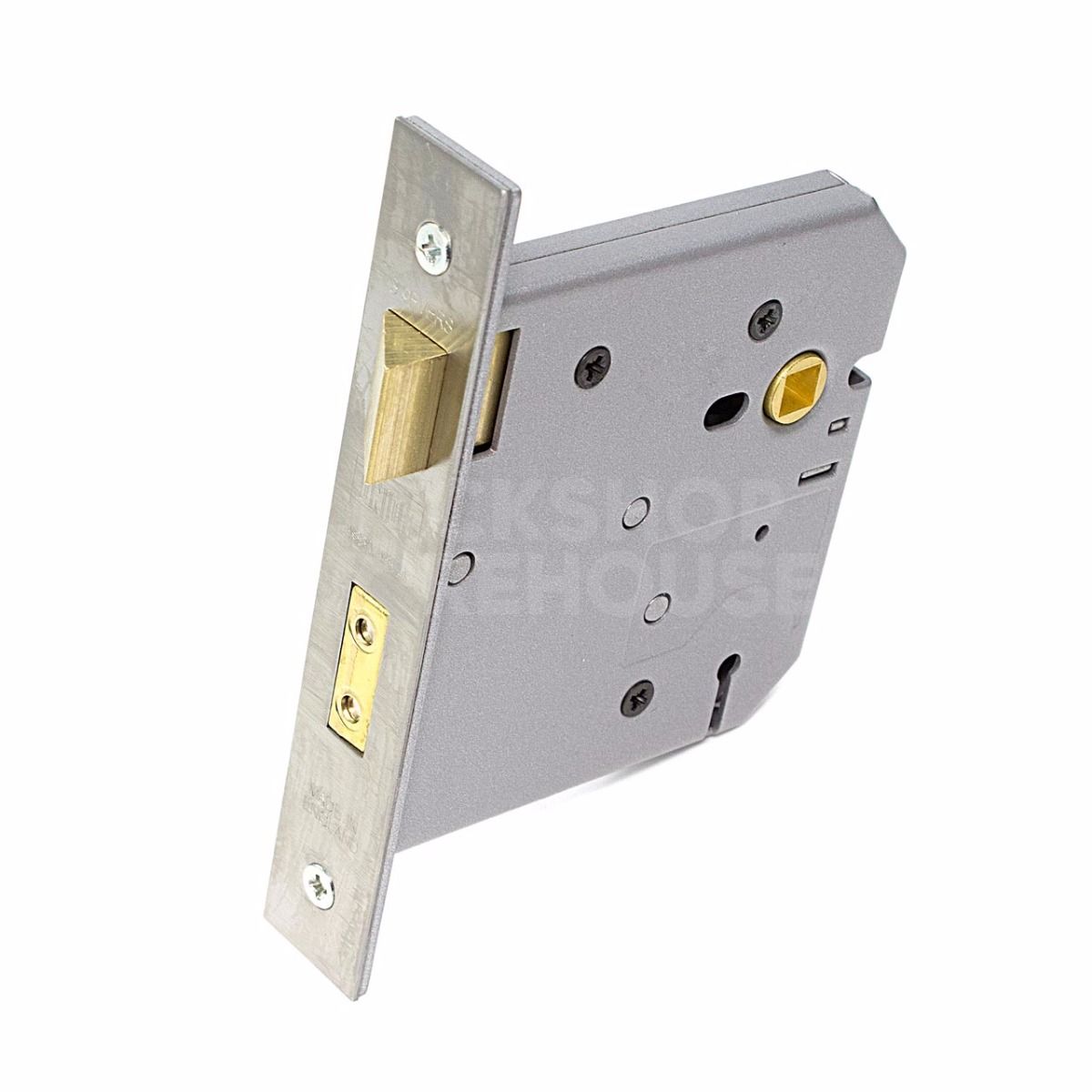

Union 2277 Sashlock 103mm

£55.19

(£45.99 ex VAT)

sku: U2277-103

3 Lever Internal sashlock:

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. Operation: Deadbolt locked or unlocked by key from either side. Latchbolt withdrawn by lever handle from either side. Pierced to accept bolt through furniture.

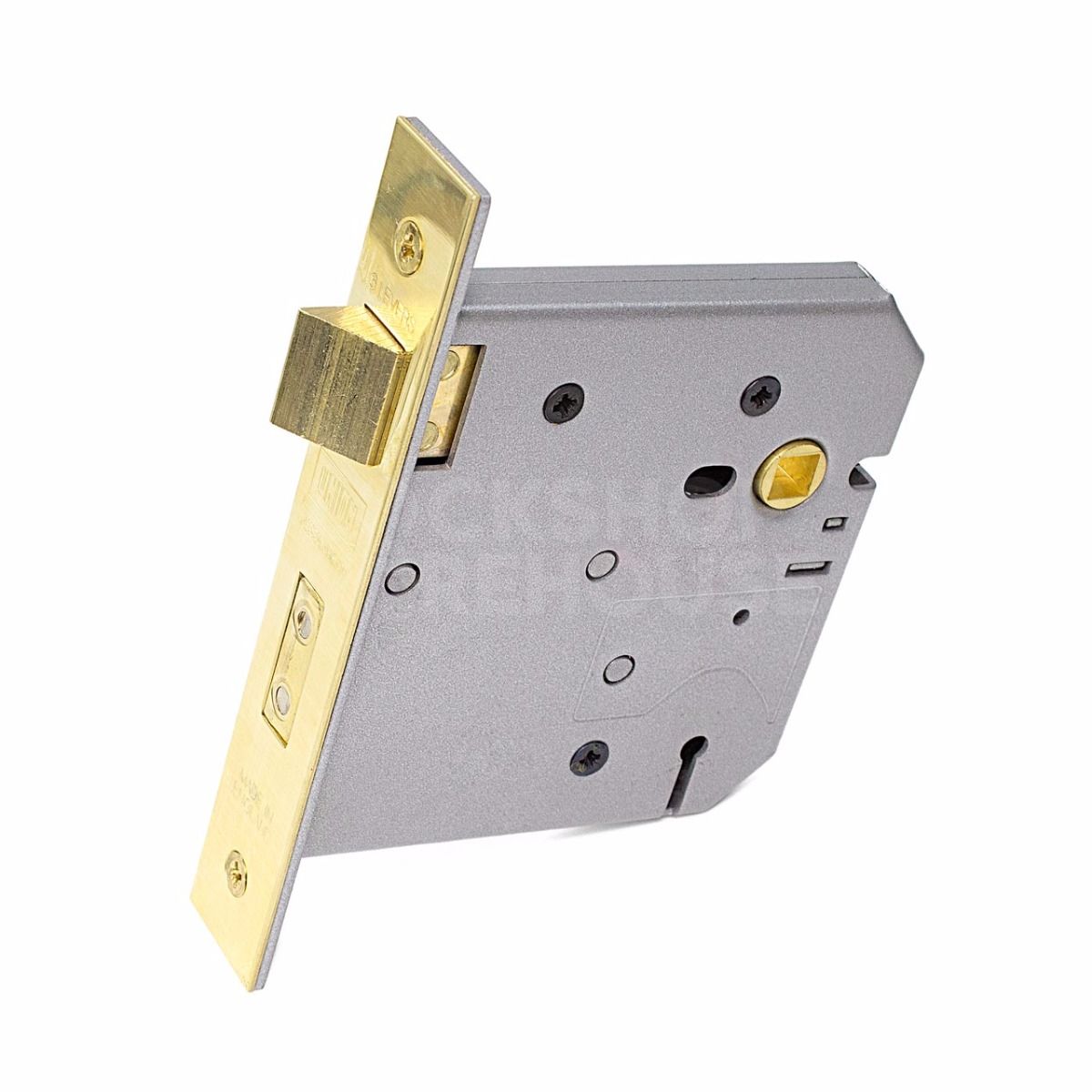

Finish: Finish shown in Polished Brass .

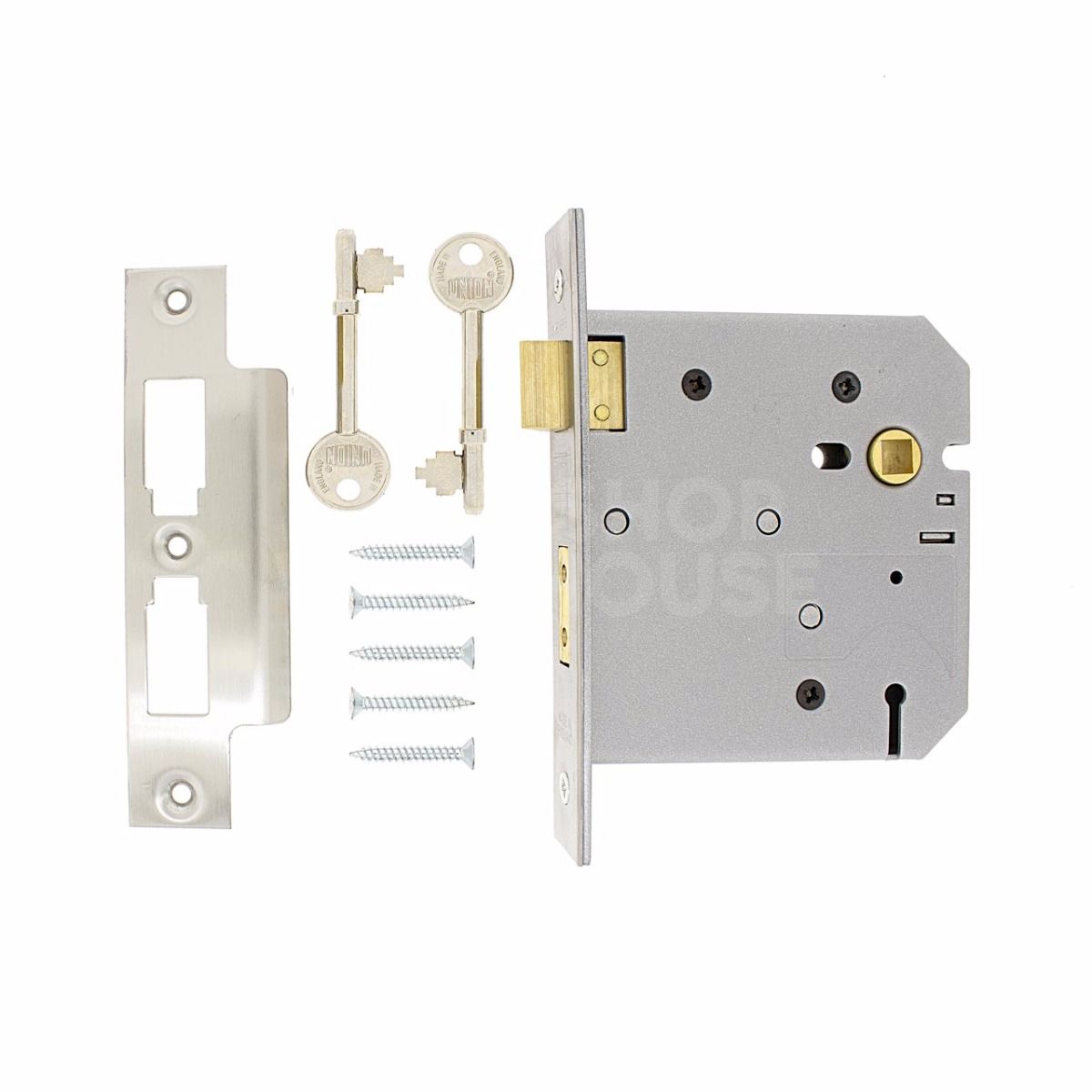

Also available in Satin Chrome.
Case Material and Finish: Steel,
Silver Enamelled.
Forend: Stainless Steel, finished to match strike plate.
Striking Plate: Stainless Steel, finished to match forend.
Latchbolt/Deadbolt: Deadbolt - Brass, hardened steel rollers. Latchbolt - Brass.
Follower: Brass, 8mm square.

Spare cut keys reference MM (numbers range 101-200).

Document Icon product info

Key Configuration

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating
tick Key Profile: Standard

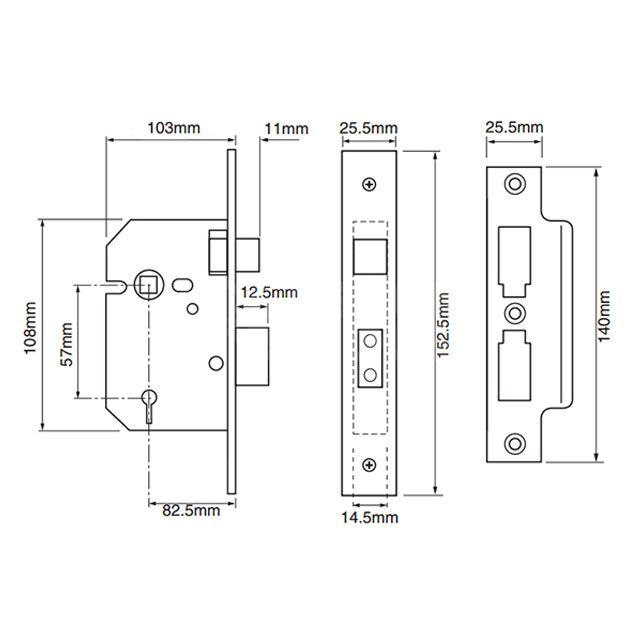

Dimensions Image: Union 2277 Sashlock 103mm

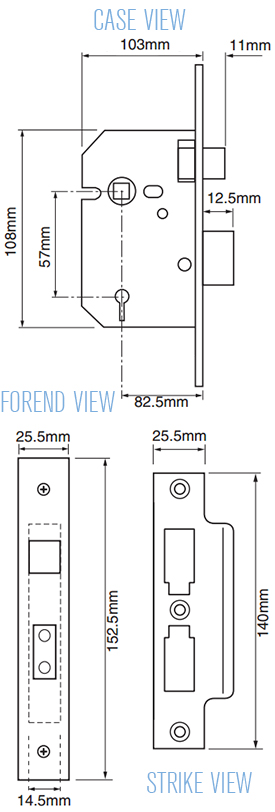

Part Size (mm)
centres 57
Backset 82
Bolt Length 12
Case Width 103
Case Height 108
Forend Width 25
Forend Length 152
Strike Plate Width 25
Strike Plate Length 140
Dimensions Image: Union 2277 Sashlock 103mm

Brand

SKU

U2277-103

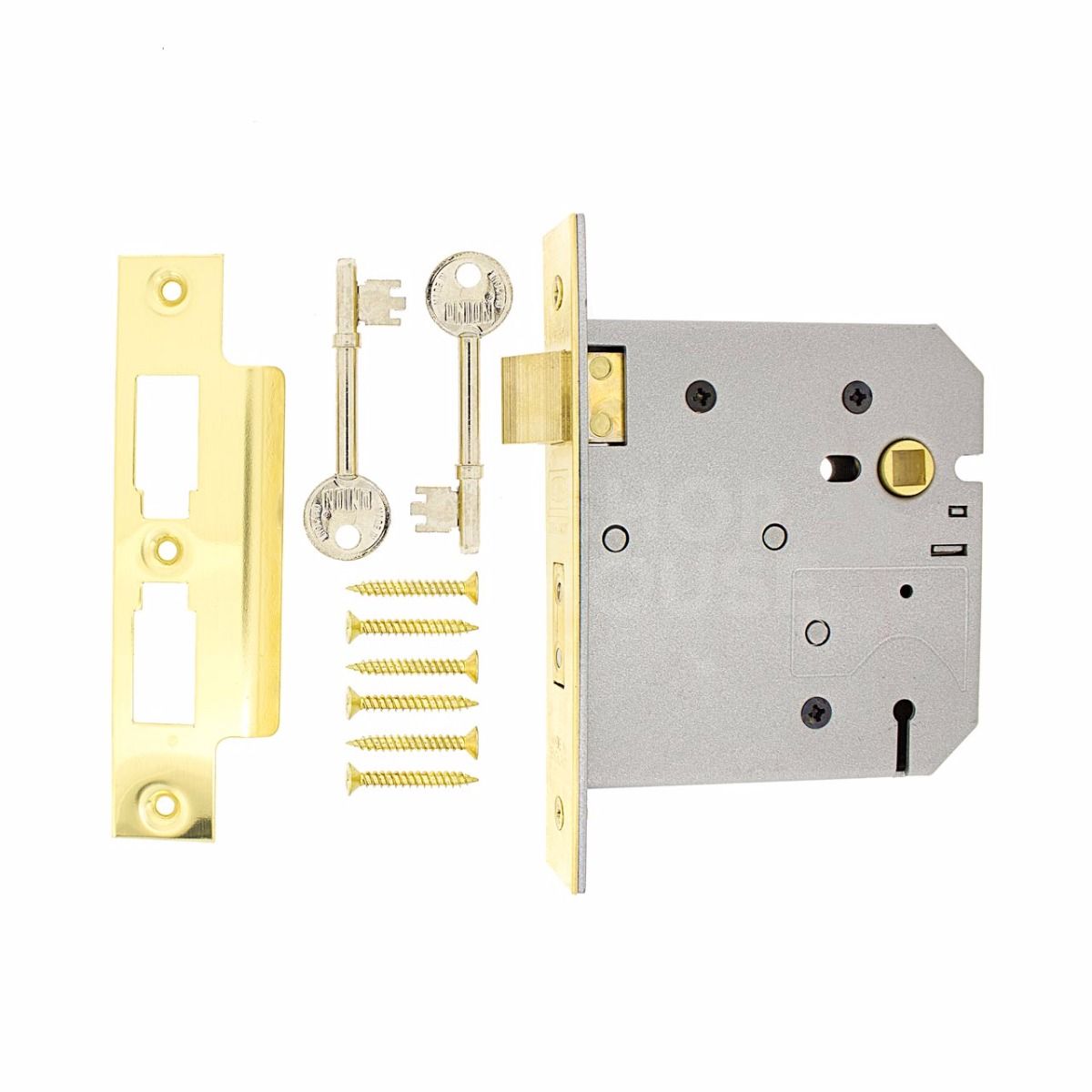

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

Yes, the Union 2277 Sashlock is designed for use on wooden doors hinged on either the left or the right side, making it a versatile choice for various internal doorways.

Yes, this 103mm version is specifically designed to replace older, larger styles of mortice locks. It provides a greater distance from the edge of the door to the spindle and keyhole, often matching the footprint of historic hardware.

Yes, the lock case is pierced to accept bolt-through furniture. This allows for a more secure and stable installation of your lever handles through the door and lock body.

The Union 2277 features a brass deadbolt that includes hardened steel rollers. These rollers are designed to resist sawing attempts, providing an additional layer of security for your internal doors.

Related Products

skip to Additional Standard Key for Supplied 2277

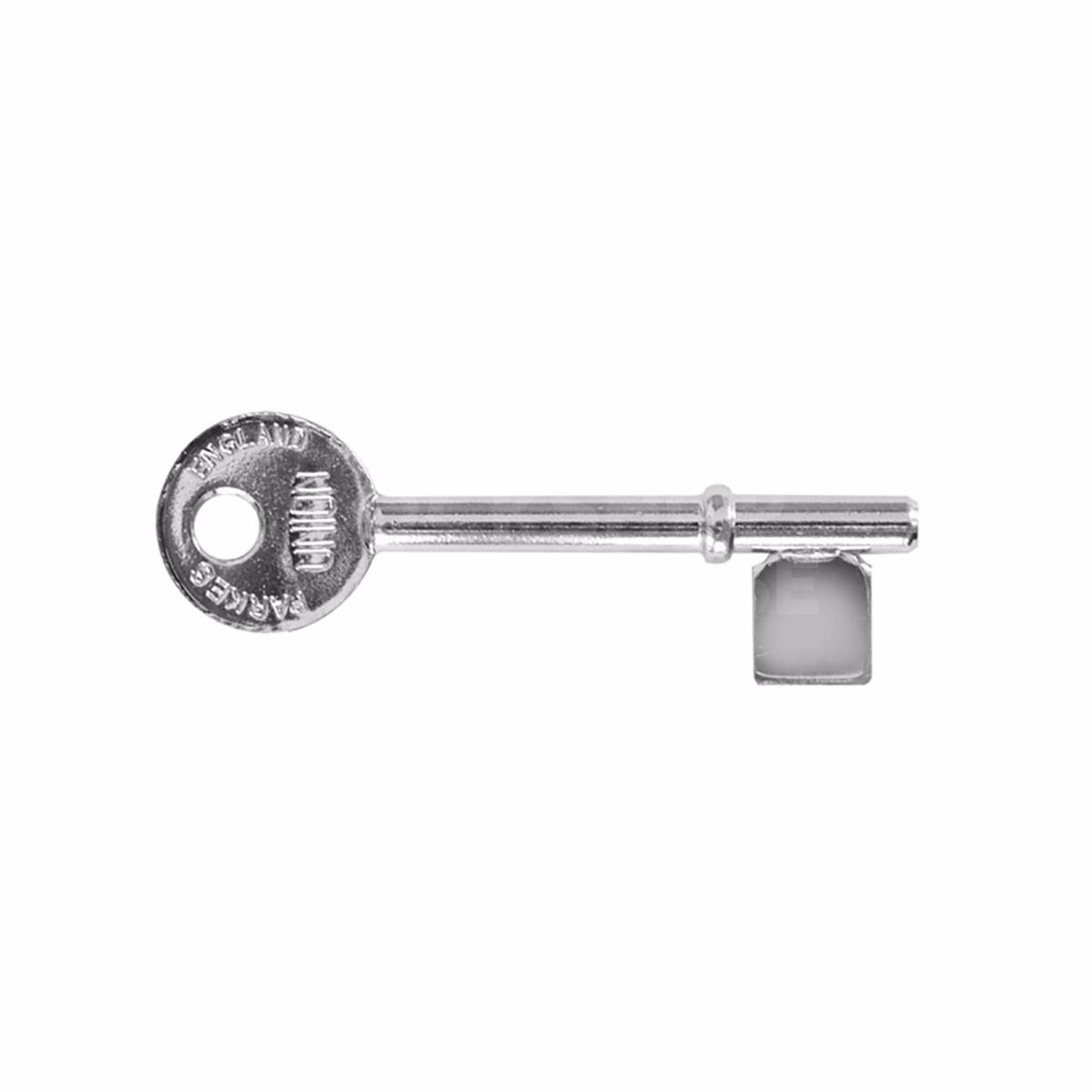

Additional Standard Key for Supplied 2277

£3.60

(£3.00 ex VAT)

sku: 161
  • Precision cut for immediate compatibility with Union 2277 series mortice locks
  • Designed for smooth operation within the internal lever mechanism
  • Supplied as a finished cut key rather than a blank for convenience
  • Ideal for providing additional user access to existing lock installations
  • Robust construction ensures long-term durability and resistance to wear
  • Functions as a direct replacement or spare for standard lock sets
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This Union additional key is specifically designed for use with the 2277 series mortice lock. Precision machined to interface correctly with the internal levers, it ensures smooth and reliable locking and unlocking of the door mechanism. It is an essential component for residential or commercial properties requiring multiple points of access or spare keys for security management.

Typical applications include domestic doors and commercial storage areas where a Union 2277 lock is already installed. These keys are supplied pre-cut to code, meaning they are ready for immediate use upon delivery, providing a seamless solution for replacing lost keys or extending access to further personnel. By using a genuine-specification key, users prevent the potential damage to the lock mechanism often associated with poorly cut or generic alternatives.

  • Compatible with all Union 2277 mortice lock variants
  • Supplied ready to use
  • Suitable for both internal and external door applications
skip to Extra Long Key for Union 3 lever locks (extra 30MM)

Extra Long Key for Union 3 lever locks (extra 30MM)

£5.40

(£4.50 ex VAT)

sku: UNION-3L-EXLK
  • Extended 30mm shank provides extra reach for thick doors and deep-set locks
  • Compatible with the full range of Union 3-lever mortice sashlocks and deadlocks
  • Precision-cut blade ensures reliable mechanical operation and reduces internal lock wear
  • Ideal for use with heavy-duty escutcheons or security plates that increase door depth
  • Designed as a direct replacement or additional key for existing Union 3-lever systems
  • Maintains the security integrity of the 3-lever locking mechanism

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This extra long key is specifically engineered for use with Union 3-lever mortice locks. Featuring an additional 30mm of length on the shank, it is designed to overcome the common issue of standard keys being too short for certain installations.

Typically used in period properties or commercial buildings with exceptionally thick timber doors, this key ensures the user can comfortably operate the lock through the full depth of the door and any additional door furniture. It is compatible with both sashlocks and deadlocks within the Union 3-lever range.

Whether used for a new installation requiring extended reach or as a replacement key for an existing deep-set lock, the precision-manufactured blade ensures smooth interaction with the lock's internal levers. This prevents snagging and extends the operational lifespan of the locking mechanism.

skip to Suitable Size Drill Bits to fit Mortice Locks

Suitable Size Drill Bits to fit Mortice Locks

£11.99

(£9.99 ex VAT)

sku: MortTool
  • Designed specifically for the installation of mortice locks in timber doors
  • Includes flat wood bits for rapid and efficient boring of the lock case cavity
  • Features a pilot drill bit to ensure accurate alignment before main drilling
  • Compatible with all standard power drill chucks and bit holders
  • Essential toolkit for ensuring a professional fit for sashlocks and deadlocks
  • Suitable for use on both internal and external wooden door types
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Mortice Lock Drill Bit Kit is a specialised set of tooling designed to facilitate the precise installation of mortice sashlocks and deadlocks. By providing the essential drill bit diameters required for standard lock bodies, this kit ensures that the mortice cavity is bored to the correct depth and width with minimal effort.

The kit features flat wood bits which are ideal for the rapid removal of material from timber door stiles. These bits are designed to create clean, straight holes that accommodate the lock case without causing splitting. The inclusion of a pilot bit allows for accurate marking and initial drilling, which is critical for maintaining the structural integrity of the door and ensuring the lock operates correctly.

Commonly used by joiners and locksmiths, this kit is suitable for both new door installations and when upgrading existing hardware. It is compatible with most standard power drills, making it a versatile tool for residential or commercial door preparation.

Brand

SKU

MortTool

Box Contents

1 x Black and Decker 18mm Flat wood bit (for main mortice hole)

1 x Black and Decker 10mm Flat wood bit (for Key Holes)

2 x Black and Decker 2.5mm drill (for pilot holes)

skip to Suitable Size Chisels to fit Mortice Locks

Suitable Size Chisels to fit Mortice Locks

£17.99

(£14.99 ex VAT)

sku: MortChis

This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Kit includes:

1 x Faithful 19mm Chisel

1 x Faithful 25mm Chisel

The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow.

Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners.

All the chisels in this range are supplied with blade guards.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Brand

SKU

MortChis

Box Contents

19mm Chisel

25mm Chisel

Blade Guards

skip to Union 2979 Sash lock Rebate

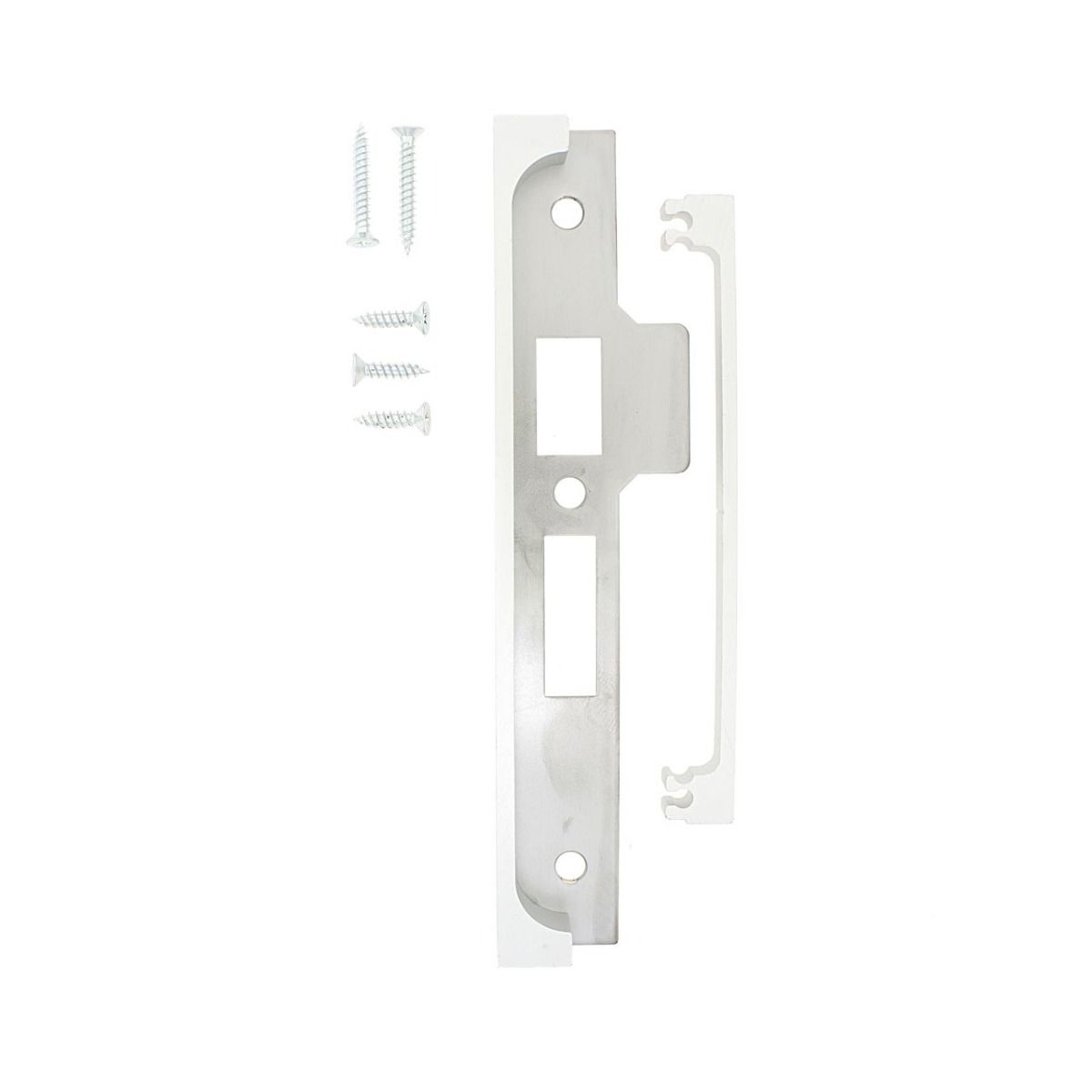

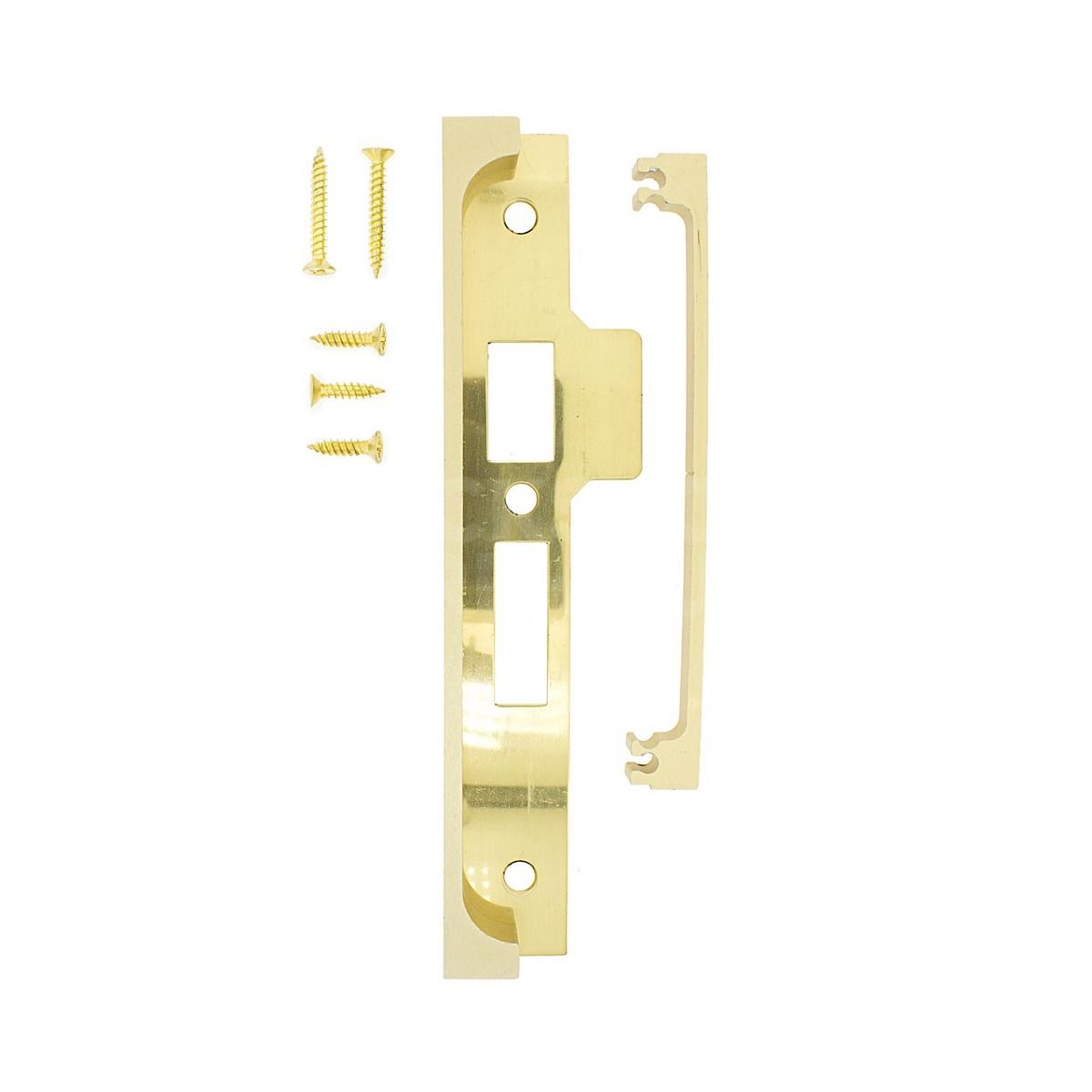

Union 2979 Sash lock Rebate

£40.79

(£33.99 ex VAT)

sku: U2979
  • Designed for use with Union 2979 mortice sash locks
  • Enables secure installation on rebated timber double doors
  • Reversible handing suits both left and right-hand opening configurations
  • Provides necessary strike housing for latch and deadbolt engagement
  • Supplied with matching fixings for a complete installation
  • Essential component for functional locking on French door sets

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2979 Sash Lock Rebate Set is a specialised accessory designed to facilitate the installation of the Union 2979 mortice sash lock into timber double doors. When doors feature a rebated meeting stile—where the two leaves overlap—a standard flat strike plate cannot be used. This rebate set provides the required offset to bridge that gap, ensuring the lock functions correctly and maintains the door's security integrity.

Constructed for durability and precision, the set is fully reversible, allowing it to be fitted to either the left or right-hand door leaf without modification. It is typically used in residential or light commercial applications where French doors are installed, serving as a critical component for both new installations and the replacement of existing hardware.

The set includes the main rebate body and the strike plate components required to house the latch and deadbolt. By using this dedicated rebate set, installers ensure a professional fit that prevents binding and allows for smooth operation of the locking mechanism within the door frame system.
