skip to Union 2294 Bathroom Lock

Union 2294 Bathroom Lock

£16.79

(£13.99 ex VAT)

sku: UN-2294

Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by lever handle from either side.

Case Sizes : 64mm & 76mm
Follower : 8mm (Latch) 5mm (Dead)
Case Finish : Black
Forend Finish : Brass or Chrome

Finish

Case Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

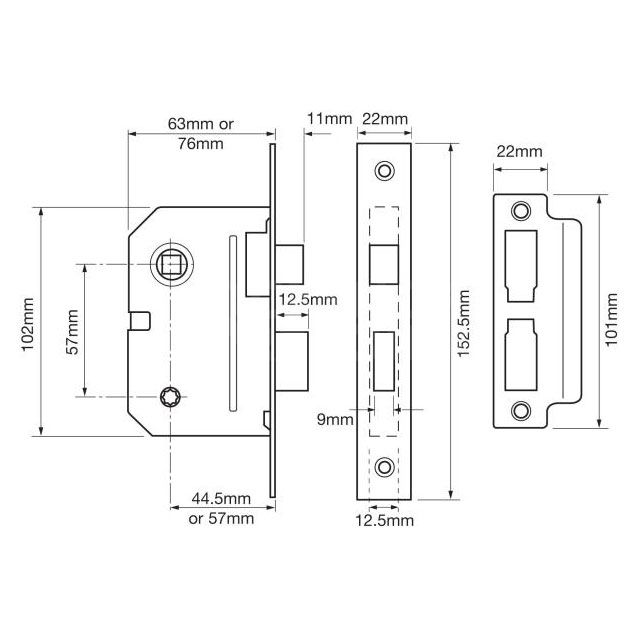

Dimensions Image: Union 2294 Bathroom Lock
Part Min (mm) Max (mm)
Follower 57 -
Backset 44 57
Bolt Length 12 -
Case Width 63 76
Case Height 102 -
Forend Width 22 -
Forend Length 152 -
Strike Plate Width 22 -
Strike Plate Length 101 -
Dimensions Image: Union 2294 Bathroom Lock

Brand

SKU

UN-2294

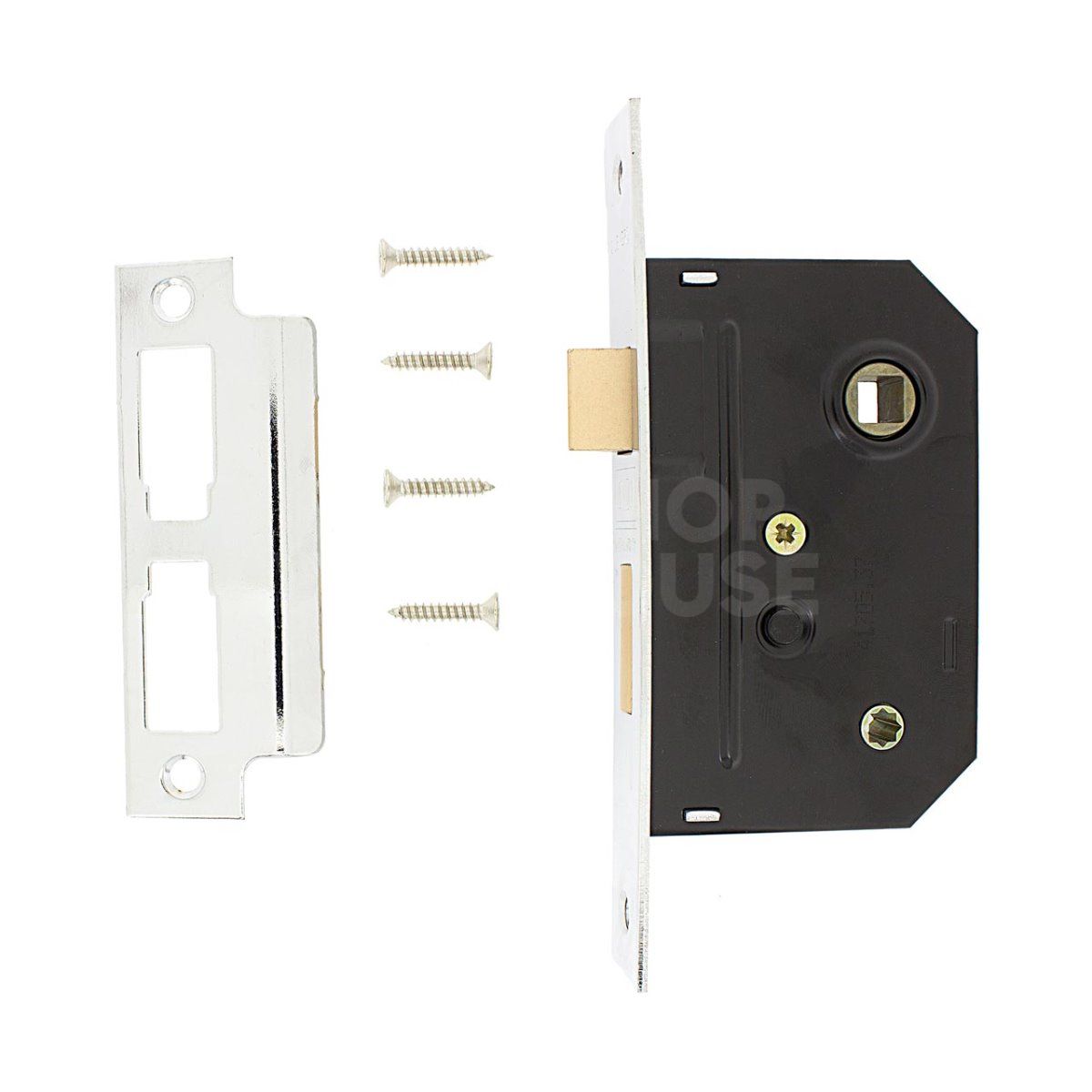

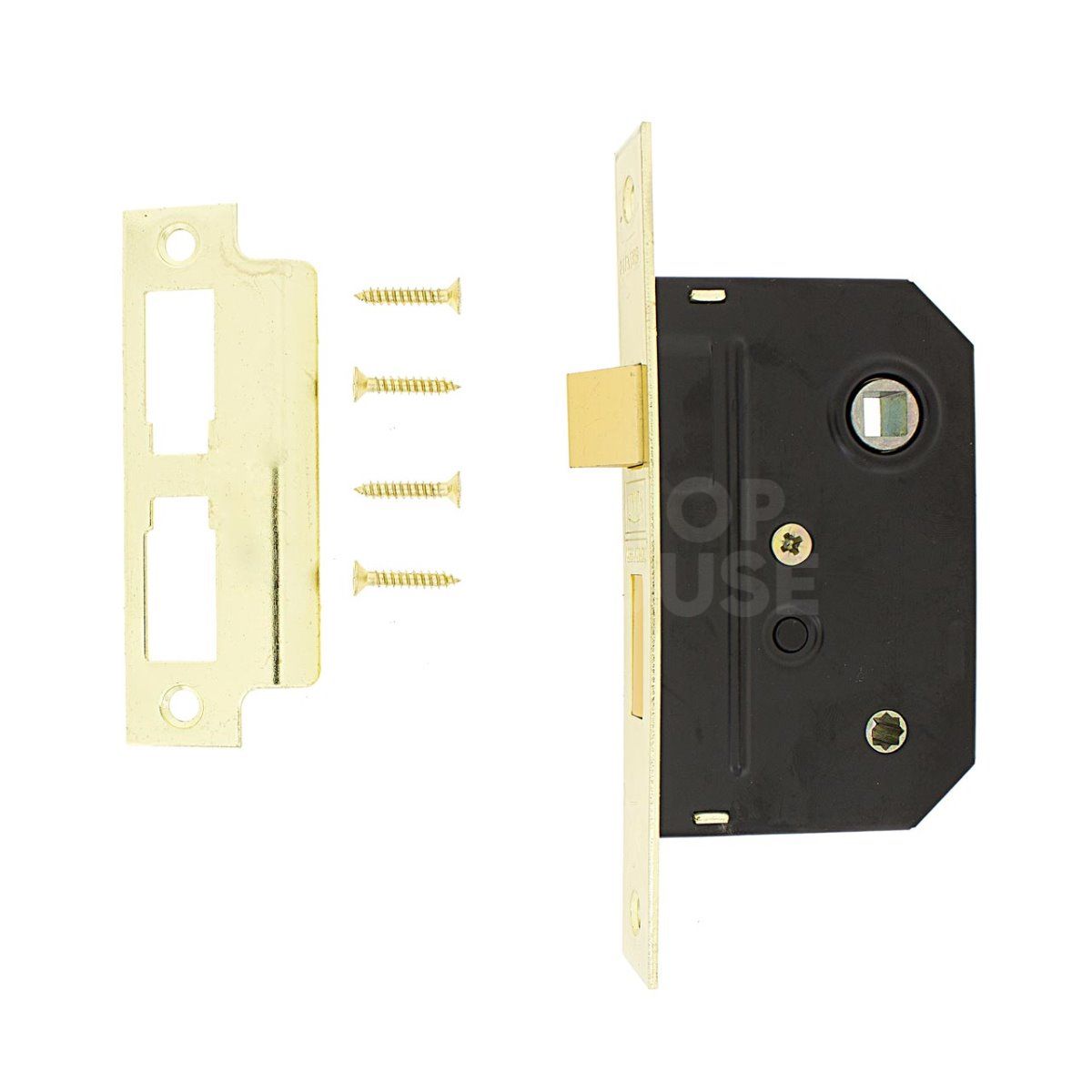

Box Contents

strike plate

fixing screws

mortice lock

FAQs

This lock is designed to work with standard door hardware. It features an 8mm follower for your lever handles and a 5mm follower for the bathroom thumbturn and emergency release spindle.

Yes, the Union 2294 features a reversible latchbolt. This allows you to easily adjust the orientation of the latch during installation to suit doors that open either to the left or the right.

The case size measurement refers to the total depth of the lock body. The 64mm case is typically used for standard internal doors, while the 76mm case is used when you want to set the handles and thumbturn further back from the door edge.

This lock provides privacy through a dual-action system:

  • The latchbolt is operated by lever handles from both sides of the door for general closing.
  • The deadbolt is thrown or retracted by a thumbturn from the inside to provide privacy locking.
