skip to Union 2295 2 Lever Sashlock

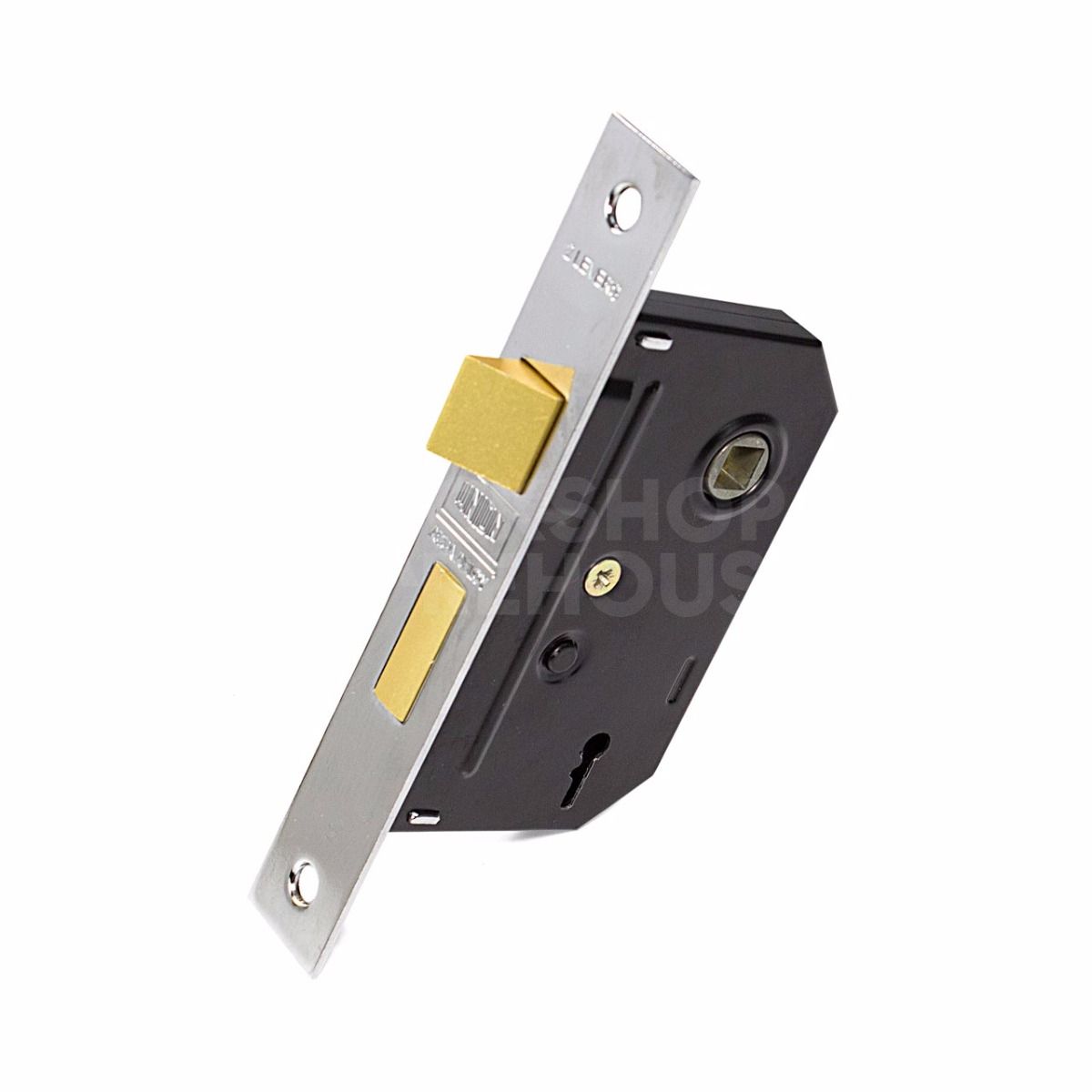

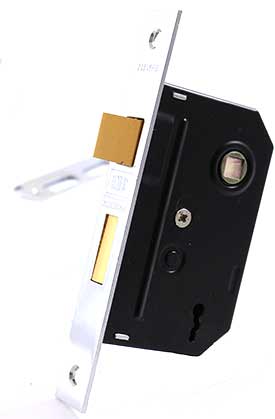

Union 2295 2 Lever Sashlock

£19.19

(£15.99 ex VAT)

sku: U2295

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation.

Operation: Two way action suitable for lightweight knobs or sprung handles. Deadbolt locked or unlocked by key from either side. Latchbolt withdrawn by lever handle from either side. Keys suitable for doors up to 55mm thick when using 8mm thick furniture plates.

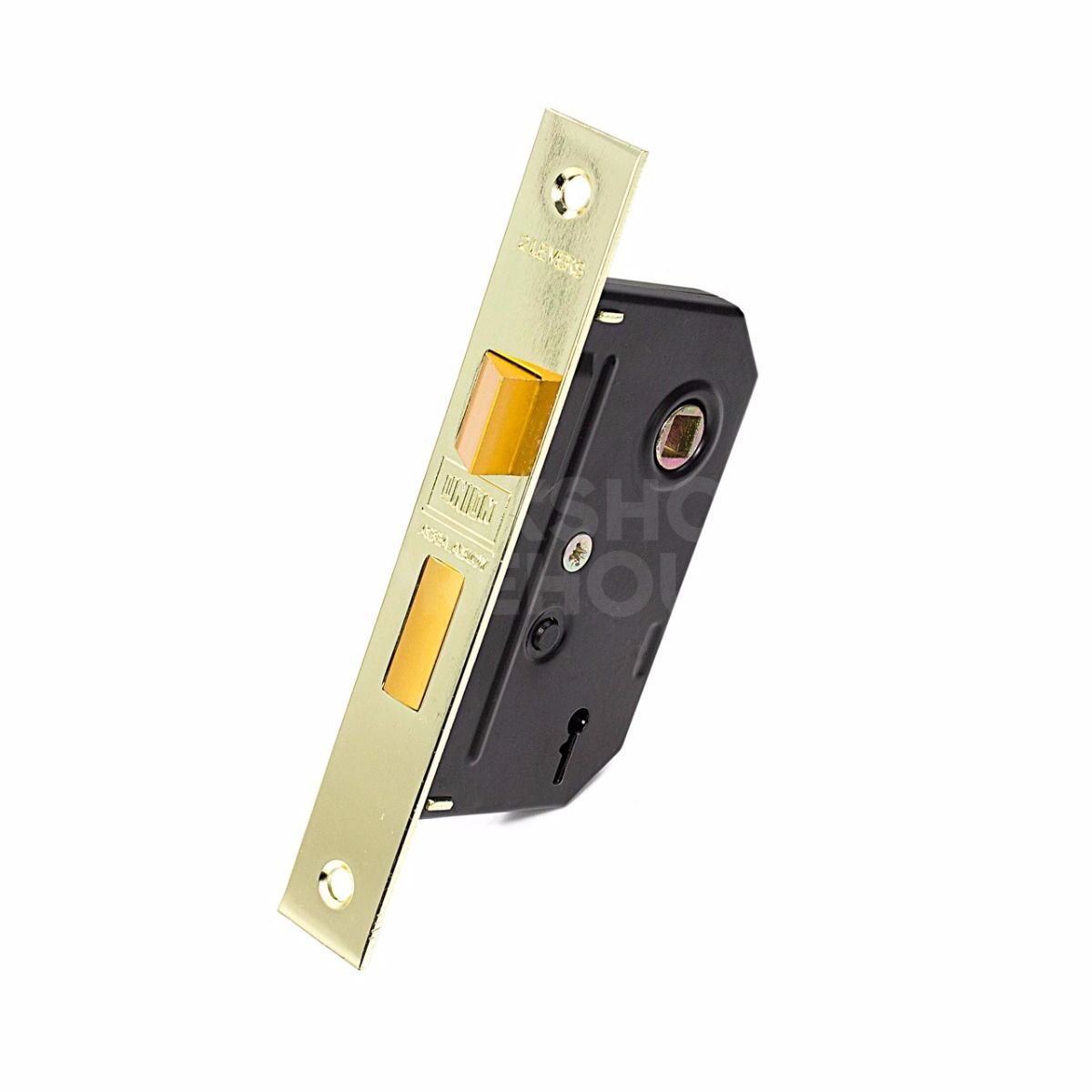

Finish: Finish shown in Polished Brass also available in Polished Chrome.
Case Material and Finish: Steel, Black.
Forend: Stainless Steel, finished to match strike plate.
Striking Plate: Stainless Steel, finished to match forend.
Latchbolt/Deadbolt: Aluminium finished
Follower: Zinc, 8mm square
Keys Supplied: 2 keys.

Other Product Benefits: Spare keys and locks available to codes - MH (numbers range from 21 to 40).

Document Icon product info

Finish

Key Configuration

Size

Keyed Alike Number

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating
tick Key Profile: Standard

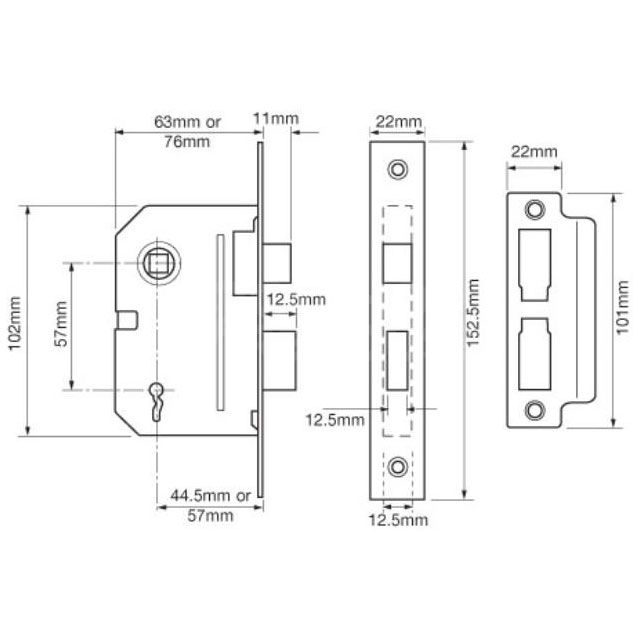

Dimensions Image: Union 2295 2 Lever Sashlock
Part Min (mm) Max (mm)
centres 57 -
Backset 44 57
Bolt Length 12 -
Case Width 63 76
Case Height 102 -
Forend Width 22 -
Forend Length 152 -
Strike Plate Width 22 -
Strike Plate Length 101 -

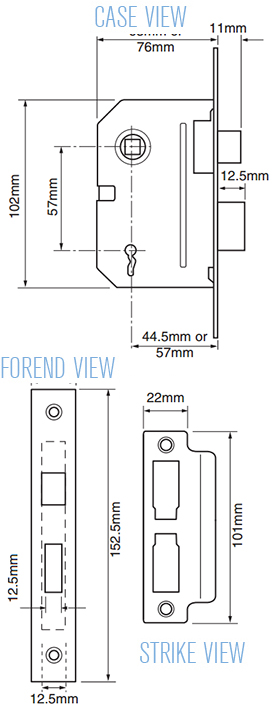

Dimensions Image: Union 2295 2 Lever Sashlock

Brand

SKU

U2295

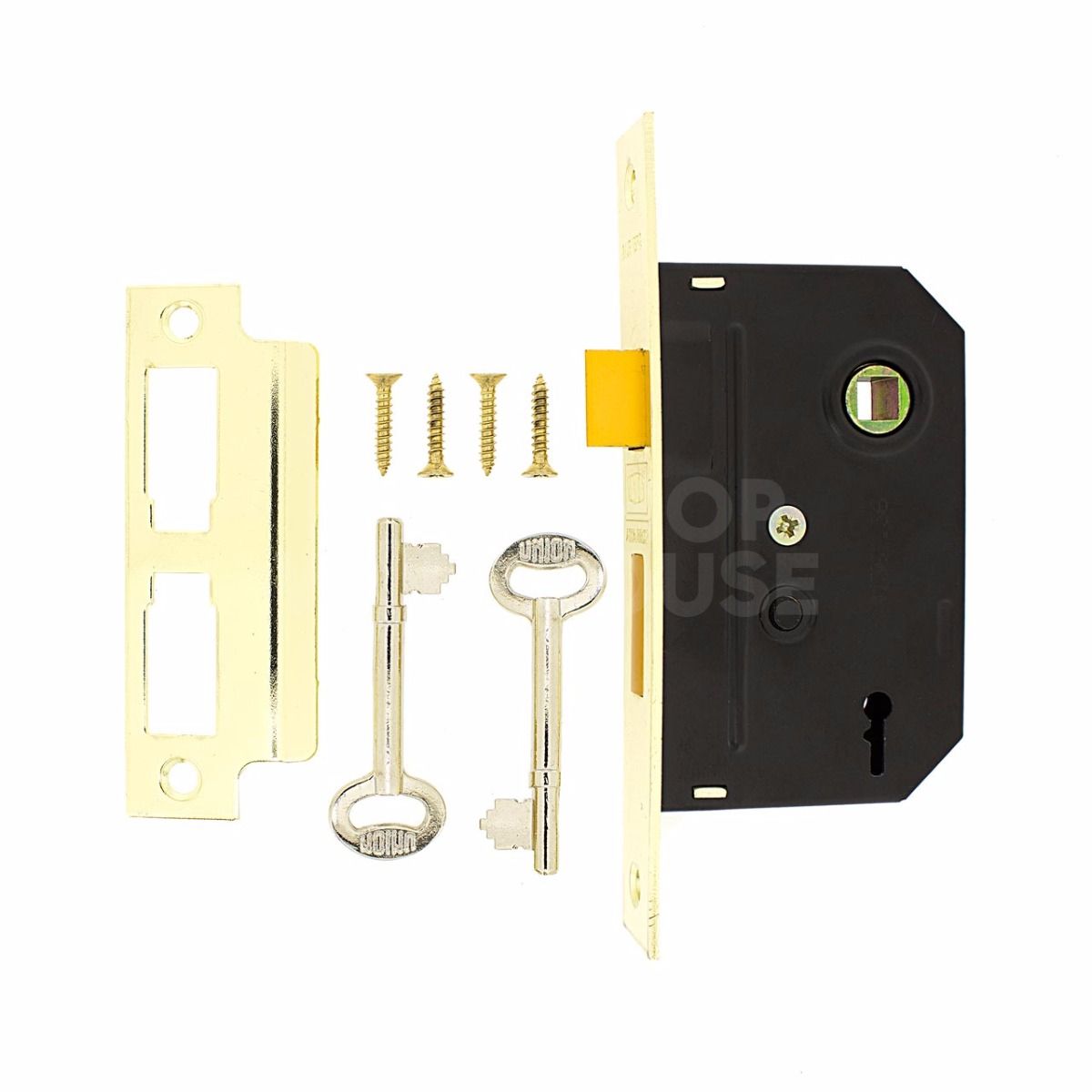

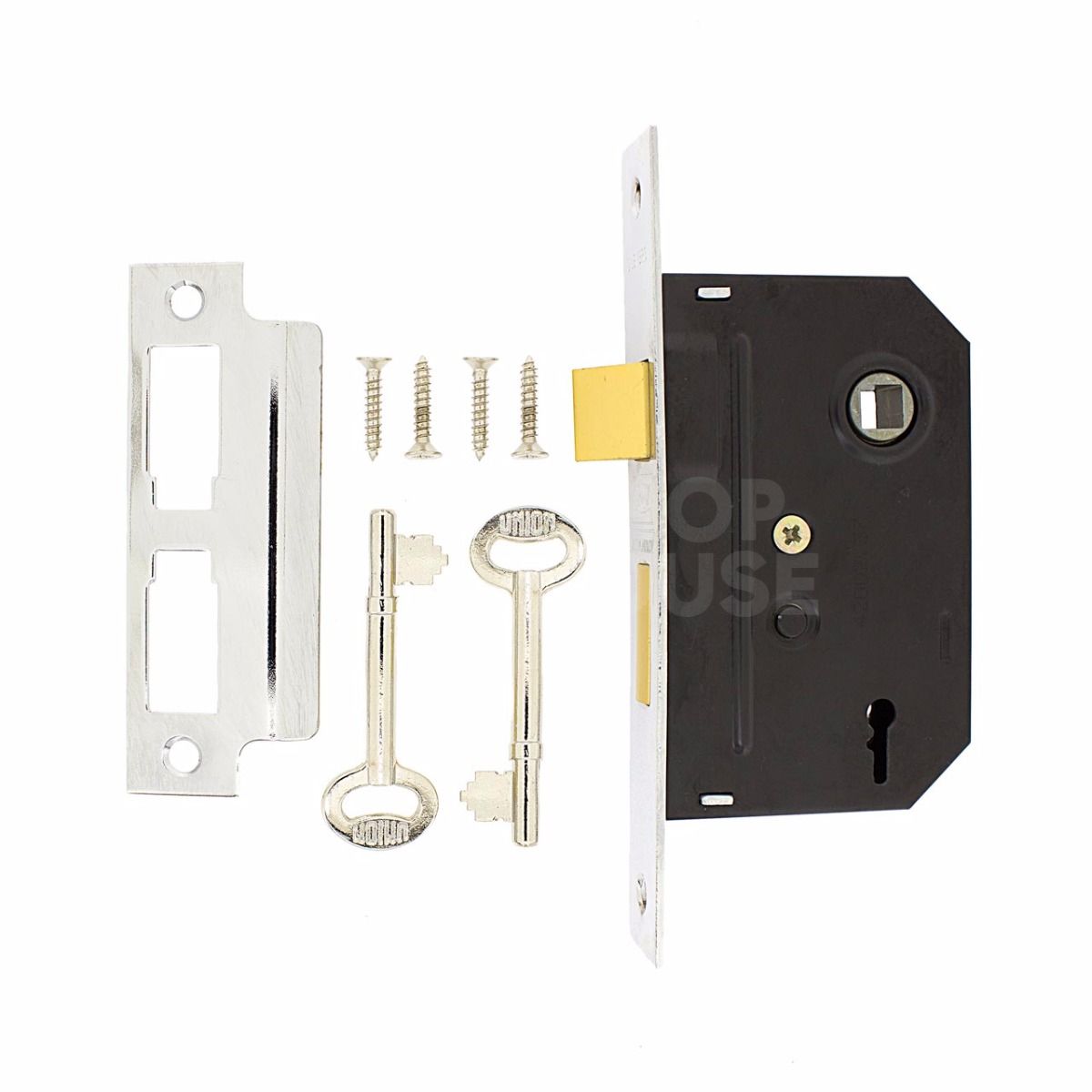

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

No, this 2-lever lock is intended for internal doors or garden sheds. It does not provide the high level of security required for external entrance doors; for those applications, we recommend using a 5-lever insurance-rated lock.

Yes, the Union 2295 is designed for wooden doors hinged on either the left or right side, providing versatile installation for any internal door requiring a key and lever handle.

This lock features a two-way action that is best suited for:

  • Lightweight door knobs
  • Sprung lever handles

It utilizes a standard 8mm square zinc follower to accommodate most common furniture spindles.

The lock is supplied with two keys and is suitable for doors up to 55mm thick. If you need additional keys, they can be sourced using the specific key codes ranging from MH21 to MH40.

Related Products

skip to Spare key for Union 2295 locks

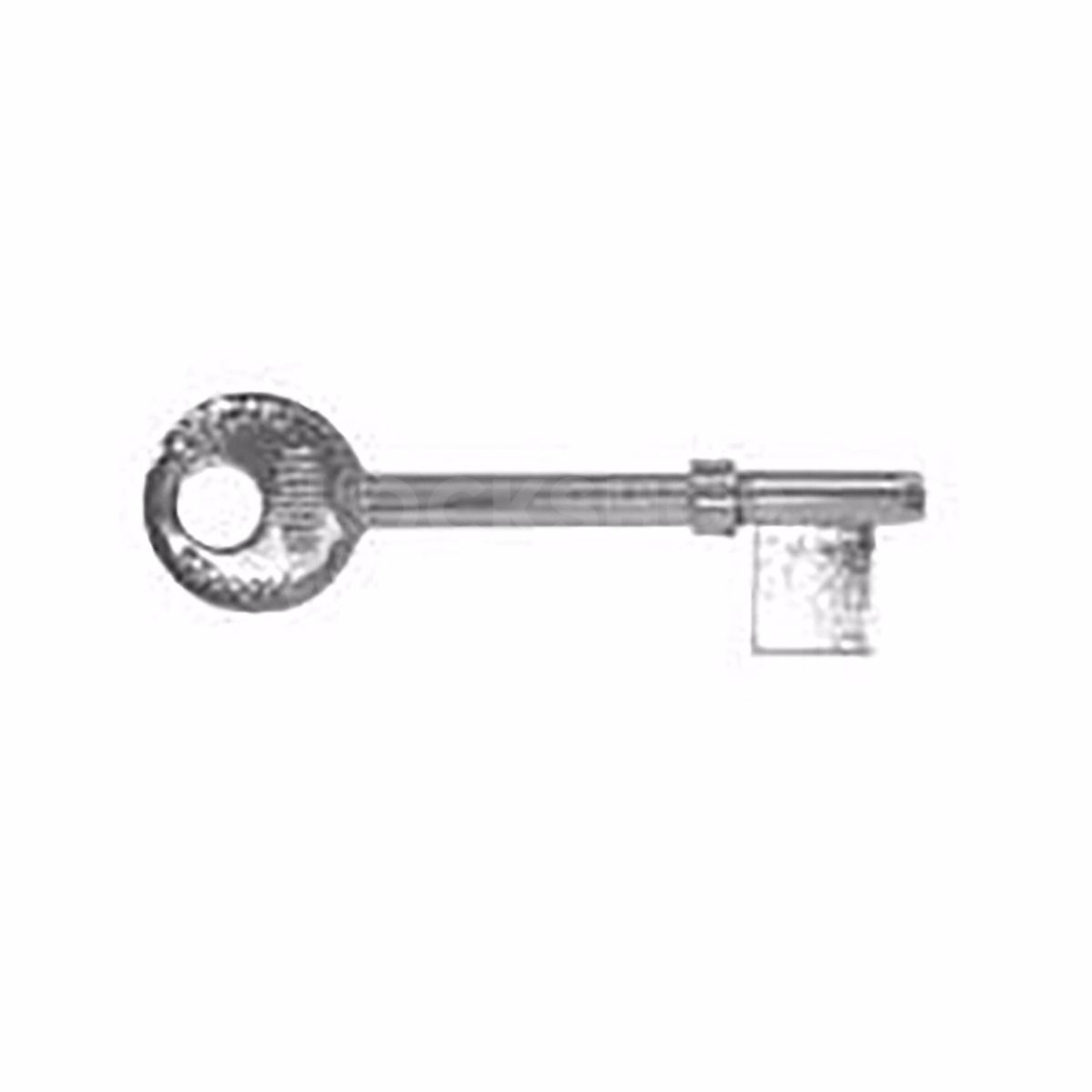

Spare key for Union 2295 locks

£3.60

(£3.00 ex VAT)

sku: 858
  • Specifically designed for compatibility with Union 2295 mortice locks
  • Precision cut to specific MH series key codes (numbers 21-40)
  • Provides a direct replacement or additional key for existing locksets
  • Ensures smooth mechanical operation within the lock cylinder
  • Supplied pre-cut for immediate use without the need for manual duplication
  • Maintains the security integrity of the Union 2295 locking system
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2295 Spare Mortice Lock Key is a precision-engineered component designed for use with the Union 2295 series of locks. These keys are supplied pre-cut to specific codes within the MH series, covering the numerical range from 21 to 40. By using a factory-standard cut key, you ensure optimal compatibility and reduce the mechanical wear often associated with duplicated keys cut from generic blanks.

Typically used in both residential and commercial applications, these keys are ideal for replacing lost keys or providing additional access points for property managers and residents. The keys function by engaging the internal levers of the mortice lock, providing a reliable and secure locking action.

  • Designed for the Union 2295 mortice lock range
  • Compatible with MH series codes 21 through 40
  • Functions as a high-precision replacement or spare
  • Reduces the risk of lock jams compared to poorly duplicated keys
skip to Suitable Size Chisels to fit Mortice Locks

Suitable Size Chisels to fit Mortice Locks

£17.99

(£14.99 ex VAT)

sku: MortChis

This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Kit includes:

1 x Faithful 19mm Chisel

1 x Faithful 25mm Chisel

The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow.

Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners.

All the chisels in this range are supplied with blade guards.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Brand

SKU

MortChis

Box Contents

19mm Chisel

25mm Chisel

Blade Guards

skip to Suitable Size Drill Bits to fit Mortice Locks

Suitable Size Drill Bits to fit Mortice Locks

£11.99

(£9.99 ex VAT)

sku: MortTool
  • Designed specifically for the installation of mortice locks in timber doors
  • Includes flat wood bits for rapid and efficient boring of the lock case cavity
  • Features a pilot drill bit to ensure accurate alignment before main drilling
  • Compatible with all standard power drill chucks and bit holders
  • Essential toolkit for ensuring a professional fit for sashlocks and deadlocks
  • Suitable for use on both internal and external wooden door types
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Mortice Lock Drill Bit Kit is a specialised set of tooling designed to facilitate the precise installation of mortice sashlocks and deadlocks. By providing the essential drill bit diameters required for standard lock bodies, this kit ensures that the mortice cavity is bored to the correct depth and width with minimal effort.

The kit features flat wood bits which are ideal for the rapid removal of material from timber door stiles. These bits are designed to create clean, straight holes that accommodate the lock case without causing splitting. The inclusion of a pilot bit allows for accurate marking and initial drilling, which is critical for maintaining the structural integrity of the door and ensuring the lock operates correctly.

Commonly used by joiners and locksmiths, this kit is suitable for both new door installations and when upgrading existing hardware. It is compatible with most standard power drills, making it a versatile tool for residential or commercial door preparation.

Brand

SKU

MortTool

Box Contents

1 x Black and Decker 18mm Flat wood bit (for main mortice hole)

1 x Black and Decker 10mm Flat wood bit (for Key Holes)

2 x Black and Decker 2.5mm drill (for pilot holes)
