Union L2349 Mortice Nightlatch

£59.99

(£49.99 ex VAT)

Latchbolt is withdrawn by single euro profile cylinder from outside and lever handle inside. Door is automatically deadlocked when closed. Latch can be held in withdrawn position by operating a snib in the forend, with the special key supplied. Can be operaled by key from eilher side using double cylinder.

Standard cylinder length is suitable for doors up to 46mm thick. For doors in excess of this thickness, order correct cylinder length accordingly. Latchbolt is easily reversed without opening the lockcase.

Mechanism : Euro Cylinder
Case Size : 77mm,
Follower : 8mm (One Way Action)
Case, Finish : Enamelled Silver
Forend Finish : Brass or Satin

Please Note: Cylinder not supplied

Finish

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
6/10 Security Rating

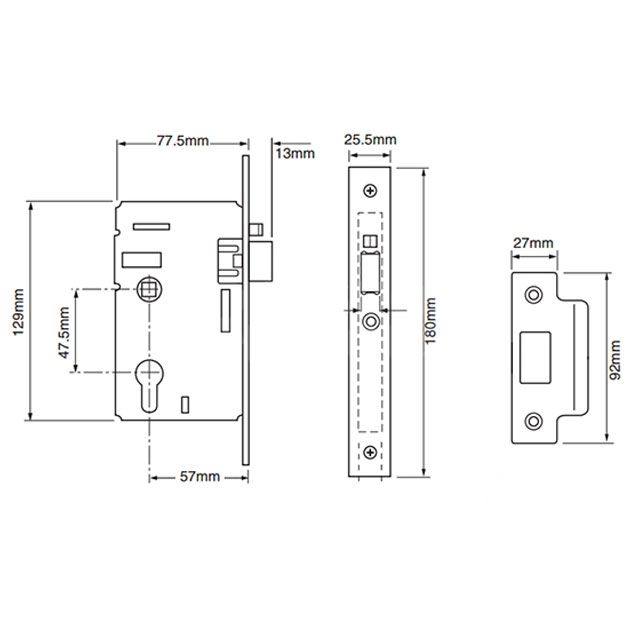

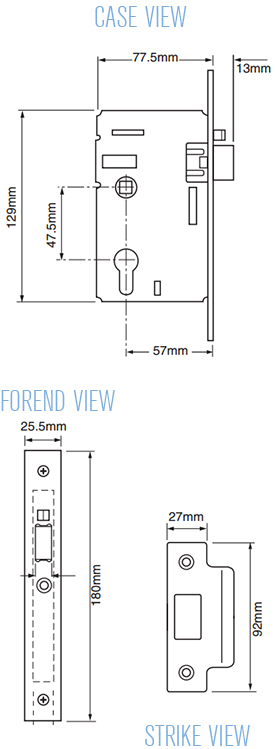

Dimensions

Toggle Icon
Dimensions Image: Union L2349 Mortice Nightlatch
Part Min (mm) Max (mm)
centres 47.5 -
Backset 57 -
Bolt Length 13 -
Case Width 77.5 -
Case Height 129 -
Forend Width 25.5 -
Forend Length 180 -
Strike Plate Width 27 -
Strike Plate Length 92 -

Technical Specifications

Toggle Icon
Dimensions Image: Union L2349 Mortice Nightlatch

Brand

Union

SKU

UNL2349

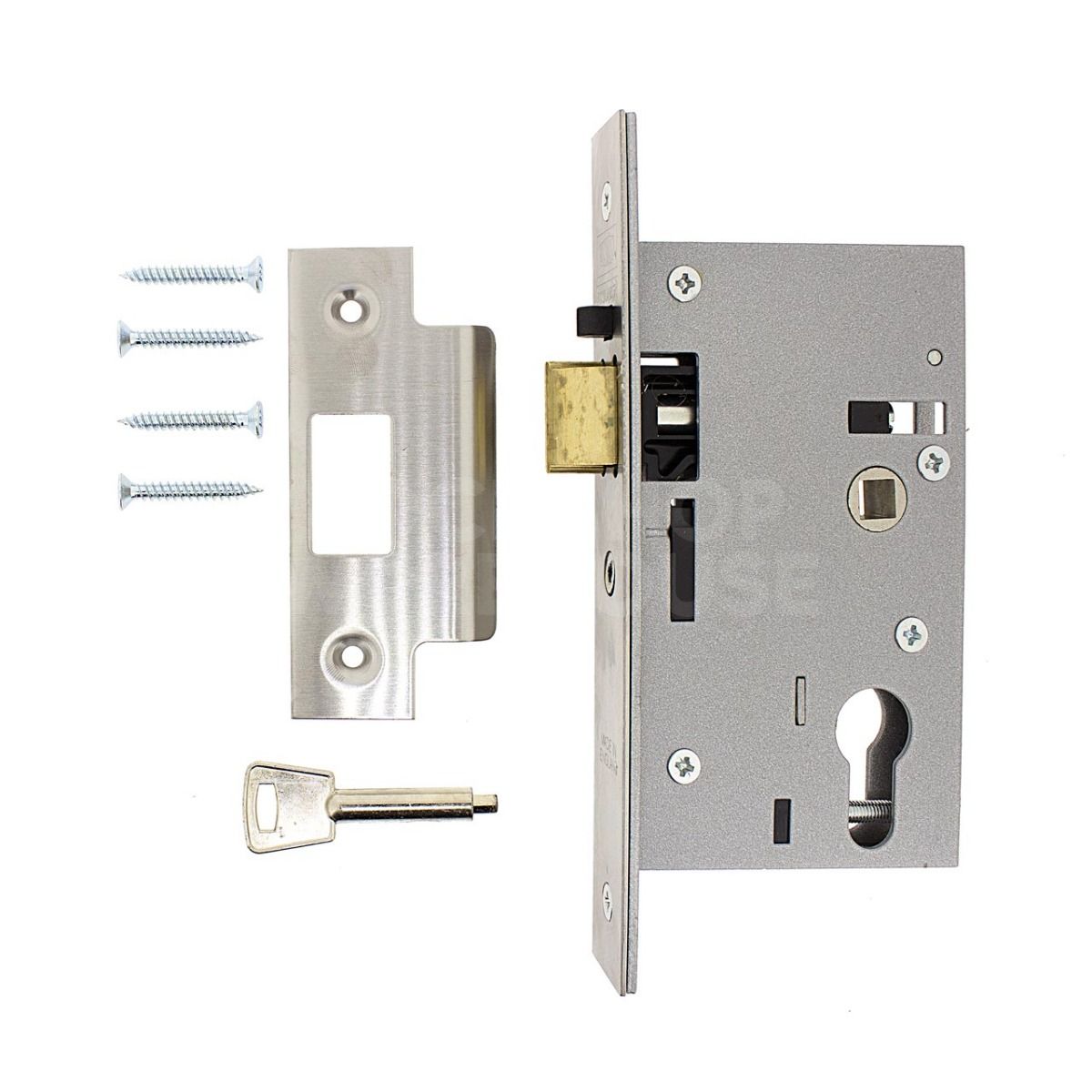

Box Contents

strike plate

fixing screws

mortice lock
