skip to Union 2477 3 Lever Sliding Door Lock

Union 2477 3 Lever Sliding Door Lock

£41.99

(£34.99 ex VAT)

sku: UN-2477
  • Designed specifically for use on sliding timber doors
  • Features a claw-style deadbolt to prevent the door being pulled from the frame
  • Suitable for doors sliding from either the left or the right
  • Operated by key from both sides for internal security
  • Traditional 3-lever mechanism provides reliable locking performance
  • Engineered for standard mortice installation
  • Supplied with two keys as standard
Document Icon product info

Union 3 Lever Range of mortice locks which can be keyed alike together

Union 2177 3 Lever Deadlock £ 26.39
Union 2277 Sashlock £ 29.99
Union 2077 Sashlock Horizontal £ 47.99
Union 2477 3 Lever Sliding Door Lock £ 41.99

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

3/10 Security Rating
tick Key Profile: Standard

The Union 2477 is a 3-lever mortice deadlock specifically engineered for sliding timber doors. It utilises a claw-style deadbolt mechanism that engages securely with the strike plate, ensuring the door cannot be lifted or pulled away from the frame when locked.

This lock is versatile and suitable for doors sliding to either the left or the right, making it appropriate for a wide range of interior applications. It is operated by a key from both the internal and external sides, providing a simple yet effective security solution for domestic settings.

Typically used for new installations or as a direct replacement for existing units of the same footprint, the lock features a silver enamelled case for durability. The internal brass deadbolt is designed for smooth operation and long-term reliability. It is a key-only operation lock, meaning it does not include a latch and is intended for use where a separate handle or pull is already present.

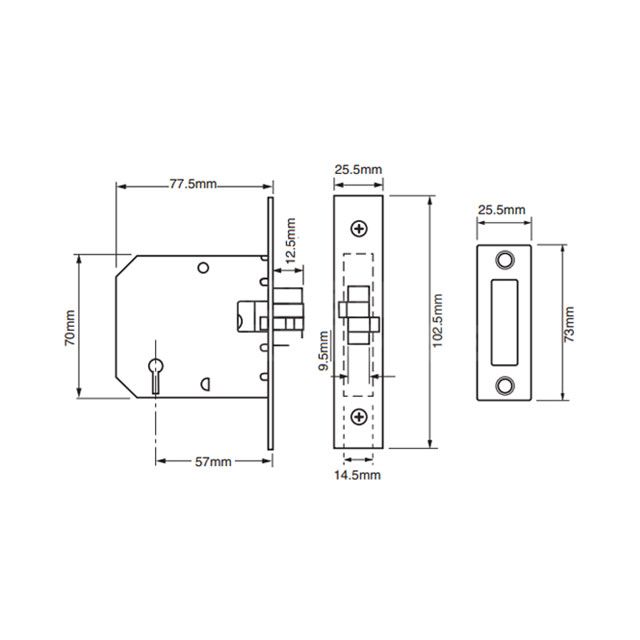

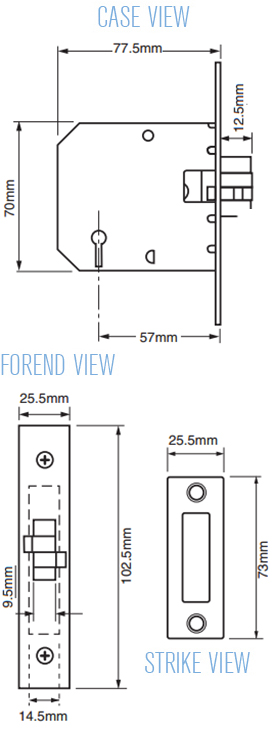

Dimensions Image: Union 2477 3 Lever Sliding Door Lock
Part Size (mm)
Backset 57
Bolt Length 12
Case Width 77
Case Height 70
Forend Width 25
Forend Length 102
Strike Plate Width 25
Strike Plate Length 73
Dimensions Image: Union 2477 3 Lever Sliding Door Lock

Brand

SKU

UN-2477

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

key escutcheons

Key Profile

Key Profile: Standard

FAQs

Yes, the Union 2477 is a versatile mortice deadlock suited for timber doors sliding from either the left or the right. It is specifically designed to provide key-operated security for sliding mechanisms regardless of the opening direction.

This lock utilizes a brass claw deadbolt which is specifically engineered for sliding doors. The hooked shape of the bolt ensures a secure grip into the strike plate, preventing the door from being lifted or pulled away from the frame. For added security, the bolt includes hardened steel rollers to resist sawing.

Yes, this is a double-sided entry lock. The claw deadbolt can be locked or unlocked using a key from either the internal or external side of the door, providing full control and security from both directions.

The lock is supplied with two steel keys and is available in two decorative finishes to match your door furniture:

  • Polished Brass
  • Satin Chrome
Both options feature matching stainless steel forends and strike plates, while the internal lock case has a silver enamelled finish.
