skip to Union Rebated Tubular Mortice Latch 2650

Union Rebated Tubular Mortice Latch 2650

£17.99

(£14.99 ex VAT)

sku: U2650
  • Engineered specifically for use on rebated double timber doors
  • Features a 13mm rebated forend to ensure a flush fit on stepped door stiles
  • Equipped with an 8mm square follower compatible with standard lever furniture
  • Two-way follower action provides smooth operation from either side
  • Designed for internal applications requiring a latching mechanism on meeting stiles
  • Robust internal case construction for long-term reliability
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2650 Rebated Tubular Mortice Latch is a specialised hardware solution designed for use on rebated double doors. Unlike standard tubular latches intended for flush-meeting doors, this model incorporates a 13mm rebated forend, allowing it to fit seamlessly into the stepped profile of rebated timber stiles.

This latch functions by withdrawing the latchbolt via a lever handle from either side of the door. It features a standard 8mm square follower with a two-way action, ensuring compatibility with a wide variety of UK lever-on-rose or lever-on-backplate furniture. The internal mechanism is housed in a zinc-plated case, providing durability and protection for the moving parts within the door mortice.

Typically used in residential or light commercial settings, the Union 2650 is the correct choice for new installations on double doors or as a replacement part for existing rebated latch systems. It provides a secure and professional finish, maintaining the aesthetic and functional integrity of timber door sets with rebated meeting stiles.

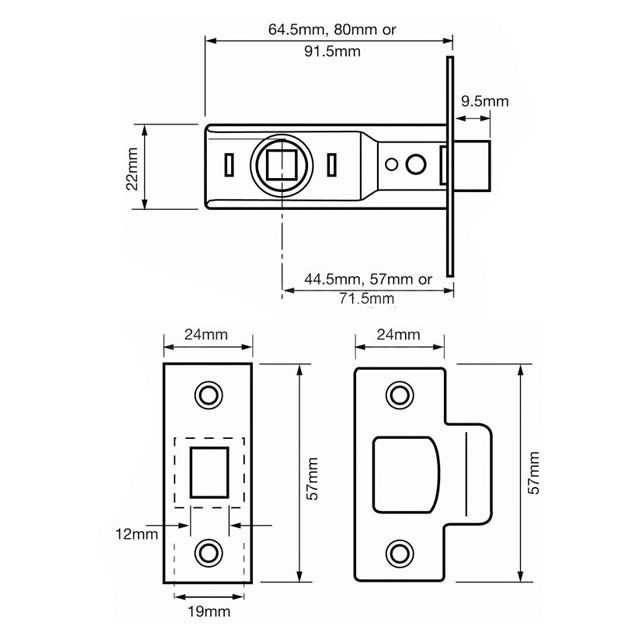

Dimensions Image: Union Rebated Tubular Mortice Latch 2650
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 9 -
Case Width 64 80
Case Height 22 -
Forend Width 24 -
Forend Length 57 -
Strike Plate Width 24 -
Strike Plate Length 57 -
Dimensions Image: Union Rebated Tubular Mortice Latch 2650

Brand

SKU

U2650

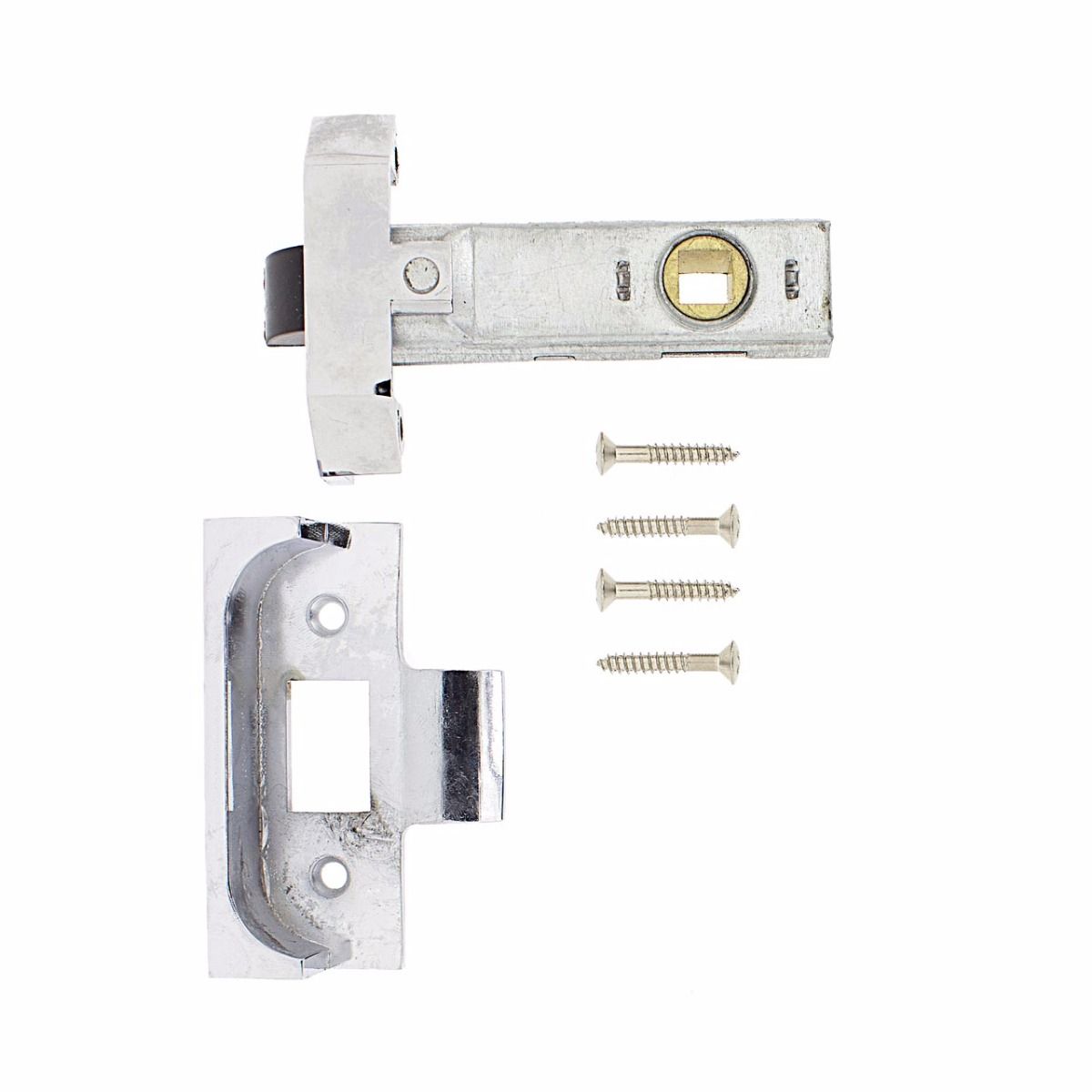

Box Contents

strike plate

fixing screws

latch

FAQs

The Union 2650 is designed specifically for rebated double doors. It features a 13mm rebated forend that accommodates the stepped profile where two doors meet, ensuring a flush and secure fit.

This latch is equipped with an 8mm follower, which is the standard size for most modern lever handle sets. The follower features a two-way action for smooth handle operation.

Yes, the latchbolt is designed to be withdrawn by a lever handle from either side of the door, making it suitable for standard internal door applications.

The visible forend (faceplate) is available in Electro Brass and Bright Zinc finishes to match your door hardware. The internal case is zinc plated for improved corrosion resistance and durability.
