Union 2657 Upright Mortice Latch

£17.99

(£14.99 ex VAT)

sku: UN-2657
  • Suitable for use with both unsprung lever handles and mortice knobs
  • Heavy-duty spring mechanism ensures reliable handle return
  • Pierced to accept bolt-through fixings for secure furniture mounting
  • Fully reversible latchbolt for left or right-hand opening doors
  • Upright mortice case design for traditional timber door installations
  • Latchbolt withdrawn by handle or knob from either side
Document Icon product info

Finish

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

2/10 Security Rating

The Union 2657 Upright Mortice Latch is a robust latching solution designed for internal timber doors where a locking function is not required. It is specifically engineered to support the weight of unsprung lever handles and heavy mortice knobs, utilizing a heavy-duty spring mechanism to ensure the furniture returns to its original position consistently.

Key functional features include a case that is pierced to accommodate bolt-through fixings. This allows door furniture to be secured through the lock case, providing a much more stable and permanent installation than surface-fixed screws alone. The latchbolt itself is fully reversible, making the unit compatible with doors regardless of which way they swing.

This latch is a standard choice for high-quality residential and light commercial projects, functioning as both a reliable component for new door sets and a high-specification replacement for existing upright latches. Its internal mechanism is designed for durability and smooth operation over a long service life.

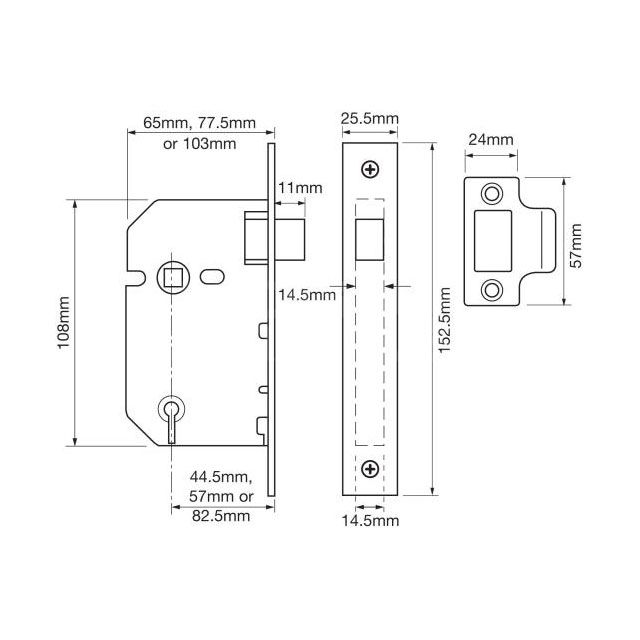

Dimensions Image: Union 2657 Upright Mortice Latch
Part Min (mm) Max (mm)
Backset 44 82
Bolt Length 11 -
Case Width 65 103
Case Height 108 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 24 -
Strike Plate Length 57 -
Dimensions Image: Union 2657 Upright Mortice Latch

Brand

SKU

UN-2657

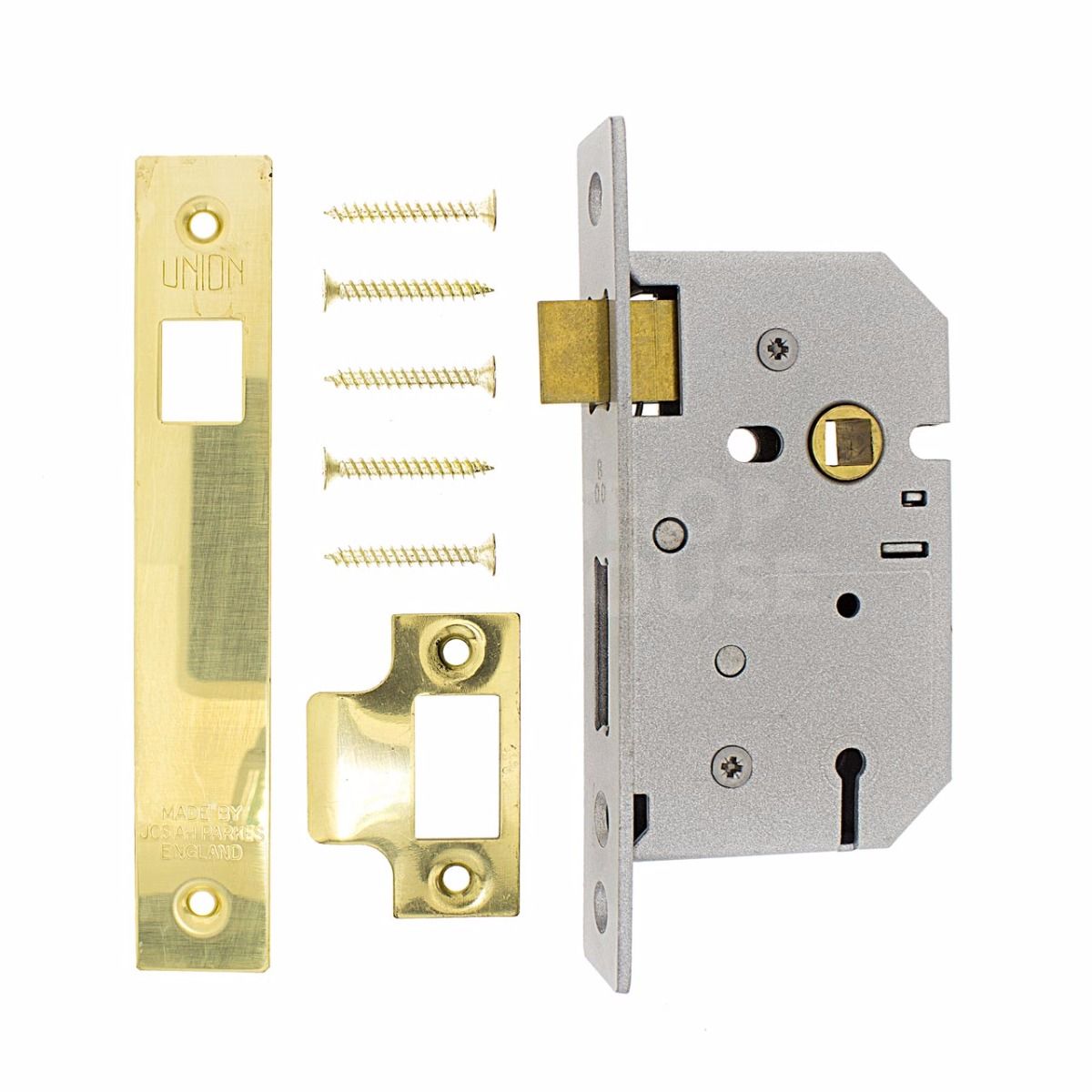

Box Contents

strike plate

fixing screws

latch

FAQs

Yes, the Union 2657 is specifically designed to be compatible with mortice knobs as well as lever handles, offering versatility for various types of door hardware.

Yes, the lock case is pierced to accept bolt-through furniture. This feature allows you to use fixings that pass directly through the door and the latch case for a more secure and stable handle installation.

Yes, the latch features a reversible bolt, making it suitable for both left and right-hand opening doors. The bolt can be operated by a lever handle from either side of the door.

Yes, this mortice latch is engineered to work effectively with unsprung lever handles, providing the internal spring tension required to return the handle to its horizontal position after use.
