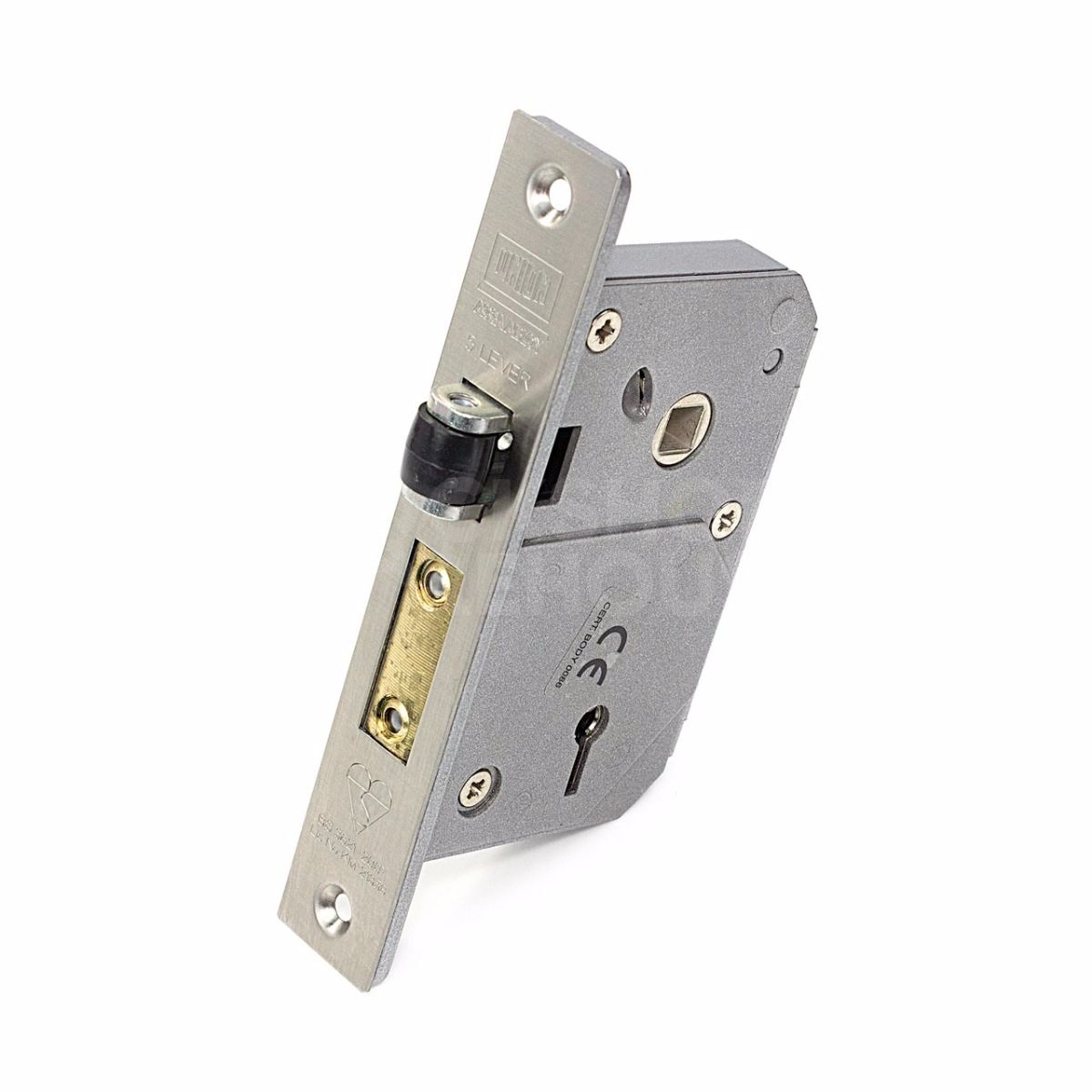

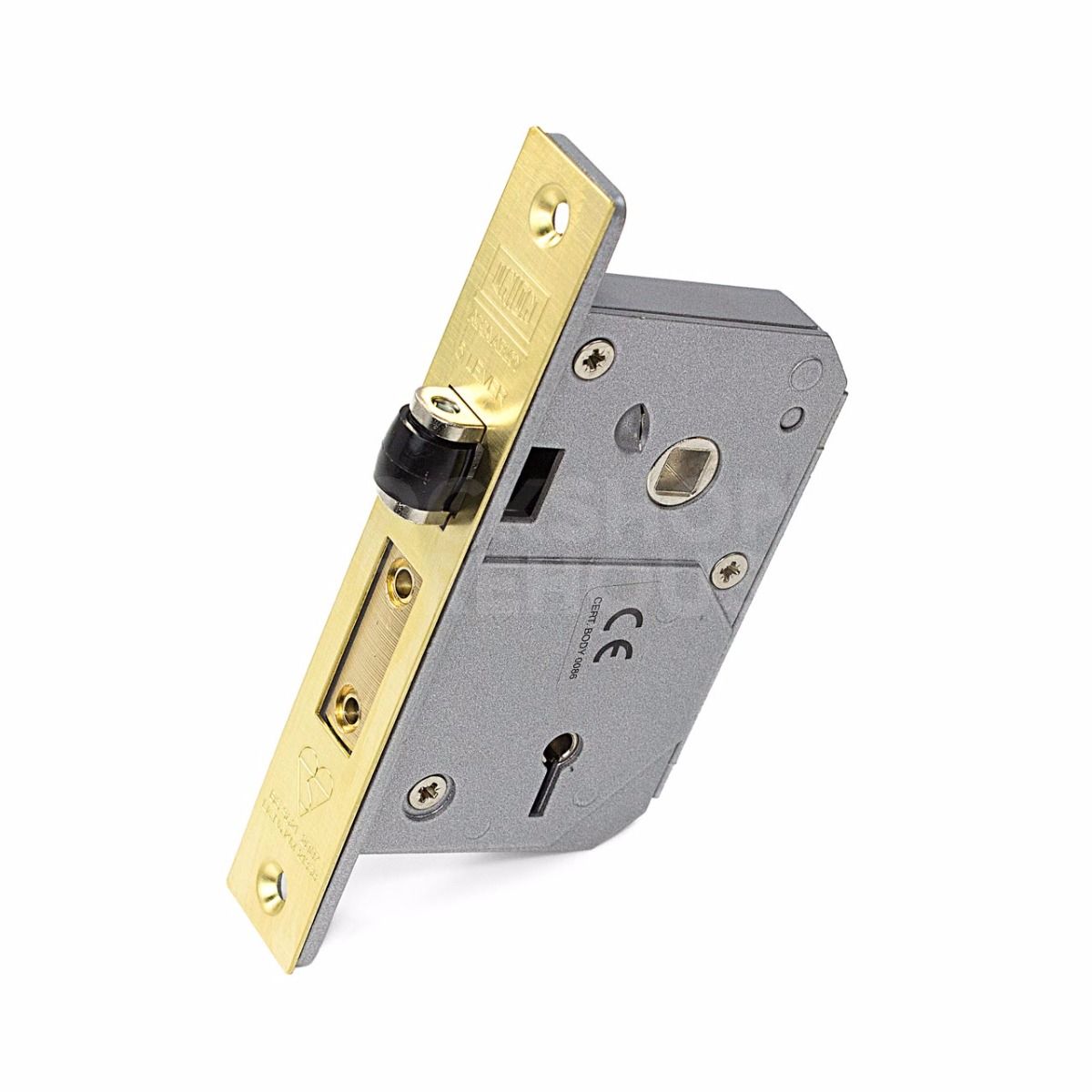

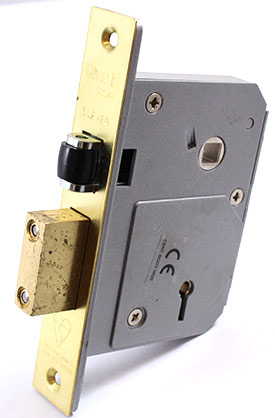

Union 3K74E Sashlock (BS3621:2007)

£70.79

(£58.99 ex VAT)

sku: CH3K74E

Manufactured to the same high security specification as 3G114E, the 3K74E is Unions top of the line sashlock. It contains a 2-bolt lock combining a key operated deadlock with a roller latchbolt. Designed primarily for securing front, rear and side entrance wooden doors, the roller latchbolt can be operated by lever handles on Manufactured to the same high security specification as 3G114E, the 3K74E is Unions top of the line sashlock. It contains a 2-bolt lock combining a key operated deadlock with a roller latchbolt. Designed primarily for securing front, rear and side entrance wooden doors, the roller latchbolt can be operated by lever handles on both sides of the door. Tested and certified to British Standard (BS3621:2007) and after a wide range of installations our team of Master Locksmiths highly recommend this lock due to its solid build quality and performance.

Mechanism: 5 Lever
Security Level: British Standard - BS3621:2007
Case Size: 67mm or 80mm
Case Finish: Silver
Forend Finish: Polished Brass or Satin Chrome
Keys Supplied: 3
Differs: 1000 +
Handling: Reversible

Document Icon product info

Union C Series Range of mortice locks which can be keyed alike together.

Union 3G114E Deadlock (BS3621:2007) £ 56.39
Union 3K74E Sashlock (BS3621:2007) £ 70.79

Case Size

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
heavy-duty Heavy Duty
10/10 Security Rating
british-standard British Standard - BS3621
tick Key Profile: Standard

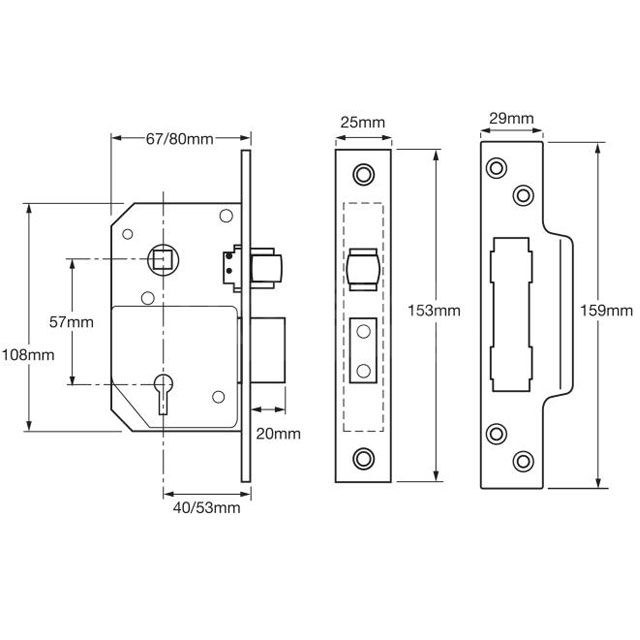

Dimensions Image: Union 3K74E Sashlock (BS3621:2007)
Part Min (mm) Max (mm)
centres 57 -
Backset 40 53
Bolt Length 20 -
Case Width 67 80
Case Height 108 -
Forend Width 25 -
Forend Length 153 -

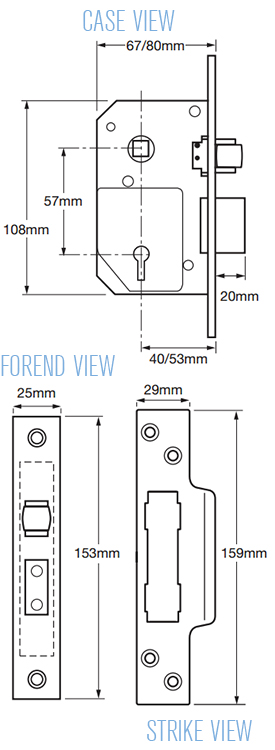

Dimensions Image: Union 3K74E Sashlock (BS3621:2007)

Brand

SKU

CH3K74E

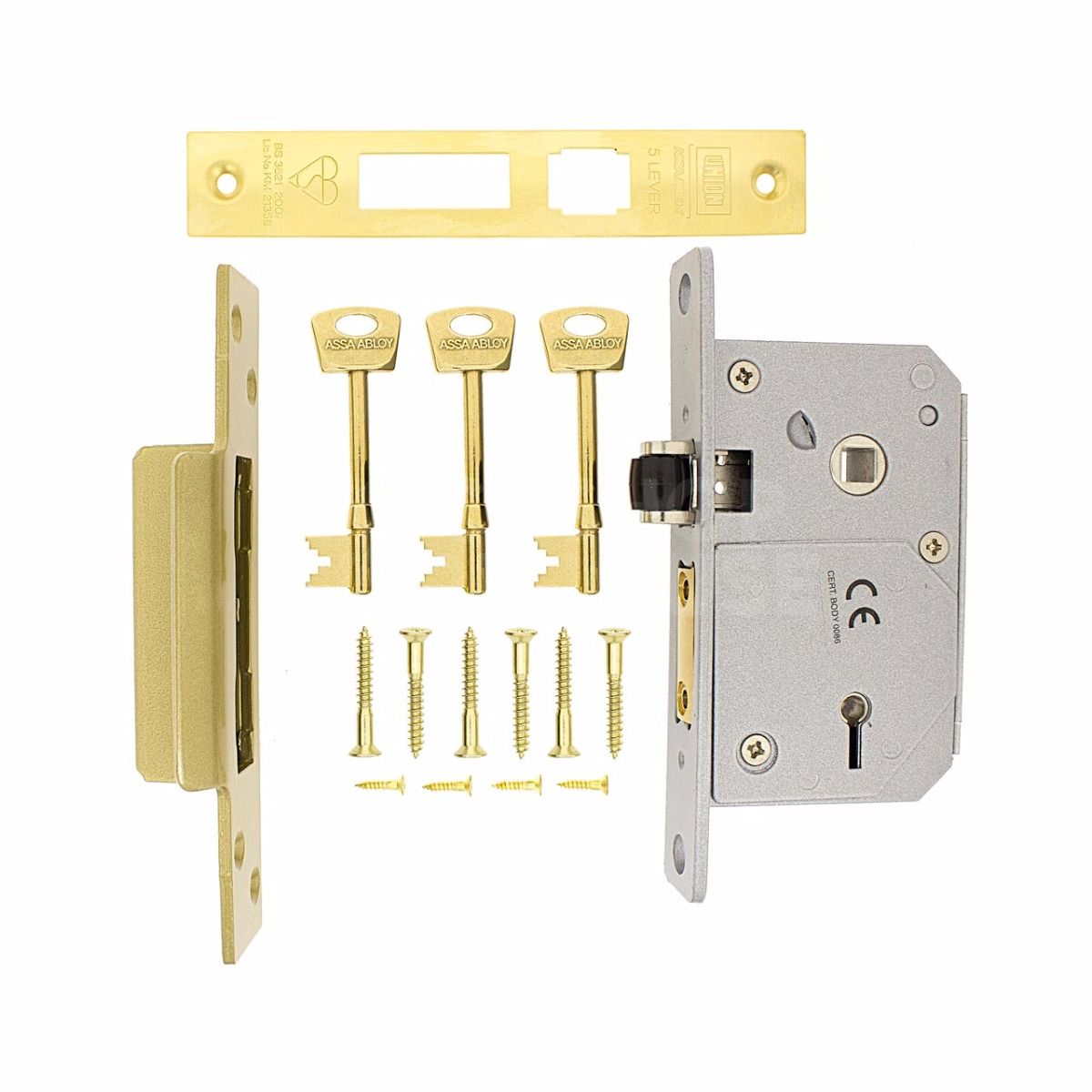

Box Contents

3 keys

strike plate

fixing screws

instructions

mortice lock

Certifications

british-standard British Standard - BS3621

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Sashlocks are typically suitable for both left- and right-handed doors, as well as inward- and outward-opening applications. They are designed to be reversible on site, making installation flexible and straightforward.

Depending on the brand and model, latch reversal can be done in one of two ways:

  • Pull and twist the latch bolt to the desired position

  • Remove a retaining screw on the back of the lock case, rotate the latch, then refit the screw

This allows for easy adjustment during installation without the need for specialized tools.

Yes, the Union 3K74E is tested and certified to British Standard BS3621:2007. This high-security rating is the standard requirement for most insurance companies regarding external wooden doors.

No, this lock features a reversible roller latchbolt. This unique design allows the lock to function perfectly on both left-handed and right-handed opening doors without any complex manual adjustments.

The Union 3K74E Sashlock is supplied with three keys as standard. It features a 5-lever mechanism with over 1,000 key differs to ensure high levels of security and pick resistance.

Yes, this is a sashlock designed specifically to be used in conjunction with lever handles. The roller latchbolt holds the door shut on a day-to-day basis, while the 5-lever deadlock provides maximum security when locked with a key.

Related Products

skip to Union 5 lever locks Extra Key (Chubb 114 Style)

Union 5 lever locks Extra Key (Chubb 114 Style)

£3.60

(£3.00 ex VAT)

sku: UNION-EXK-114
  • Compatible with Union 5-lever mortice locks built on the Chubb 114 style
  • Supplied as a precision-cut key for immediate use with specific lock mechanisms
  • Essential for providing additional access points for residential or commercial properties
  • Designed to ensure smooth mechanical operation within high-security lever assemblies
  • Constructed for long-term durability and reliable performance
  • Suitable for use as a replacement key or an additional spare

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 5-lever Extra Key is specifically engineered to operate Union mortice locks that utilise the traditional Chubb 114 style architecture. These keys are a vital component for maintaining the security and accessibility of a property, ensuring that users have reliable access to their locking systems.

Typically used for both domestic and commercial timber doors, these keys are precision-cut to match the specific internal lever configurations of the lock. This ensures a high degree of accuracy during the unlocking process, which helps to prevent unnecessary wear on the internal lock components. Whether you are installing a new lock and require additional sets for multiple residents, or need a replacement for a misplaced key, these units provide the necessary compatibility for 5-lever security systems.

As these keys are built upon the established Chubb 114 design, they offer a proven mechanical solution for high-security applications. They are intended for use in situations where a robust, dependable key is required to maintain the integrity of a mortice lock installation.

skip to UNION 13mm Rebate for 3K74E - 3K74 Sashlock

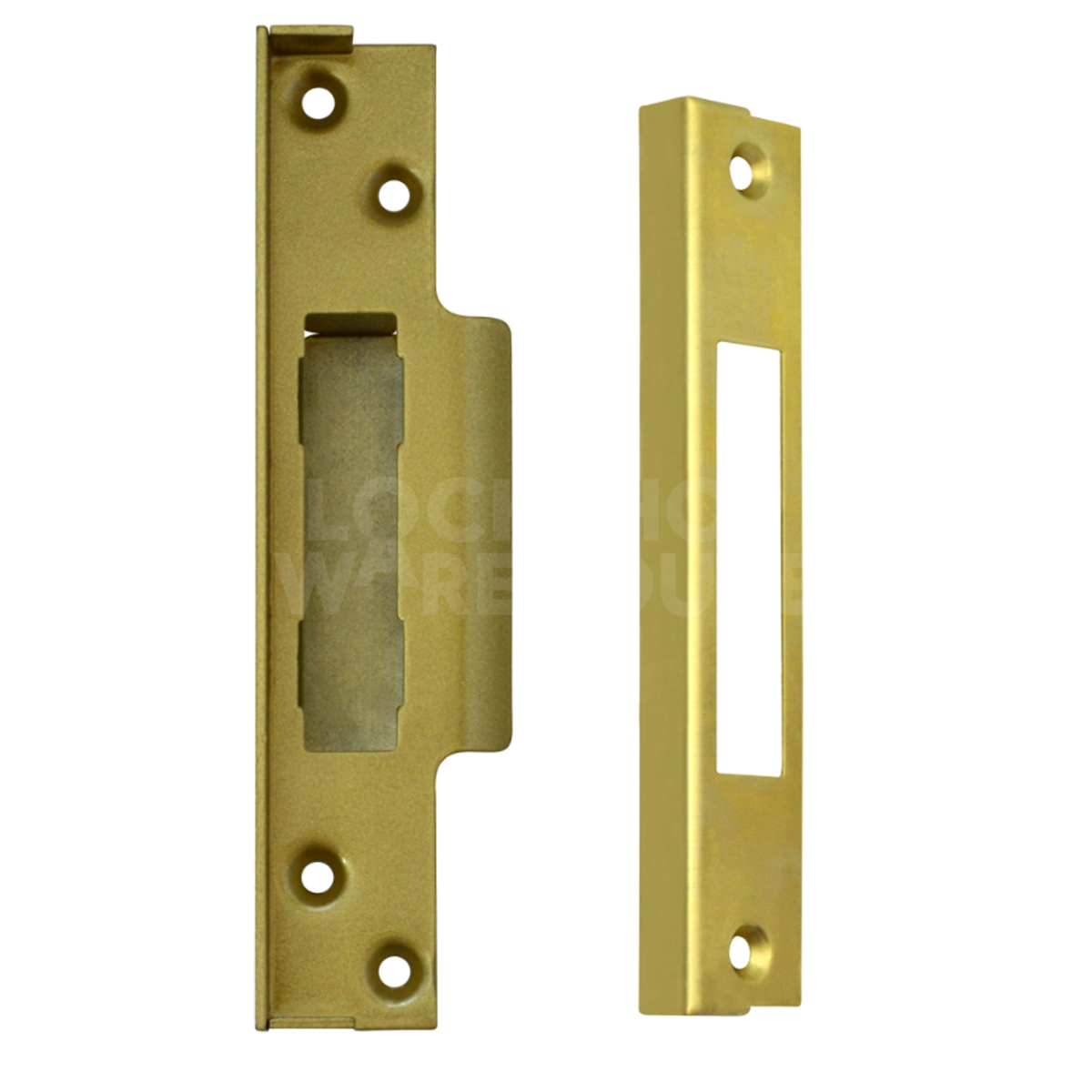

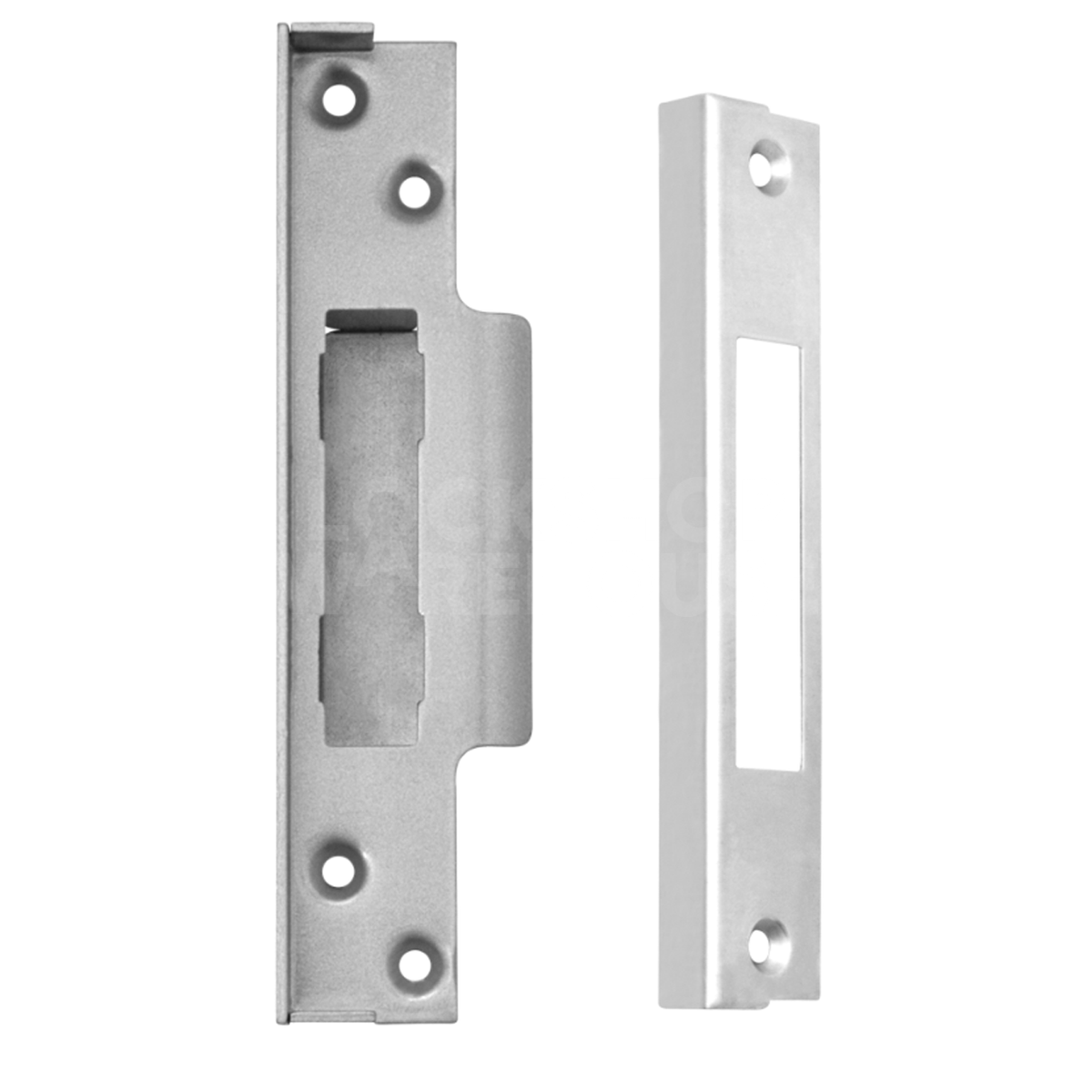

UNION 13mm Rebate for 3K74E - 3K74 Sashlock
