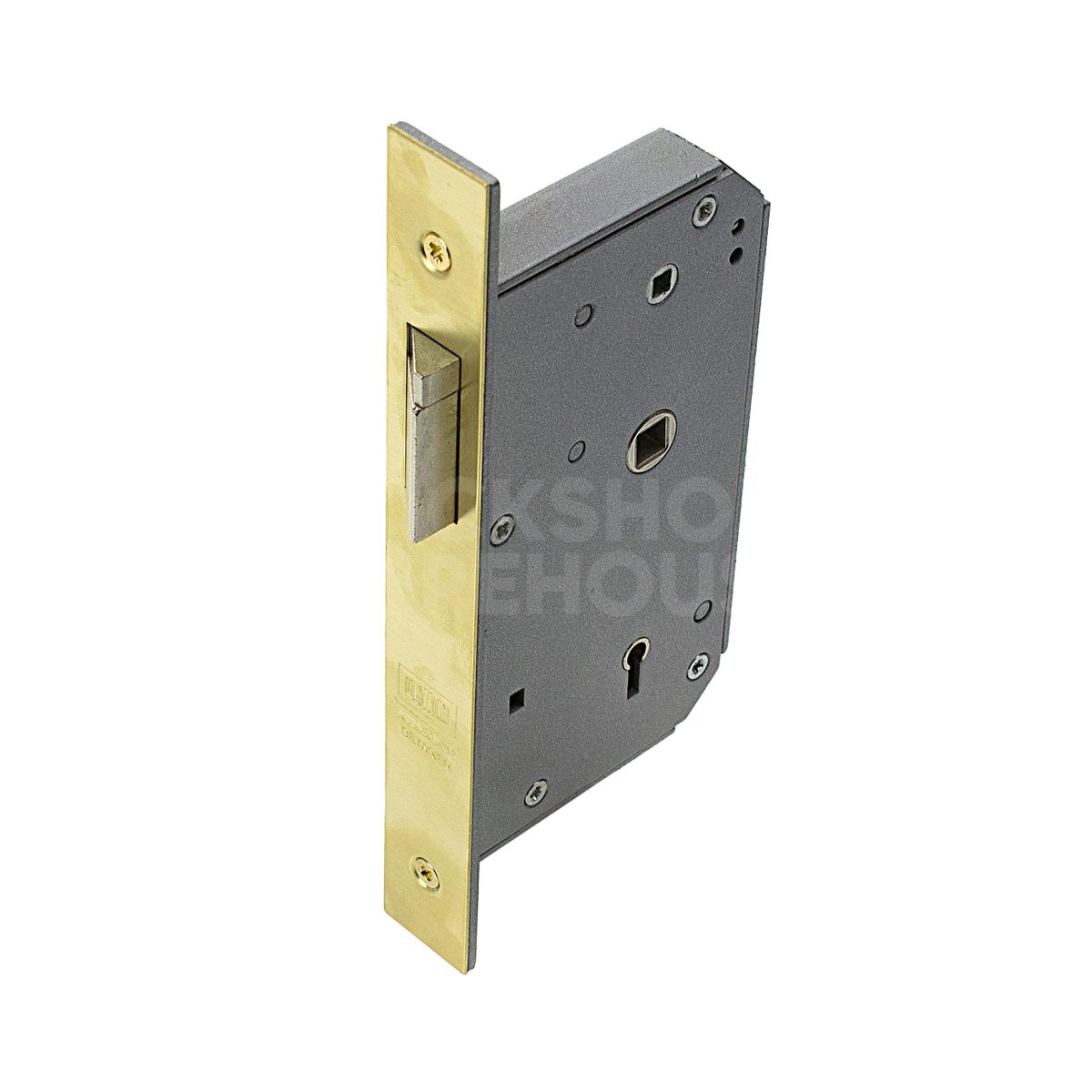

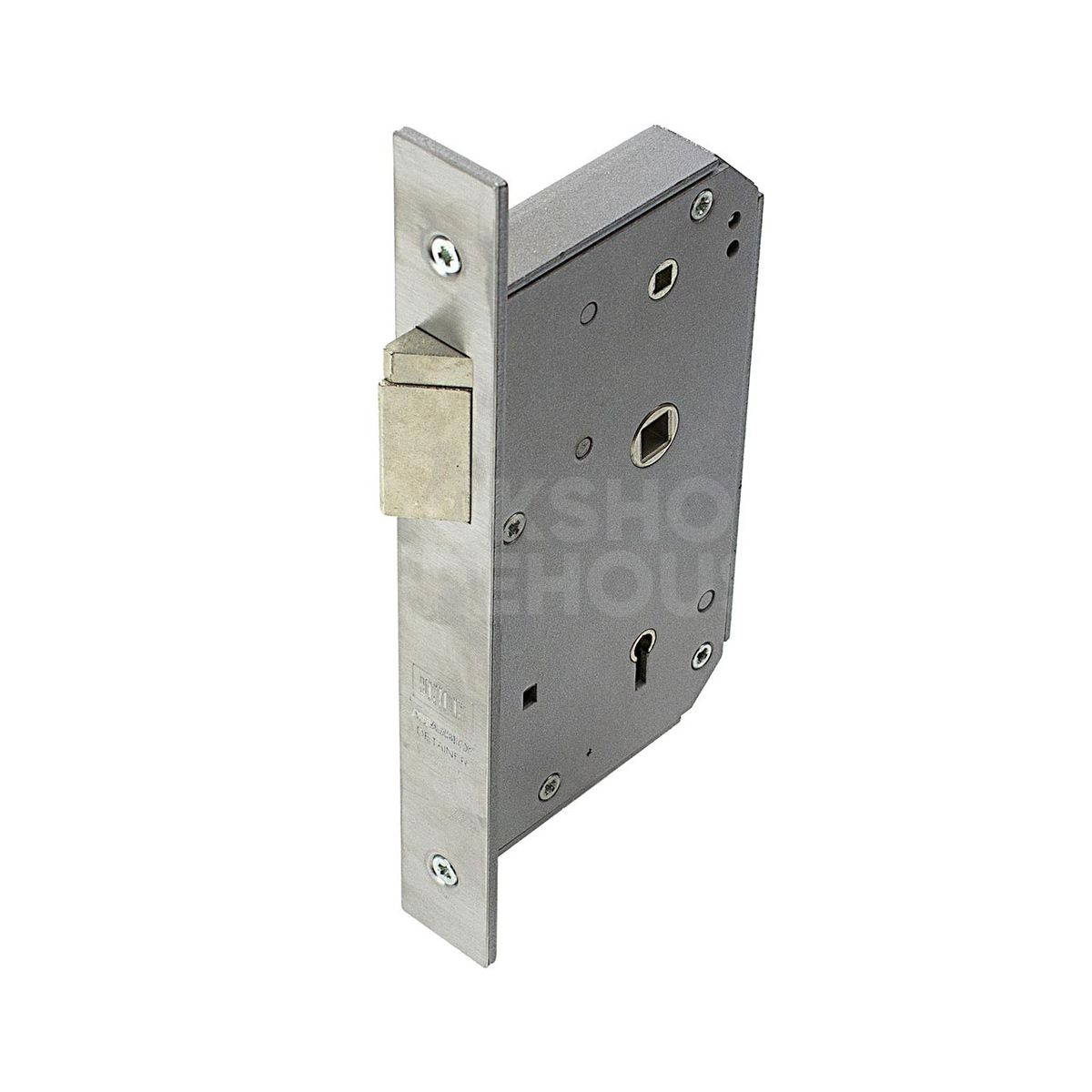

Union 3R35X Non-Deadlocking Latch

£191.99

(£159.99 ex VAT)

sku: 3R35X
  • Modified for fire escape applications to ensure safe emergency egress
  • Lever handle operation from the inside allows for rapid exit without a key
  • Automatic deadlocking latchbolt engages immediately upon closing the door
  • Integrated snib function permits the latch to be held in the retracted position
  • Key-controlled access from both sides for secure and managed entry
  • Internal operating handle remains unsecured to maintain safety standards
  • High-security 5-detainer mechanism provides enhanced resistance to picking

Key Configuration

Finish

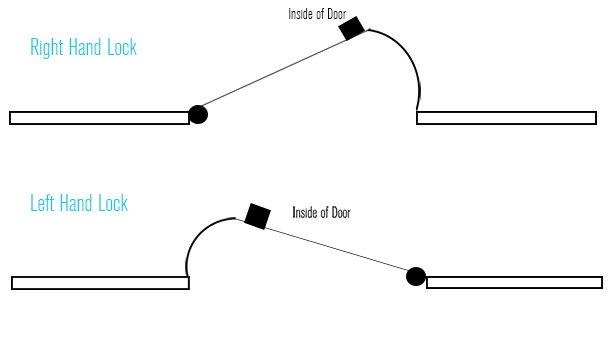

Handing

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 3R35X is a specialised mortice nightlatch designed specifically for use on doors requiring a fire escape function. It balances high-level security with life safety requirements, ensuring that while the door remains secure against external entry, it can always be opened from the inside via a lever handle for emergency egress.

This lock is typically used in commercial premises, public buildings, and communal residential exits where controlled entry and safe exit are paramount. It features an automatic deadlocking latch, which provides immediate security every time the door is closed without the need for manual locking. For convenience during busy periods, an integrated snib allows the bolt to be held back, leaving the door ajar.

The internal mechanism uses a 5-detainer system, offering significant resistance to unauthorised manipulation. It is suitable for timber doors and is often installed as a replacement part for existing detainer locks or as a primary security component in new fire-rated door assemblies. The internal handle is designed so that it cannot be locked or secured, ensuring the fire escape route is never obstructed.

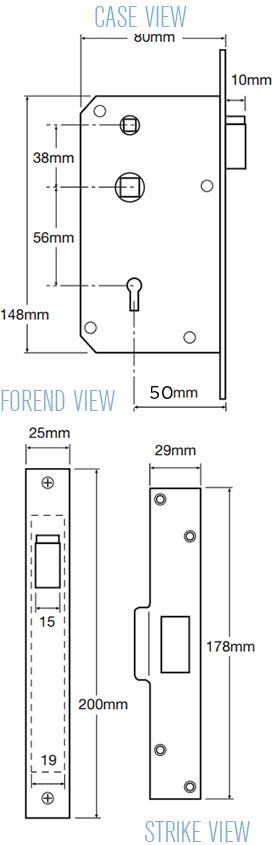

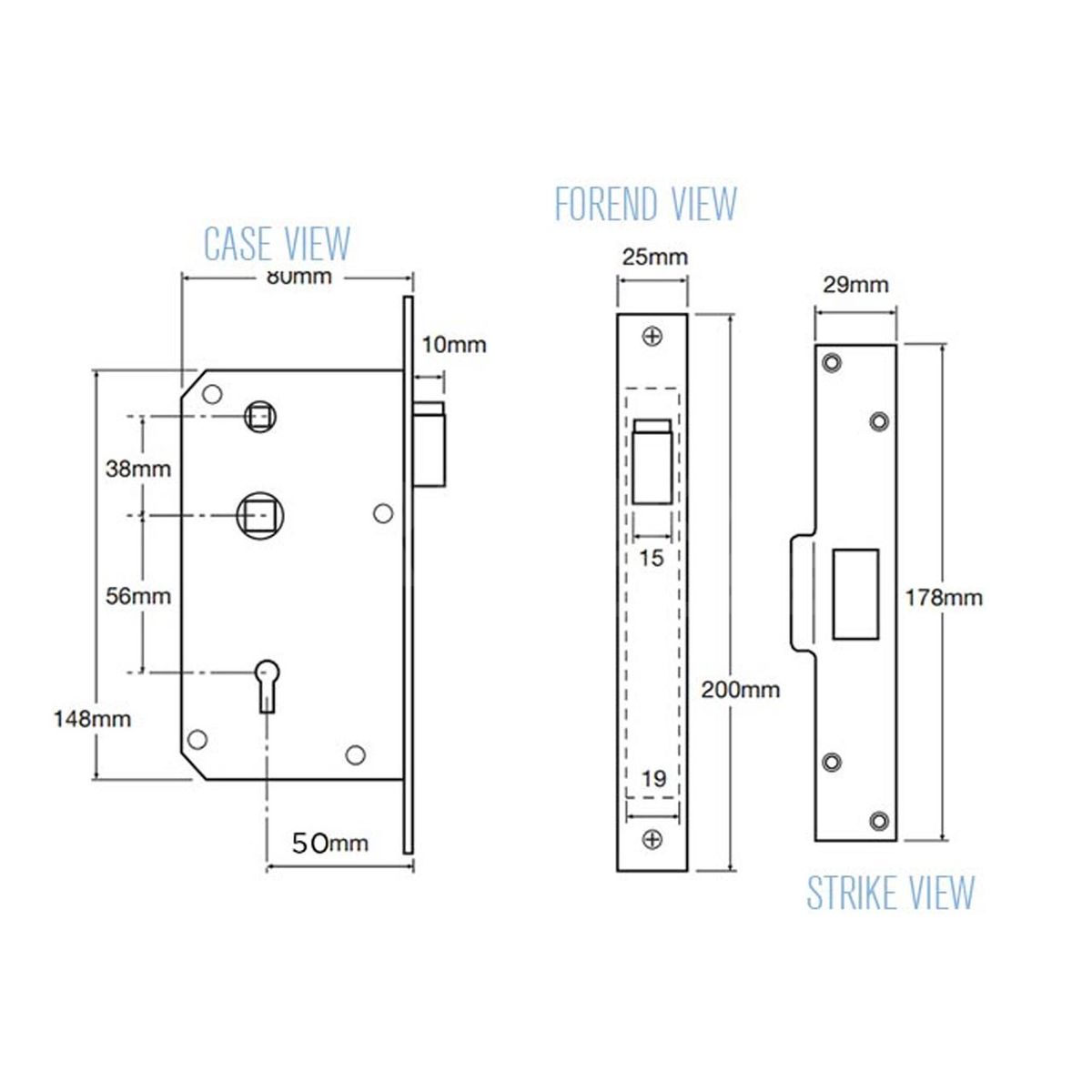

Dimensions Image: Union 3R35X Non-Deadlocking Latch

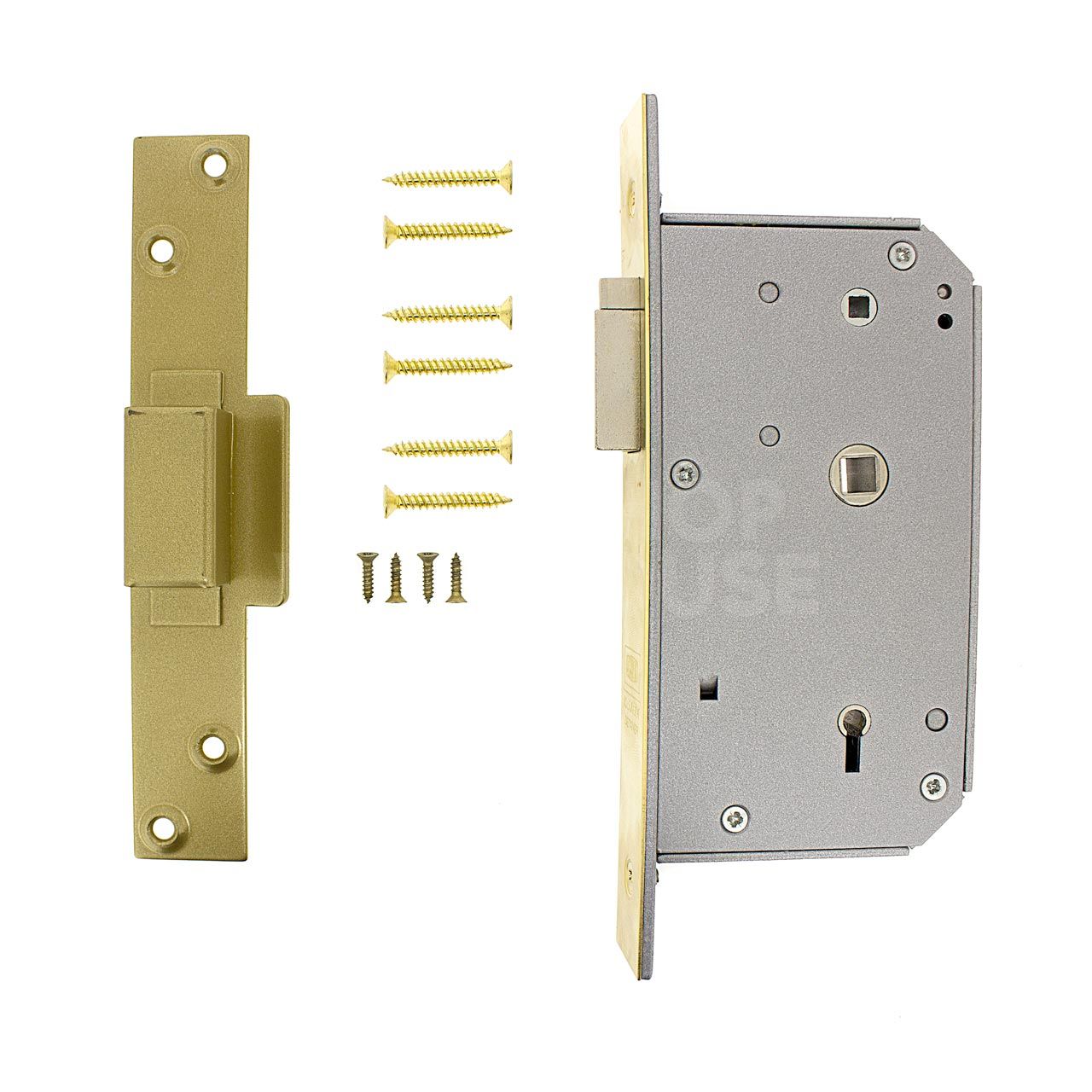

Dimensions Image: Union 3R35X Non-Deadlocking Latch

Brand

SKU

3R35X

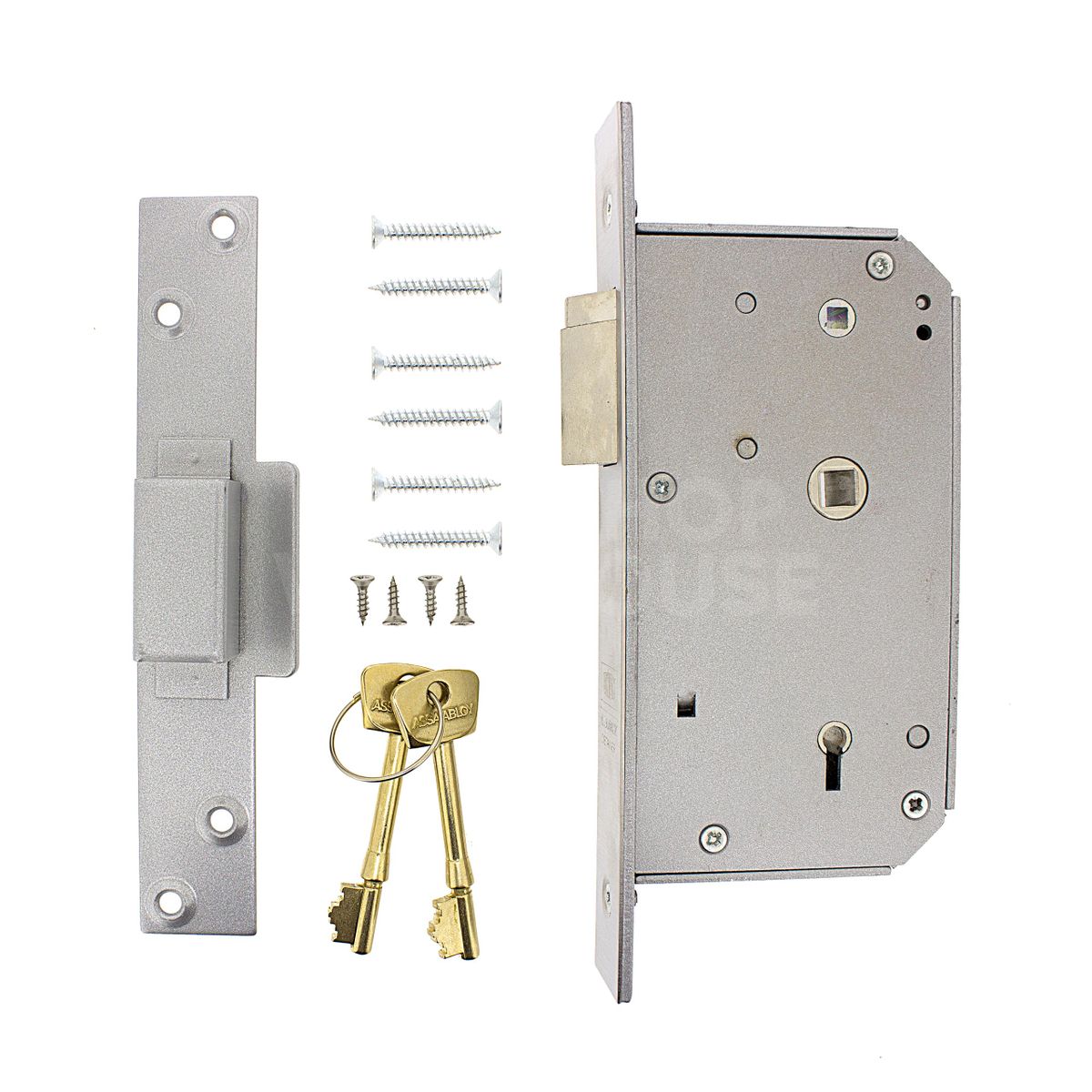

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

FAQs

This latch is specifically modified for use as a fire escape lock. The inside lever handle can always withdraw the latchbolt to allow for a quick exit, and it cannot be locked or secured from the inside to ensure emergency egress is never obstructed.

Yes, the lock features a built-in snib. This allows you to hold the latchbolt back manually, keeping the door ajar when you need frequent access without using a key or handle.

Yes. The latchbolt automatically deadlocks once the door is closed, providing immediate security. From the outside, you will always need a key to gain entry, while the inside handle remains active for exit.

The Union 3R35X utilizes a robust 5-detainer mechanism for reliable operation. It features an 80mm case size and an 8mm follower, making it compatible with standard lever handles on the interior.
