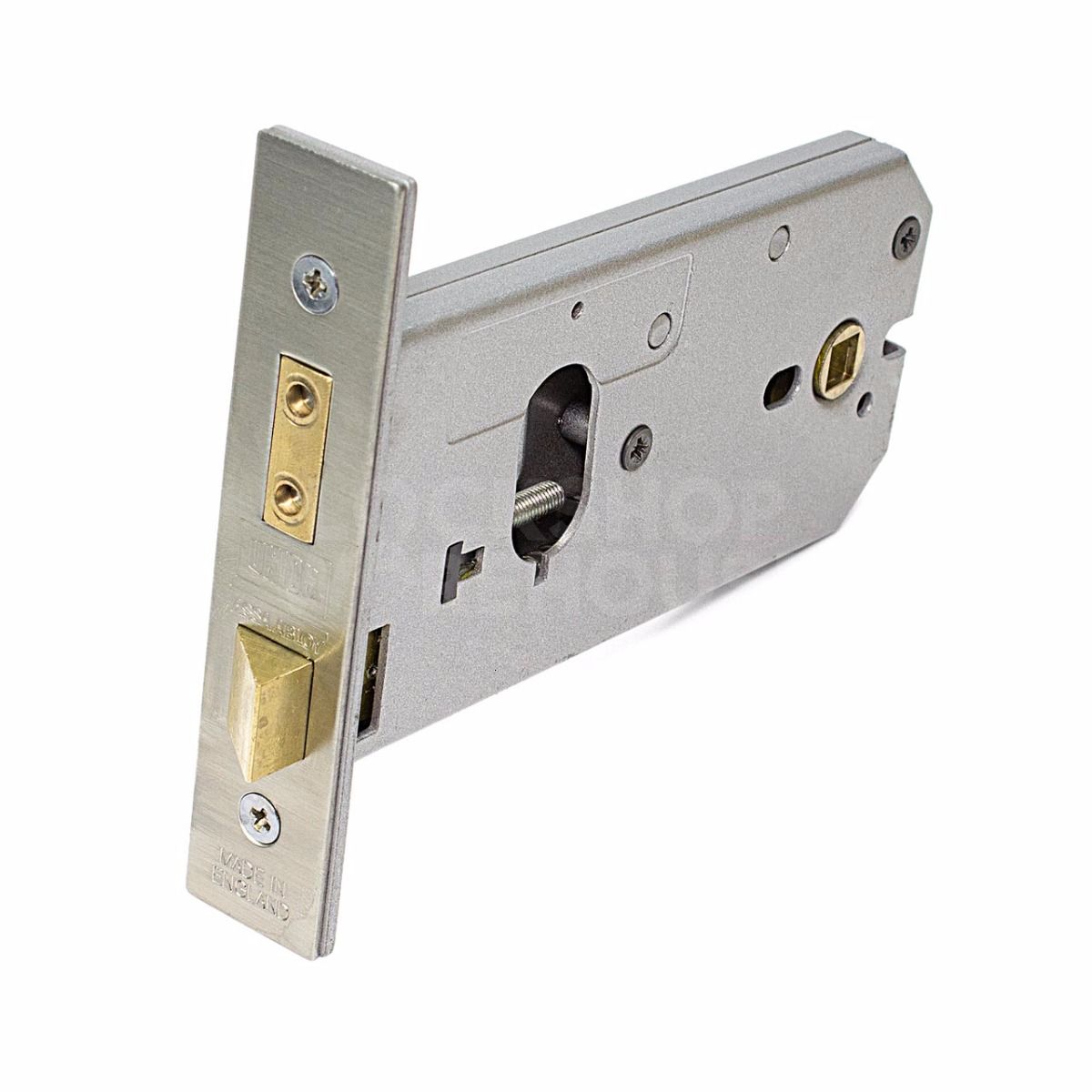

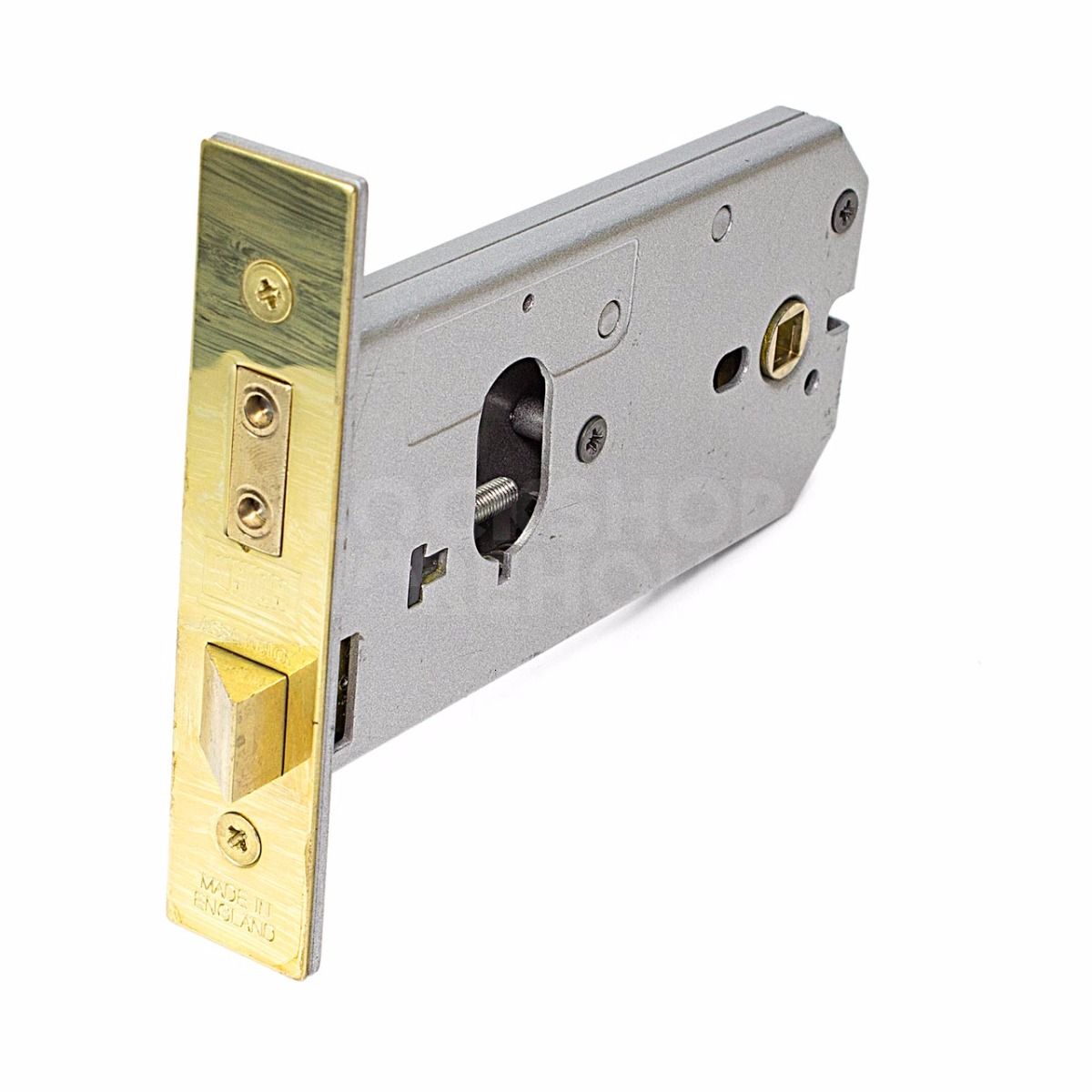

Union L2041 Oval Cylinder Horizontal Sashlock

£59.99

(£49.99 ex VAT)

sku: UN-L2041
  • Compatible with single, double, or cylinder and turn oval profile cylinders
  • Horizontal lockcase design ideal for traditional door configurations
  • Reversible latchbolt suitable for left or right-handed doors
  • 8mm two-way follower allows operation via standard door knobs
  • Case is pierced to accept bolt-through fixings for door furniture
  • Provides combined deadbolt security and latching function
Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

The Union L2041 is a horizontal mortice sashlock designed for use on doors where a traditional horizontal layout is required. This mechanism provides a combination of a deadbolt for security and a spring-loaded latch for daily convenience. The deadbolt is operated by an oval profile cylinder, allowing for flexible keying options including single, double, or thumbturn configurations.

Designed for versatility, the latchbolt is fully reversible, making the lock suitable for both left and right-handed doors. It features an 8mm follower with two-way action, specifically engineered for use with door knobs. Additionally, the lockcase is pierced to accommodate bolt-through furniture, ensuring a secure and stable attachment for door handles.

Typical applications include period properties or specific commercial environments where a horizontal lockcase is the preferred aesthetic or functional choice. When replacing an existing unit, it is essential to verify the positions of the key hole and spindle follower to ensure compatibility with previous door preparations.

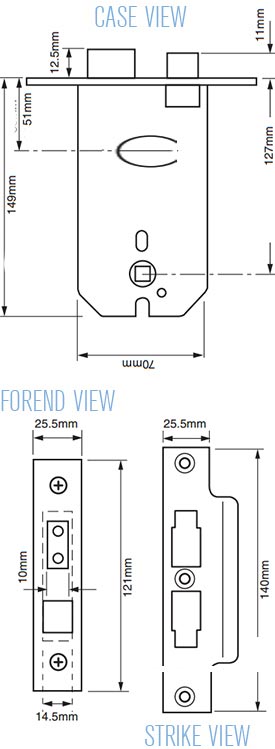

Dimensions Image: Union L2041 Oval Cylinder Horizontal Sashlock
Part Size (mm)
centres 127
Follower 127
Backset 51
Case Width 152
Case Height 70
Forend Width 25
Forend Length 121
Strike Plate Width 25
Strike Plate Length 140

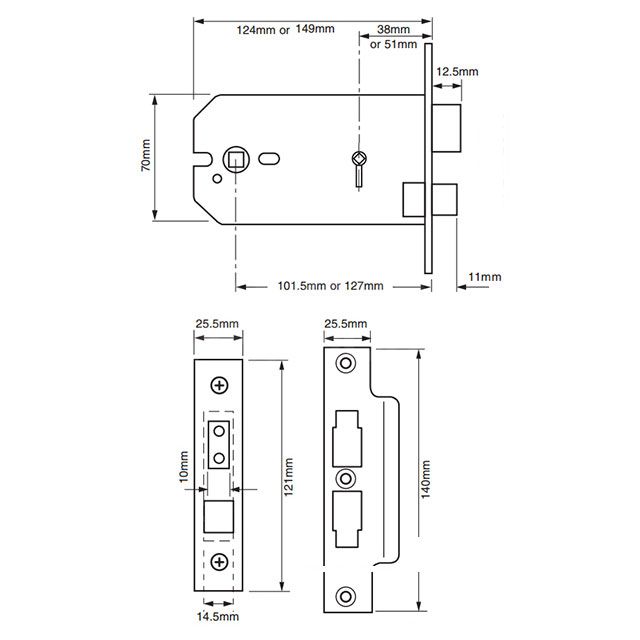

Dimensions Image: Union L2041 Oval Cylinder Horizontal Sashlock

Brand

SKU

UN-L2041

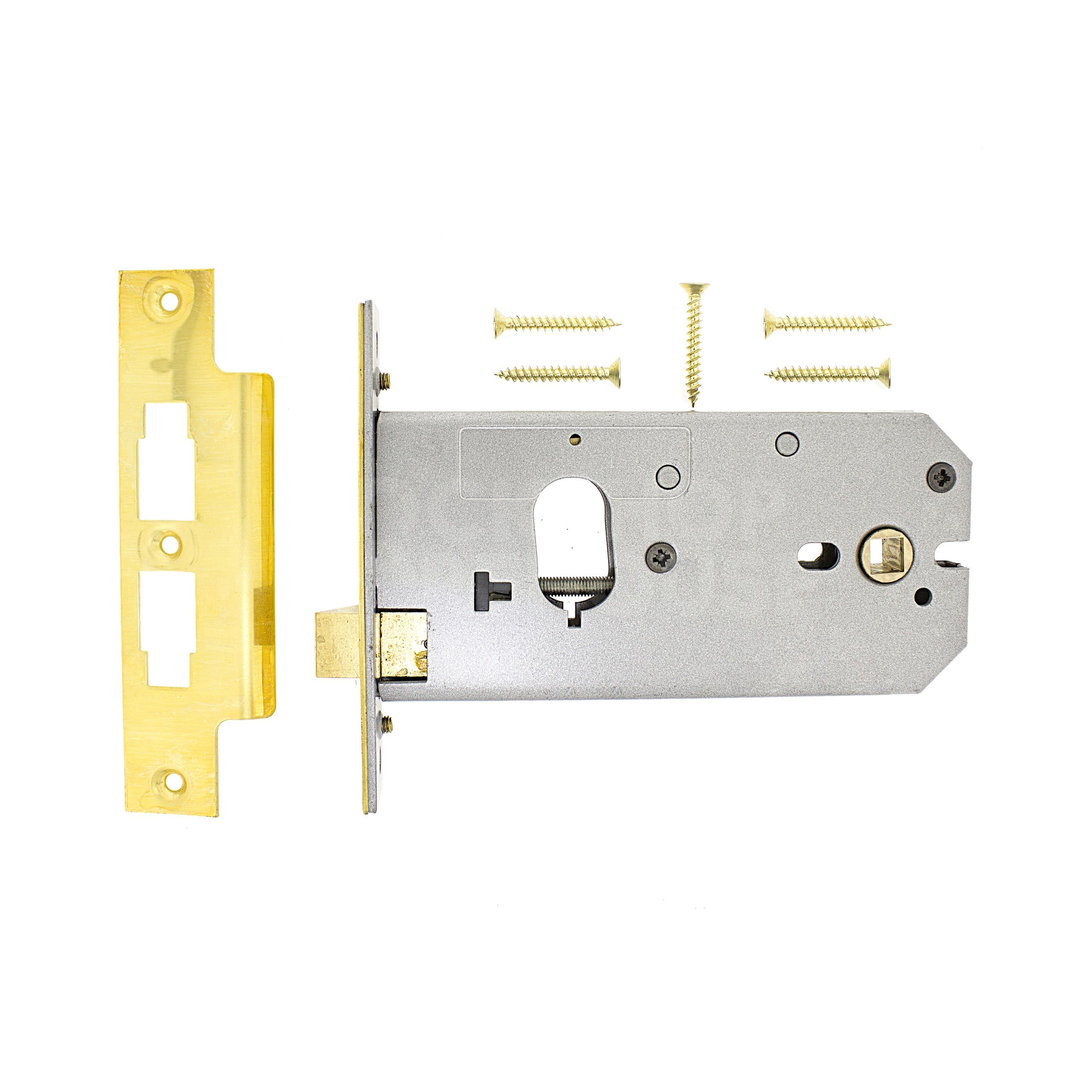

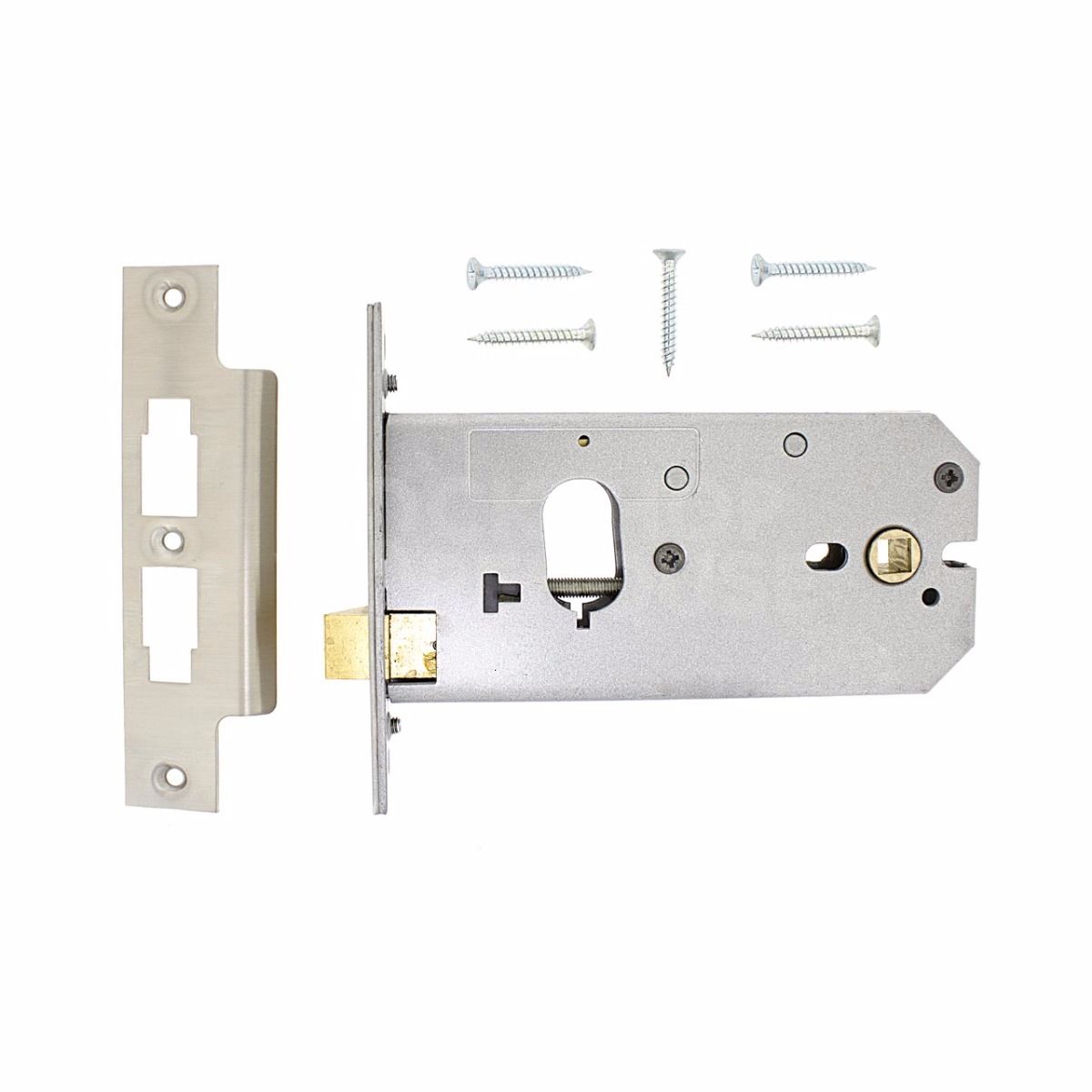

Box Contents

strike plate

fixing screws

mortice lock

FAQs

Most of the mortice sashlocks are reversible so you dont have to specify a hand but if you want to state the hand you need we offer a free of charge service to reverse the latches for you to make your lives easier.

The old style horizontal locks have mostly been discontinued as there were so many variations made in the past. We have the Union 2077 available in either the 5 or 6 inch lock cases adn also the Imperial 5 lever Horizontal locks. Sometimes the backset and the spindle follower distances do not match perfectly so some carpentry will be required to replace these locks.

No, the oval profile cylinder is not supplied with the lock. You will need to purchase an oval profile single cylinder, double cylinder, or cylinder and turn separately to operate the deadbolt mechanism.

Yes, the latchbolt is fully reversible, making this sashlock suitable for installation on both left and right-handed doors. The latch can be conveniently withdrawn by a knob from either side of the door.

It is important to measure your existing lockcase before ordering. You should verify if your current cutout requires a 127mm or 152mm size, paying close attention to the specific alignment and positions of the key hole and the spindle follower.

Yes, the lock case is specifically pierced to accept bolt-through furniture. It also features an 8mm follower with two-way action, ensuring compatibility with standard door knobs and handles.
