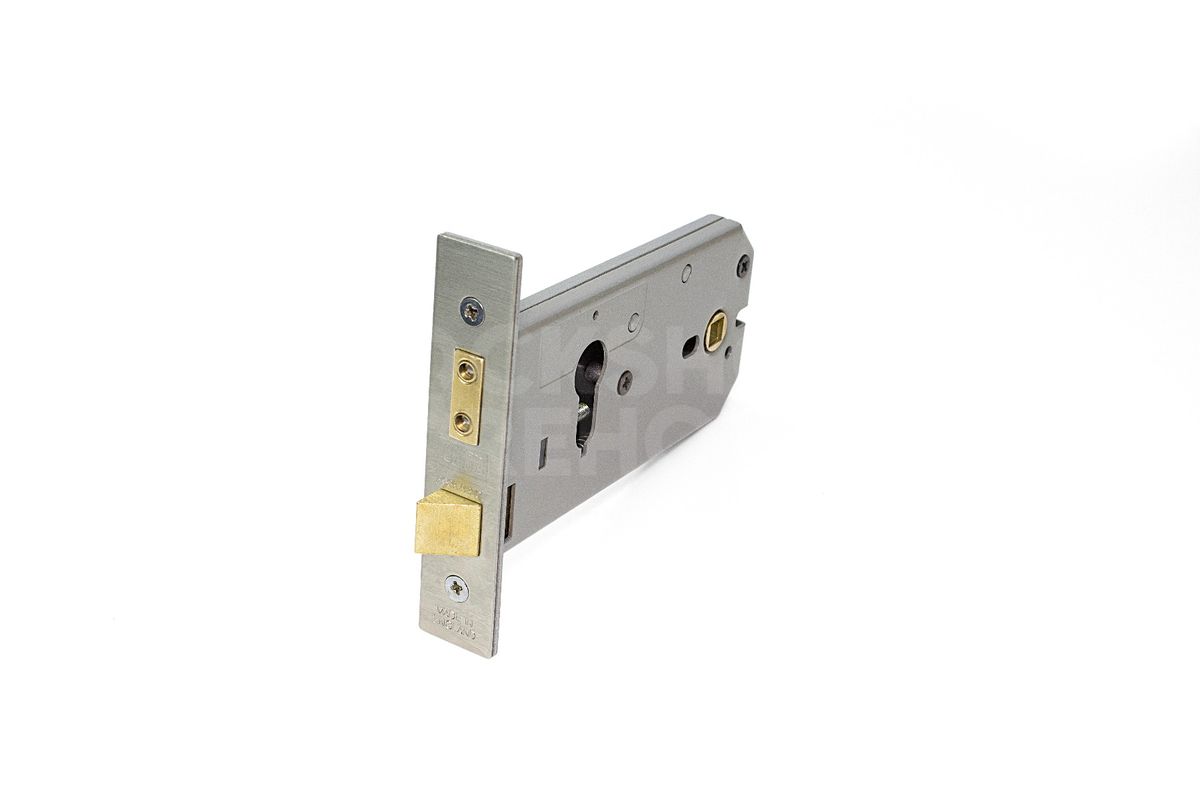

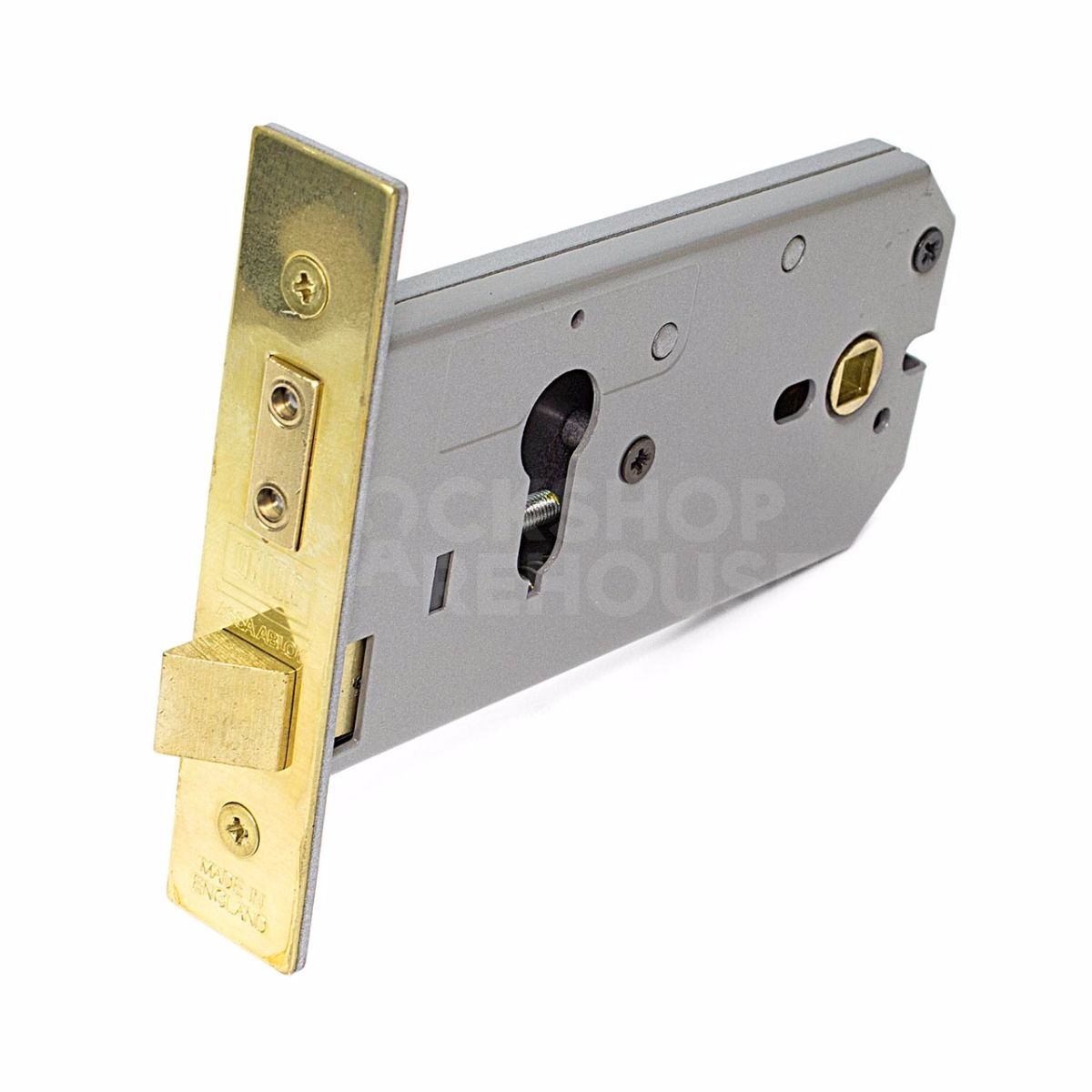

Union L2049 Euro Cylinder Horizontal Sashlock

£59.99

(£49.99 ex VAT)

sku: UN-L2049
  • Compatible with all standard Euro profile cylinders for flexible security options
  • Horizontal configuration ideal for traditional timber door installations
  • Reversible latchbolt ensures suitability for both left and right-handed doors
  • Two-way follower action supports operation via various types of door knobs
  • Pierced case facilitates the use of bolt-through door furniture for secure fixing
  • Combines a secure deadbolt with a functional latch for daily convenience
Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

The Union L2049 Euro Cylinder Horizontal Sashlock is a robust locking solution designed specifically for timber doors. It features a horizontal format, which is traditionally used to provide a greater distance between the door furniture and the door edge, often preferred for aesthetic reasons or when using larger door knobs.

This sashlock functions by using a Euro profile cylinder (sold separately) to operate the deadbolt, offering versatility through the choice of single, double, or thumbturn cylinders. The latchbolt is operated by a knob from either side of the door. With a two-way follower action, the lock is compatible with both sprung and unsprung furniture.

Typical applications include residential and light commercial timber doors where a mortice installation is required. The lock case is pre-pierced to accept bolt-through furniture, ensuring that handles or knobs remain securely attached through the door. The latch is fully reversible, making it a versatile choice for any door handing.

Dimensions Image: Union L2049 Euro Cylinder Horizontal Sashlock
Part Size (mm)
centres 127
Follower 127
Backset 51
Case Width 152
Case Height 70
Forend Width 25
Forend Length 121
Strike Plate Width 25
Strike Plate Length 140

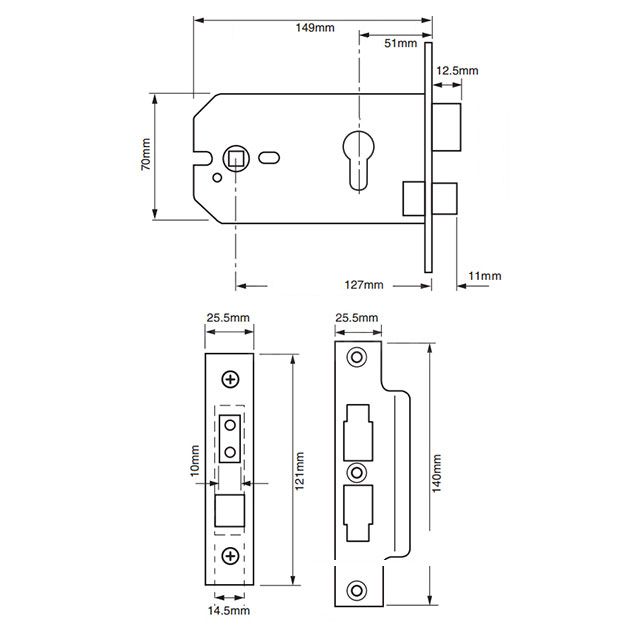

Dimensions Image: Union L2049 Euro Cylinder Horizontal Sashlock

Brand

SKU

UN-L2049

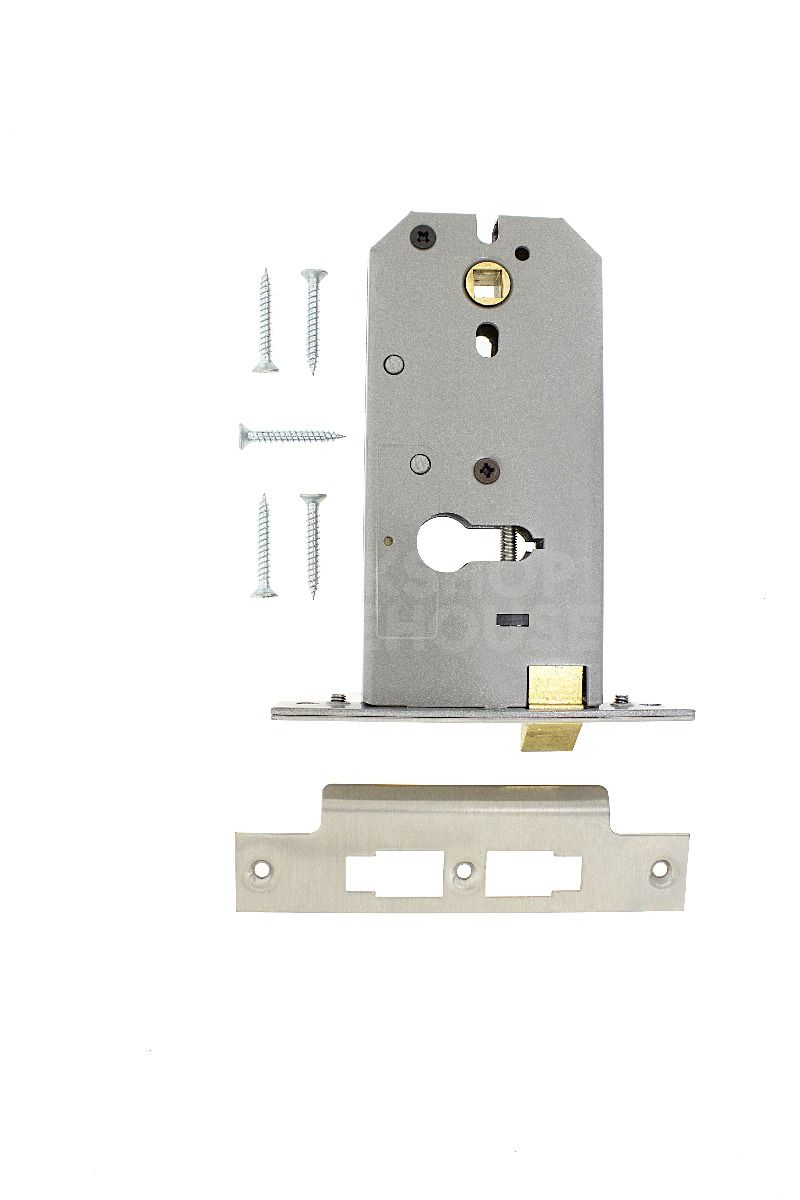

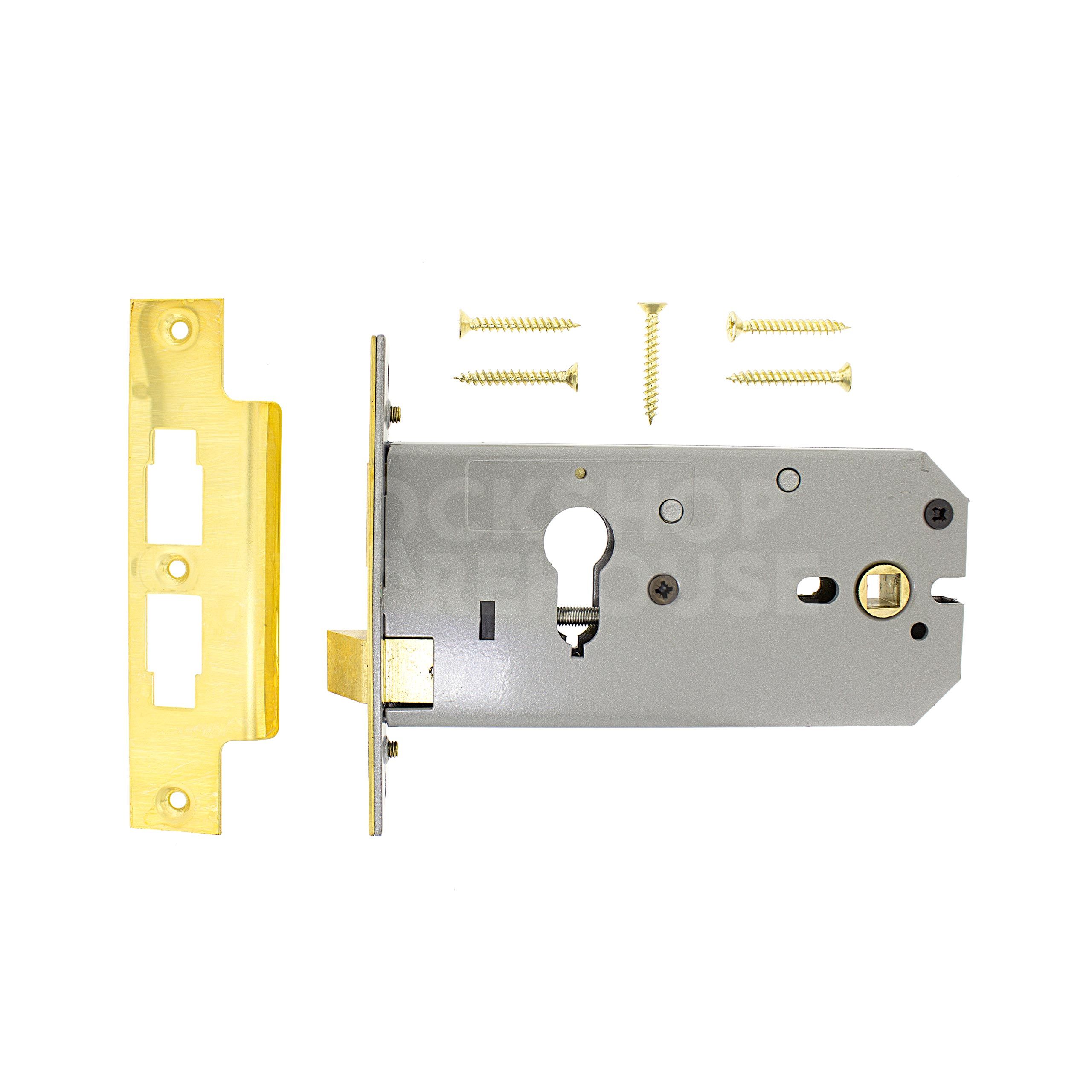

Box Contents

strike plate

fixing screws

mortice lock

FAQs

Most of the mortice sashlocks are reversible so you dont have to specify a hand but if you want to state the hand you need we offer a free of charge service to reverse the latches for you to make your lives easier.

The old style horizontal locks have mostly been discontinued as there were so many variations made in the past. We have the Union 2077 available in either the 5 or 6 inch lock cases adn also the Imperial 5 lever Horizontal locks. Sometimes the backset and the spindle follower distances do not match perfectly so some carpentry will be required to replace these locks.

No, the Euro profile cylinder is not supplied with this lockcase. You will need to purchase a separate Euro profile single cylinder, double cylinder, or cylinder and thumbturn to operate the deadbolt mechanism.

Yes, the latchbolt is fully reversible, making it suitable for installation on both left and right-hand opening doors. It also features a two-way action 8mm follower for versatile operation.

Yes, the lock case is specifically pierced to accept bolt-through furniture. This ensures a more secure and stable fit when attaching door knobs or handles to the door.

It is vital to measure your existing lockcase before ordering. This model features a 152mm case size; measuring ensures the positions of the spindle follower and the Euro cylinder keyhole will align correctly with your current door preparation.
