Union L2149 Euro Deadcase

£44.39

(£36.99 ex VAT)

sku: L2149
  • Designed for use with standard Euro profile cylinders
  • Equipped with a brass deadbolt featuring hardened steel rollers for anti-saw protection
  • Suitable for installation on timber doors hinged on either the left or right side
  • Deadbolt is operated via cylinder key or thumbturn for flexible access control
  • Compatible with standard rebate sets for application on double door sets
  • Functions as a robust deadlocking solution for both domestic and commercial environments
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

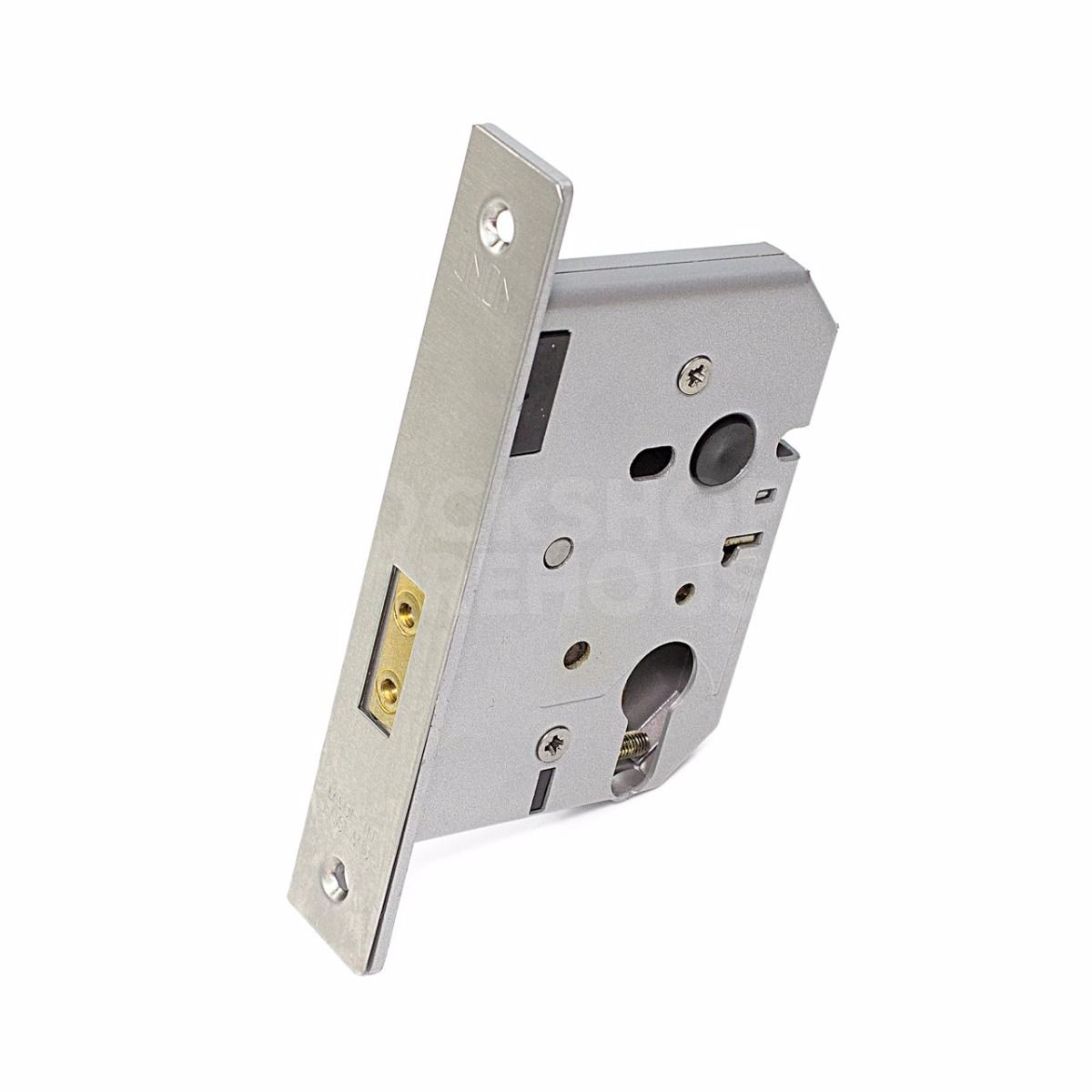

The Union L2149 Euro Deadcase is a high-performance mortice deadlock body specifically engineered for timber doors. As a deadcase, it functions as the central locking mechanism and requires a Euro profile cylinder to operate the deadbolt. This modular design allows users to select cylinders based on specific security needs, such as keyed-alike or master-keyed systems.

For enhanced physical security, the brass deadbolt is reinforced with hardened steel rollers. These rollers are designed to rotate if an attempt is made to cut through the bolt with a hacksaw, providing a significant deterrent against forced entry. The lock case is designed to be versatile, making it suitable for doors hinged on either side without the need for complex adjustment.

This deadcase is typically used on doors where a latch is not required, providing a secondary or primary locking point. It is frequently specified for both new installations and as a replacement part for existing mortice locks. For double door configurations, the unit is compatible with dedicated rebate sets to ensure a secure and professional finish.

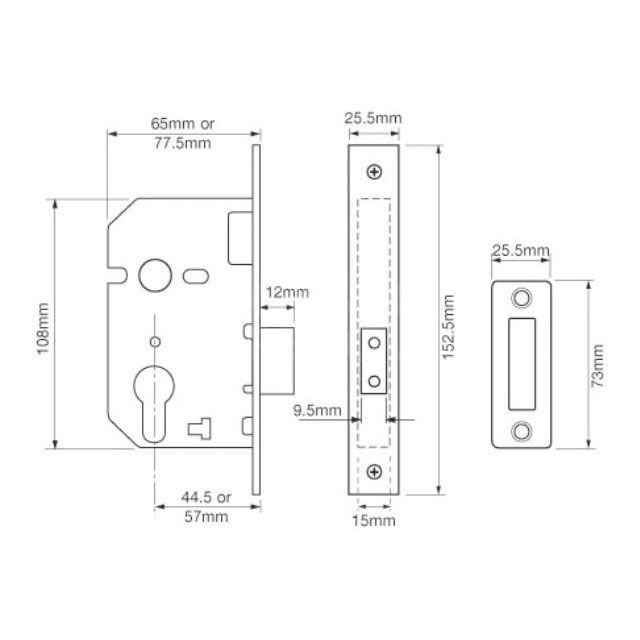

Dimensions Image: Union L2149 Euro Deadcase
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 12 -
Case Width 65 77
Case Height 108 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 25 30
Strike Plate Length 73 -
Dimensions Image: Union L2149 Euro Deadcase

Brand

SKU

L2149

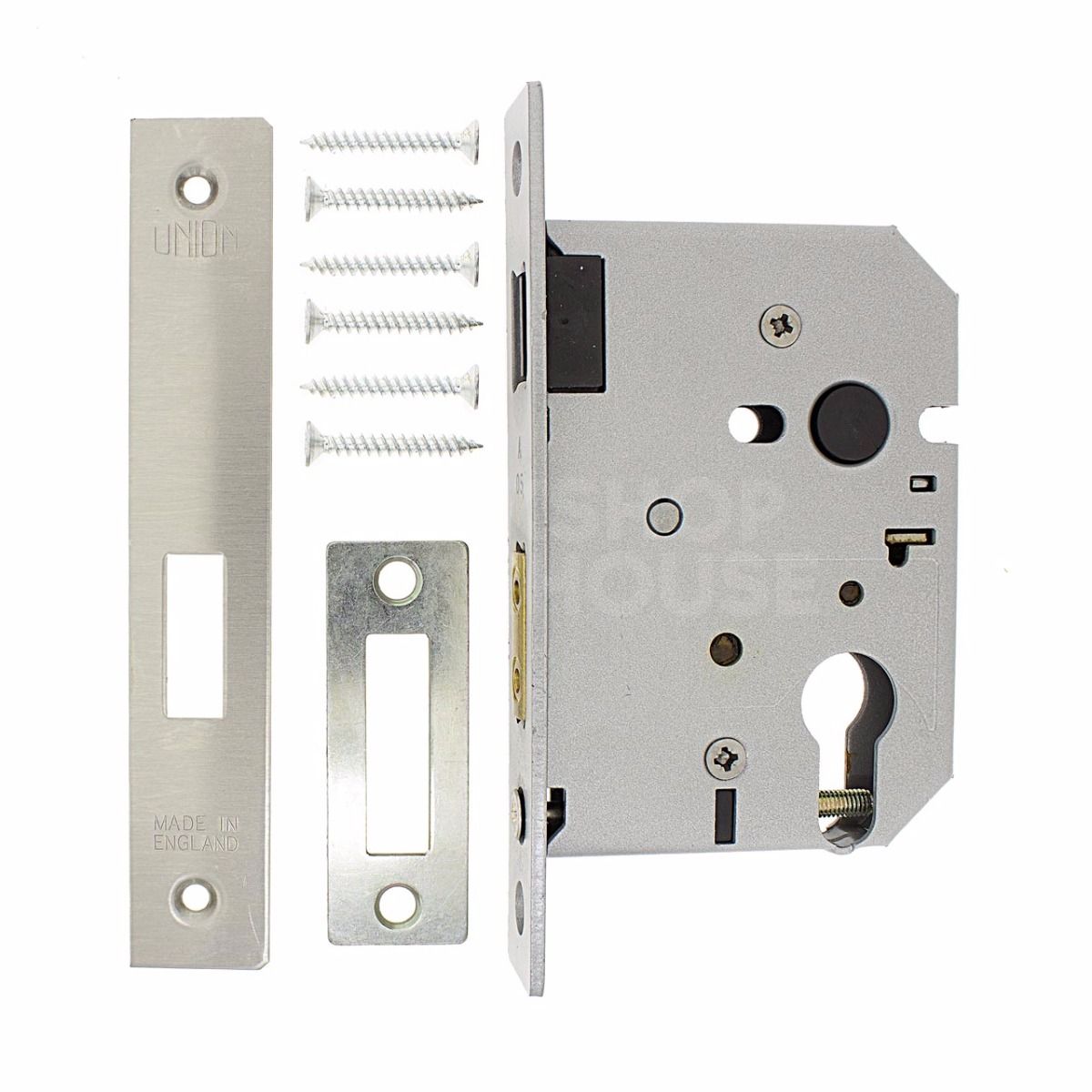

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Union L2149 is designed to be used with a Euro Profile cylinder. This allows you to select a cylinder length that matches your specific door thickness and choose your preferred security level, including patented key systems.

No, this deadcase is suitable for wooden doors hinged on either the left or the right. It provides a versatile solution for any door requiring deadbolt security via a key or thumbturn operation.

The deadbolt is made from durable brass and features hardened steel rollers. These rollers are designed to resist sawing attempts, as they will spin if a blade is applied, significantly increasing the time and effort required for forced entry.

Yes, this lock can be fitted to rebated doors by using a compatible rebate kit. It is designed to work with Union 2919 rebate sets, which are available in 13mm, 19mm, or 25mm sizes to ensure a professional fit on double door sets.
