Union L2214 Oval Cylinder Mortice Case SC

£65.99

(£54.99 ex VAT)

sku: UL2214
  • Designed for use with oval profile cylinders for versatile locking options
  • Ideal for narrow stile doors including aluminium and timber frames
  • Features a dual-action latchbolt operated by lever handle or cylinder key
  • Independent deadbolt operation via cylinder key or internal thumbturn
  • Reversible latchbolt to accommodate both left and right-handed door openings
  • Suitable for residential and light commercial security applications
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union L2214 Oval Cylinder Mortice Sashlock is a specialist locking solution designed primarily for narrow stile doors, such as those found in residential aluminium or timber frames. This mortice case provides a secure secondary locking point while maintaining a slim profile suitable for restricted door widths.

This sashlock functions with two distinct bolt operations. The latchbolt is typically withdrawn using a lever handle, providing convenient access during regular use. Additionally, the latch can be operated by the cylinder key, offering increased flexibility for entry and exit. The deadbolt is engaged or retracted via an oval profile cylinder, which can be configured with a key on both sides or a key and thumbturn for internal convenience.

Typically used in both new installations and as a direct replacement part, this mortice case is engineered for durability in high-traffic environments. The reversible latch design ensures compatibility with various door configurations without the need for additional components. It is an essential component for secure, narrow-profile door hardware systems.

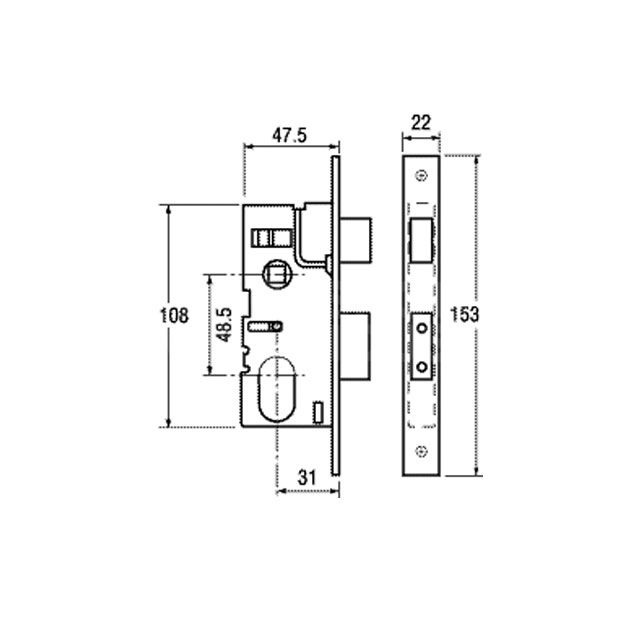

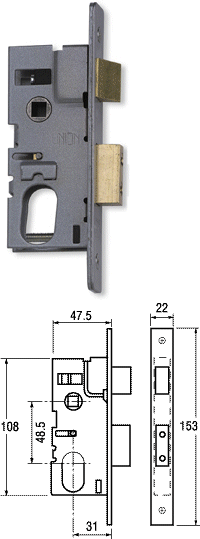

Dimensions Image: Union L2214 Oval Cylinder Mortice Case SC
Part Size (mm)
centres 48
Backset 31
Bolt Length 12
Case Width 47
Case Height 108
Forend Width 22
Forend Length 153
Strike Plate Width 24
Strike Plate Length 120
Dimensions Image: Union L2214 Oval Cylinder Mortice Case SC

Brand

SKU

UL2214

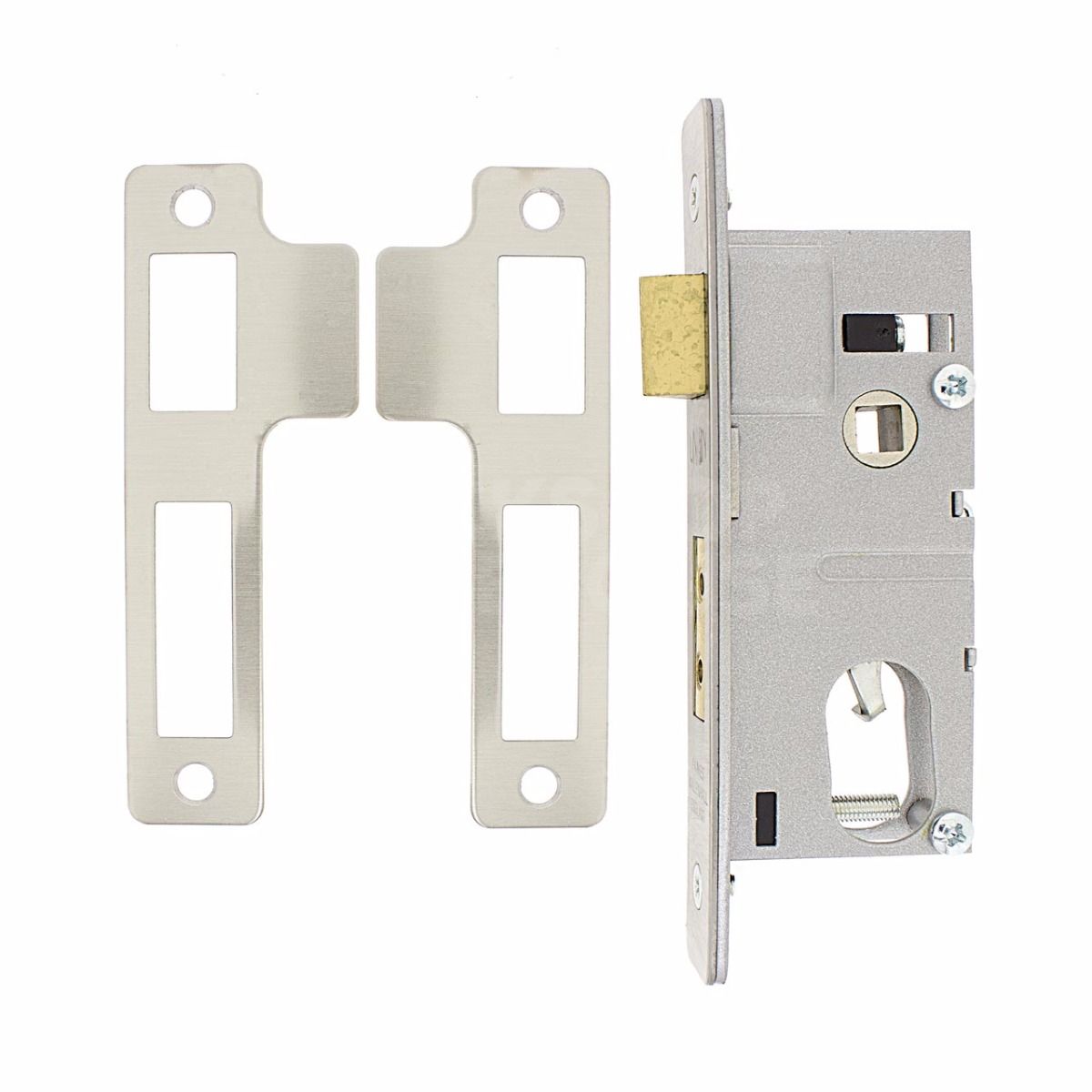

Box Contents

strike plate

mortice lock

FAQs

The Union L2214 is designed specifically to be used with an oval profile cylinder. The cylinder provides the mechanism for locking and unlocking the deadbolt.

Yes, this mortice case is specifically engineered for residential aluminium doors. Its slim 47.5mm case size is intended to fit the narrow stiles commonly found in aluminium door frames.

The lock provides versatile operation options:

  • The latchbolt is withdrawn by a standard lever handle.
  • The latchbolt can also be withdrawn using the cylinder key.
  • The deadbolt is locked and unlocked independently by the cylinder key or a thumbturn.

This model features a 47.5mm case size. This compact depth allows it to be installed in doors with limited internal space, such as modern aluminium residential doors, while still providing robust security.
