Union L2224 Euro Cylinder Mortice Case Satin Chrome

£65.99

(£54.99 ex VAT)

sku: UL2224
  • Designed specifically for residential aluminium and narrow-stile doors
  • Compatible with standard Euro profile cylinders for versatile locking options
  • Deadbolt features hardened steel rollers to resist sawing and physical attack
  • Dual-function latchbolt operated by either lever handles or a cylinder key
  • Equipped with an 8mm square follower suitable for narrow plate handles
  • Engineered for use with unsprung lever furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

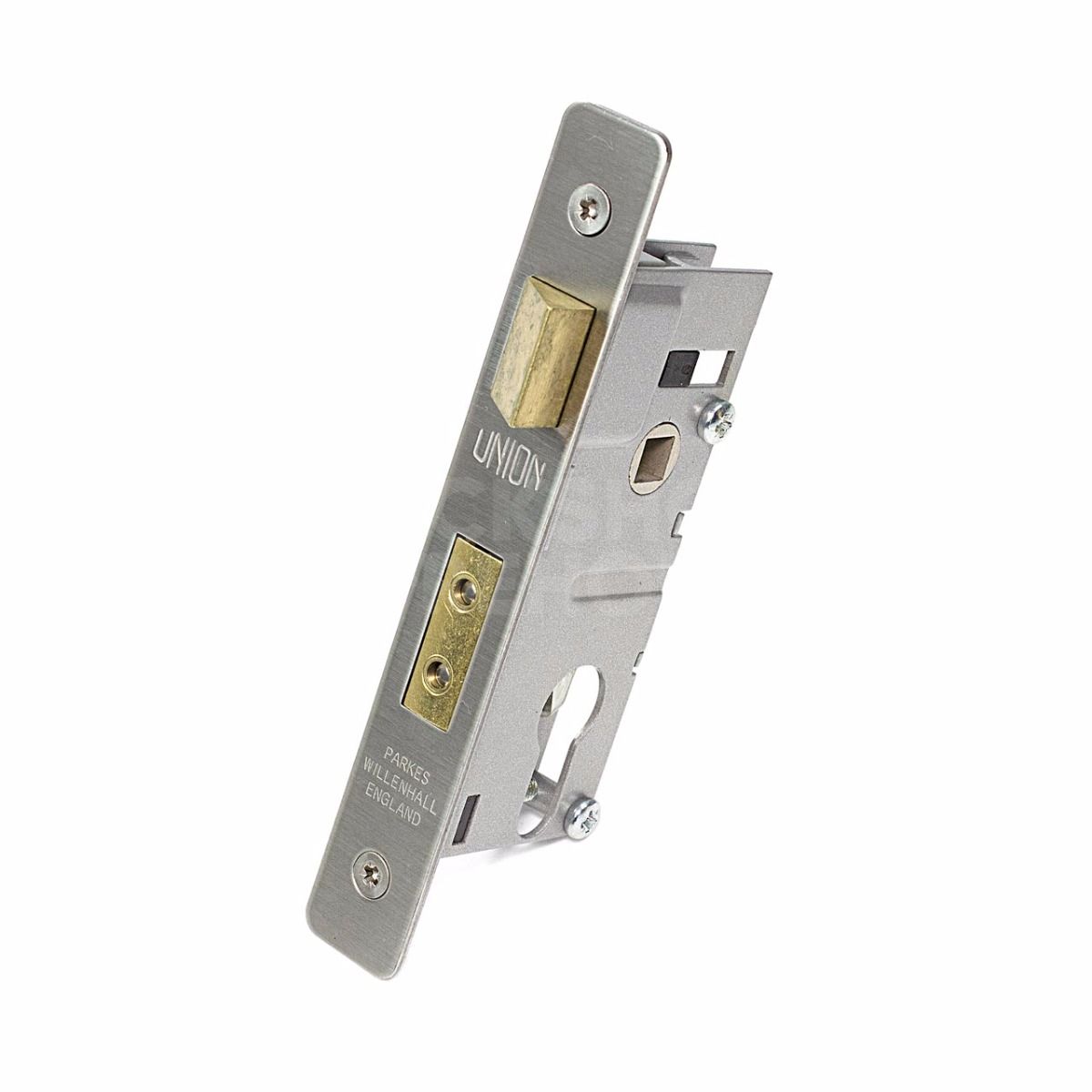

The Union L2224 is a professional-grade Euro profile cylinder mortice lock case specifically engineered for use in residential aluminium doors. Due to its slimline design, it is ideal for narrow-stile applications where internal door depth is restricted. This mortice case provides a reliable solution for both new door installations and the maintenance of existing aluminium door systems.

Operationally, the unit is highly versatile. The deadbolt is engaged or retracted via a Euro cylinder (not included), while the latchbolt can be withdrawn using standard lever handles or by turning the cylinder key. To ensure a high level of security, the brass deadbolt is reinforced with hardened steel rollers, providing enhanced resistance against sawing. The latchbolt is also constructed from brass for long-term durability and smooth operation.

The L2224 features an 8mm square follower, making it compatible with a wide range of narrow plate unsprung lever handles. Its robust construction and technical specification make it a standard choice for securing narrow-profile residential entrances where a combination of lever and cylinder operation is required.

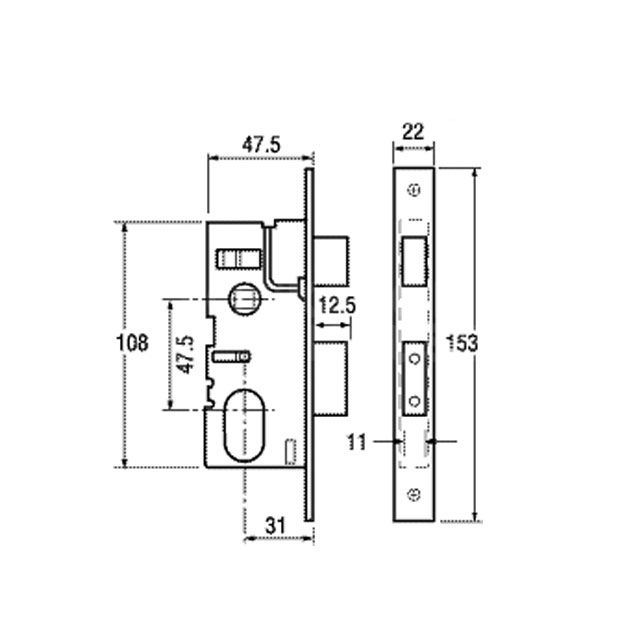

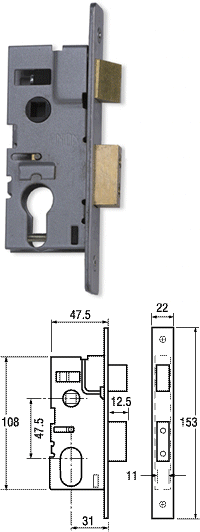

Dimensions Image: Union L2224 Euro Cylinder Mortice Case Satin Chrome
Part Size (mm)
centres 47
Backset 31
Bolt Length 12
Case Width 47
Case Height 108
Forend Width 22
Forend Length 153
Strike Plate Width 24
Strike Plate Length 120
Dimensions Image: Union L2224 Euro Cylinder Mortice Case Satin Chrome

Brand

SKU

UL2224

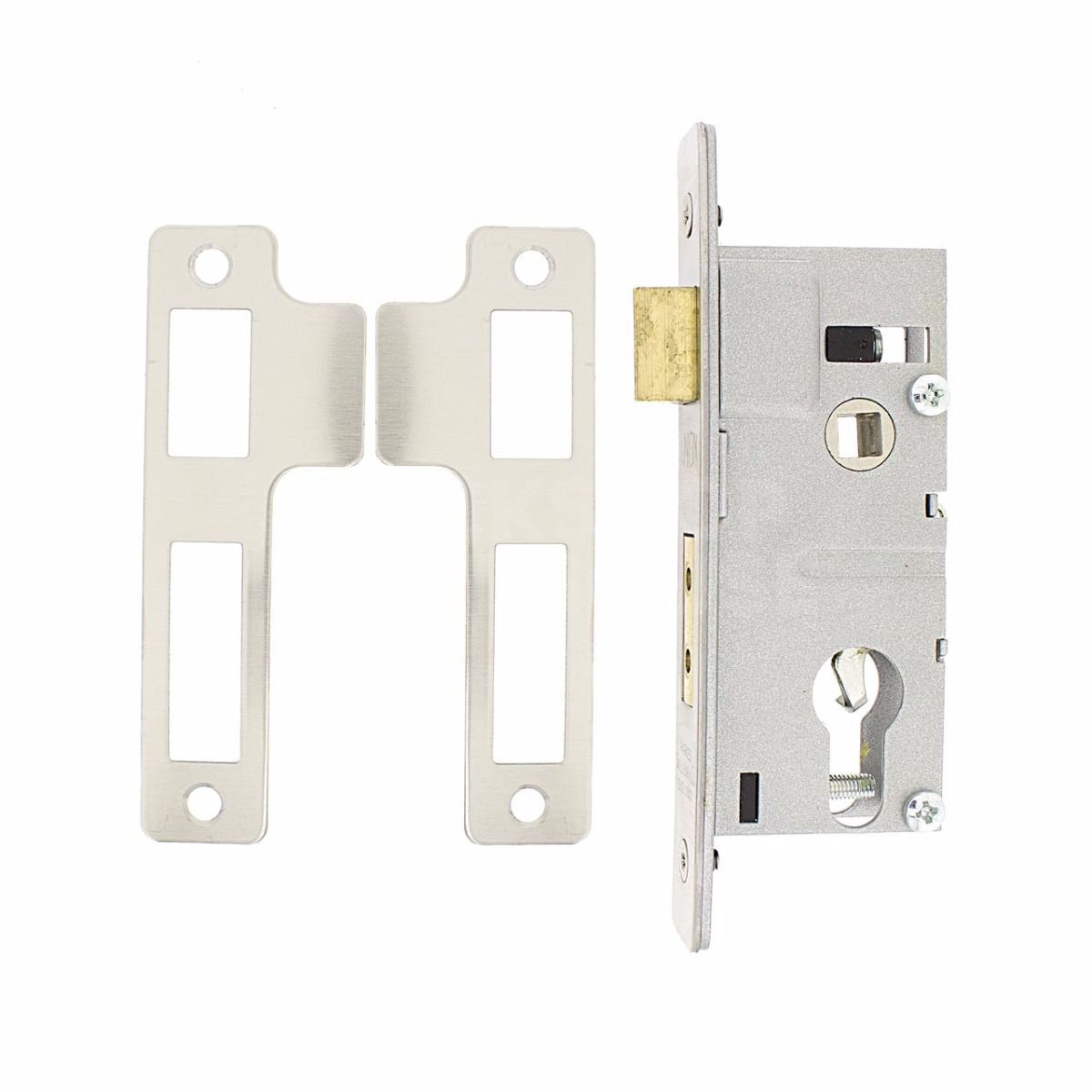

Box Contents

strike plate

mortice lock

FAQs

The Union L2224 is specifically engineered for use with residential aluminium doors. Its 47.5mm case size is optimized for the narrow profiles commonly found in these installations.

No, this product is a mortice lock case only. A Euro profile cylinder must be purchased separately, allowing you to select a keying option or patented system that best suits your security needs.

The latchbolt is operated by a lever handle or can be withdrawn with the cylinder key. The deadbolt is engaged or disengaged using a cylinder key or thumbturn. It is compatible with narrow plate unsprung lever handles using an 8mm square follower.

The deadbolt is manufactured from brass and features hardened steel rollers. These internal rollers are designed to resist physical attacks such as sawing, providing an additional layer of protection for your property.
