Union L2249 Mortice Sashcase

£47.99

(£39.99 ex VAT)

sku: UN-L2249
  • Designed for timber doors requiring cylinder and lever handle operation
  • Accepts standard euro profile cylinders for versatile locking options
  • Pierced to accommodate bolt-through fixings for secure furniture mounting
  • Deadbolt reinforced with hardened steel rollers to resist sawing
  • Reversible latchbolt for use on both left and right-handed doors
  • Compatible with 8mm square spindles for standard lever handles
  • Suitable for use with rebate sets on double door applications
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

The Union L2249 Mortice Sashcase is a robust locking solution designed specifically for timber doors. It provides dual functionality, combining a latchbolt for everyday passage and a deadbolt for secure locking. The latchbolt is operated by a lever handle using a standard 8mm spindle, while the deadbolt is controlled by a euro profile cylinder, allowing for easy integration into master key suites or keyed-alike systems.

Constructed with a steel lock case and brass components, the L2249 is built for durability. The deadbolt is specifically engineered with hardened steel rollers to provide additional resistance against manual sawing attacks. Furthermore, the case is pierced to accept bolt-through door furniture, ensuring that handles remain firmly fixed to the door over time.

This sashcase is suitable for both new installations and as a high-quality replacement for existing mortice locks. Its reversible design ensures compatibility with both left and right-handed doors. For double door configurations, this unit is also compatible with standard rebate sets to maintain a secure and flush fit.

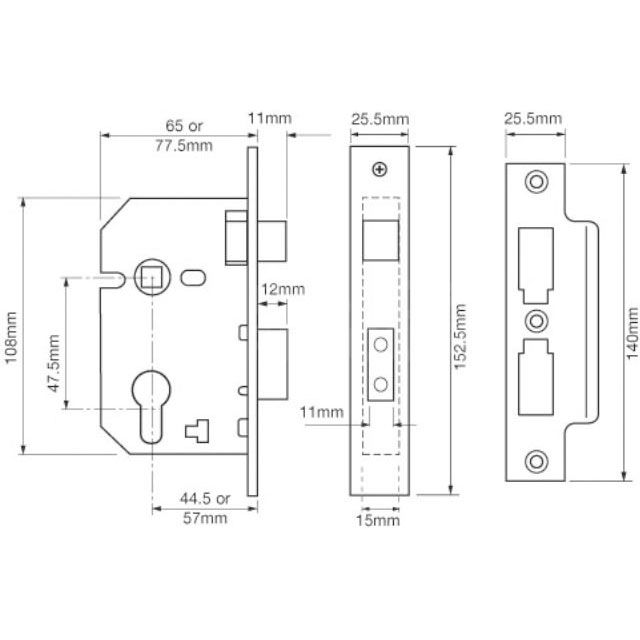

Dimensions Image: Union L2249 Mortice Sashcase
Part Min (mm) Max (mm)
centres 47 -
Backset 44 57
Bolt Length 12 -
Case Width 65 77
Case Height 108 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 25 -
Strike Plate Length 140 -
Dimensions Image: Union L2249 Mortice Sashcase

Brand

SKU

UN-L2249

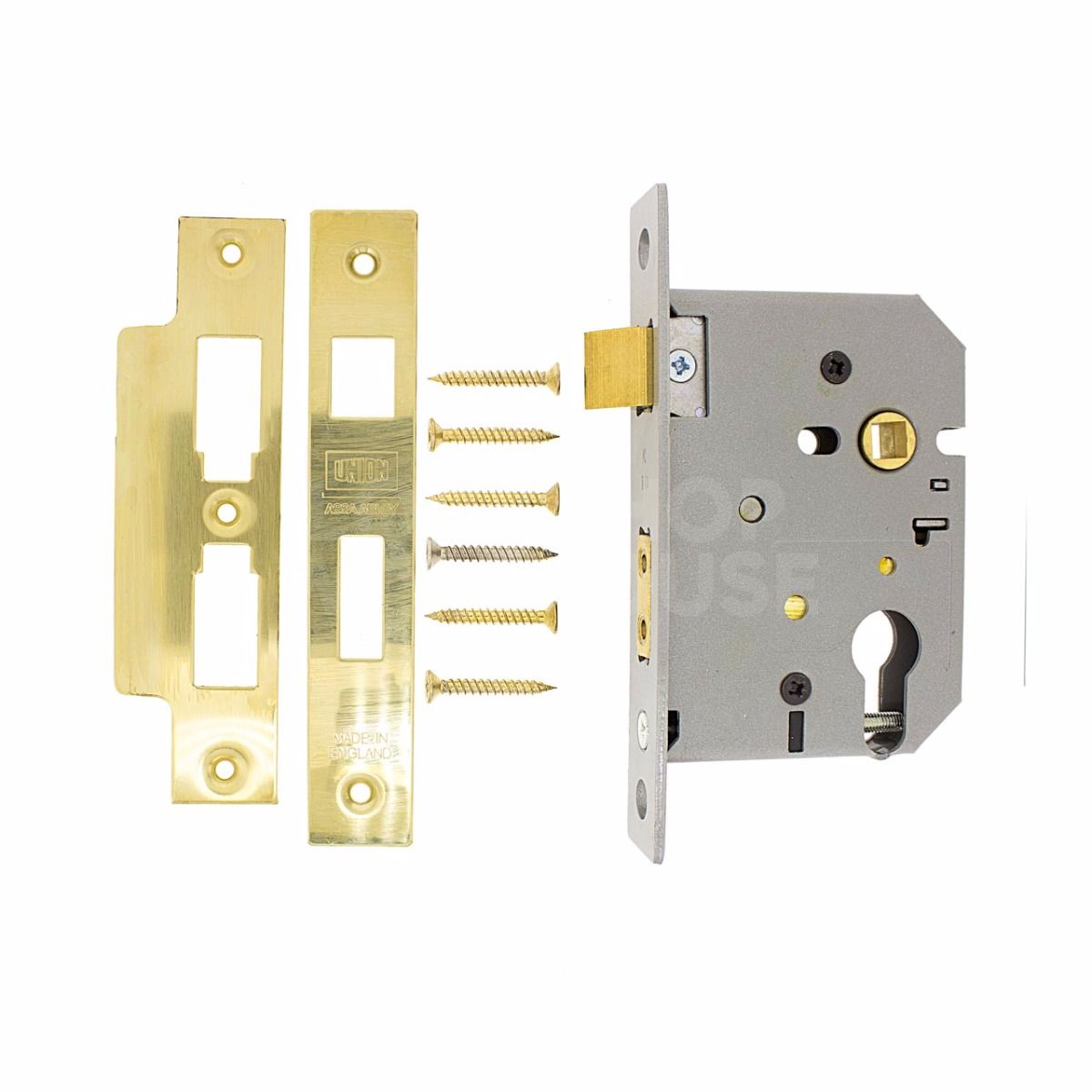

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

The Union L2249 is designed to work with standard Euro Profile cylinders. This gives you the flexibility to choose various cylinder lengths and security levels, including patented systems, to meet your specific door and security requirements.

Yes, this mortice sashcase is suitable for wooden doors hinged on either the left or the right. The latchbolt is operated by a standard lever handle, while the deadbolt is controlled by the cylinder key or thumbturn.

Yes, the lock case is specifically pierced to accept bolt-through furniture. This allows your lever handles to be securely bolted through the door and the lock itself, providing a more stable and durable installation.

The deadbolt is constructed from brass and incorporates hardened steel rollers. These rollers are designed to rotate if a saw attack is attempted, making it significantly harder to cut through the bolt and providing enhanced protection against forced entry.
