Union 2642 Mortice Latch

£19.19

(£15.99 ex VAT)

sku: U2642
  • Designed for internal timber doors requiring a simple latching mechanism without a lock
  • Features a two-way action suitable for use with lightweight door knobs or sprung lever handles
  • Reversible latchbolt allows for installation on both left and right-handed opening doors
  • Solid brass latchbolt provides smooth operation and long-term durability
  • Standard 8mm square follower accommodates most common UK spindle sizes
  • Galvanised steel case protects internal components from debris and wear
  • Ideal for residential applications in hallways, kitchens, and living rooms
Document Icon product info

Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

2/10 Security Rating

The Union 2642 is a standard-duty mortice latch specifically designed for use on internal wooden doors. It provides a reliable latching function for doors that require lever or knob operation but do not need to be locked. This makes it an essential component for residential interiors, suitable for new installations or as a replacement for existing mortice latches.

This latch features a two-way action, meaning the latchbolt is easily withdrawn by turning the handle in either direction. It is engineered for compatibility with sprung lever furniture or lightweight mortice knobs. Please note that this unit is not suitable for use with unsprung lever handles, as these require a latch with a heavy-duty springing mechanism to return the handle to its horizontal position.

  • Function: Latchbolt withdrawn by handle from either side.
  • Compatibility: Suitable for timber doors hinged on either the left or right.
  • Construction: Features a galvanised steel case for durability and a solid brass latchbolt for consistent performance.
  • System Role: Typically used in conjunction with architectural door furniture on internal doors where privacy or security locking is not required.

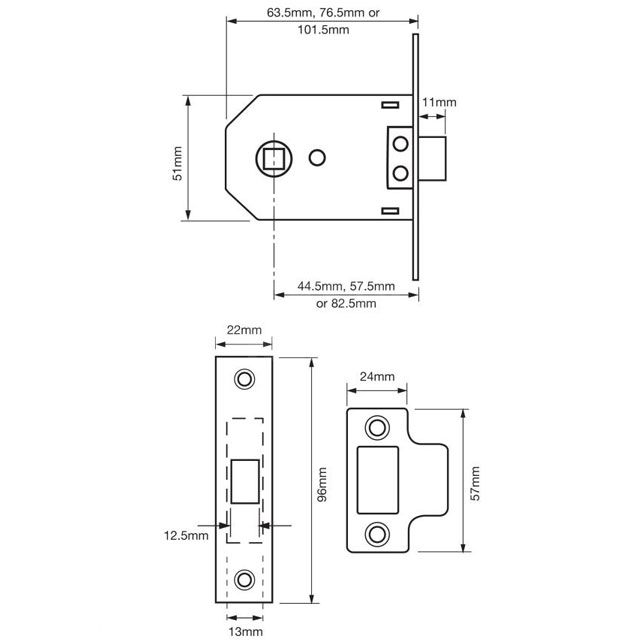

Dimensions Image: Union 2642 Mortice Latch
Part Min (mm) Max (mm)
Backset 44 82
Bolt Length 11 -
Case Width 63 101
Case Height 51 -
Forend Width 22 -
Forend Length 96 -
Strike Plate Width 24 -
Strike Plate Length 57 -
Dimensions Image: Union 2642 Mortice Latch

Brand

SKU

U2642

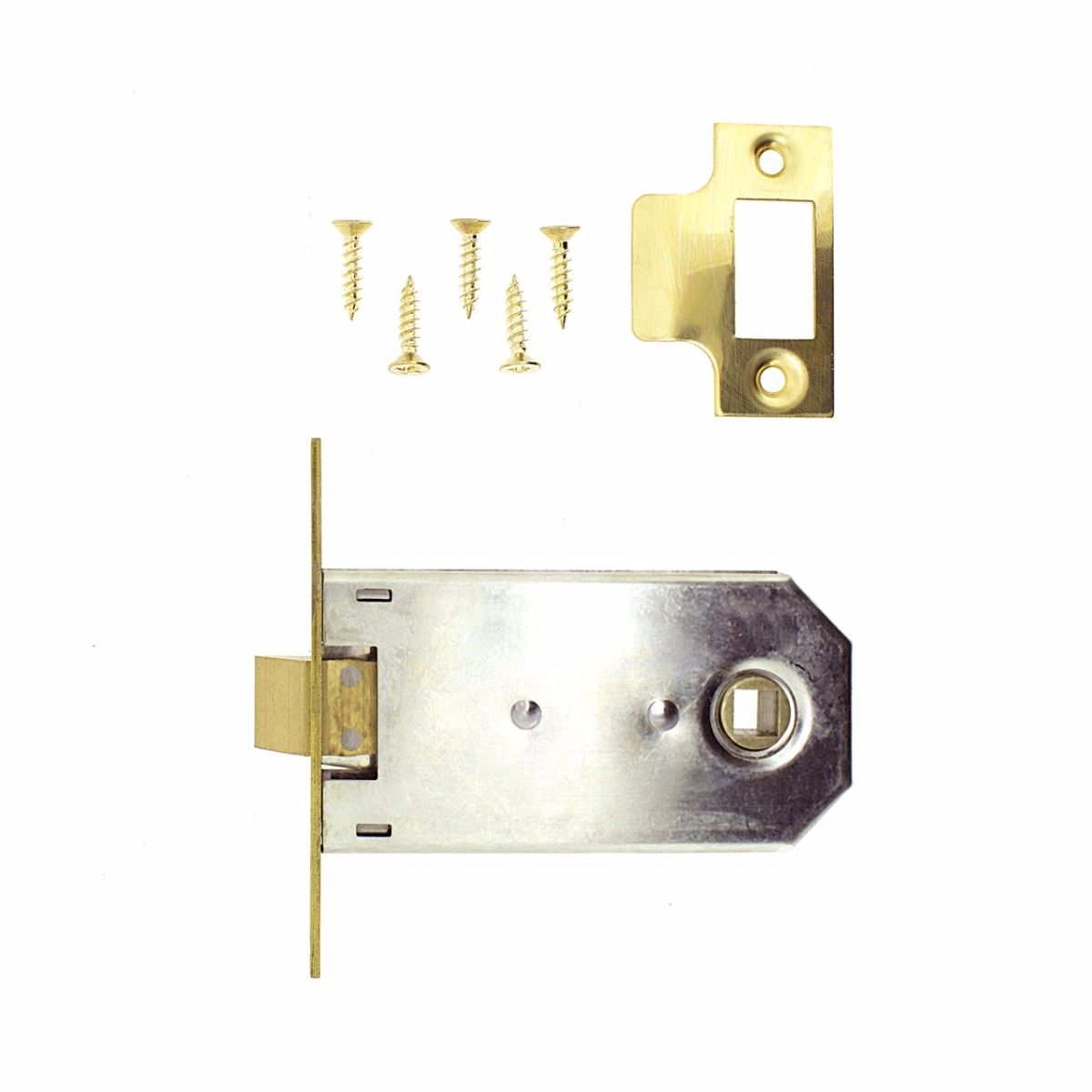

Box Contents

strike plate

fixing screws

latch

FAQs

Yes, the Union 2642 mortice latch is designed with a two-way action, making it suitable for wooden doors hinged on either the left or the right side.

This latch is specifically designed for use with lightweight door knobs or sprung lever handles. Please note that it is not suitable for use with unsprung lever handles.

The Union 2642 is available in three different case sizes to suit your specific door requirements:

  • 64mm
  • 77mm
  • 102mm

This mortice latch is available in two popular finishes to match your door hardware: Polished Brass and Polished Chrome.
