Union Mortice Latch 2677

£19.20

(£16.00 ex VAT)

sku: UN-2677
  • Reversible latchbolt allows for use on both left and right-handed doors
  • Operated by lever handle or mortice knob from either side
  • Case pierced to accept bolt-through fixings for secure furniture mounting
  • Heavy-duty springing suitable for use with unsprung lever handles
  • Standard 8mm follower with one-way action
  • Designed for installation in internal timber doors
Document Icon product info

Finish

Size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 2677 Mortice Latch is a robust architectural-grade latch designed for internal timber doors where no locking function is required. It provides a reliable closing mechanism suitable for residential and light commercial applications.

A key feature of the 2677 is its reversible latchbolt, which can be easily adjusted to accommodate different door handings. The latch is operated via an 8mm follower by either a lever handle or a mortice knob from either side of the door. The internal mechanism is specifically engineered with heavy-duty springing, making it an ideal choice for use with unsprung lever handles or heavier mortice knobs that require additional assistance to return to the rest position.

For modern door hardware installations, the case is pierced to accept bolt-through furniture. This ensures that door handles can be fixed securely through the door and the latch case, preventing the furniture from pulling away over time. It can be used as a high-quality replacement for existing latches or as part of a new door hardware specification.

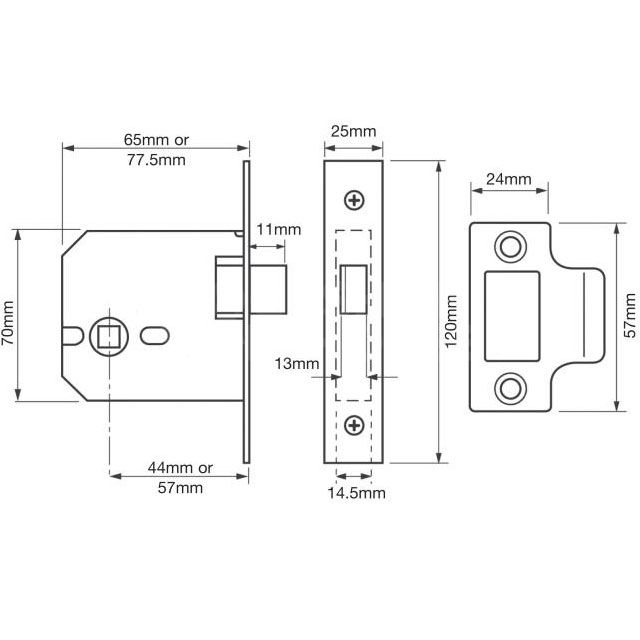

Dimensions Image: Union Mortice Latch 2677
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 11 -
Case Width 65 77
Case Height 70 -
Forend Width 25 -
Forend Length 120 -
Strike Plate Width 24 -
Strike Plate Length 57 -
Dimensions Image: Union Mortice Latch 2677

Brand

SKU

UN-2677

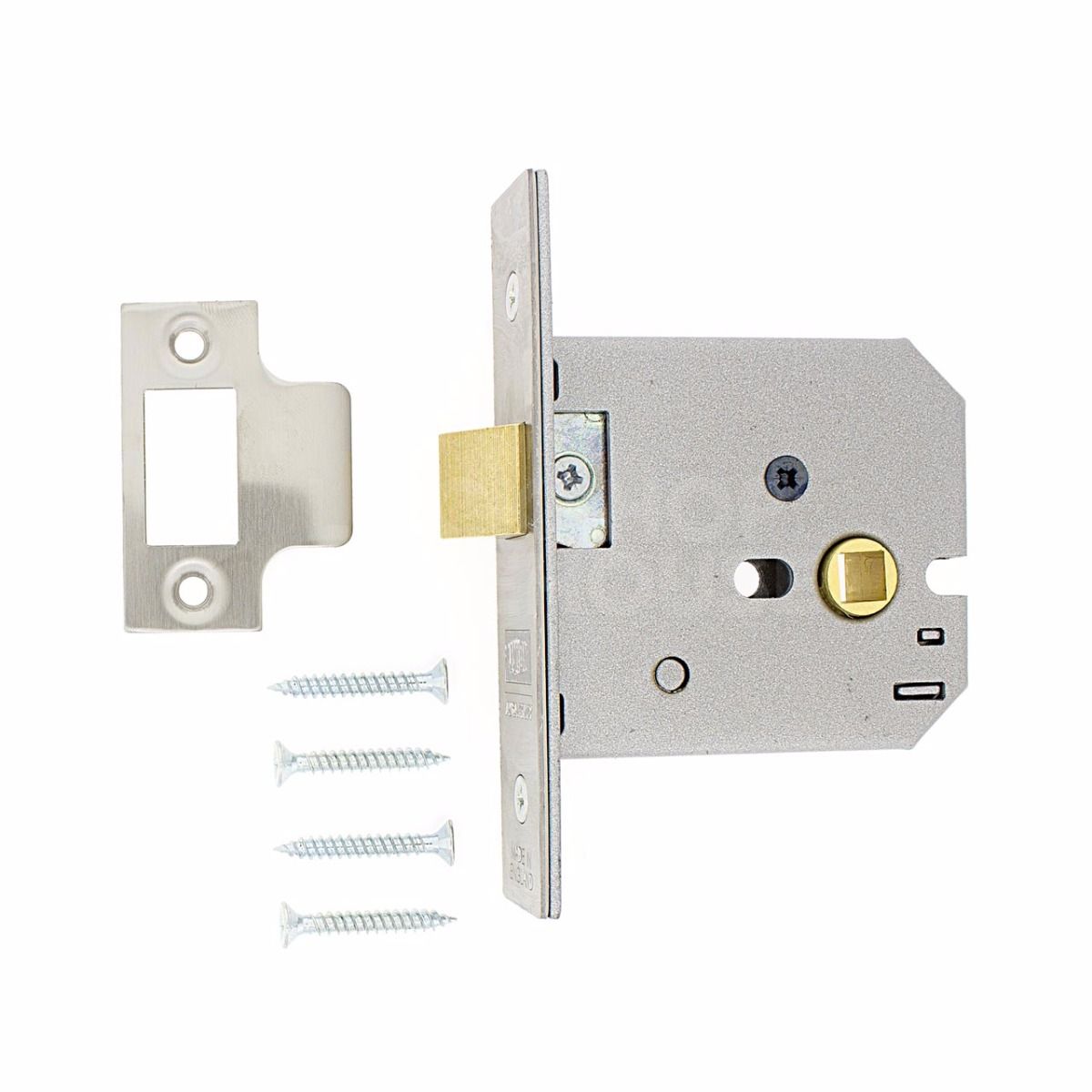

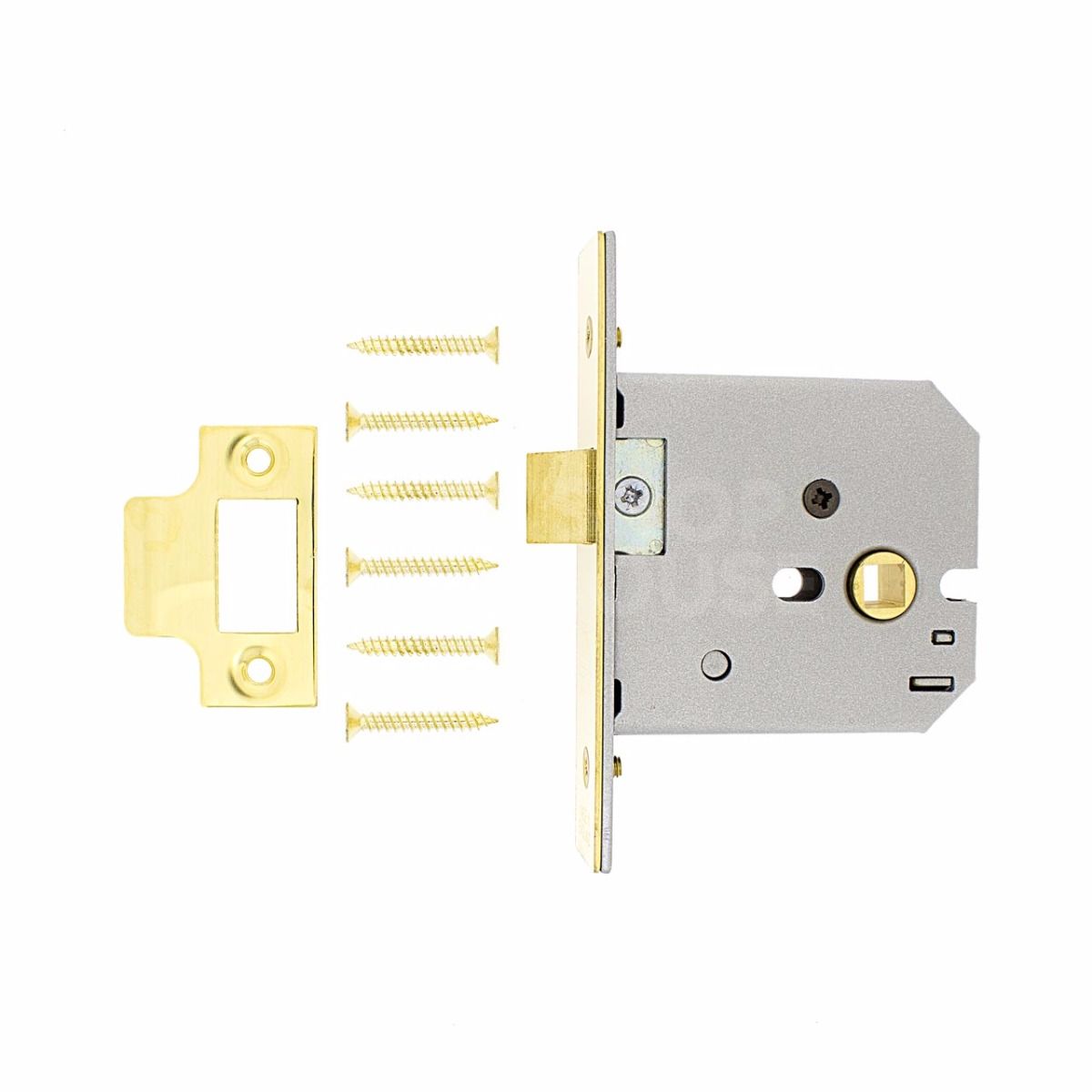

Box Contents

strike plate

fixing screws

latch

FAQs

Yes, the Union 2677 features a reversible latchbolt. This allows it to be configured for use on doors that open in either direction, providing flexibility during installation.

Yes, the latch case is specifically pierced to accept bolt-through furniture. This makes it suitable for use with modern lever handles and knobs that require a secure, through-the-door fixing method.

This mortice latch is highly versatile and is suitable for use with both mortice knobs and unsprung lever handles. It features an 8mm follower with a one-way action to ensure smooth operation.

The latch is available in two common case sizes to fit your door's backset requirements:

  • 64mm case width
  • 76mm case width

The latch body features an enamelled silver finish, while the visible forend plate is available in either Brass or Satin Chrome.
