UPVC Window Locking Handles Inline

£9.59

(£7.99 ex VAT)

sku: 25-24-04
  • Compatible with standard espagnolette window locking systems
  • Push-to-release button for simple operation
  • Key-locking cylinder provides deadlocked security
  • Standard 7mm square spindle for universal compatibility
  • Automatic locking function when the handle is closed
  • Industry-standard 43mm screw fixing centres
  • Positive stop at 90 degrees for clear operation

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Inline UPVC Window Locking Handle is a versatile hardware solution designed for use with standard espagnolette window locks. Its functional design makes it an ideal choice for both new installations and the replacement of existing hardware on UPVC casement windows.

Featuring a push-to-release button, the handle provides easy operation, rotating to a positive stop at 90 degrees to ensure the window is fully disengaged. For enhanced security, the handle automatically locks upon closure and can be further deadlocked using the integrated key cylinder.

Compatibility is ensured through the use of industry-standard dimensions, including a 7mm square spindle and 43mm bolt fixing centres. As an inline handle, it is non-handed, meaning it can be installed on both left and right-opening windows without modification. This component is essential for maintaining the security and functionality of modern window systems.

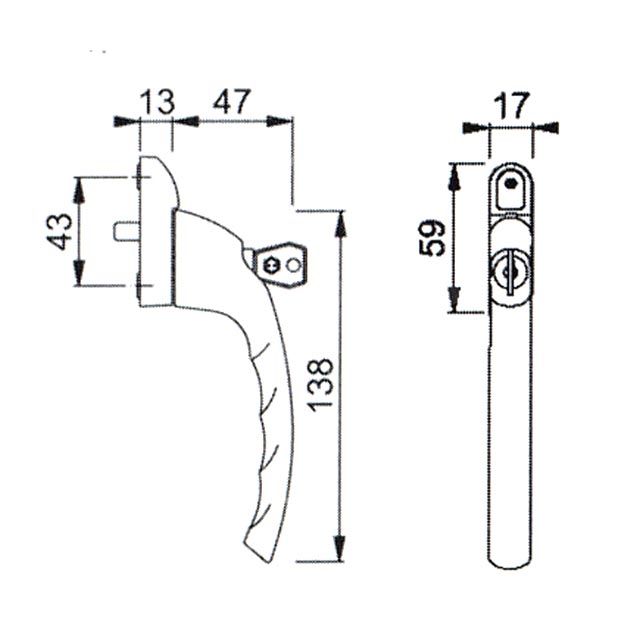

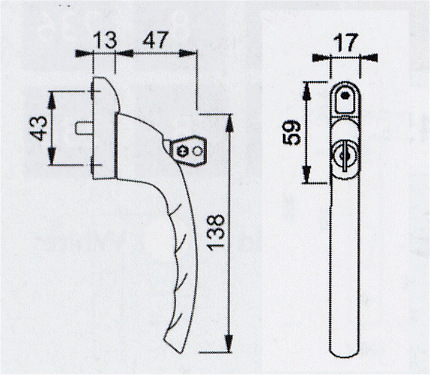

Dimensions Image: UPVC Window Locking Handles Inline

FAQs

This handle is designed specifically for use with Espagnolette window locks. It features industry-standard 43mm bolt fixing centres, making it a suitable replacement for the majority of modern UPVC window handle systems.

The handle provides high security by automatically locking when the window is closed. To open it, you simply push the integrated button. For added security, the handle can be deadlocked using the provided key.

The handle is equipped with a standard 7mm square spindle. The distance between the screw fixing centres is 43mm, which is the standard measurement for most UPVC window hardware.

Yes, as an inline handle with a symmetrical design, it is universal. It can be installed on either left-handed or right-handed opening windows without any modifications.
