UPVC Window Locking Handles Left Hand

£9.59

(£7.99 ex VAT)

sku: 30-28-26
  • Compatible with standard espagnolette window locks
  • Ergonomic left-handed design for specific opening configurations
  • Push-button operation for simple release and opening
  • Positive stop at 90 degrees to indicate full opening
  • Automatic locking mechanism triggers when handle is returned to closed position
  • Key deadlock feature provides additional security for domestic applications
  • Industry-standard 43mm fixing centres for straightforward installation

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This left-hand locking window handle is designed for use with standard espagnolette window locks found on most UPVC window systems. It provides a secure and reliable operation, making it an ideal choice for both new installations and the replacement of worn or damaged hardware.

The handle operates via a simple push-button mechanism, allowing the handle to rotate to a positive stop position at 90 degrees. For enhanced security, the unit is designed to automatically lock when returned to the closed position. The integrated lock cylinder allows the handle to be deadlocked with a key, providing an essential safety feature for residential properties.

Typical applications include:

  • Replacement of existing left-handed handles on UPVC casement windows.
  • Upgrading non-locking handles to key-locking versions for improved security.
  • Installation on multi-point locking systems requiring a standard 7mm square spindle.

The handle features industry-standard 43mm bolt fixing centres, ensuring compatibility with the majority of window frames without the need for additional drilling or modification.

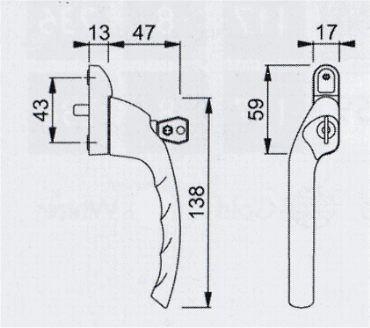

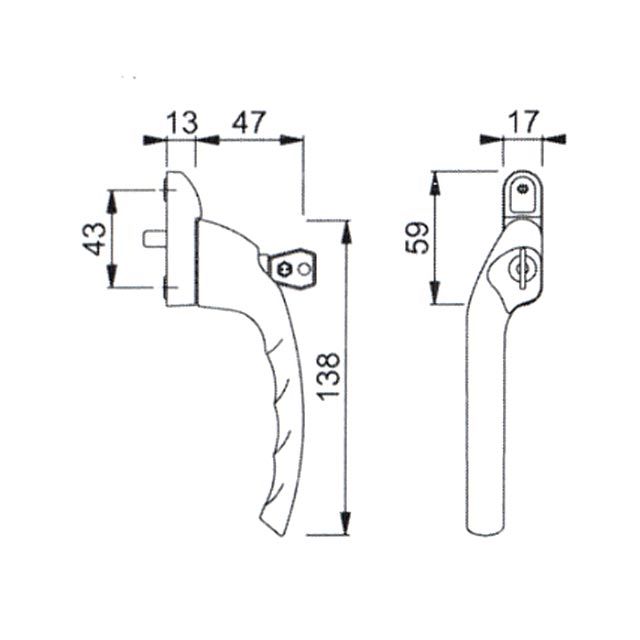

Dimensions Image: UPVC Window Locking Handles Left Hand

FAQs

This is a left-handed handle. Generally, if the handle points to the left when in the closed position, it is considered left-handed. If you are replacing an existing handle, it is best to match the orientation of your current one to ensure correct operation.

This handle is designed to fit most standard UPVC windows that use an Espagnolette locking system. It features industry-standard dimensions:

  • 7mm square spindle
  • 43mm bolt fixing centres (the distance between the two screw holes)

Yes, the handle features an automatic locking mechanism that engages when the window is pushed shut. To open the window, you must press the button while turning the handle. For additional security, you can use the provided key to deadlock the button.

The handle is designed for smooth operation and will rotate to a positive stop position at 90°. This clearly indicates when the window mechanism is fully disengaged and ready to be pushed open.
