UPVC Window Locking Handles Right Hand

£9.59

(£7.99 ex VAT)

sku: 31-29-27
  • Designed for use with espagnolette and shootbolt window locking systems
  • Push-to-release button allows for quick and easy daily operation
  • Automatic locking mechanism engages when the window is closed for consistent security
  • Key-operated cylinder allows for deadlocking to prevent unauthorised access
  • Integrated 90-degree internal stop prevents over-rotation and mechanism damage
  • Standard 43mm fixing centres ensure compatibility with most modern UPVC profiles
  • Universal 7mm square spindle drive interfaces with standard internal gearing

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This right-hand locking window handle is designed specifically for UPVC window systems utilising espagnolette or shootbolt locking mechanisms. It serves as a reliable replacement or upgrade for existing hardware, offering a combination of ergonomic operation and enhanced security features.

The handle functions with a push-button release for ease of use. Once the window is closed and the handle is returned to its vertical position, the locking mechanism automatically engages. For maximum security, the integral cylinder allows the handle to be deadlocked with a key, preventing the button from being operated. This makes it an ideal choice for both ground floor and accessible upper-floor windows.

Technical compatibility is ensured by the industry-standard 43mm screw fixing centres and a 7mm square spindle, which fits the vast majority of UPVC window gearboxes. An internal stop is incorporated into the design to limit rotation to 90 degrees, protecting the internal hardware from strain and ensuring the handle remains in the correct orientation during use.

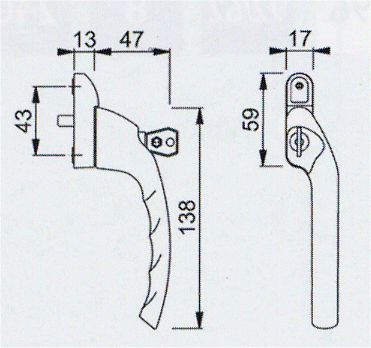

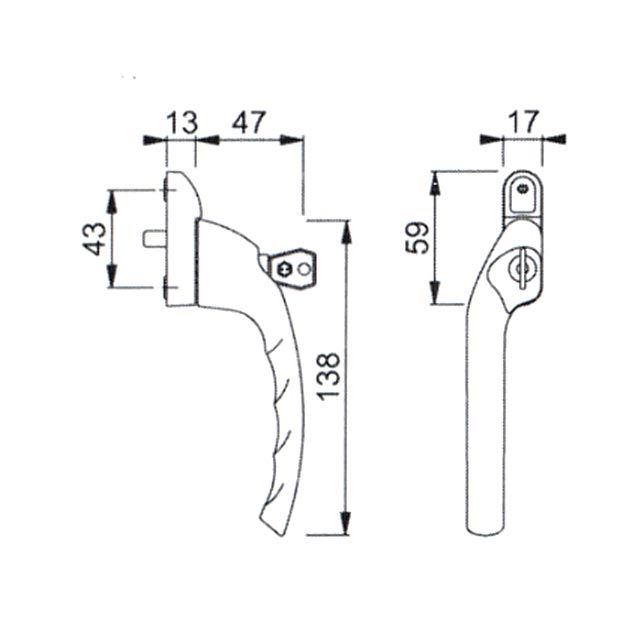

Dimensions Image: UPVC Window Locking Handles Right Hand

FAQs

This Hoppe handle is designed for use with windows featuring Espagnolette locking systems. To ensure compatibility, verify that your current handle uses a 7mm square spindle and has fixing centres spaced at 43mm.

The handle is designed for ease of use and security. It features:

  • A push-button release for opening.
  • An automatic locking mechanism that engages when the window is closed.
  • A deadlock function that can be activated with a key for maximum security.

Handing refers to the direction the handle curves and operates. This specific model is right-handed; you should compare the orientation of your existing handle to the product image to ensure it matches your window's requirements.

For a standard fit, this handle utilizes a 7mm square spindle and has bolt fixing centres at 43mm. These are the most common dimensions for modern UPVC window hardware, making it a suitable replacement for many standard handles.
