skip to Wilka 1438 Lever Operated Mortice Sashlock

Wilka 1438 Lever Operated Mortice Sashlock

£128.93

(£107.44 ex VAT)

sku: WILKA-0004
  • Latch and cylinder-operated deadbolt
  • 25mm, 30mm, 35mm, 40mm and 45mm backsets
  • Listed 92mm centres and 24mm faceplate
  • Reversible latch
  • Euro cylinder supplied separately

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The 1438 is a mortice sashlock, not a centre gearbox for an unspecified full multipoint strip. Its latch can be operated by the handle or cylinder key, while the cylinder operates the deadbolt.

Match the exact backset, case outline, forend, follower and fixings with the door. WILKA describes the 1438 range to EN 12209, but this is not a guarantee of the complete door's security, fire performance or suitability. The closed-top-and-bottom case is not a dust seal.

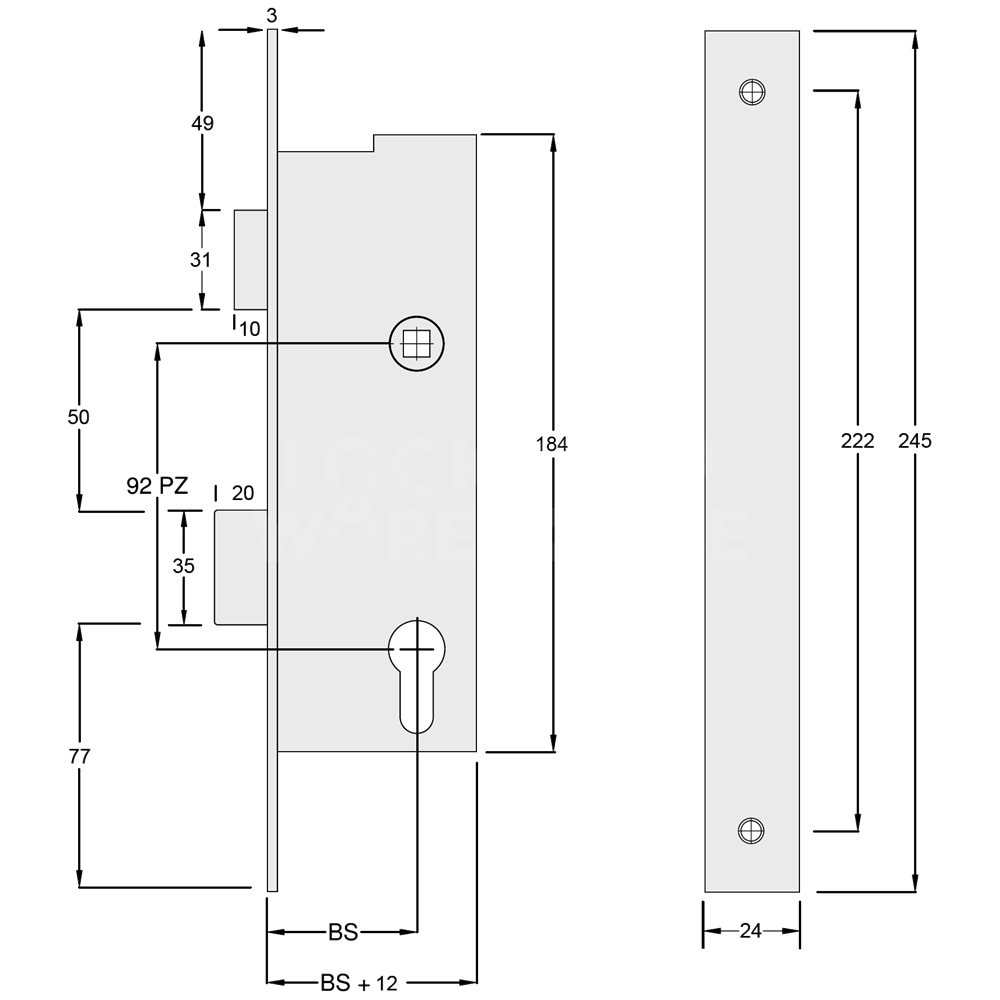

Dimensions Image: Wilka 1438 Lever Operated Mortice Sashlock
Part Min (mm) Max (mm)
width 24 -
centres 92 -
Backset 25 45
Bolt Length 20 -
Case Width 37 57
Faceplate Height 245 -
Faceplate Width 24 -

FAQs

The Wilka 1438 is specifically engineered for metal frame doors. Its slim design makes it an ideal choice for narrow door profiles used in both residential and commercial settings.

The 1438 latch is reversible. Follow the instructions for the supplied case. WILKA's catalogue distinguishes this model's slider method from the separate screw-retained method used on the 20mm-backset 1433.

Available backsets are 25mm, 30mm, 35mm, 40mm and 45mm, with listed 92mm centres and a 24mm faceplate. Also compare the case outline, forend and fixings; current catalogue drawings must not be used to replace older case dimensions without checking the delivered version.

This is the mortice lock case; the Euro cylinder and handles are supplied separately. Match the follower size, fixing pattern, cylinder length and function to the actual door and case.
