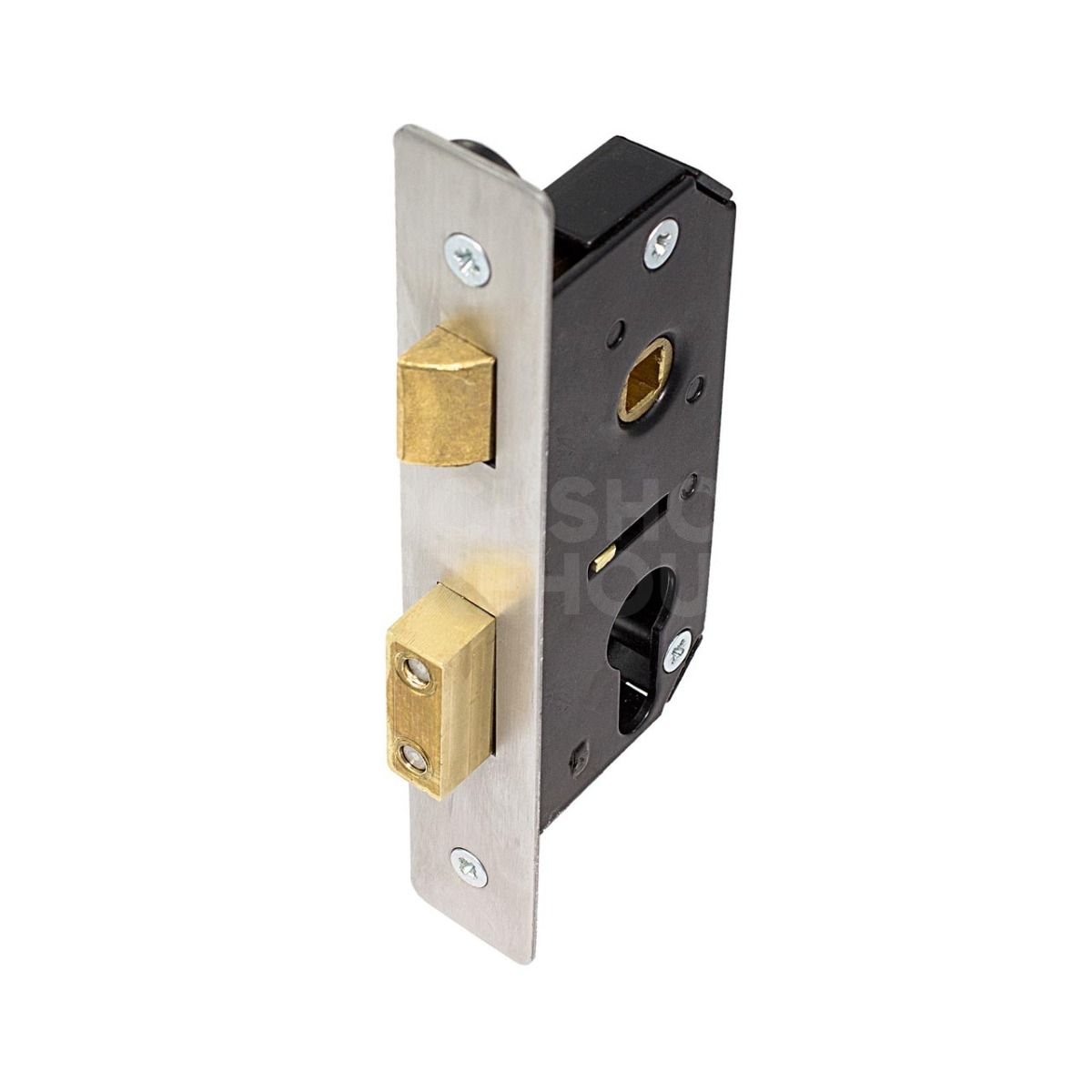

Willenhall EP1 Euro Sashcase - 50mm

£34.79

(£28.99 ex VAT)

sku: L172
  • Operates with standard euro profile cylinders for deadbolt locking
  • Features a reversible latchbolt for both left and right-handed doors
  • Slimline case design specifically suited for narrow stile timber or metal doors
  • Compatible with standard 8mm spindle lever furniture
  • Provides secure deadlocking via the cylinder mechanism
  • Suitable for glazed French doors and patio door applications
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Willenhall EP1 Euro Sashcase is a slimline mortice lock designed for doors with narrow stiles, such as glazed timber or French doors. It functions as part of a complete locking system, where a euro profile cylinder controls the deadbolt and a lever handle set operates the latch.

Its compact design is particularly effective for architectural applications where space within the door stile is limited. The reversible latchbolt ensures compatibility with various door configurations, allowing for quick adjustment during installation. This sashcase is an ideal solution for both new door sets and as a replacement unit for existing narrow locks.

Typical applications include:

  • Glazed patio and French door installations
  • Narrow stile internal timber doors
  • Replacement of worn or damaged slimline sashlocks

The unit features a standard 8mm follower, ensuring compatibility with a wide range of lever handles, and is designed for use with single, double, or thumbturn euro profile cylinders.

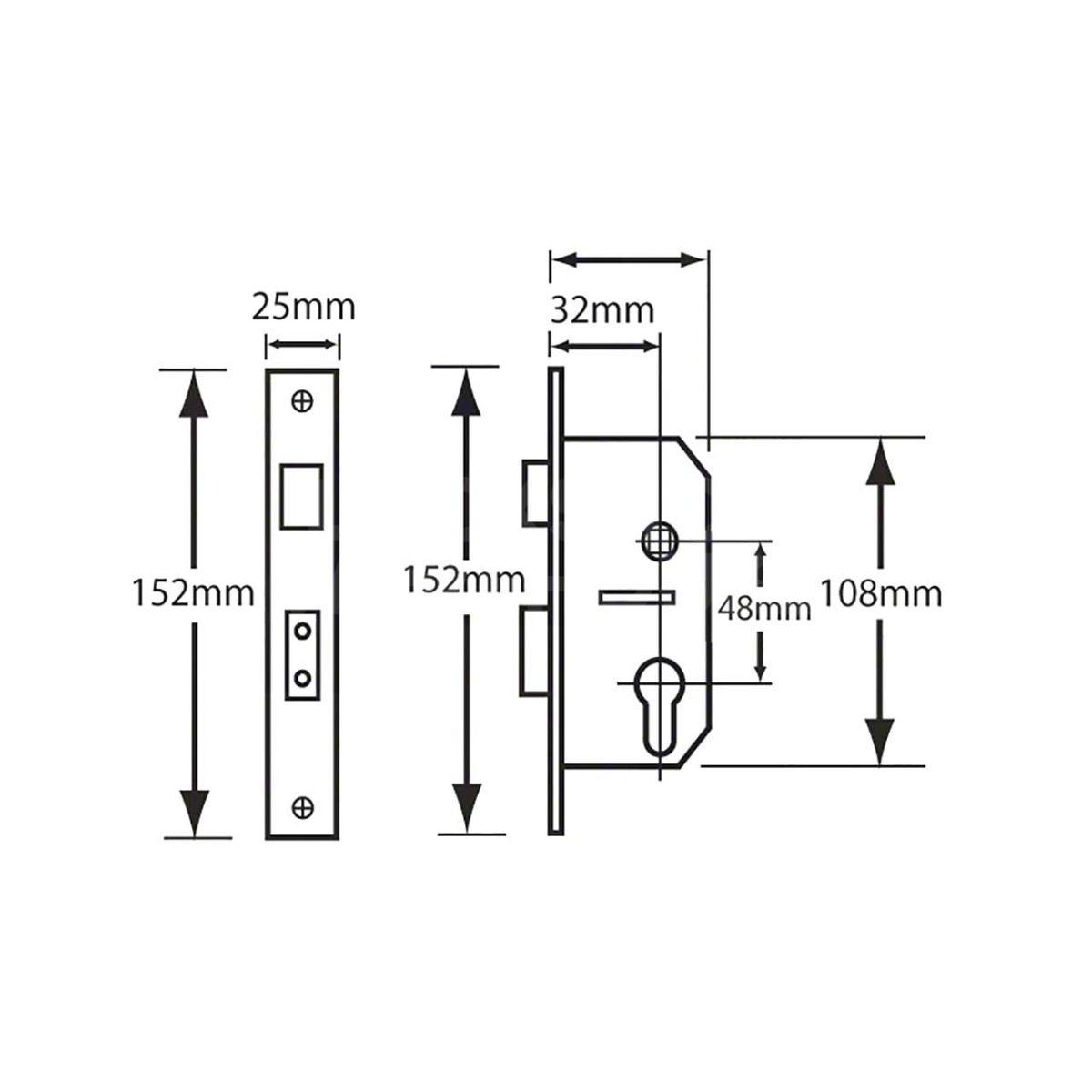

Dimensions Image: Willenhall EP1 Euro Sashcase - 50mm
Part Size (mm)
centres 48
Backset 32
Bolt Length 14
Case Width 50
Case Height 108
Forend Width 25
Forend Length 152
Strike Plate Width 25
Strike Plate Length 120
Dimensions Image: Willenhall EP1 Euro Sashcase - 50mm

Brand

SKU

L172

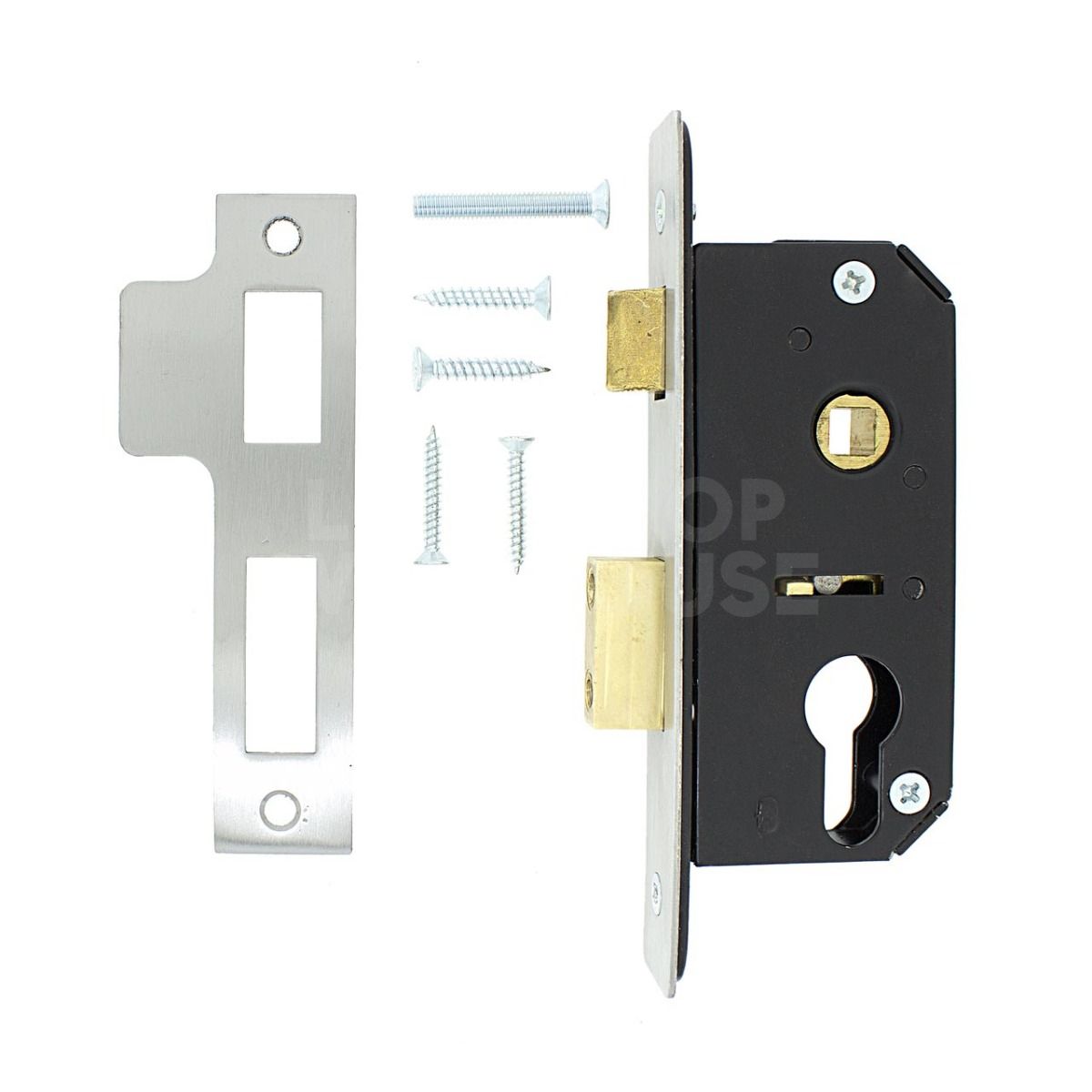

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

Yes, this sashcase is specifically designed for doors with narrow stiles, such as glazed or French doors. It features a compact 50mm case size to accommodate thinner frame profiles.

Yes, the latchbolt is fully reversible, allowing you to easily configure the lock for use on either left-hand or right-hand opening doors.

This lock is compatible with any standard euro profile cylinder. Depending on your preference, you can install a single cylinder, double cylinder, or a thumbturn cylinder.

The lock features a standard 8mm follower, making it compatible with the majority of modern lever-on-backplate and lever-on-rose door handles.
