Willenhall M3 Sashlock - 50mm (19mm Faceplate)

£48.00

(£40.00 ex VAT)

With a thinner faceplate at 19mm this lock was designed for use where a standard 25mm faceplate width would be to wide. It has 5 internal levers and is essentially no different to the standard Willenhall M3 model, just a bit thinner.

Mechanism: 5 Lever
Faceplate Width: 19mm
Case Size: 50mm
Case Finish: Blue
Forend Finish: Brass or Satin Chrome
Keys Supplied: 2
Handling: Reversible
Differs: 100

Finish

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
5/10 Security Rating
key-pinned Key Profile: Standard

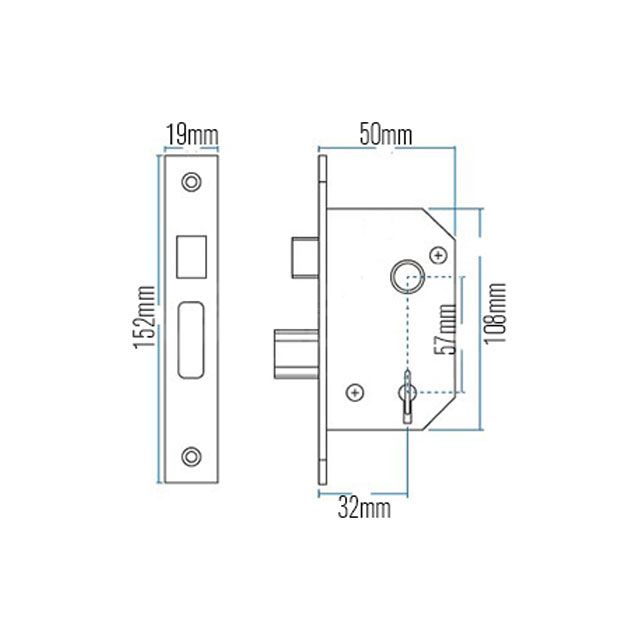

Dimensions Image: Willenhall M3 Sashlock - 50mm (19mm Faceplate)
Part Size (mm)
centres 57
Backset 32
Bolt Length 14
Case Width 50
Case Height 108
Forend Width 19
Forend Length 152
Strike Plate Width 25
Strike Plate Length 120
Dimensions Image: Willenhall M3 Sashlock - 50mm (19mm Faceplate)

Brand

Willenhall

SKU

wil-m3-thin

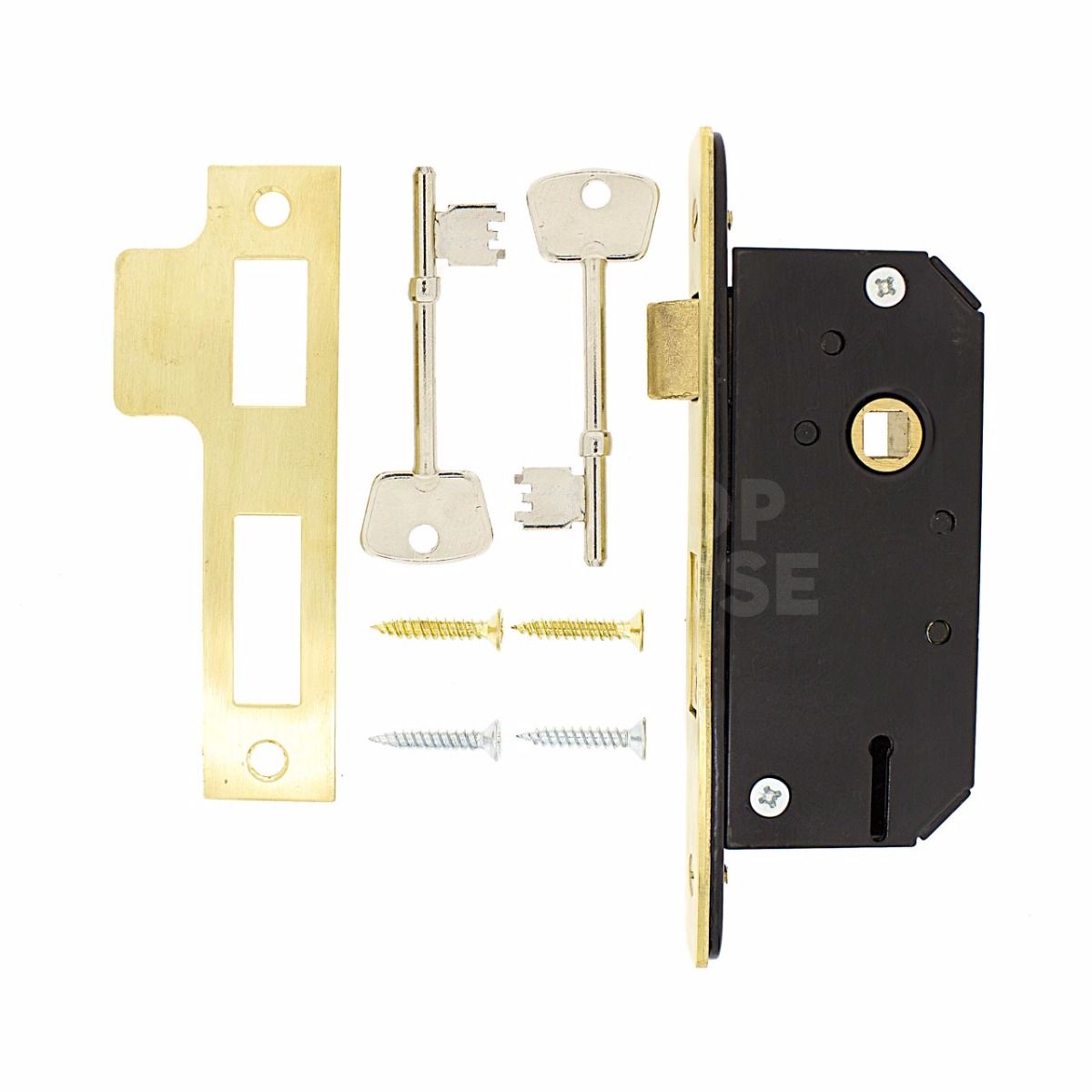

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard
