Winkhaus AV2 Auto Locking 2 Hook Latch & Deadbolt Multipoint Lock

£189.86

(£158.22 ex VAT)

sku: WINKH-0030
  • Two hooks engage automatically on closing; an outside lever still requires key-locking
  • Designed with a 20mm radius faceplate for precise fitment in timber door applications.
  • Integrated central latch and deadbolt provide traditional secondary security layers.
  • Upgradeable design allows for the addition of a 12v electronic motor for access control.
  • Compatible with standard Euro profile cylinders for versatile keying options.
  • Features a single spindle operation for use with conventional lever handle sets.
  • Manufactured from robust materials to ensure long-term mechanical reliability.
Document Icon Winkhaus AV2 and AV2-E: manufacturer operation and system-component guide (2023)

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Winkhaus AV2 Auto Locking Multipoint Lock is a high-security solution engineered specifically for timber doors. Its primary function is the automatic engagement of its two steel hooks; as soon as the door is closed, the hooks extend into the keeps without requiring the user to lift the handle. This does not automatically throw the central deadbolt: it is operated separately by the key or an appropriate thumbturn. When an outside lever is fitted, Winkhaus specifies that the key must still be used to lock the door.

Constructed with a 20mm radius faceplate, this lock is designed for seamless integration into timber joinery. The central gearbox houses a standard latch and deadbolt, which are operated via a Euro profile cylinder. The mechanical design is focused on durability and ease of use, making it an ideal choice for residential entrance doors.

One of the key technical advantages of the AV2 system is its compatibility with electronic upgrades. By adding a "screw-on" 12v motor, the unit can be converted into the blueMatic AV2-E system, allowing the door to be opened via intercoms, keypads, or other access control systems. This makes the lock suitable for both standard domestic use and modern smart-home or commercial environments.

  • Automatic hook engagement without handle lifting; outside-lever installations still require key-locking.
  • Solid high-tensile steel construction for enhanced protection.
  • Suitable for new installations or as a replacement for existing AV2 units.
  • Technical design supports easy integration with electronic access systems.

Electronic upgrade requirements: The AV2 range can be upgraded to blueMatic AV2-E with a compatible motor. Match the actual lock generation and motor mounting before ordering. Electronic release also needs the specified low-voltage power supply, cable/door-frame transition and a suitable access-control trigger; a motor alone is not a complete installation kit. Do not connect the lock motor directly to mains power.

Replacement checks: compare the original backset, faceplate width/end shape, hook positions, handing and frame keeps with the supplied lock. The range guide is not a substitute for the exact machining drawing.

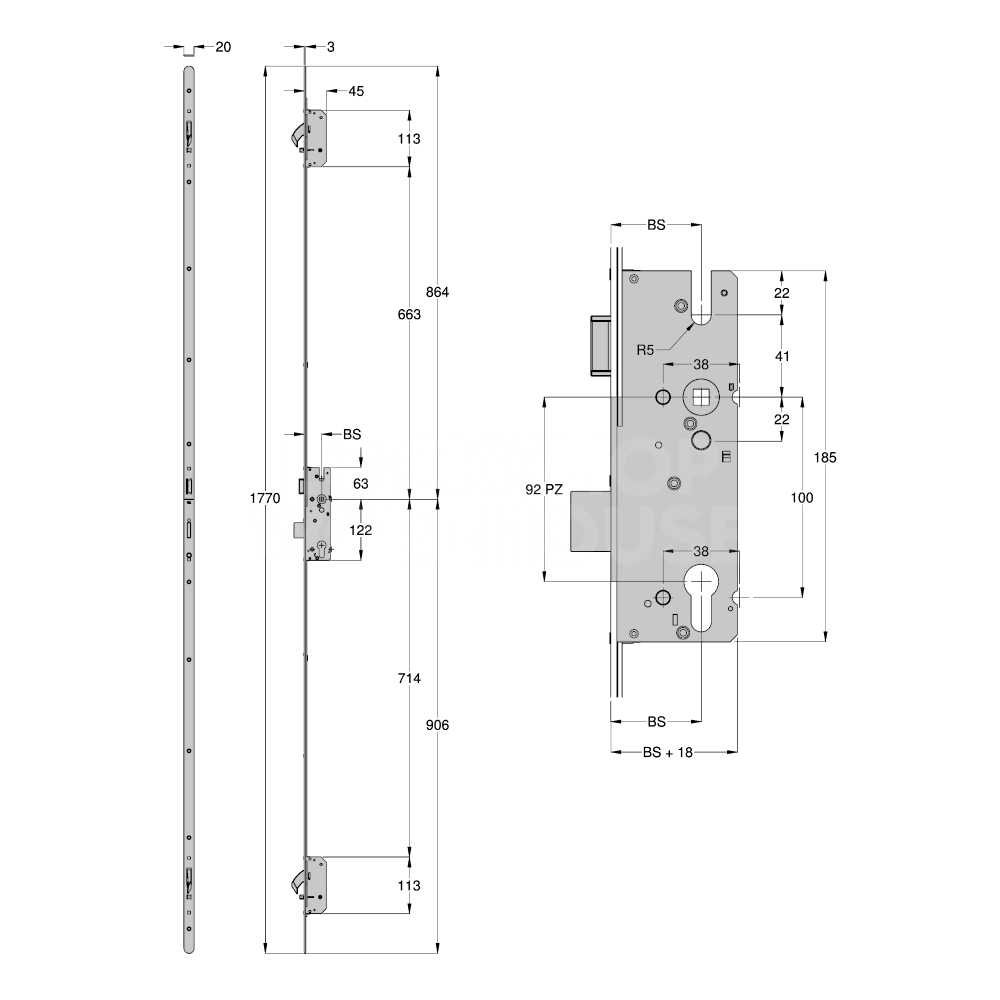

Dimensions Image: Winkhaus AV2 Auto Locking 2 Hook Latch & Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 1770 -
Case Width 63 73
Case Height 186 -
Locking Point Hooks 2 -
Faceplate Height 1770 -
Faceplate Width 20 -

FAQs

The two hooks engage automatically when the door closes, without lifting the handle. This does not automatically throw the central deadbolt: it is operated separately by the key or an appropriate thumbturn. When an outside lever is fitted, Winkhaus specifies that the key must still be used to lock the door.

This lock is specifically engineered for timber doors. It features a 20mm radius faceplate designed for a precise fit within timber joinery.

The AV2 range can be upgraded to blueMatic AV2-E with a compatible motor. Match the actual lock generation and motor mounting before ordering. Electronic release also needs the specified low-voltage power supply, cable/door-frame transition and a suitable access-control trigger; a motor alone is not a complete installation kit. Do not connect the lock motor directly to mains power.

Match the actual lock reference, backset, PZ, spindle and fixing geometry, cylinder length and frame keeps to the door. Standard Euro profile describes the cylinder format, not universal fit or a complete security approval. With an outside lever, the key must still be used to lock the door after the hooks engage automatically.
