skip to Winkhaus AV2 Auto Locking Single Spindle Latch & Deadbolt Gearbox

Winkhaus AV2 Auto Locking Single Spindle Latch & Deadbolt Gearbox

£168.29

(£140.24 ex VAT)

sku: WINKH-0090
  • Centre gearbox only for a matched Winkhaus AV2 locking strip
  • 35mm, 45mm and 55mm backsets with 92mm PZ centres
  • Left- and right-hand versions; match the supplied handing diagram
  • Riveted attachment requires the correct replacement procedure
  • AV2 hooks operate automatically in the complete matching lock; its central deadbolt is key-operated
  • Match the exact case, connecting rods and attachment points before replacement

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Winkhaus AV2 replacement centre gearbox is supplied in 35mm, 45mm and 55mm backsets, each with left- and right-hand versions. It is a centre case for an existing compatible lock, not a complete multipoint strip.

In a correctly assembled AV2 system, closing the door triggers the remote hooks without lifting the handle. The central deadbolt is operated separately by the key or thumbturn; it does not automatically extend just because the door closes. With an outside lever, the key is needed to lock the door against outside handle operation.

Replacement fit: match the exact original lock, handing, backset, 92mm PZ centres, case routing, rod connections and riveted attachment. Backset and PZ alone do not prove interchangeability. The supplier identifies these as handed cases for 16mm faceplates with a non-reversible latch; compare the correct handing diagram before ordering.

Gearbox replacement and re-riveting should follow the correct procedure for the actual strip. The whole lock must operate freely with its matching frame keeps after installation. A replacement centre case does not independently provide an automatic lock, fire approval or doorset certification.

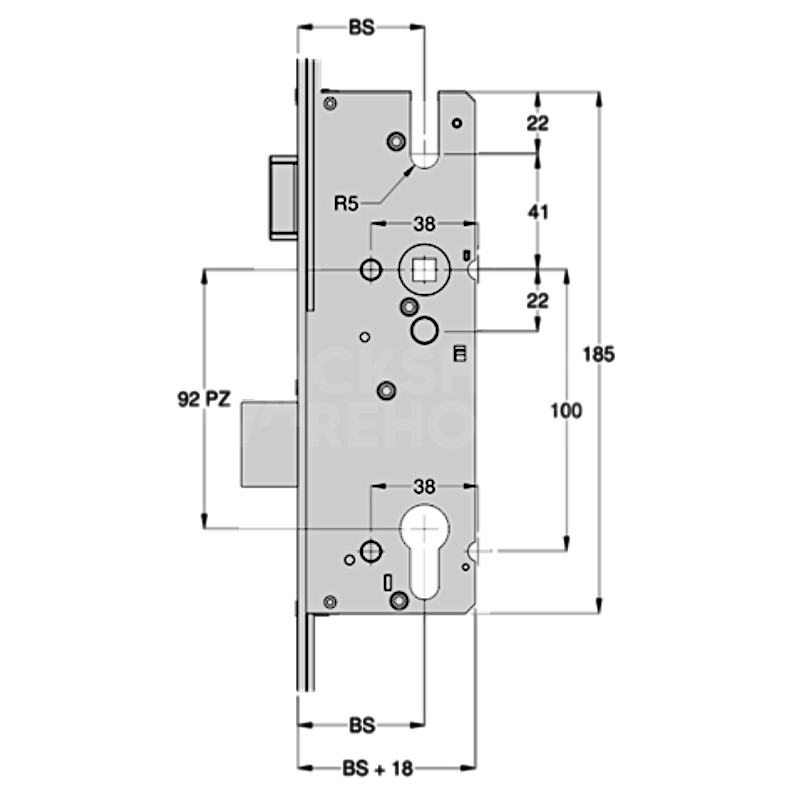

Dimensions Image: Winkhaus AV2 Auto Locking Single Spindle Latch & Deadbolt Gearbox
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Case Width 53 73
Case Height 186 -
Faceplate Width 16 -

FAQs

In the complete matching AV2 lock, the remote hooks are triggered when the door closes. The central deadbolt is extended separately with the key or thumbturn. Lifting the handle is not the action that engages the AV2 automatic hooks. Where an outside lever is fitted, use the key to lock against outside handle operation. This product is the replacement centre gearbox, not the whole automatic locking strip.

No, the latches on these Winkhaus AV2 gearboxes are not reversible. These are handed products, so it is essential to identify whether you require a left-handed or right-handed version for your specific door setup before ordering.

Match the exact original AV2 lock reference, left/right handing, backset, 92mm PZ centres, case dimensions, rod connections and riveted attachment. This family offers 35mm, 45mm and 55mm backsets. Matching backset and PZ alone is not enough to confirm a replacement, and the supplier handing diagram should be checked before ordering.

The supplier identifies a riveted attachment for these replacement cases. Removing and replacing rivets requires the correct procedure for the exact locking strip, rather than a generic screw-in swap. A competent fitter should verify the case and connecting-rod fit, then test the complete lock with its matching frame keeps.
