Winkhaus AV2 Automatic 2 Hook Multipoint Lock

£170.34

(£141.95 ex VAT)

sku: WINKH-0031
  • Two hooks engage automatically on closing; an outside lever still requires key-locking
  • Two solid high-tensile steel hooks provide robust protection
  • Suitable for both UPVC and composite door applications
  • Standard 16mm faceplate with square ends for matching door preparations
  • Upgradeable to electronic access control with an optional 12v motor
  • Euro profile lock case ensures compatibility with standard cylinders
  • Single spindle operation for straightforward lever handle use
Document Icon Winkhaus AV2 and AV2-E: manufacturer operation and system-component guide (2023)

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Winkhaus AV2 is an automatic multipoint locking system engineered for high-security performance on UPVC and composite doors. The mechanism is designed to automatically engage two solid high-tensile steel hooks when the door is closed, without requiring handle lifting to engage the hooks. This does not automatically throw the central deadbolt: it is operated separately by the key or an appropriate thumbturn. When an outside lever is fitted, Winkhaus specifies that the key must still be used to lock the door. This slam-shut functionality makes it an excellent choice for both residential and commercial applications where convenience and security are paramount.

This lock features a central latch and deadbolt, operated via a standard Euro profile cylinder. Its versatile design allows for easy integration into existing door sets or new builds. A significant technical advantage of the AV2 series is its modularity; the lock is specifically designed to accept a bolt-on 12v electronic motor. This transition to the blueMatic AV2-E system enables the mechanical lock to be controlled through various access control methods, such as keypads, fobs, or intercom systems.

Constructed with durability in mind, the unit includes a 16mm faceplate and is designed for single spindle operation. Whether used as a high-performance replacement part or in a new door assembly, the AV2 provides a reliable and adaptable locking solution.

Electronic upgrade requirements: The AV2 range can be upgraded to blueMatic AV2-E with a compatible motor. Match the actual lock generation and motor mounting before ordering. Electronic release also needs the specified low-voltage power supply, cable/door-frame transition and a suitable access-control trigger; a motor alone is not a complete installation kit. Do not connect the lock motor directly to mains power.

Replacement checks: compare the original backset, faceplate width/end shape, hook positions, handing and frame keeps with the supplied lock. The range guide is not a substitute for the exact machining drawing.

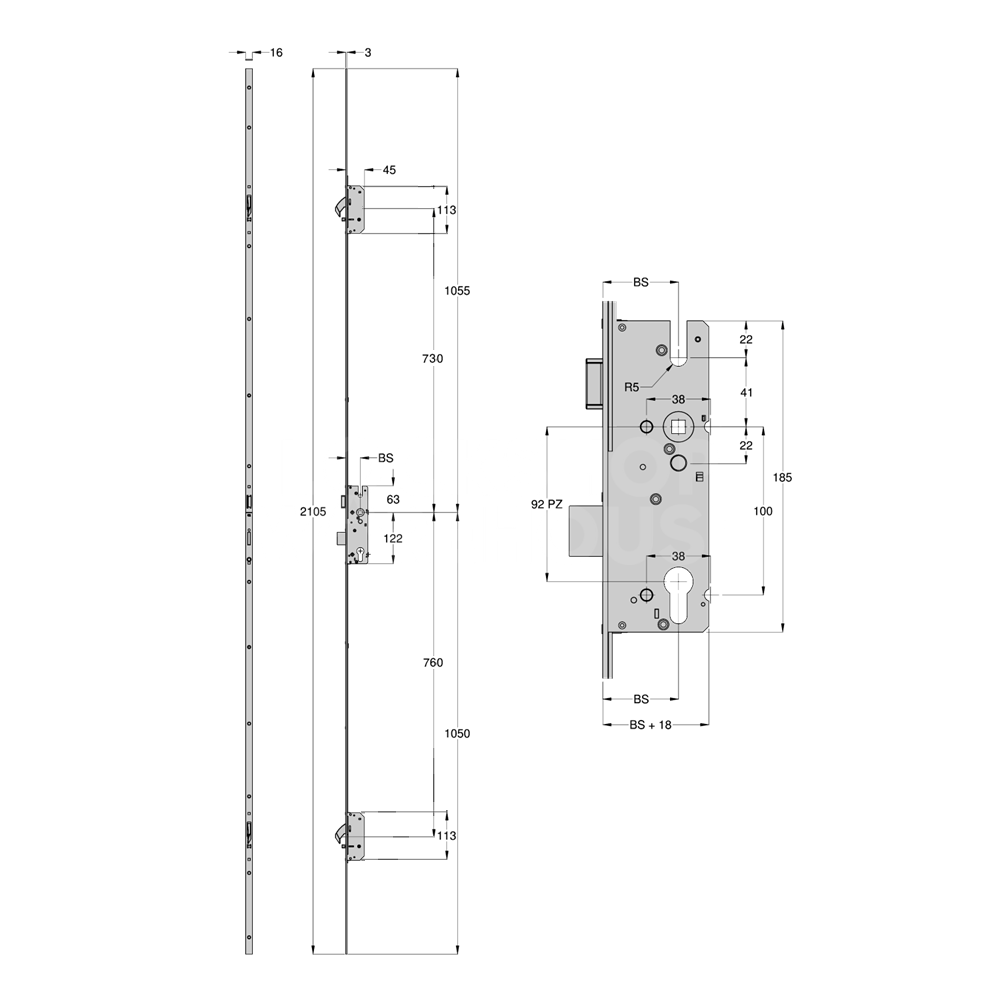

Dimensions Image: Winkhaus AV2 Automatic 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 2105 -
Case Width 53 73
Case Height 186 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

The two hooks engage automatically when the door closes, without lifting the handle. This does not automatically throw the central deadbolt: it is operated separately by the key or an appropriate thumbturn. When an outside lever is fitted, Winkhaus specifies that the key must still be used to lock the door.

This version has a 16mm square-ended faceplate for matching UPVC or composite door preparations. Compare the exact lock reference, backset, locking-point positions, handing and frame keeps before replacing an existing unit; faceplate width alone does not establish compatibility.

The AV2 range can be upgraded to blueMatic AV2-E with a compatible motor. Match the actual lock generation and motor mounting before ordering. Electronic release also needs the specified low-voltage power supply, cable/door-frame transition and a suitable access-control trigger; a motor alone is not a complete installation kit. Do not connect the lock motor directly to mains power.

Match the actual lock reference, backset, PZ, spindle and fixing geometry, cylinder length and frame keeps to the door. Standard Euro profile describes the cylinder format, not universal fit or a complete security approval. With an outside lever, the key must still be used to lock the door after the hooks engage automatically.
