Winkhaus AV2 EntryGuard 2 Hook Multipoint Lock

£245.66

(£204.72 ex VAT)

sku: WINKH-0040
  • Supplier-listed 20mm radius-ended faceplate
  • Listed with two hooks and a central latch and deadbolt
  • 45/92 and 55/92 supplier-listed versions
  • Guard assembly and handle/key operation require exact-version confirmation
  • Frame keeps and any motor conversion must be checked separately

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

The supplier lists references 4932941 (listed 45/92) and 4932937 (55/92) as AV2 EntryGuard locks with lever operation and a split spindle. These descriptions identify the listed options; they do not establish the precise inside/outside handle and key functions or the required spindle kit.

EntryGuard uses a guard bar for controlled partial opening. Guard engagement and release are separate from full multipoint locking and the central deadbolt. Confirm the supplied guard, internal control and locking/release sequence for the selected reference. A partially opened door must not be described as remaining fully multipoint locked. No day mode, automatic guard release or central-deadbolt key-turn sequence is confirmed for these references.

Winkhaus's older EntryGuard brochure excludes its AV2 option from outside-key guard release. The additional key movement described for mechanical STV EntryGuard must not be assumed to work on these AV2 versions.

Match the exact lock, strip and hook positions, guard assembly, frame profile and keep arrangement before replacement. The supplier also describes optional motor conversion, but the selected lock's generation, mounting interface, power supply and controls need confirmation before an electronic-entry upgrade. General AV2 or smart-home descriptions do not establish that compatibility.

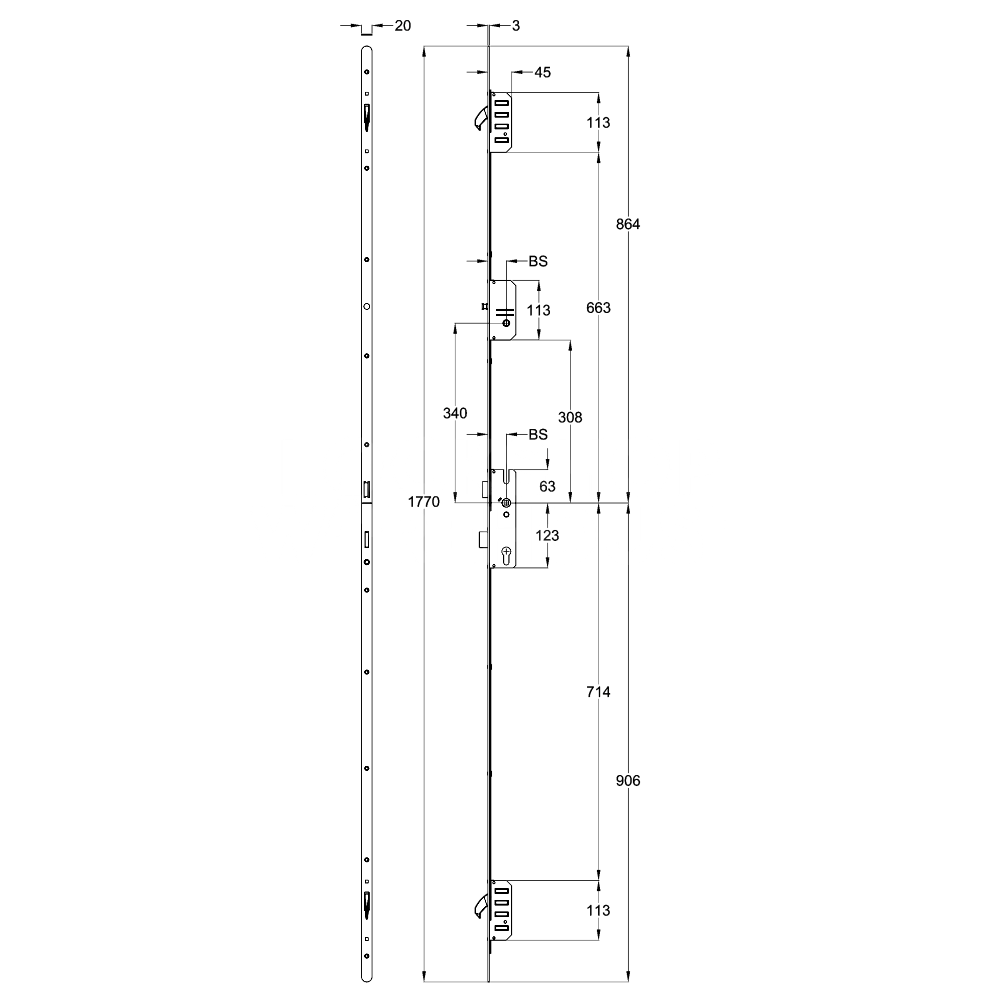

Dimensions Image: Winkhaus AV2 EntryGuard 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 45 55
Body Length 1770 -
Case Width 63 73
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

EntryGuard is Winkhaus's integral guard-bar arrangement for controlled partial opening. The exact guard and internal control supplied with references 4932941 and 4932937 must be confirmed. Partial opening is not full multipoint locking.

The older manufacturer brochure excludes AV2 from outside-key guard release. Do not assume the mechanical STV release sequence applies. Day mode, automatic guard release and the central-deadbolt locking/release sequence are not confirmed for these two references.

The supplier describes an optional motor upgrade, but compatibility has not been confirmed for references 4932941 and 4932937. Check the lock generation, motor mounting, power supply and controls before specifying electronic entry or smart-home integration.

The supplier lists two remote hooks and a central latch-and-deadbolt case. The latch is not an additional deadlocking bolt. Exact hook travel and material are not confirmed for these references.

Hook engagement, guard restriction and central-deadbolt locking are separate functions; their locking/release sequence must be checked for the selected version.

Exact certificate coverage for references 4932941 and 4932937 has not been confirmed. A general EntryGuard or AV2 range statement is not evidence of a security rating for this version or the complete installed doorset.
