Winkhaus AV2-F 2070 M2 Automatic 2 Hook Multipoint Lock

£163.10

(£135.92 ex VAT)

sku: WINKH-0089
  • Automatic locking mechanism engages hooks instantly upon closing the door
  • Features two solid high-tensile steel hooks for enhanced security
  • Designed with a 20mm radius faceplate specifically for timber door preparations
  • Compatible with optional 12V electronic motors for access control integration
  • Standard Euro profile cylinder lock case for versatile hardware pairing
  • Single spindle operation suitable for lever-operated configurations
  • Central latch and hook design provides multiple locking points

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Winkhaus AV2-F 2070 M2 is an advanced automatic multipoint locking system designed to provide immediate security for timber doors. Unlike standard manual locks, the AV2 mechanism automatically deploys its two high-tensile steel hooks as soon as the door is closed, ensuring the door leaf is pulled tight against the frame without the need to lift a handle to engage the security points.

This lock is ideally suited for both new installations and as a high-security replacement part. The radius faceplate is specifically engineered for timber applications, fitting seamlessly into standard routered preparations. The system utilizes a central latch and two hooks to provide robust physical security across the height of the door.

A key feature of the AV2 series is its upgrade path to electronic operation. The lock body is designed to accept a screw-on 12V electronic motor, transforming it into the blueMatic AV2-E system. This allows for seamless integration with various access control methods, such as intercoms, finger scanners, or keypads, making it a versatile choice for modern residential and commercial properties.

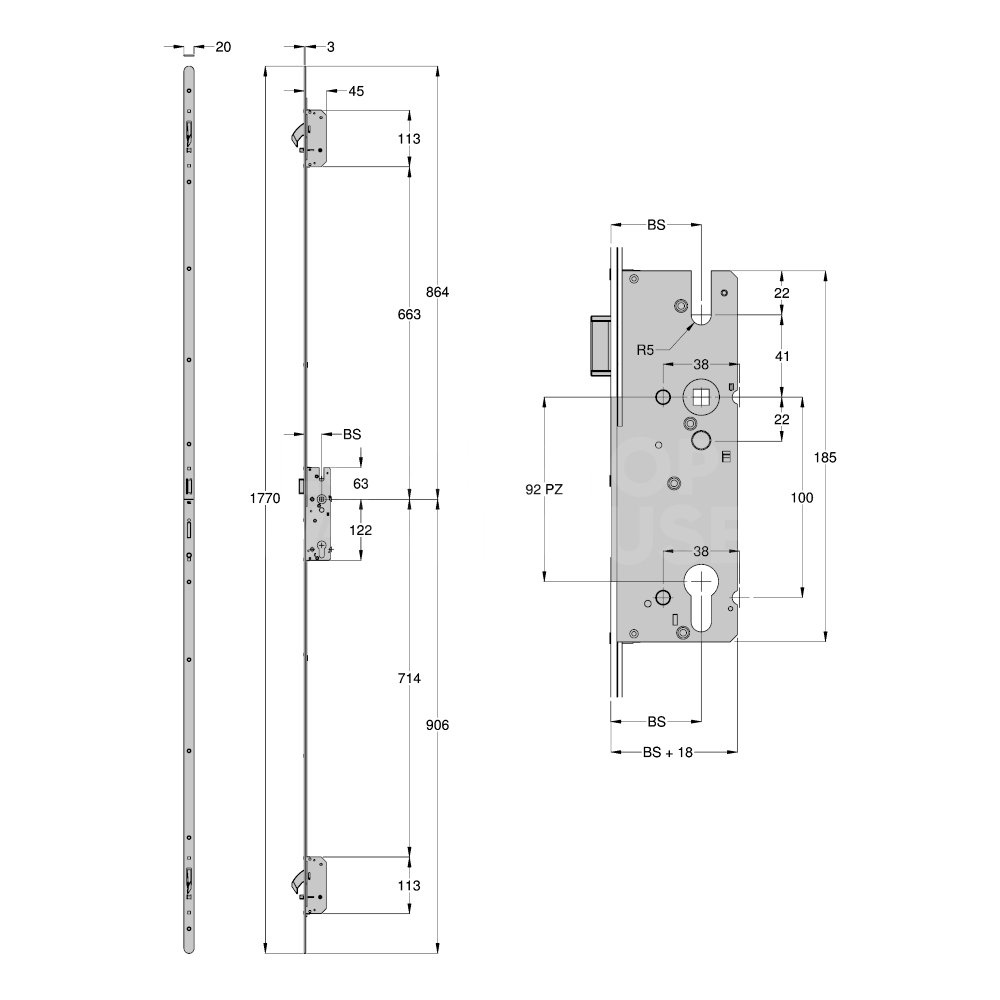

Dimensions Image: Winkhaus AV2-F 2070 M2 Automatic 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 45 55
Case Width 63 -
Case Height 186 -
Locking Point Hooks 2 -
Faceplate Height 1770 -
Faceplate Width 20 -

FAQs

The Winkhaus AV2 system uses a specialized trigger mechanism that instantly deploys two high-tensile steel hooks when the door is closed. This provides immediate security and ensures the door is pulled tight against the frame seals without any manual intervention.

No, you do not need to lift the handle to lock the door. Because the hooks are triggered automatically upon closing, the door is secured instantly. This makes it an excellent choice for users who want effortless security and a streamlined appearance without the need for traditional lever-lift operations.

Yes, this specific model features a 20mm radius faceplate designed specifically for timber door preparations. The rounded ends allow it to fit seamlessly into standard routered channels found in wooden door frames.

Yes, the AV2-F 2070 M2 is designed for easy electronic upgrades. The lock body can accept an optional 12V motor, allowing you to connect the door to modern access control systems such as intercoms, finger scanners, or keypads.
