Winkhaus AV4 Automatic Multipoint Lock

£289.32

(£241.10 ex VAT)

sku: 5097253
  • Two anti-push-back hooks engage automatically when the correctly aligned door closes
  • Outside lever installations require key-locking
  • Central magnetic trigger and non-handed lock design
  • Latch-and-deadbolt centre case, 45mm backset, 92mm PZ centres and a 20mm square-ended faceplate.
  • Optional matching blueMatic EAV4 or EAV4+ motorised system, specified separately
Document Icon Winkhaus AV4 and Heritage range guide: operation and system options
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
PAS 24:2022
Latch & Deadbolt

Winkhaus AV4 uses a central magnetic trigger to engage two anti-push-back hooks without lifting the handle. With an outside lever handle, the hooks engage when the door closes, but the door is not automatically locked; use the key to lock it.

Latch-and-deadbolt centre case, 45mm backset, 92mm PZ centres and a 20mm square-ended faceplate. For replacement, compare the original backset, PZ centres, faceplate shape and length, case position and every locking-point position. Match the keeps and trigger magnet to the actual door profile; a shared brand or PZ measurement is not enough.

The mechanical AV4 range supports separately specified blueMatic EAV4 and EAV4+ upgrades. Those are AV4-generation 24V DC systems, not a reason to substitute an older 12V EAV motor. The motor, suitable supply, cable transfer and access-control components must be specified together.

Winkhaus describes the range as PAS 24 tested and Secured by Design approved. Installation performance depends on the complete specified doorset, not the replacement lock alone. The stored range guide explains operation and system options; it is not an exact-part dimensioned fitting drawing.

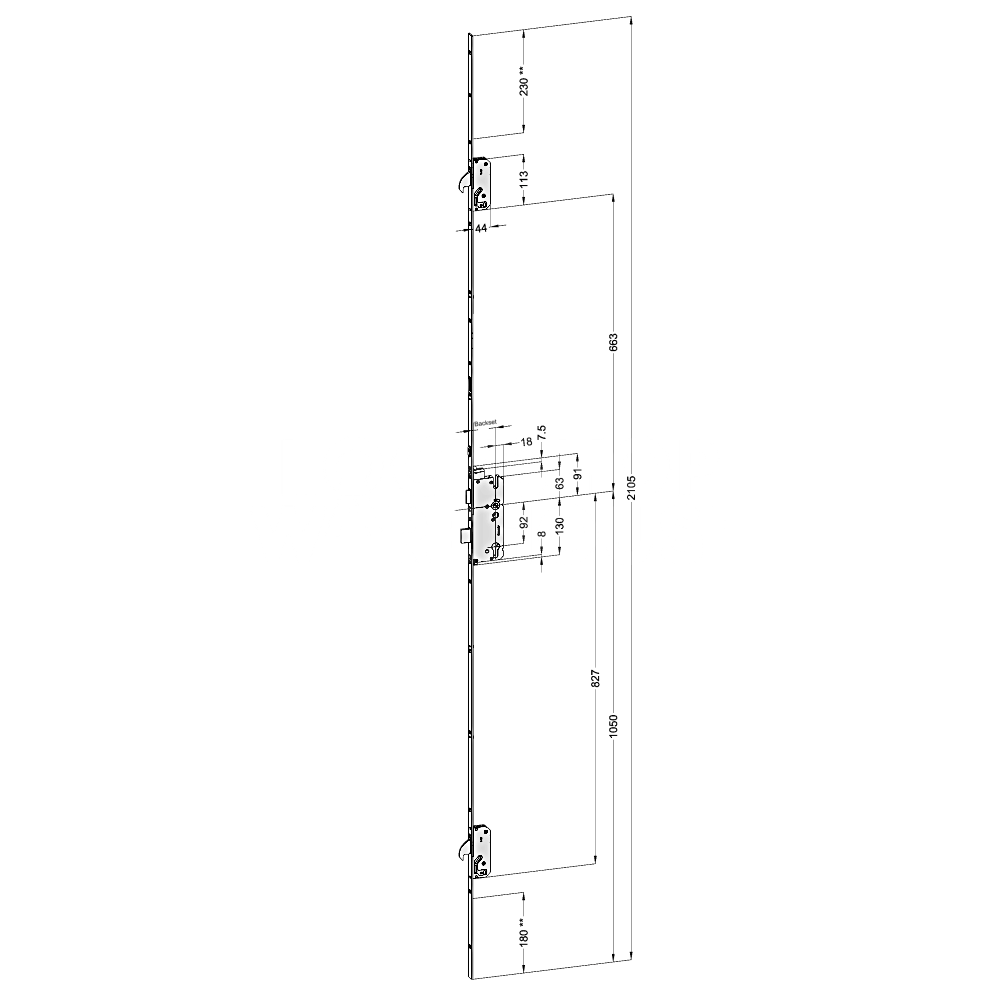

Dimensions Image: Winkhaus AV4 Automatic Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Body Length 2105
Case Width 63
Case Height 193
Faceplate Width 20

Brand

SKU

5097253

Certifications

tick PAS 24:2022

FAQs

Yes, the central magnetic trigger engages the hooks when the door closes against the correctly aligned keeps. With an outside lever handle, the hooks engage when the door closes, but the door is not automatically locked; use the key to lock it.

Yes. The AV4 is designed with a non-handed construction, meaning the same unit can be installed on both left and right-handed doors. This simplifies the selection process for different residential door orientations.

Closing the door engages the hooks, but that is not the same as manually key-locking the lock. With an outside lever handle, the hooks engage when the door closes, but the door is not automatically locked; use the key to lock it. The central deadbolt is operated using the key.

Match the Euro cylinder, spindle arrangement, outside furniture, fixing positions and door thickness to the exact lock and doorset. This listing has 92mm PZ centres, but that measurement alone does not establish handle compatibility. A motorised upgrade requires the matching AV4-generation motor and system components.
