Winkhaus Cobra 2 Hook Lever Operated Multipoint Lock

£111.60

(£93.00 ex VAT)

sku: WINKH-0101
  • Two remote hooks with a centre latch and deadbolt
  • Single follower; nominal 20mm radius-ended faceplate
  • Match the selected reference and complete door/frame preparation

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The listed 35/92, 45/92 and 55/92 versions are distinct references. Match the selected mechanism, reversal instructions, furniture and keeps; Split-follower outside-action claims do not apply automatically to this Single-follower family.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

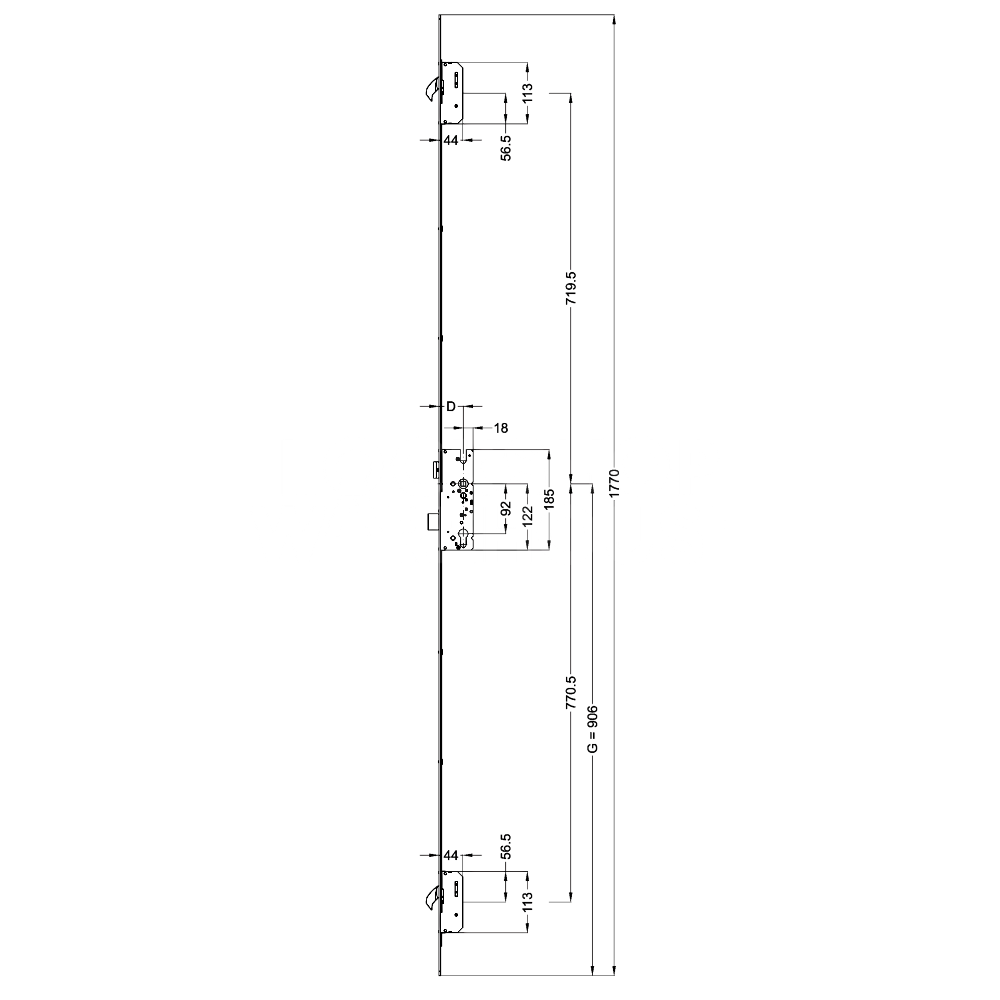

Dimensions Image: Winkhaus Cobra 2 Hook Lever Operated Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 1770 -
Case Width 53 73
Case Height 185 186
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

The supplier lists a Single follower and 92 mm PZ centres. Match the required spindle and lever/lever function, fixing holes, lugs and door thickness; the description does not approve every 92 mm handle set.

Reversible handing is stated in the supplier feature text. The correct reversal method and any restrictions still need confirmation for the selected reference; no unchanged fit in both hands is promised.

The supplier describes lift-lever locking, but no instruction bound to the selected reference has been established. Follow the exact mechanism and doorset instructions; do not infer which elements move on the handle versus the key from generic Cobra copy.

The supplier lists a nominal 20 mm radius faceplate and 92 mm PZ. These do not establish door-profile compatibility. Check the backset, case envelope, strip length, hook stations, fixing positions and frame keep geometry.
