Winkhaus Cobra 2 Hook Multipoint Door Lock

£109.75

(£91.46 ex VAT)

sku: WINKH-0005
  • Two hooks with central latch and deadbolt
  • Lever-operated, split-follower supplied references
  • 20mm radius faceplate
  • 35mm, 45mm and 55mm backset versions
  • Furniture, spindle and keep layout must match the exact reference

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

A lever-operated Winkhaus Cobra multipoint lock with two hooks, a centre latch and deadbolt, and a 20mm radius faceplate. Available in 35mm, 45mm and 55mm backsets.

These three supplied references are described as split-follower locks. Check the spindle arrangement and outside furniture together: matching 92mm centres alone does not establish the required latch function.

For a replacement, match the faceplate profile, backset, case dimensions, hook positions and keeps to the existing door preparation.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

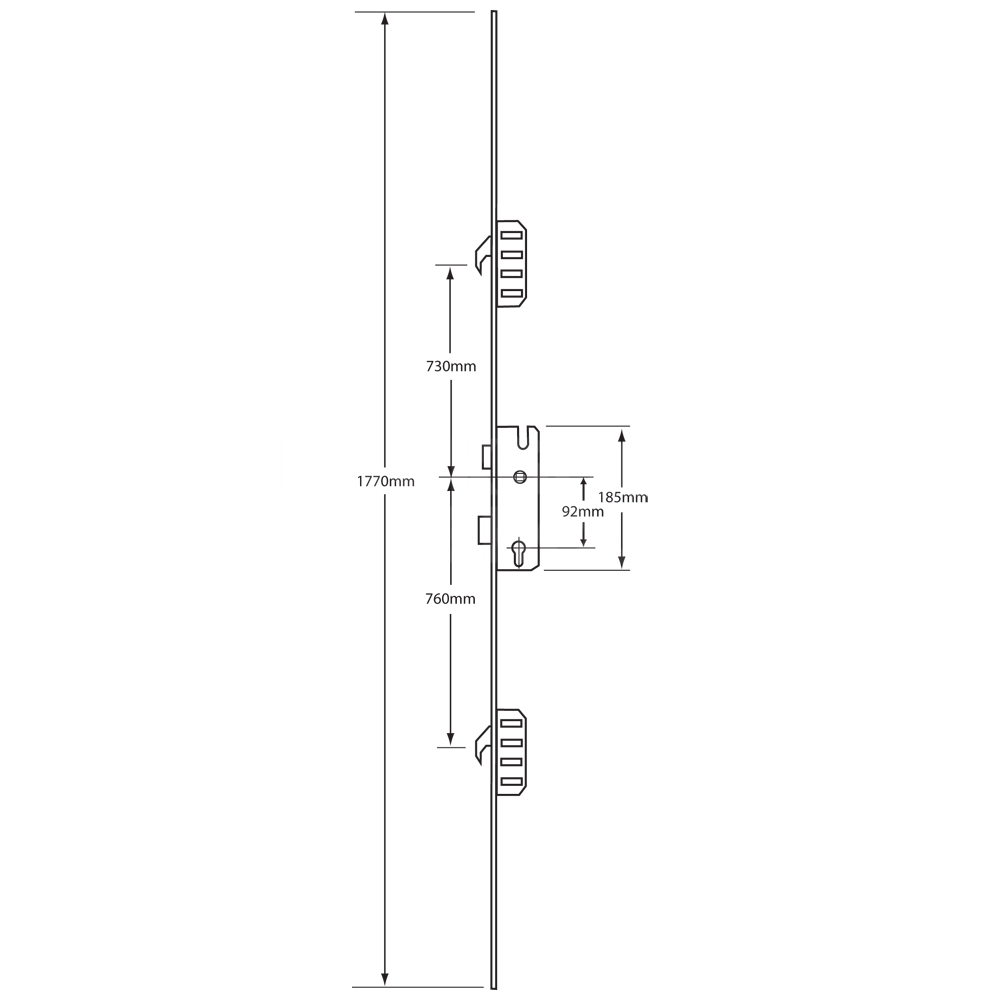

Dimensions Image: Winkhaus Cobra 2 Hook Multipoint Door Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Case Width 50 70
Case Height 185 186
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

Split-follower operation depends on the lock, spindle parts and outside furniture used together. Confirm that combination for the intended outside latch function; a split designation alone does not guarantee key-only entry with every handle set.

92mm PZ centres are one fitting measurement. The follower arrangement, spindle length, handle fixings and door thickness must also match the supplied lock and furniture.

This supplied Cobra family has a central latch and deadbolt plus two remote hooks. The spring latch closes the door for everyday use; secure locking requires the specified operating sequence and correctly matched frame keeps.
