Winkhaus Cobra EFGA 2 Hook Multipoint Lock with Entryguard and Lockout

£267.44

(£222.87 ex VAT)

sku: WINKH-0046
  • Lever-operated latch and deadbolt with two hooks
  • Split-spindle specification
  • EntryGuard door-opening restrictor
  • Separate lockout box
  • 16mm flat faceplate and 92mm centres
  • 35mm and 55mm main-backset variants

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

The Cobra EFGA combines mechanical multipoint locking, restricted door opening and a separate lockout function. EntryGuard engagement is a guard-bar function and does not make this an automatic-hook lock. The exact guard, lockout cylinder preparation and frame parts must be verified for the selected reference.

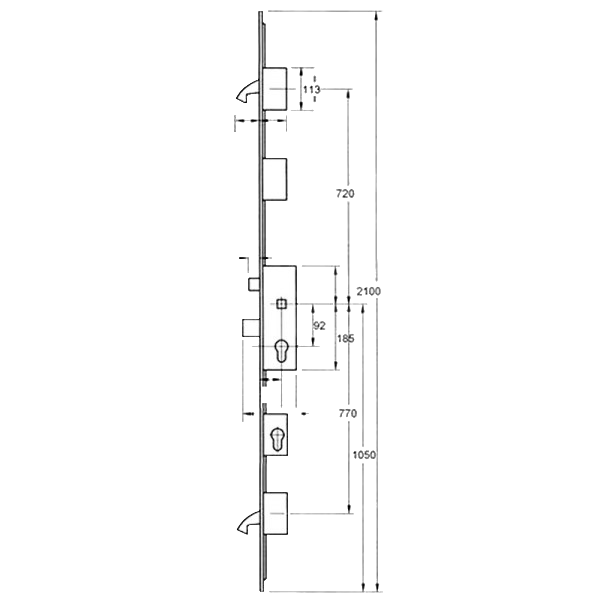

Dimensions Image: Winkhaus Cobra EFGA 2 Hook Multipoint Lock with Entryguard and Lockout
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 2100 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

EntryGuard is an integrated opening restrictor, separate from closed-door multipoint locking. In these mechanical EFGA rows, the supplier's automatic-engagement statement concerns the guard bar, not automatic engagement of the locking hooks.

The supplier describes a separate Euro-cylinder lockout box that disables centre-case operation. The guard, main lock and lockout are distinct functions; their exact release and engagement states require the selected EFGA instructions.

The source identifies a 16mm flat faceplate, 92mm PZ and 35mm or 55mm main backsets. Exact case, guard and lockout preparation and matching frame parts must also be verified; door material alone does not clear fit.

Durability depends on correct installation, alignment and maintenance. Follow the instructions for the supplied EFGA lock and its guard and lockout components; generic Cobra test figures do not establish a service-life guarantee for every assembly.
