Winkhaus Cobra Keywind 4 Hook Multipoint Lock

£143.18

(£119.32 ex VAT)

sku: WINKH-0042
  • Four-hook key-operated supplied family
  • Latch/deadbolt centre case and single follower
  • 35mm backset and 16mm faceplate
  • Left- and right-hand references
  • Four-hook keep layout and furniture require exact matching

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

A key-operated Winkhaus Cobra lock with four hooks, a centre latch and deadbolt, a 35mm backset and left- or right-hand versions.

Match the supplied keywind reference and four-hook layout to the existing door. Both versions have a single spindle; this differs from split-follower Cobra units.

Check the follower, furniture, faceplate and full keep-rail layout before selecting a replacement.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

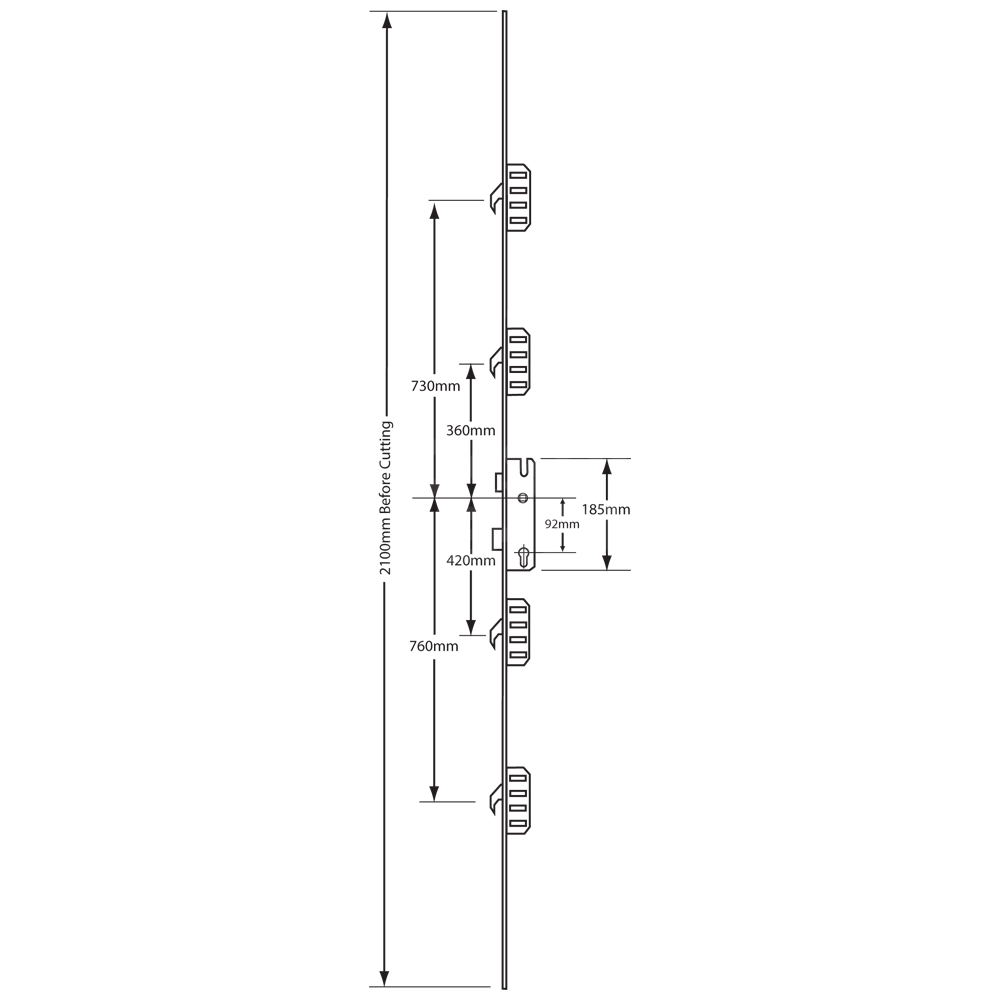

Dimensions Image: Winkhaus Cobra Keywind 4 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 185
Locking Point Hooks 4
Faceplate Width 16

FAQs

This supplied family is key-operated with four hooks and a latch/deadbolt centre case. Exact hook, deadbolt and latch actions must follow its own gearbox instructions, not a two-hook Trulock guide.

Replacement requires the exact four-hook pattern, case, handed reference, faceplate and keep layout to match. It is not a universal replacement for another Cobra lock.

Four hooks are identified in the supplied product description. Cycle and security claims require the exact generation and documented assembly evidence.

92mm PZ alone does not establish furniture compatibility. Match the single follower, spindle, fixings, handed furniture and door preparation to the supplied reference.
