skip to Winkhaus Cobra Keywind Multipoint Door Lock

Winkhaus Cobra Keywind Multipoint Door Lock

£135.86

(£113.22 ex VAT)

sku: WINKH-0053
  • Key-operated locking with a single spindle
  • Latch and deadbolt centre case with two hooks
  • 20mm radius faceplate and 92mm PZ centres
  • 35mm and 45mm backset variants
  • Supplied without keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

These Cobra keywind full units are retained as separate 35mm and 45mm references. The original case generation, complete strip and frame geometry must be matched; a newer KTA operating guide is not an exact replacement instruction. Keeps are supplied separately.

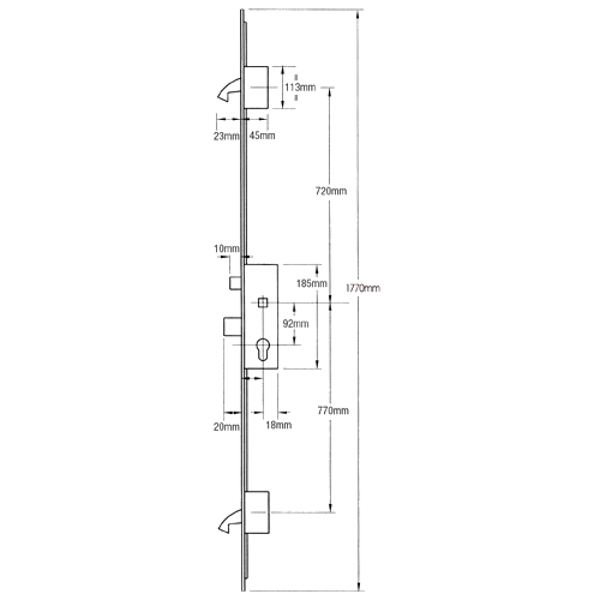

Dimensions Image: Winkhaus Cobra Keywind Multipoint Door Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 -
Case Width 47 -
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

The source identifies key-operated locking with a single spindle. Exact key-turn and latch-release movement must be matched to these Cobra references; a newer Trulock KTA guide is not their model-specific operating manual.

These full units are listed with a 20mm radius faceplate, 92mm PZ and 35mm or 45mm backsets. Matching case generation, remote hook positions and frame parts is required in addition to those values. Keeps are supplied separately.

The supplier describes these references as reversible. The exact latch-reversal procedure and complete strip/frame application still require the selected drawing; the designation is not proof that the lock needs no handing setup.

The selected units have two hooks and a latch-and-deadbolt centre case. Exact accreditation, installed weather sealing and replacement performance remain subject to the selected reference, matching keeps and complete doorset.
