Winkhaus Cobra Lever Operated 2 Hook 2 Roller Split Spindle

£141.90

(£118.25 ex VAT)

sku: 4939384
  • Two remote hooks, two rollers and a centre latch and deadbolt
  • Split follower; nominal 35/92 with a 16mm faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

Match the case, complete hook/roller layout, spindle coupling and frame keeps. The Split label alone does not approve a particular lever/pad set or establish key-only outside access.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

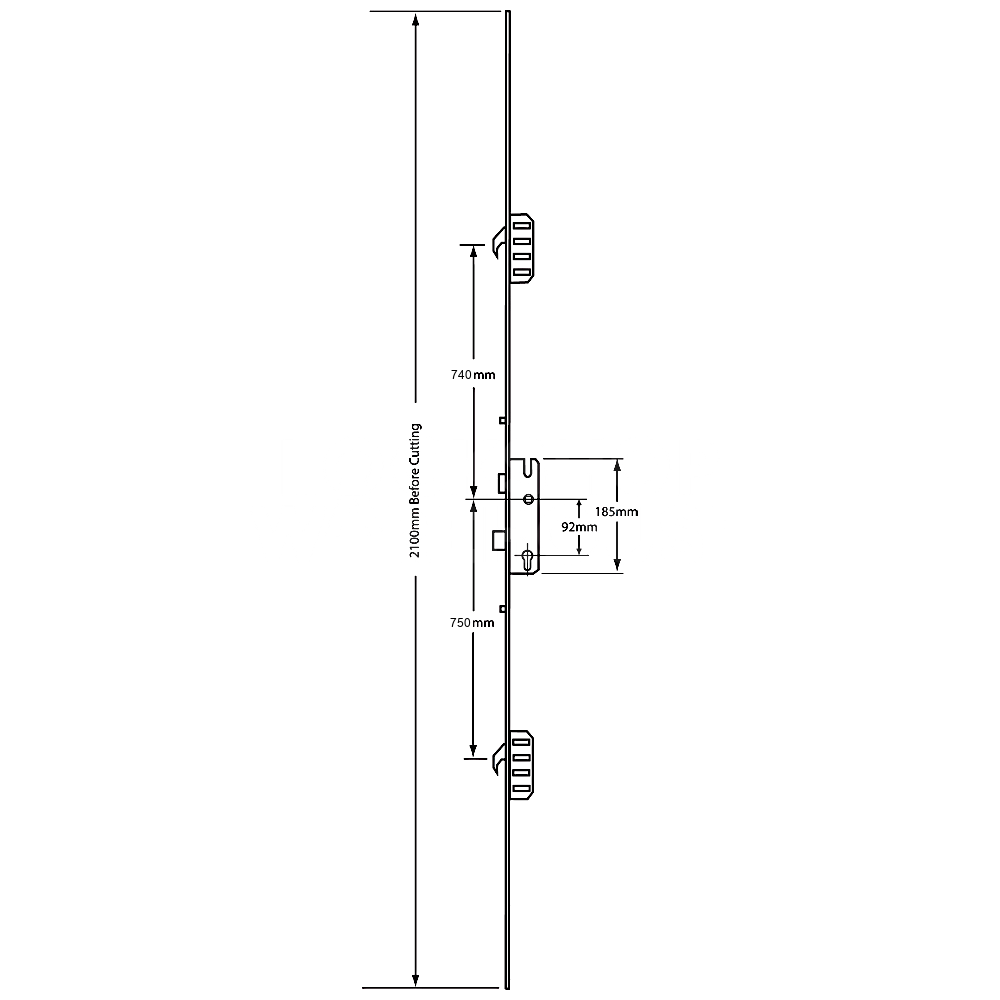

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook 2 Roller Split Spindle
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 185
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The supplier lists two hooks and two rollers. Their exact engagement, compression adjustment and performance depend on the correct mechanism and frame keeps; no thermal-efficiency, draught-free or certified forced-entry outcome is guaranteed.

The supplier marks 4939384 Split. Key-only exterior latch withdrawal requires the correct generation, spindle coupling and furniture. Confirm the fitted arrangement before relying on that function; this is not an automatic-deadlocking claim.

Nominal 35/92 and 16 mm faceplate descriptions do not establish replacement fit. Match the marked reference, case envelope, fixing holes, strip ends, hook and roller stations, follower and frame keep geometry.

Exact-reference cycle and security certification evidence has not been established for 4939384. A generic Cobra brochure does not certify this two-hook/two-roller assembly or its installed doorset.
