skip to Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock

Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock

£136.76

(£113.97 ex VAT)

sku: 2948903
  • Two remote hooks with a centre latch and deadbolt
  • Single follower; nominal 28/92 with a 16mm faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

Match the shallow centre case, strip ends, fixing positions and both hook stations. Neither the 28mm four-hook version nor a 35mm Split-follower unit establishes replacement fit.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

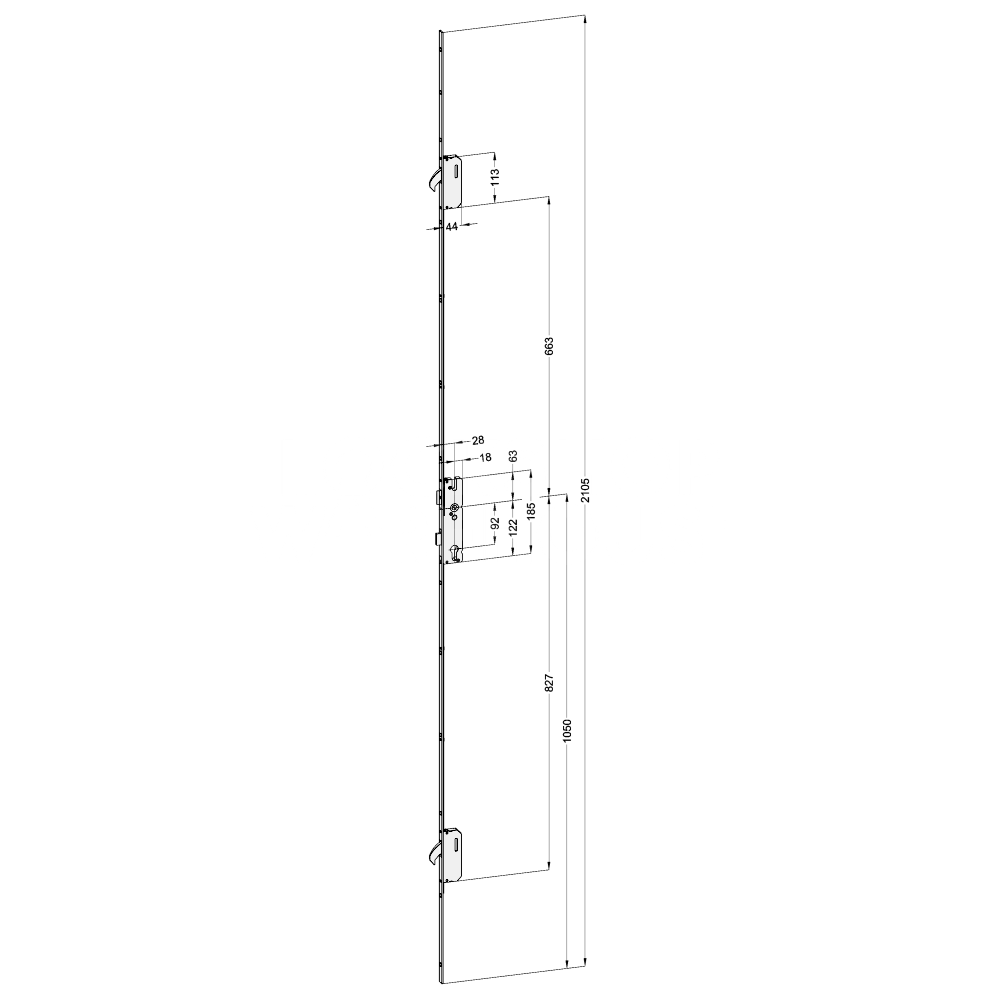

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 28
Body Length 2100
Case Width 47
Case Height 185
Locking Point Hooks 2
Faceplate Width 16

FAQs

The supplier describes 2948903 as lever-operated with a Single follower. An own-reference manufacturer instruction is still needed to establish the correct handle/key sequence; generic range descriptions are not its fitting or operating manual.

Check the marked reference, nominal 28 mm backset, PZ, faceplate width and ends, case envelope, fixing positions, strip length and both hook stations. Also check spindle/furniture and frame keep geometry; 92 mm PZ alone is not enough.

Only after the exact reference and complete geometry are matched. Source-associated L15355 is a 35 mm Split-follower two-hook unit, not a verified replacement for this 28 mm Single-follower unit.

The supplier lists two remote hooks. Exact attack resistance, hook engagement and weather or thermal performance for the installed doorset have not been established, so no sealing or certified security outcome is promised.
