skip to Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock

Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock

£96.80

(£80.67 ex VAT)

sku: WINKH-0002
  • Two remote hooks with a centre latch and deadbolt
  • Split follower; nominal 16mm square-ended faceplate
  • Match the selected reference and complete door/frame preparation

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The listed 35/92, 45/92 and 55/92 versions are separate physical references. Match the selected unit, follower, strip ends, hook stations and frame keeps. The Short and four-hook Cobra families are not substitute fitting drawings.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

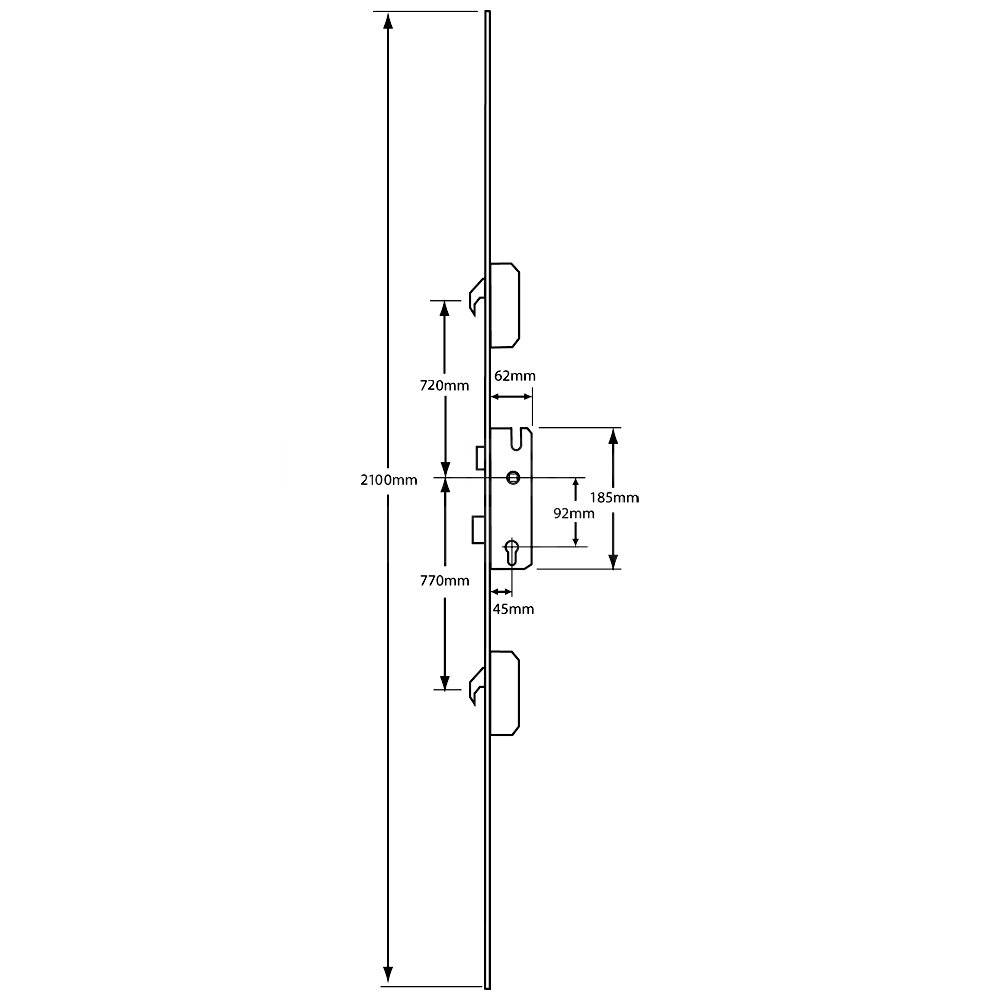

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 2100 -
Case Width 47 60
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

These supplier rows are marked Split. Confirm the selected-reference follower coupling and fitted furniture before relying on any key-only exterior latch function; it is not the same as automatic locking of all points.

The supplier lists two remote hooks, but no exact-reference sealing or insulation performance has been established. Door alignment, matched keeps and seals also determine the installed result.

The supplier lists 92 mm PZ, not universal handle fit. Verify spindle coupling and length, fixing holes, lugs, door thickness and inside/outside action for the selected reference.

The supplier identifies a Euro-profile centre case. Cylinder length, cam/function, furniture projection and doorset requirements still need checking; no particular cylinder SKU or unrestricted interchangeability is approved.
