Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout

£166.46

(£138.72 ex VAT)

sku: WINKH-0044
  • Latch and deadbolt with two hooks
  • 16mm faceplate, 2105mm supplier-listed length
  • 92mm PZ centres and 55mm main-case backset
  • Separate 45mm or 35mm lockout backset configurations

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

Both full units have a supplier-listed 55mm main-case backset, but their lockout backsets differ: 2945121 has a 45mm lockout and 4939381 a 35mm lockout. Both case preparations, cylinder positions and the complete strip must be matched to the door.

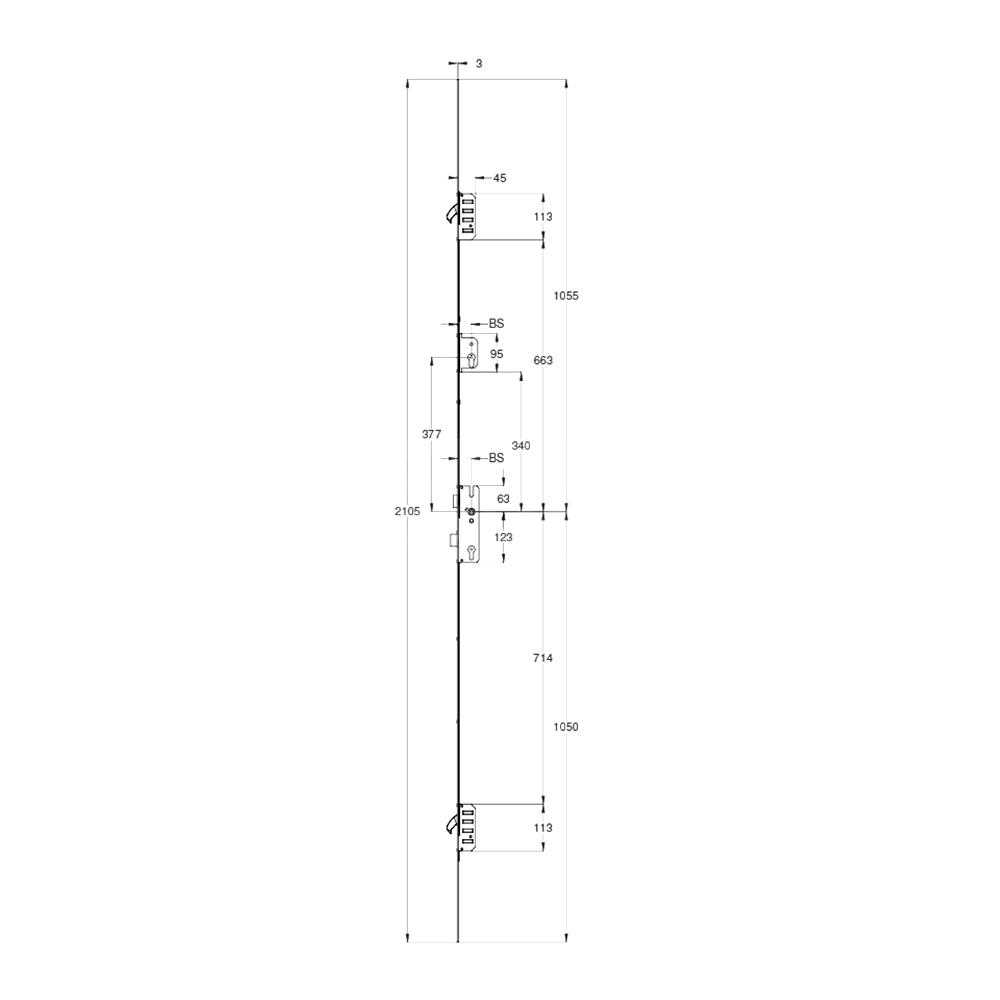

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout
Part Size (mm)
centres 92
Body Length 2105
Case Width 70
Case Height 186
Locking Point Hooks 2
Faceplate Width 16

FAQs

The lockout box is a separate cylinder-operated function that the supplier describes as disabling the centre case. Both variants have a 55mm main backset, with a separate 45mm or 35mm lockout backset. They are not one interchangeable configuration.

The source specifies 92mm PZ and a split spindle, but those values do not establish handle fit. The spindle arrangement, fixing positions, lugs and door thickness must match; the lockout preparation is a separate requirement.

The lock has two hooks and a latch-and-deadbolt centre case. Exact security accreditation and replacement performance require evidence for the selected reference and complete doorset, not the Cobra name alone.

Service life depends on the complete installation, alignment and maintenance. Follow the maintenance instructions for the supplied lock; a range cycle-test figure is not a guarantee of a particular replacement's service life.
