Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout

£208.79

(£173.99 ex VAT)

sku: 2947273
  • Two remote hooks, a centre latch and deadbolt, and a separate lockout box
  • Split follower; nominal 20mm radius-ended faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

This reference has a listed 55mm main backset and 55mm lockout backset. The 55/45 and 55/35 lockout versions are separate configurations. Match both cases, cylinder arrangement, furniture and frame keeps, and follow the exact lockout instructions.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

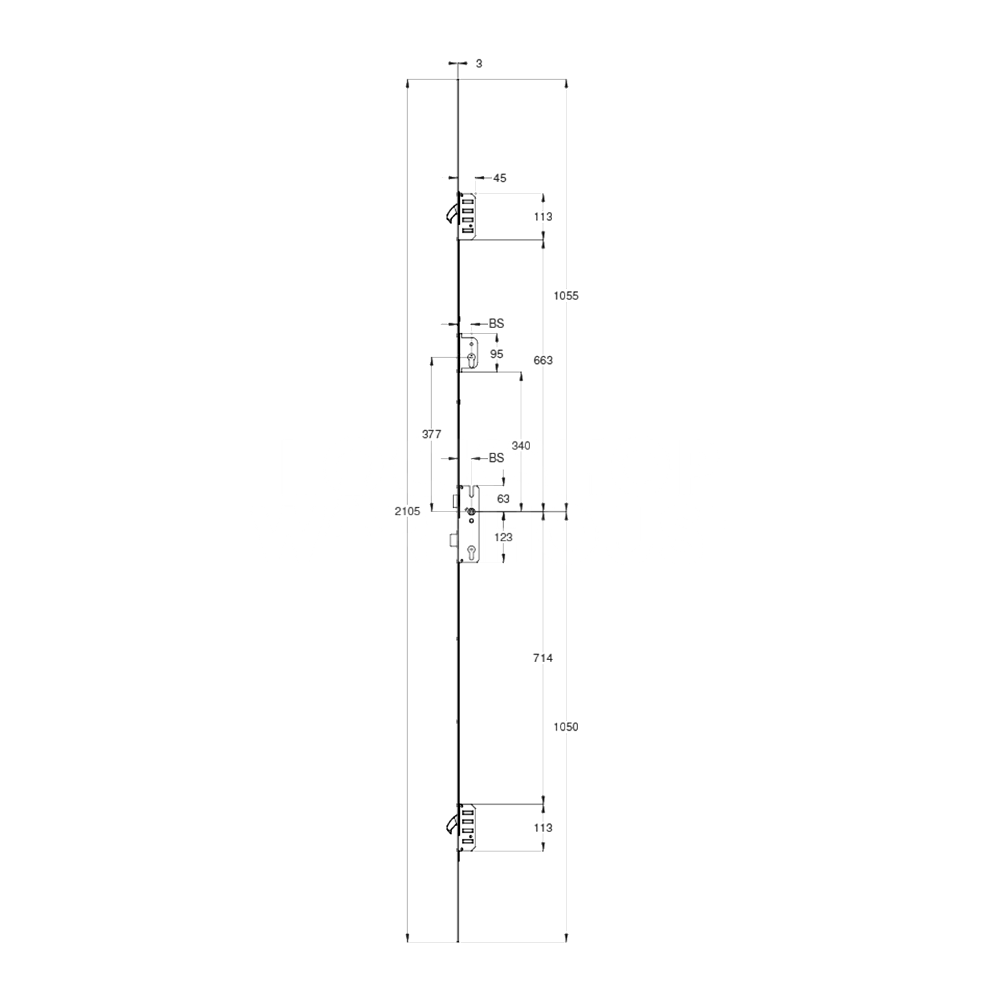

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout
Part Size (mm)
centres 92
Backset 55
Body Length 2105
Case Width 70
Case Height 186
Locking Point Hooks 2
Faceplate Width 20

FAQs

The supplier identifies an additional lockout box on 2947273 intended to restrict main centre-case operation. Its exact cylinder arrangement, engagement and release sequence need the selected-reference instructions; no vacant-property or exit-safety claim is made.

The supplier lists two remote hooks and a central latch-and-deadbolt case, plus a separate lockout box. The latch and lockout function are not counted as additional deadlocking bolts. Exact keep positions and engagement remain to be verified.

The source marks 2947273 Split. Confirm the exact follower coupling, spindle length, fixing geometry, door thickness and inside/outside handle action. The description does not approve every split-spindle furniture set.

The supplier's generic Cobra cycle and security claims do not establish exact 2947273 test coverage or high-traffic suitability. Match the exact configuration and doorset requirements; no certified endurance rating is promised.
