Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout

£168.26

(£140.22 ex VAT)

sku: WINKH-0043
  • Latch and deadbolt centre case with two hooks
  • 16mm faceplate, 1770mm supplier-listed length
  • 92mm PZ centres
  • 45mm main/45mm lockout and 35mm main/35mm lockout variants

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

These short Cobra full units combine lever-operated locking with a separate lockout box. The two retained configurations differ at both the main case and lockout backset. The second cylinder preparation and complete strip geometry must be checked against the original unit.

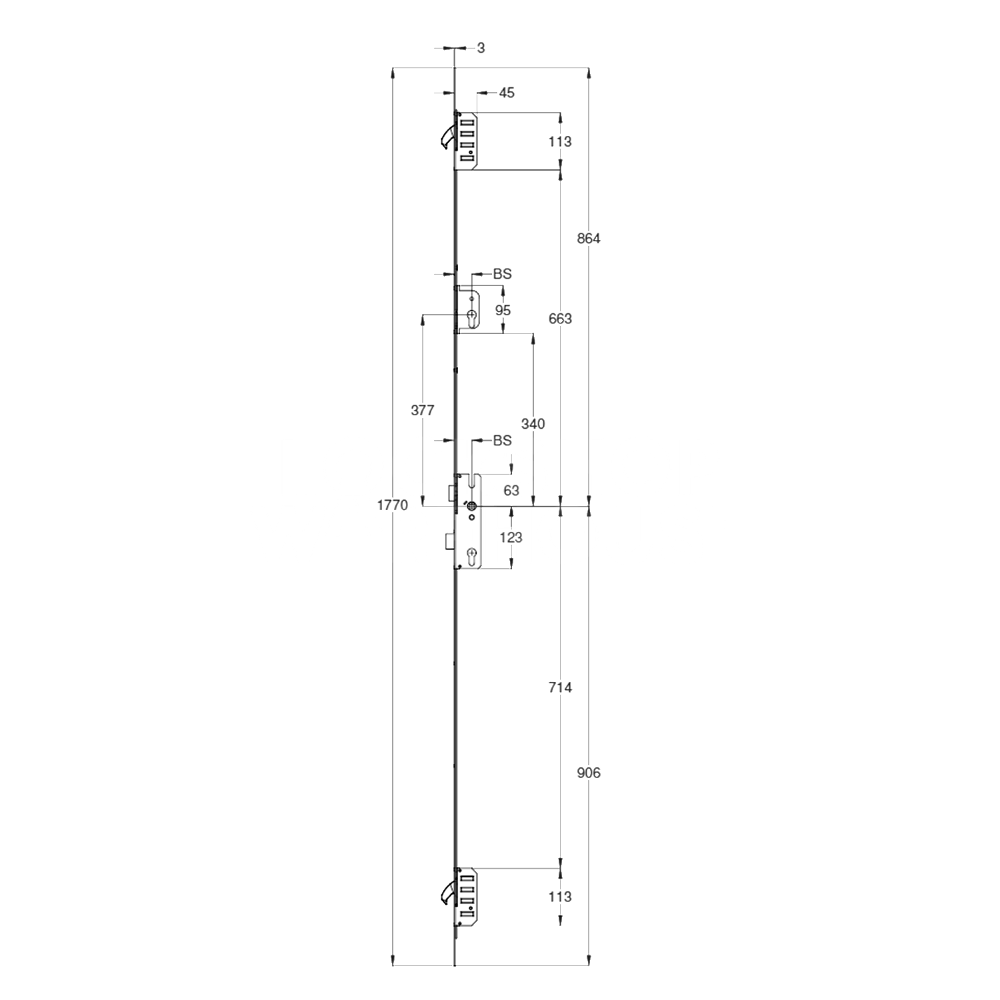

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock with Lockout
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 -
Case Width 47 60
Case Height 186 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

The supplier describes a separate cylinder-operated lockout box that disables centre-case operation. The retained variants have 45mm main/45mm lockout or 35mm main/35mm lockout backsets. The exact engagement and release states require the selected lockout manual.

These short full units are supplier-listed with a 16mm faceplate and 92mm PZ. Faceplate width alone does not establish fit: the main case, lockout cylinder preparation, remote hook positions and frame parts must match the exact reference.

The selected rows specify a split spindle. Correct outside and inside handle action depends on the actual follower, spindle halves and furniture; a split designation alone does not establish that every lever/pad set fits.

These units have two hooks in addition to the central latch and deadbolt. The exact keeps and installed doorset determine engagement and performance; no blanket certified security or weather-seal improvement is cleared for an arbitrary replacement.
