Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock

£156.52

(£130.43 ex VAT)

sku: WINKH-0059
  • Two remote hooks with a centre latch and deadbolt
  • Split follower
  • Match the selected reference and complete door/frame preparation

size

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

The short-format strip must be matched independently from a full-length Cobra. The listed configurations are 35/92 with a 16mm faceplate, or 45/92 with a 16mm or 20mm faceplate. Match the selected reference and hook positions; not every backset is offered in both widths.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

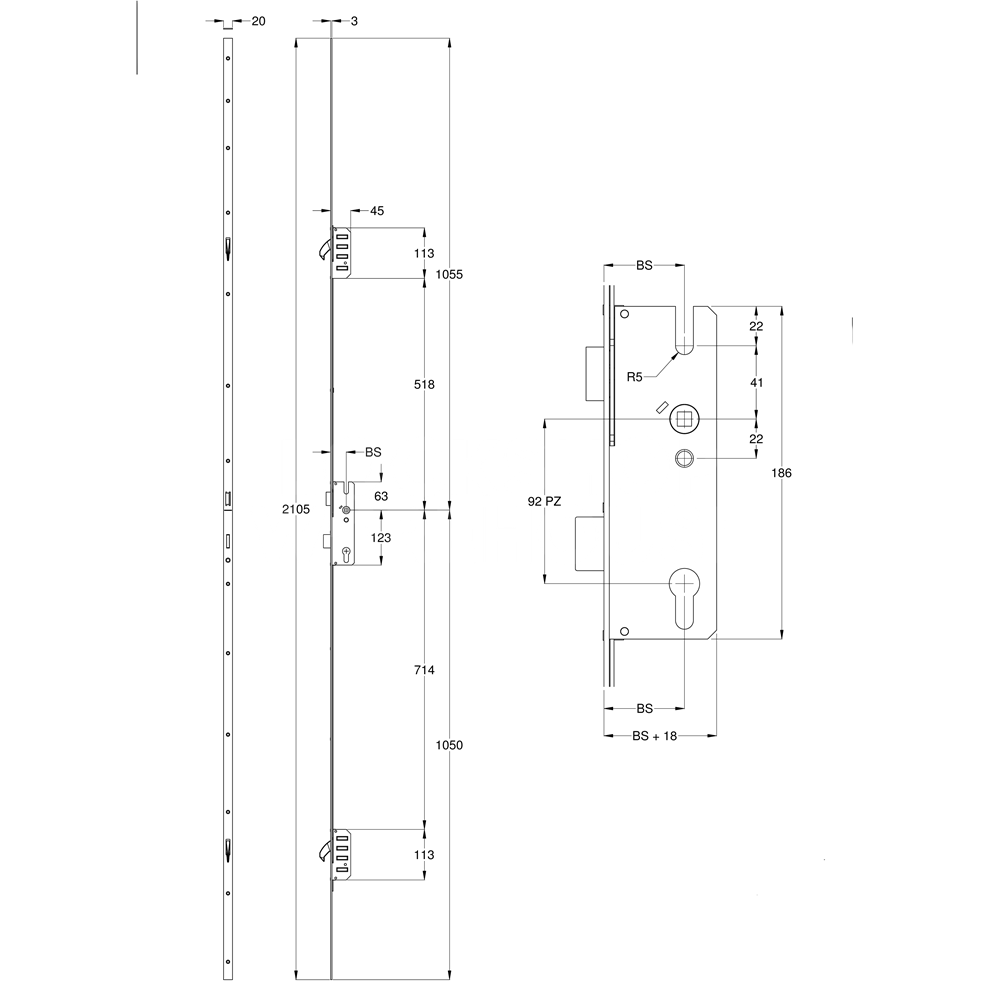

Dimensions Image: Winkhaus Cobra Lever Operated 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 2100 -
Case Width 47 -
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 16 20

FAQs

The supplier lists a Cobra Short unit, but door material alone does not establish fit. Match the marked reference, door routing, faceplate, follower and frame keeps for the selected configuration.

The supplier describes two remote hooks and a central latch-and-deadbolt case. The latch should not be counted as an additional deadlocking bolt, and the exact hook positions still need checking.

The supplier lists 92 mm PZ centres and a Split follower. PZ is not the handle fixing distance. Check the spindle arrangement and length, fixing holes, lugs, door thickness and inside/outside function; do not assume an existing lever/lever or lever/pad set fits.

Exact certificates and test coverage for references 2930691, 2947311 and 4932691 have not been established. A general range statement is not confirmation for this Short version or the complete installed doorset.
