Winkhaus Cobra Lever Operated Latch & Deadbolt 2 Hook Lock

£107.99

(£89.99 ex VAT)

sku: WINKH-0036
  • Two-hook lever-operated family with latch and deadbolt
  • Split follower
  • 20mm flat faceplate
  • 35mm and 45mm backset versions
  • Flat-faceplate preparation remains separate from radius versions

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

A two-hook lever-operated Winkhaus Cobra lock with a latch and deadbolt, split follower and 20mm flat faceplate. Available in 35mm and 45mm backsets.

This is the 20mm flat-faceplate version. Check its backset, case dimensions, locking-point positions and frame keeps against the door preparation.

The supplied references are described as split-follower locks; the correct spindle and outside furniture must be matched to the intended access function.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

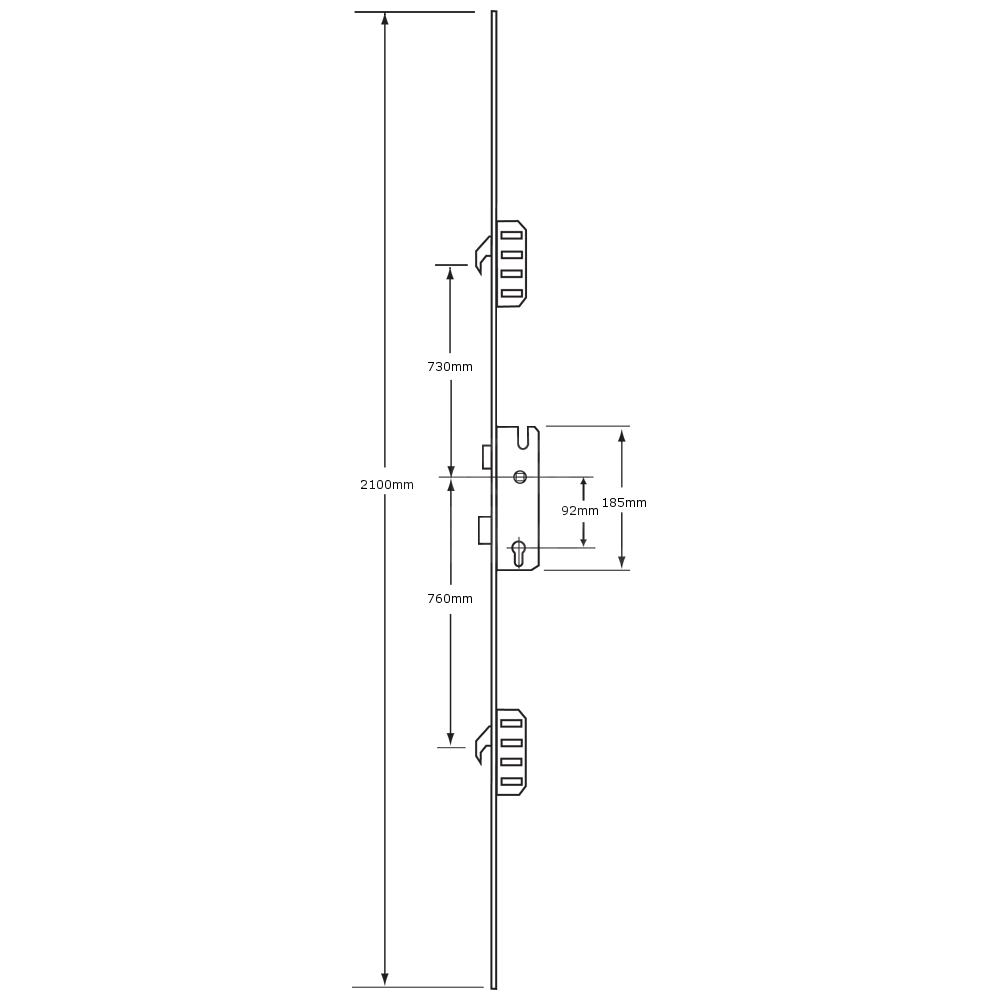

Dimensions Image: Winkhaus Cobra Lever Operated Latch & Deadbolt 2 Hook Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 2100 -
Case Width 50 60
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

This is described as a lever-operated split-follower lock. Use the operating instructions for the exact supplied reference and furniture; do not assume a different Cobra generation has the same action.

The outside latch function depends on the split spindle and furniture fitted to the exact lock. Confirm the complete arrangement before relying on restricted outside entry.

This is the 20mm flat-faceplate family. Replacement fit also requires matching the backset, case, locking-point positions and frame keeps; a faceplate width alone is insufficient.

This Cobra version has a central latch and deadbolt with two remote hooks. Match the hook and centre keeps to the exact door preparation. The complete doorset and hardware determine security and weather performance.
